Summary of Contents for MASSCOOL XWT-RC018

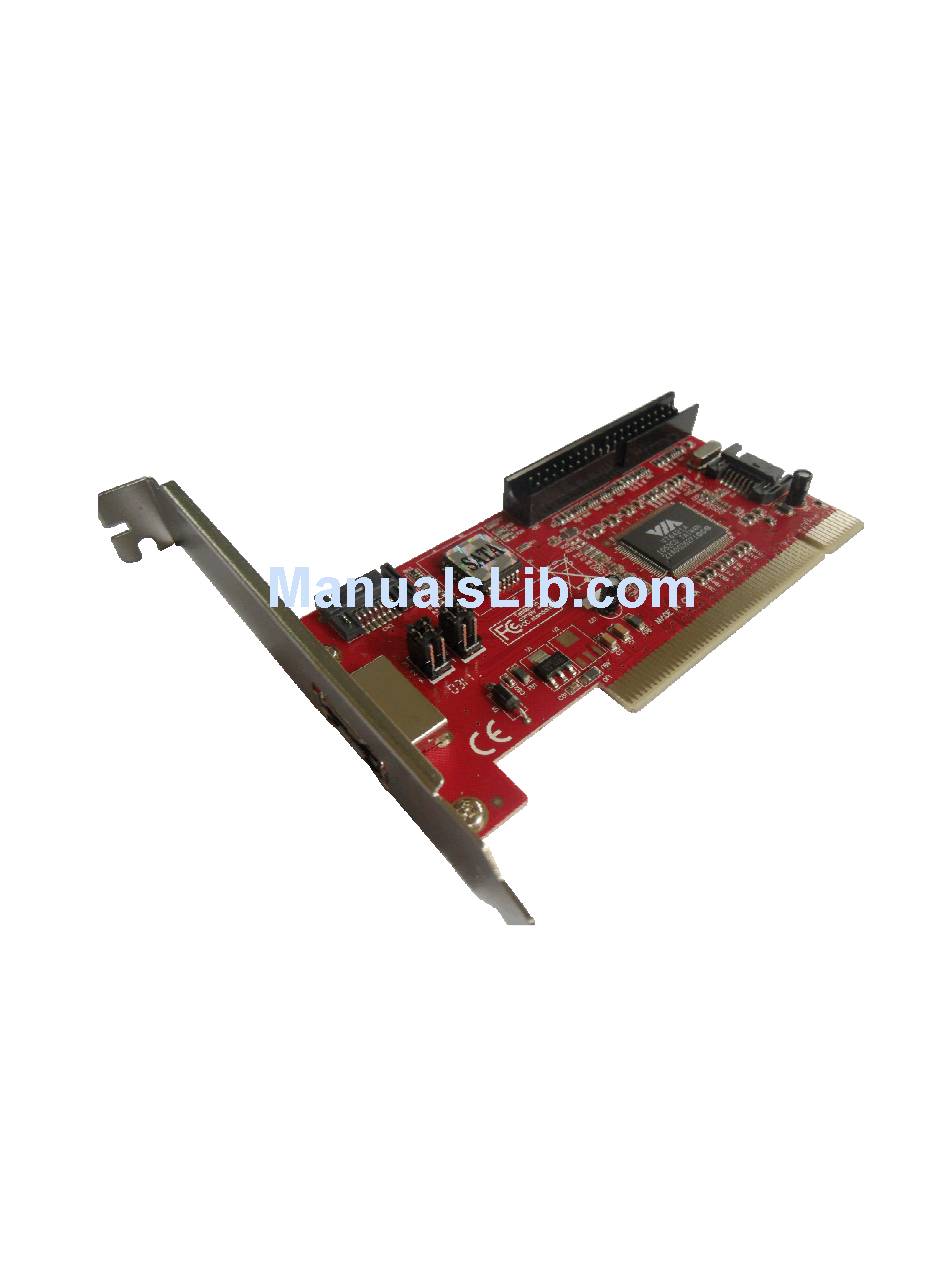

- Page 1 User manual Ver: 2.0 PCI SATA + PATA Raid Card (Apply to VT6421 3SATA+IDE/1e SATA+1IDE+2SATA Products)
-
Page 2: Features And Benefits
Features and Benefits * Compliant with Serial ATA 1.0 specification * Compliant with PCI Specification, revision 2.2 * Provides three independent channels to connect two SATA and one PATA hard disk drive(1x external eSATA I, 2x internal SATA I, 1x internal PATA IDE specification) * Supports up to UDMA6 transfer mode of PATA * Supports up to 4 storage device connection * Supports RAID 0, 1, 0+1 and JBOD functions... - Page 3 Jumper Description Active Port 1-2 Close CN1 and CN2 are working JMP1-JMP2 2-3 Close CN1 and CN3 are working...
