Summary of Contents for Northern Industrial 123006

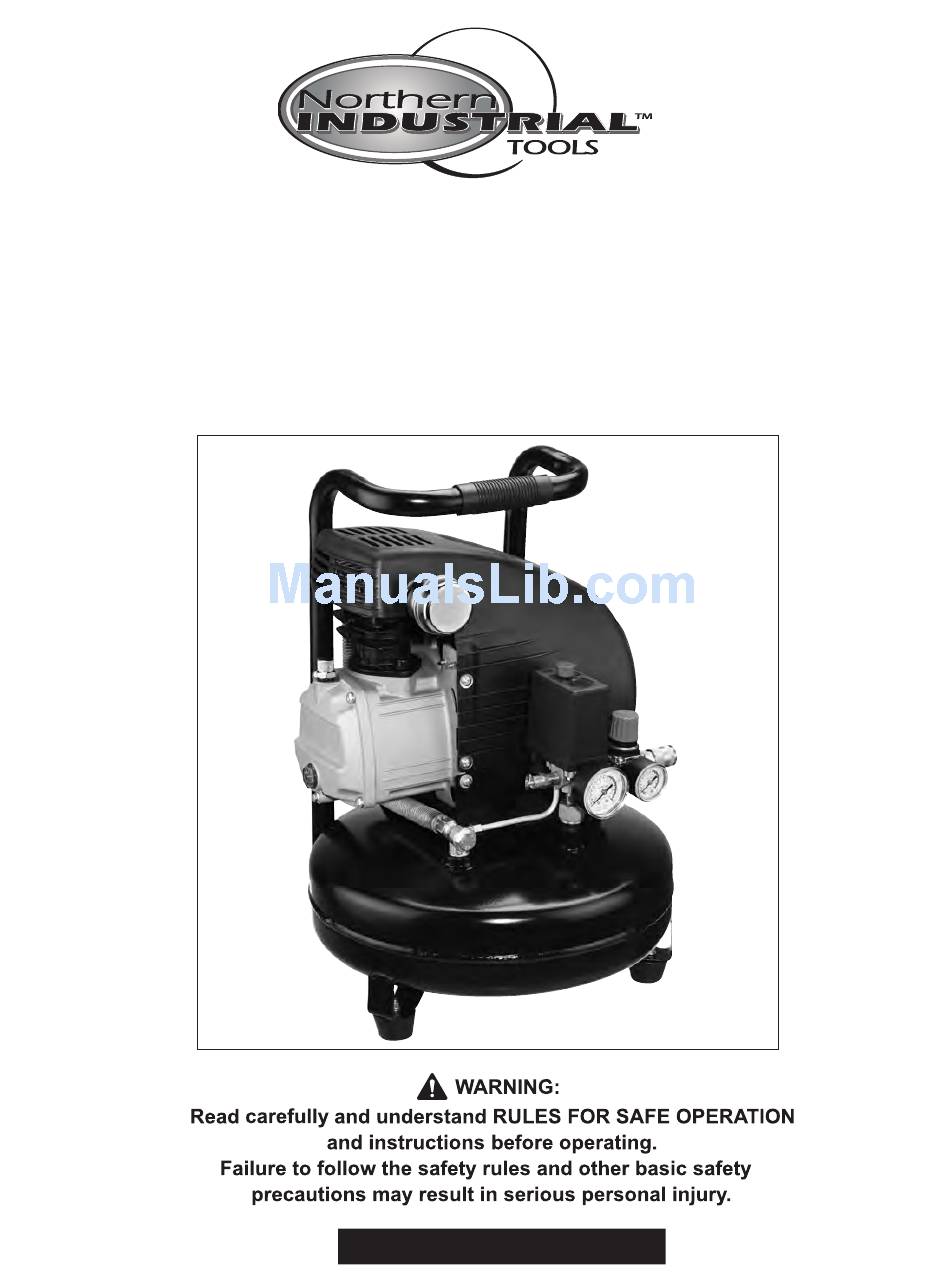

- Page 1 2 HP / 4 GALLON AIR COMPRESSOR OPERATING MANUAL Item # 123006...
-
Page 2: Table Of Contents
READ ALL INSTRUCTIONS BEFORE OPERATING SAVE THESE INSTRUCTIONS Thank you for purchasing your Northern Industrial Air Compressor. Before attempting to operate your new tool please read these instructions thoroughly. You will need these instructions for the safety warnings, precautions, assembly, operation and maintenance procedures. -
Page 3: Safety Rules
SAFETY RULES 1. Know your tool. Read this manual carefully. Learn the tool’s applications and limitations, as well as specific potential hazards peculiar to it. 2. Ground all tools. If the tool is equipped with three- pin plug, it should be plugged into a three-pin electrical socket. -
Page 4: Know Your Compressor
Power Switch: The red tipped power switch turns the air compressor on and off. When switch is in horizontal position, compressor is turned ON. When switch is in vertical position, compressor is turned OFF. -
Page 5: Operation
3. Close Air Tank Drain Valve. Your compressor is ready for use. Depending on the CFM draw of the tools being operated, your new Air Compressor can be used for operating paint sprayers, air tools, grease guns, airbrushes, caulking guns, abrasive blasters, tire &... - Page 6 Do not place rags, containers or other material on top of the compressor. Connecting to Power Source This air compressor is designed to operate on a properly grounded 120 volt, 60Hz, single phase, alternating current (ac) power source with a fused 20 amp time delayed fuse or circuit breaker.
-
Page 7: Maintenance
6 Months (or after 250 hours of operation - whichever comes first) 1. Change Air Compressor Oil. Note: Change oil more often if Air Compressor is used near paint spraying operations or in dusty environments. Checking the Air Compressor Oil 1. -
Page 8: Troubleshooting
TROUBLE POSSIBLE CAUSE Compressor Won't Start 1. Blown Fuse or Circuit Breaker Tripped 2. Loose Electrical Connections Low Pressure 1. Restricted Air Filter 2. Defective Check Valve 3. Air Leak in Safety Valve Safety Valve Releasing 1. Defective Pressure Switch Oil Discharge in Air 1. -
Page 9: Parts List And Diagram
PARTS LIST AND DIAGRAM Part No. Description Plastic Housing Spring Washer Washer Screw M5x14 Screw M5x115 Rear Cap Washer Bearing 6202 Stator Rotor Starting Capacitor Running Capacitor Bearing 6204 Oil Seal Nut M8 Crankcase Crankshaft Screw M8x16 (left hand) Gasket Crankcase Cover Oil Sight Glass Parts List and Diagram...
