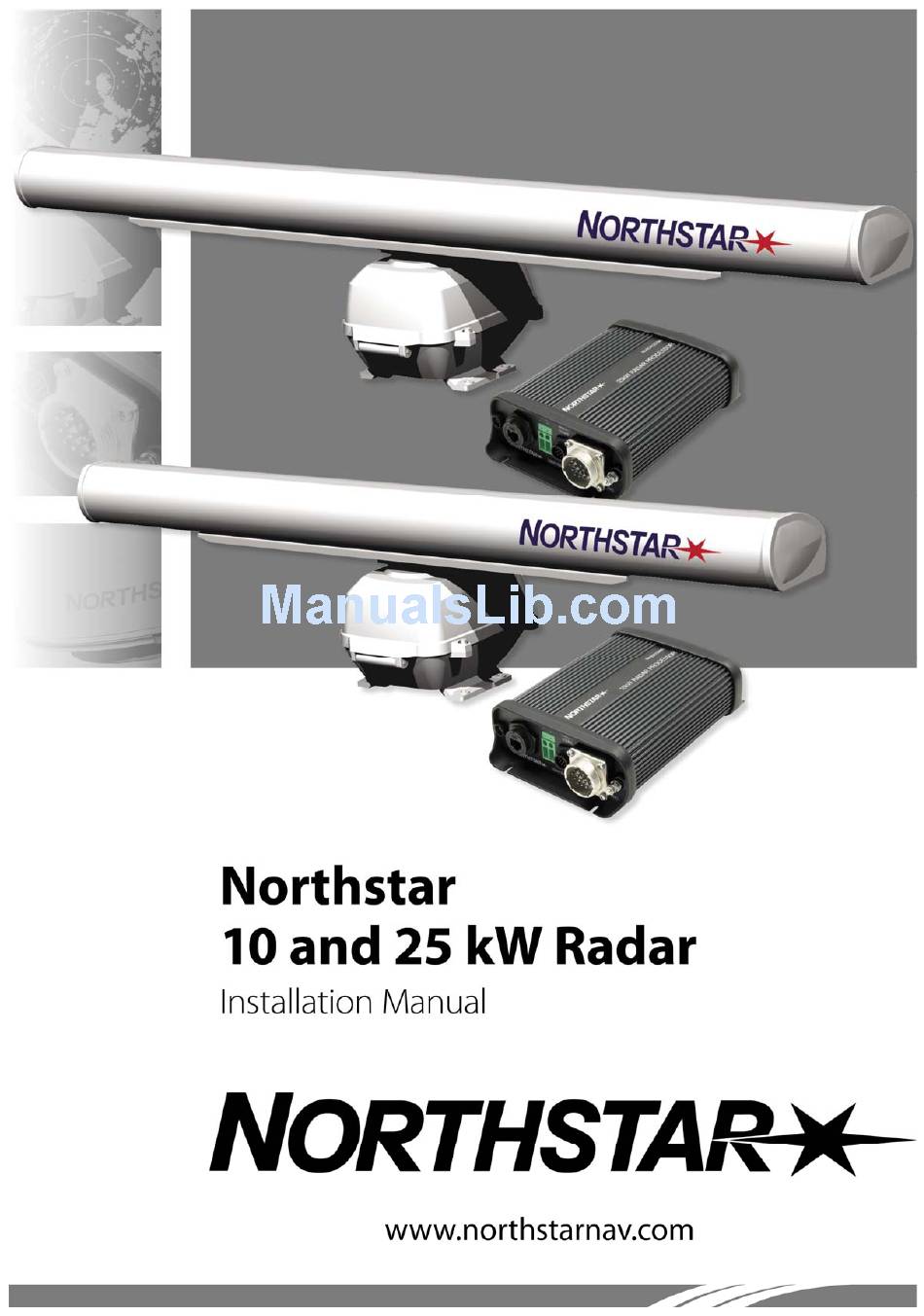

North Star 10 kW Installation Manual

North star radar installation manual
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 10 kW and is the answer not in the manual?

Questions and answers

Summary of Contents for North Star 10 kW

  • Page 2: Fcc Statement

    FCC Statement Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a normal installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

  • Page 3: Disclaimer

    Disclaimer As Northstar is continuously improving this product we retain the right to make changes to the product at any time which may not be reflected in this version of the manual. Please contact your nearest Northstar distributor if you require any further assistance. It is the owner’s sole responsibility to install and use the instrument and transducers in a manner that will not cause accidents, personal injury or property damage.

  • Page 4: Table Of Contents

    Contents FCC Statement Industry Canada Compliance Statement Disclaimer Warranty Feedback from you Preface Introduction to the Northstar radar Check the 25 kW radar parts 10 25 kW radar system overview 11 Install the radar 11.1 Choose the scanner location ...14 11.1.1 Power boat installations...16 11.1.2...
  • Page 5 11.2 How to find the optimum height for the scanner ...17 11.3 How to find the maximum detection range...18 11.4 How to reduce false echoes and shadow zones ...19 11.5 Install an open array scanner on a trestle...19 11.6 25 kW radar dimensions ...20 11.7 Install the 25 kW scanner unit...21 11.8 When to install the open array ...21 11.9 Install the radar processor...22...
  • Page 6 15 Maintenance 15.1 General maintenance...45 15.2 Scanner maintenance ...45 15.3 Other maintenance items...45 16 Troubleshoot the radar 16.1 Technical support, service and repairs ...46 16.2 Radar is not operating correctly ...46 16.3 If the scanner fails to turn ...47 16.4 How to reduce noise and interference...47 16.5 Make sure the power is present and correctly wired ...48 16.6 Confirm the equipment installed...48 16.7 Are Range Rings displayed? ...48...

  • Page 7: Preface

    Preface This manual explains how to install the scanner and the radar processor. It also explains how to set up the radar system after installation and gives information on troubleshooting. This manual is supplementary to the Northstar 6000i/6100i Installation and Operation Manual and the Northstar 8000i System Installation documentation.
  • Page 8 (degrees) 2 kW 4 kW 6 kW 10 kW 25 kW NOTES: Limits apply to exposure within the vertical beam angle. Note 1: Peak occupational exposure limit pursuant to IEC 60936 Clause 3.27 and IEC 62252 Clause 4.32 Note 2: General public exposure limit pursuant to IEC 60936 Clause 3.27 and IEC 62252 Clause 4.32 and physical hazards, injury or death.

  • Page 9: Introduction To The Northstar Radar

    The Northstar radars are designed as an option available to the Northstar 6000i, 6100i, or 8000i systems. A variety of scanner models are available (2 kW, 4 kW, 6 kW, 10 kW and 25 kW) to suit different customer requirements. Each scanner model has a corresponding radar processor model.

  • Page 10: Warranty 3

    NS00310X interconnection cable - order separately Quantity Item NS004784R 25 kW radar processor standard components Quantity Item Installation LA000414A template MTZ303535 Mounting template ????? Packing list ???? Part name Part number Interconnection NS003105 length cable 65.5 ft (20 m) NS003106 length 98.4 ft (30 m) Part name Part number...
  • Page 11 NS004794R 25 kW open array standard components Quantity Item NS00481X cable for 8000i installation only - order separately Quantity Item Northstar 25 kW Radar Installation Manual Spare 10 A fuse ????? (motor) Mounting screw HR000061 Part name Part number 25 kW open array NS004794 Assembly LA000277A...
  • Page 12 NS003107 cable for 6000i and 6100i installations only - supplied with 6000i and 6100i system Quantity Item NS003108 Optional extension cable for 6000i and 6100i installations only - order separately Quantity Item Part name Part No Radar NS003107 communications cable for 6000i and 6100i installations ONLY.

  • Page 13: 25 Kw Radar System Overview

    25 kW radar system overview The radar system is intended for use in a marine environment. The 25 kW radar system consists of a scanner and an open array, connected to the 25 kW radar processor by a prefabricated interconnection cable which is available in two lengths (NS003105 or NS003106).

  • Page 14: Install The Radar

    Install the radar A radar unit should only be installed by a qualified marine technician, as potentially lethal high voltage is present along with heavy rotating parts. There is a transmit interlock that prevents radar transmissions if the scanner is not rotating. However, a high voltage remains for a period of time after the system is turned off.
  • Page 15 The compass safe distances are as follows: 2 kW radar 4 kW radar 6 kW radar 10 kW radar 25 kW radar Northstar 25 kW Radar Installation Manual STD 2.3 ft (0.7 m) STEER 1.6 ft (0.5 m)

  • Page 16: Power Boat Installations

    11.1.1 Power boat installations Normally, you should install the scanner horizontally, to produce an equal sweep around the power boat: However, when the power boat is traveling at high speed, the bow rises up out of the water and if the elevation angle (trim) of the bow is raised up so that it equals, or exceeds, 50% of the vertical beam width of the radar, this can cause two problems: ahead of the power boat, the beam is projected too high to sweep the water surface...

  • Page 17: Yacht Installations

    θ° value (half the -3 dB beam width) Scanner model 2 kW 4 kW 12.5 6 kW 10 kW 25 kW Northstar 25 kW Radar Installation Manual...

  • Page 18: How To Find The Maximum Detection Range

    An example of an A-B Line is shown in the picture. If you install the scanner below the A-B line, the scanner will be too low. It will be difficult to acquire distant targets and the superstructure will be more likely to impede the passage of the beam and generate false echoes. If the scanner is installed too high above the A-B line, the beam will miss close targets and increase sea clutter return.

  • Page 19: How To Reduce False Echoes And Shadow Zones

    Calculations using the formula show that, at this distance, the radar can only detect objects that are more than 25 ft (7.6 m) high, which means that Island A is shown on the radar but Island B is not shown. Remember that: the maximum detection range of the radar is limited by the curvature of the Earth's surface under normal conditions of wave propagation.

  • Page 20: Kw Radar Dimensions

    If the trestle height (A) is less than 2 m high, use the angle joint method as shown: If the trestle height (A) is more than 2 m high, install a radar mast secured with guy wires as shown: 11.6 25 kW radar dimensions The 25 kW radar has an open array with a rotation diameter of 89.4"...

  • Page 21: Install The 25 Kw Scanner Unit

    11.7 Install the 25 kW scanner unit Tape the paper installation template securely to the chosen location site. Before drilling, check that: the location site is not more than 0.6" (15 mm) thick, to ensure that you can use the bolts supplied.

  • Page 22: Install The Radar Processor

    11.9 Install the radar processor Install the radar processor in a dry location away from spray, rain, drips, and condensation. The location site must allow you to easily connect the radar processor to the ship's ground, the interconnection cable, the power cable, and the 6000i and 6100i radar communications cable or the 8000i network cable.

  • Page 23: Wire The Radar System

    Wire the radar system Always install a separate circuit breaker or separate fuse for the radar system circuit. 12.1 Wiring guidelines Most installation problems are caused by shortcuts taken with system cables. When wiring the radar: DON'T make sharp bends in the cables. DON'T run cables in a way that allows water to flow down into the connectors.
  • Page 24 Tear away the tape (A) then unravel the shield mesh and wrap this around the washer as shown. Check that the interconnection cable is positioned so that you can easily connect it to the J connectors, as shown: Screw down the cable holders and clips to keep the interconnection cable in place inside the scanner. The interconnection cable must be clumped at the copper tape at location A.
  • Page 25 Connect the five interconnection cable connectors (B, C, D, E, and F) to the J connectors as follows: Cable connector B (P2) C (P1) D (P3) E (P4) F (P5) Close the scanner with the screws. The wiring details for the connector ends B, C, D, E, and F are as follows: NS003105/NS003106 Interconnection cable - connector ends Color Blue / Gray (big)

  • Page 26: Kw Radar Processor Connectors

    Shield line Orange (medium) Shell Braid shield 12.3 25 kW radar processor connectors There are four interface connectors on the rear of the 25 kW radar processor, plus a chassis earth. Northstar 25 kW Radar Installation Manual...

  • Page 27: Run The Interconnection Cable (Ns003105/Ns003106) To The Radar Processor

    You can connect the radar processor to either the Northstar 6100i OR to the Northstar 8000i, but not to both simultaneously. 25 kW radar processor interface connectors Connector name Connector function Network Ethernet communications for the 8000i Power (+Ve and -Ve) Power input NMEA / Comms Data communications (for the...

  • Page 28: Earth The 25 Kw Scanner

    The front view of the interconnection cable is shown: The interconnection cable pin details are provided here for information, in case the connector needs to be removed to feed the cable, or in case the cable needs to be shortened. Color Blue / Gray (big) Purple / Brown (big)

  • Page 29: Install The 25 Kw Open Array

    12.6 Install the 25 kW open array IMPORTANT: Install the open array onto the scanner ONLY after you've connected the 25 kW interconnection cable. Use the assembly sheet provided and check that you've got all the components shown. Follow the instructions on the assembly sheet to install the open array.

  • Page 30: Connect The 25 Kw Radar Processor To A 6000I Or 6100I Display

    12.7 Connect the 25 kW radar processor to a 6000i or 6100i display The following diagram shows the recommended method for connecting the radar processor to a 6000i or 6100i display unit: Item Function Junction box Northstar 25 kW Radar Installation Manual...

  • Page 31: Connect The Radar Communications Cable (Ns003107) To The Junction Box

    To NMEA Device 1 To NMEA Device 2 To Smartcraft Remote power Circuit breaker/fuse box Optional radar communications extension cable (NS003108) Vessel's Ground NTSC Video Input Fuse (7A) GPS antenna Power NMEA Ethernet VGA (out) 12.7.1 Connect the radar communications cable (NS003107) to the junction box The free ends of the radar communications cable (NS003107) must be terminated in a junction box (see the figure in the previous section).
  • Page 32 NMEA 1 OUT GROUND NMEA 2 IN A NMEA 2 IN B NMEA 2 IN GROUND NMEA 2 OUT A NMEA 2 OUT B NMEA 2 OUT GROUND RS-232 GROUND RS-232 RX RS-232 TX REMOTE SAVE 6000i or 6100i REMOTE POWER OUT SHIELD RADAR REMOTE POWER...

  • Page 33: Configure The Remote Power Control For A 6000I Or 6100I (Common Power Source)

    Connector 3 - SmartCraft pin assignments 12.7.2 Configure the remote power control for a 6000i or 6100i (common power source) IMPORTANT: This remote power control option works correctly only when the 6000i or 6100i and the radar processor share the same power earth and are located 16.5 ft (5 m) or less apart. A simplified diagram of the power control circuit for the radar processor and 6000i or 6100i is shown: where: Component...

  • Page 34: Configure The Remote Power Control For A 6000I Or 6100I (Different Power Sources)

    The radar processor has two remote power inputs with opposite active states which are OR’ed together. Pin 10 input (active low) is used by the 6000i or 6100i systems and Pin 12 input (active high) is used by the 8000i system. Pin 12 is tied to ground through the NS003107 cable, to allow control through Pin 10.

  • Page 35: Connect The 25 Kw Radar Processor To An 8000I Display

    Relay with (normally) closed contact Fuse NMEA port Power port Fuse /Breaker board J and K Battery If you want the radar to power ON automatically when the radar processor is powered ON, omit the relay and leave Pin 10 and 12 on Connector 1 (the NMEA/Comms connector) as No Connect.

  • Page 36: Configure The Remote Power Control For An 8000I

    12.9 Configure the remote power control for an 8000i NOTE: At the time of printing this manual, the 8000i does not support remote power control of network modules. This feature will be added in future release. The radar processor supports this feature through Pin 12 on the NMEA/Comms port. If you want the radar processor to power ON automatically whenever power is applied, leave Pin 10 and Pin 12 of the NMEA/Comms connector as No Connect.

  • Page 37: Connect The Power Cable

    2 kW 4 kW 10 A 6 kW 10 A 10 kW 15 A 25 kW 15 A Typically the fuse /breaker would be located in a fuse/breaker box with the fuses/breakers for other devices. The radar processor must have it's own exclusive fuse/circuit breaker. The fuse/circuit breaker should be labeled appropriately.

  • Page 38: Radar System Checklist

    The eyelets must be crimped or soldered at both locations (A) and the method of connection to the vessel's hull is shown at (B). If you are installing the radar processor on a vessel with a non-metallic hull, connect the radar processor Chassis Earth to the vessel's ground network.

  • Page 39: Set Up The Radar With The Northstar 6000I Or 6100I

    Set up the radar with the Northstar 6000i or 6100i 14.1 Turn the radar on and off 14.1.1 Before you turn on the radar for the first time To extend magnetron lifetime, you're recommended to leave the radar in Standby mode for 30 minutes when activating the radar for the VERY FIRST time.

  • Page 40: Configure The Navigator Communications

    14.2 Configure the navigator communications IMPORTANT: If you are going to operate the radar without a heading sensor, ignore this section and set up the radar as described in "Disable the header sensor input". To enable the radar to communicate with the navigator, set up the radar option on the navigator's PORT 2 SETUP screen as follows: 1.

  • Page 41: Calibrating The Radar

    14.4 Calibrating the radar You must calibrate the newly installed radar by adjusting the trigger delay and the heading calibration. To evaluate medium and short range returns, you are recommended to perform the calibration at sea in a normal operating environment and under fair weather conditions. There should be an area of at least 3 nautical miles forward of the vessel, containing known targets including the coastline.

  • Page 42: Set The Trigger Delay

    2. Press Page 2, Page 3, Page 4 then Install... and then Tune..3. Press STC Curve then use the keypad to enter a curve number from 0 to 8. 14.4.4 Set the trigger delay There are two methods that you can use to set the trigger delay. The two methods should produce very similar settings.

  • Page 43: Set The Heading Calibration (Heading Sensor Not Installed)

    IMPORTANT: Make sure the heading sensor is calibrated according to the manufacturer's recommendations. 1. When performing a sea trial of the vessel, set a straight course for a solid object such as a lighthouse, jetty or radar navigation marker that is at least 1 nautical mile distant as referenced on the chart.

  • Page 44: Restore All The Factory Settings

    ranges, and the Range Rider will store these settings for each range. Then, when you select a particular range again, the settings are already optimized. Manual is a fully manual function in which you will usually need to adjust the settings manually each time you change the range.

  • Page 45: Maintenance

    Maintenance Before doing any maintenance work, always ensure that the radar system is turned OFF at the main power source. If a rectifier unit is used, turn OFF the power supply to this too. Remember that high voltages from the rectifier unit are always present, even if the radar is not operating, and these can cause severe injury or death.

  • Page 46: Troubleshoot The Radar

    Troubleshoot the radar This appendix gives information on fixing possible problems with the radar. Many problems are caused by: faulty or loose contacts at switches and relay points poor adjustment of the radar (particularly inadequate tuning adjustment) poor maintenance (particularly of the cables) You'll save yourself a considerable amount of time if you check these items before placing a call to Northstar;...

  • Page 47: If The Scanner Fails To Turn

    check for physical damage to the cables (such as fraying) and for any loose connections check for water damage to the radiator or to the cables between the radar components check that the tuning is adjusted correctly check the magnetron and replace if necessary (see the Service Manual) check the modulator circuit and replace if necessary (see the Service Manual) check the receiver circuit and replace if necessary (see the Service Manual) check for interruptions in the pulse switching signal...

  • Page 48: Make Sure The Power Is Present And Correctly Wired

    4 kW - 12 V DC or 24 V DC - Radar Processor NS004781 6 kW - 12 V DC or 24 V DC - Radar Processor NS004782 10 kW - 24 V DC - Radar Processor NS004783 25 kW - 24 V DC - Radar Processor NS004784.
  • Page 49 3. If the antenna does not turn, skip to the section "If the scanner fails to turn". No, range rings or range scale information are not displayed. 1. Verify that the serial data cable wiring is correct for the communications cable as shown in the section "Connect the communications cable to the junction box".

  • Page 50: Manual Tuning Procedure For The 6000I Or 6100I System

    Manual tuning procedure for the 6000i or 6100i system NOTE: The following manual tuning procedure is provided only for possible situations where the unit's automatic tuning does not perform well with a Northstar 6000i or 6100i system. At present, Northstar is not aware of any such situation and recommends that automatic tuning be used, unless a reason is found to use this manual procedure.

  • Page 51: Kw Radar System Specifications

    25 kW radar system specifications NS-RDR1257MO 25 kW scanner Scanner type Open array DC input 21.6 V to 31.2 V (DC 24 V systems ONLY) Scanner dimensions 7.45 ft [2270 mm] (swing circle) by 1.2 ft (H) [356(H) mm] Scanner weight 119 lb (54 kg) ±...
  • Page 52 Processor model NS004784 Processor dimensions Width 5.6" (142 mm) Height 2.2" (56 mm) Length 7.9" (200 mm) Processer weight 1.9 lbs (870 g) Vibration EN60945 Waterproof No rating Temperature range +5ºF to +131ºF (–15ºC to +55ºC) Relative humidity 95% at 104ºF (+40ºC) Power up time Approximately 35 seconds DC input...
  • Page 53 25 kW Installation back Cover ADD ARTWORK...
