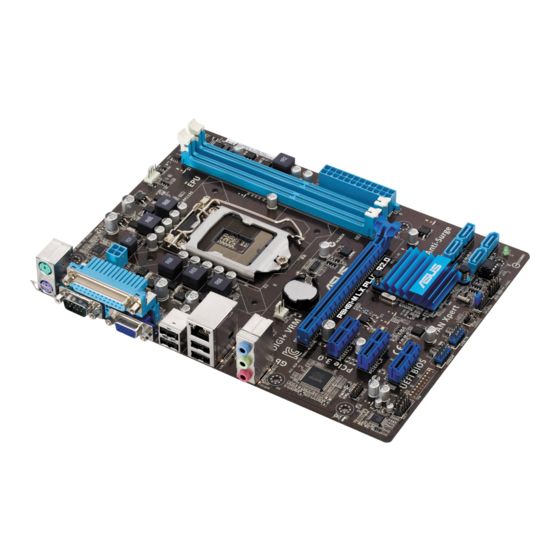

Asus P8H61-M LX Owner's Manual


CPU
Intel® Socket 1155 for 3
Supports Intel® 32 nm CPU
Supports Intel® 22 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com

Chipset
Intel® H61(B3)

Memory
2 x DIMM, Max. 16GB, DDR3 2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1600/1333/1066 MHz
Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* 1600MHz and higher frequency is supported by Intel® 3rd generation processors.
* Refer to www.asus.com
* Due to OS limitation, when installing total memory of 4GB capacity or more, Windows® 32-bit
operation system may only recognize less than 3GB. Install a 64-bit Windows® OS when you want to
install 4GB or more memory on the motherboard.
* Due to the CPU behavior, DDR3 2133/1866MHz memory module will run at DDR3 2000/1800MHz
frequency as default.

Graphic
Integrated Graphics Processor
VGA output support : RGB port
- Supports RGB with max. resolution 2048 x 1536 @ 75 Hz
Supports Intel® Quick Sync Video


Expansion Slots

1 x PCIe 3.0/2.0 x16 (blue) *
3 x PCIe 2.0 x1

Storage
ASUS P8H61-M LX R2.0
rd nd
/2 Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
for CPU support list
or user manual for the Memory QVL (Qualified Vendors Lists).
1
