Summary of Contents for Kkmoon IP-CAM 805

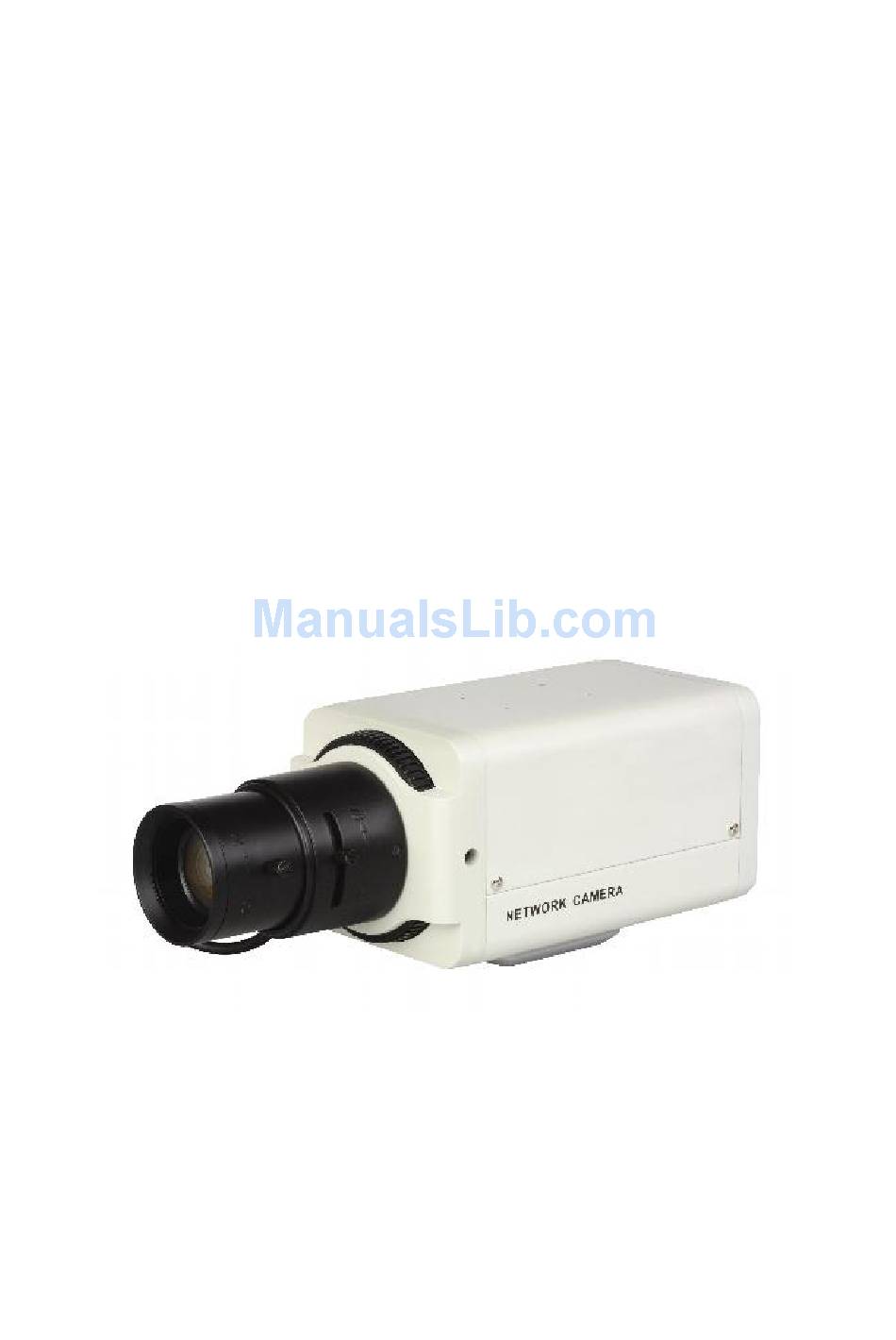

- Page 1 Traditional IP Camera IP Network Camera User Manual Model IP-CAM 805 Version 1.0.0...
-
Page 2: Safety Instructions
Safety Instructions These instructions are intended to ensure that the user can install and use the product safely. The precaution measures are divided into “ Warnings” and “ Cautions” Warnings: Serious injury may be caused if warnings are not followed. Cautions: Injury or equipment damage may be caused if cautions are not followed. -
Page 3: Cautions
Cautions 1. Make sure the power supply voltage is correct before using the camera. 2. Do not drop the camera or subject it to physical shock. 3. Do not touch the CCD (Charge Coupled Device) modules with fingers. If cleaning is necessary, use a clean cloth and a little ethanol and wipe it gently. -
Page 4: Table Of Contents
INDEX Safety Instructions Warnings Cautions Index 1. Introduction 1.1 Network camera Functions and Features 2. Installation 2.1 Panels Description 2.1.1 Side Elevation of Camera 2.1.2 Rear Panel Description 2.2 Product Installation 2.2.1 Traditional camera Installation Fig 2.2.1.1 Fix Ceiling Bracket Fig 2.2.1.2 Fix Camera Fig 2.2.1.3 Fix Lens Fig 2.2.1.4 Topological graph of IP-CAM805... -
Page 5: Introduction
Introduction This network camera is a type of embedded digital surveillance product that combines the features of both traditional analogue camera and networked DVS (Digital Video Server). Due to the embedded Linux operation system and the latest TI DaVinci hardware platform the system operates with high scheduling efficiency. -
Page 6: Installation
Installation 1. Read the following instructions carefully before installation. 2. Make sure that all the related equipment is powered down during the installation. 3. Check the power supply to prevent any damage caused by mismatching problems. 4. This product must not be installed in conditions of high humidity or high temperatures. Inadequate ventilation, dampness or vibration must be avoided. -
Page 7: 2.1.2 Rear Panel Description
2.1.2 Rear Panel Description Fig. 2.1.6 Rear Panel of IP-CAM805 series 1. Standard Ethernet (UTP) RJ45 (10M/100M self-adaptive). 2. 1 channel voice talk input,3.5mm audio interface, 2.0 2.4Vp-p, 1k . 3. 1 channel voice talk output, 3.5mm audio interface, line level, 600 . 4. -
Page 8: Fig 2.2.1.1 Fix Ceiling Bracket
Fig 2.2.2 Fix Camera Fig 2.2.1 Fix Ceiling Bracket Fig 2.2.3 Fix Lens 2.2.4 Topological graph of IP-CAM805... -
Page 9: Physical Interface
Physical Interface Physical Interface Connection UTP Network Interface Connect to network devices, such as switch , HUB, etc. Please refer to Appendix B for pin Definition. Connect to audio input devices such as active Audio Input AIN tone (2.0 2.4Vp-p, 1k ) Connect to sounders like loudhailer 600 . -
Page 10: Parameter Configuration
Parameter Configuration There are several network parameters that need setting after the hardware installation. These parameters include IP address, subnet mask and port number, etc., which can be set by various means and two of them are detailed below. Set the camera parameters such as IP address and PPPOE through IE. Set the camera parameters through the client software. -
Page 11: Fig. 3.1.1 Login Interface
click the Camera 01 channel and the Main Stream, Sub Stream and Open Sound options will be displayed. Select the Open Sound option. Fig. 3.1.1 Login Interface Fig. 3.1.2 Preview Interface... -
Page 12: Fig. 3.1.3 Remote Parameters Config
It supports Playback and Log functions. To set the camera parameters through IE browser, click Config and wait for the Remote Parameters Config dialogue box to display and then set the parameters such as IP address, etc. as required. For more specific information regarding Remote Parameters Config, please refer to the Client Software in remote-distance parameter settings. -
Page 13: Parameter Configuration Through Client Software
Parameter Configuration through Client Software Please refer to the client software instruction manual on the CD supplied with your I.P camera. Parameter Configuration through DVR9K Before configuration, please make sure that IP cameras are already connected to the same network. Enter camera management interface Menu Configuration Management Camera Configuration. -
Page 14: Wan Access
WAN Access IP cameras have their own network capability and can be connected direct through a network for viewing only. In most circumstances however they would be connected through a DVR and do not have to be setup in the modem/router. If they are used independently then each IP camera must be allocated a unique IP address but can use the same port number. -
Page 15: Wan Access With A Dynamic Ip Address Not Connected Through A Dvr
WAN Access with a dynamic IP address not connected through a DVR By setting Register in client software to Normal Domain, a dynamic name can be entered in Domain name box. Of course the dynamic name must be registered with a dynamic IP site such as www.dydns.org. -
Page 16: Common Failures And Maintenance
Common failures and maintenance 5.1. Power on failure Check if the power plug is fixed into the socket and if the power supply is working correctly. 5.2. Image blurred Check if the lens connector is correct. There are two types lens mounts i.e C and CS which are different. -
Page 17: Technical Specifications For Ip-Cam805
6. Technical Specification for IP-CAM805 Parameter Model IP-CAM805 Image Sensor 1/4 inch CMOS Effective Pixels 640(H)×480(V) Lens Mount C/CS mount Lens Option Auto Iris Lens Min. Illumination 0.4Lux /F1.2 Day&Night Electronic Video Compression H.264/MPEG-4 Video Output 32 K 2M, adjustable(8Mbps maximum) Audio Compression OggVorbis Image Resolution...
