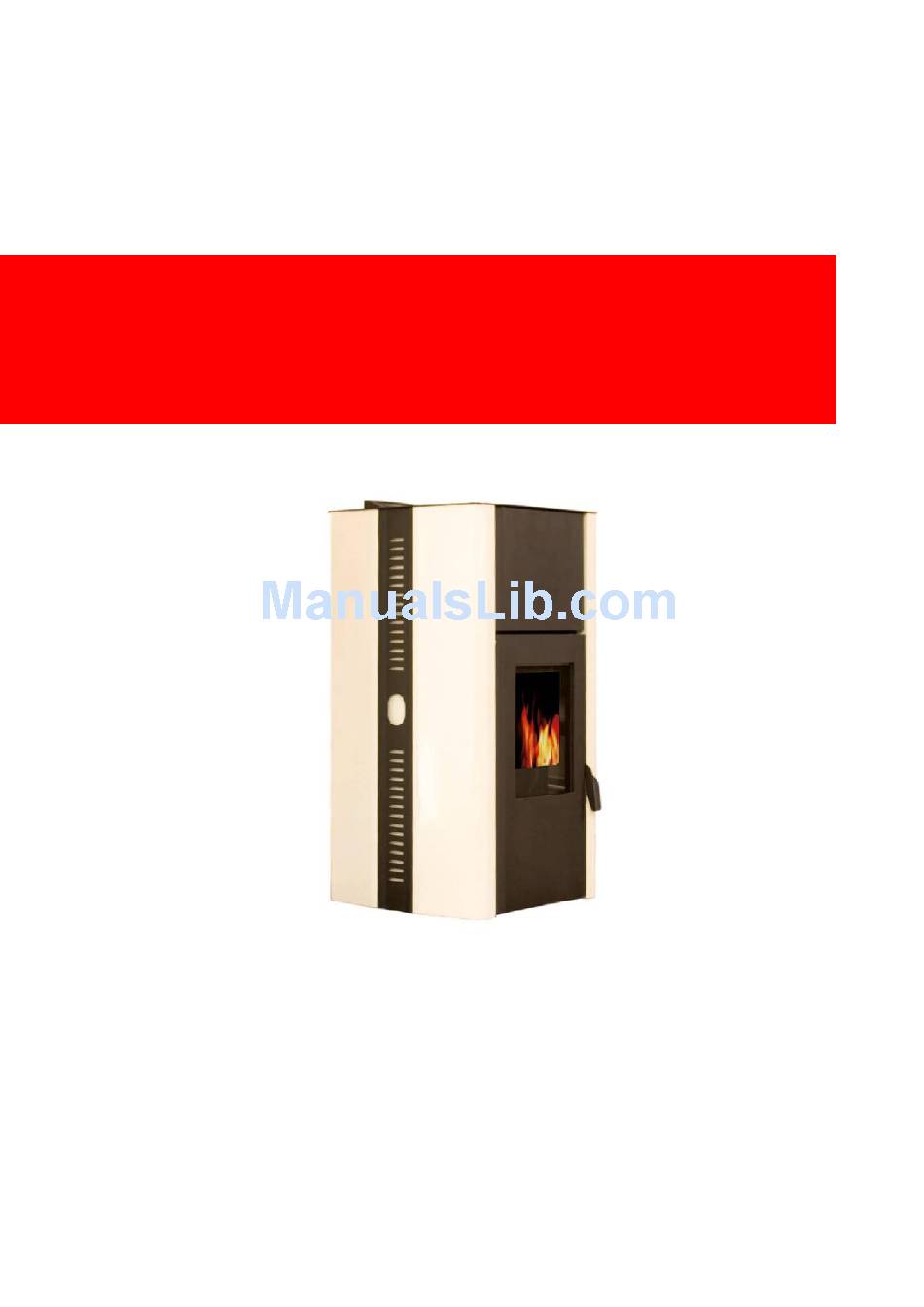

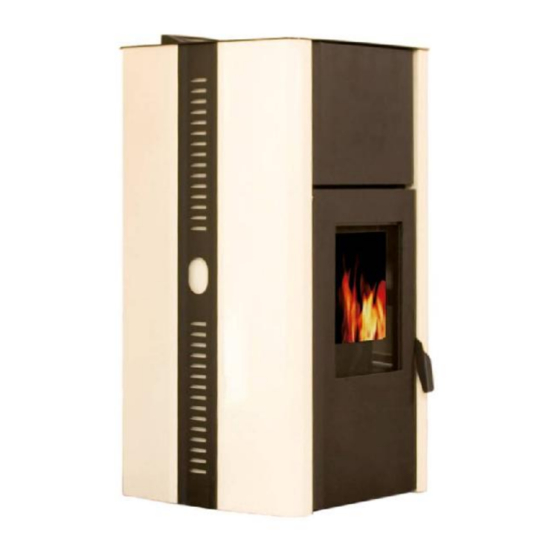

- Page 1 MANUAL for INSTALLATION and OPERATION of ALBA 15KW...
-
Page 2: Table Of Contents
Table of contents ....................1.0. PRECAUTIONS AND SAFETY ....................2.0. TECHNICAL CHARACTERISTICS .......................... 2.1 Accessories ....................2.2 Assembling the control panel ......................2.3 Technical description ....................2.4 Technical data and dimensions ........................3.0 INSTALLATION ........................3.1 GENERAL RULES ..................3.2 CONNECTION OF THE OUTER AIR PIPE ...................... -
Page 3: Precautions And Safety
Dear buyer, we thank you for choosing this product. This product is made with attention to all materials used and technologies employed. It was designed to satisfy your needs for a functional and safe product. By using this instruction manual you will learn how to use your pellet-burning stove properly; please read it carefully before use. -
Page 4: Technical Characteristics
For safety purposes, the following must be strictly observed: The pellet stove is not to be operated by children or disabled persons. It is forbidden to install the product in a toilet, damp spaces, such as laundry room, as well as to touch the pellet stove with wet hands or legs. -
Page 5: Technical Description
When you take the pellet stove out from its packaging, in the reservoir for pellets you will find the control panel (2) wrapped in a foil and 4,8x13 screws (3) on back cover, which are used for its assembling (1). Take the screws from the bag and attach the panel to the cover. -
Page 6: Technical Data And Dimensions
Table A RESERVOIR COVER N ASH DRAWER V CONTROL PANEL I DOUBLE METAL SHEET OF THE BURNER S PELLET RESERVOIR L BURNER D PIPE CLEANING LEVER P ELECTRIC POWER SUPPLY SOCKET F CERAMIC GLASS R SIDE COLORED METAL SHEET 2.4 Technical data and dimensions... -
Page 7: Installation
Model of the pellet stove: ALBA 15 kW Height Width Depth Weight Diameter of air intake pipe Diameter of exhaust gas pipe Maximum heating (*) volume Nominal thermal power (Ptn) Decreased thermal power (Ptr) Nominal thermal power (water) Nominal consumption per hour... -
Page 8: Connection Of The Outer Air Pipe
Minimal distance from the inflammable materials is 200 mm. - If the floor is made of inflammable material (parquet ...) it should be adequately isolated. - The metal pipes intended for the gas exhaust should be at a distance of 1,5 m from inflammable materials - We recommend that the pellet stove should be installed as closer as possible to the exhaust gas system, always having maximum 3+1T curves and maximum 3 m of horizontal flow with minimal elevation of 3-5%. -
Page 9: Exhaust Gas System
3.3 EXHAUST GAS SYSTEM It is always important to know that the exhaust system is as important as the pellet stove. The installation of the exhaust system should be performed by authorized persons. The authorized person should be guided by the following data 15 kW Draft of the pellet stove Mass of the combusted air... -
Page 10: Rear End Of The Exhaust Gas Pipe
3.7 REAR END OF THE EXHAUST GAS PIPE The rear end of the exhaust gas pipe is intended for proper exhaust of the gases in the atmosphere, its protection against rain, snow or any other objects in order to guarantee excellent exhaust of the gases in windy conditions, as well. -
Page 11: Connection To The Electrical Power Supply
Keep the pellets on a distance from the pellet stove, not less than 1,5 m (see chapter 5.0). ATTENTION The boiler is manufactured and tested only by using certified ECOSPAR pellets. The manufacturer does not take any responsibility if you use non-certified pellets also on quality and quantity of used pellet per season caused of pellet quality. -
Page 12: Installation
INSTALLATION All required cables and connectors are put into the pellet stove. The installation is quick and simple. Before each assembling of the system, an automatic test of the system is performed for its proper operation. When you turn on the product for the first time, you should do the following: When you are sure that the assembly is properly done, it is possible to start initial turning on the pellet stove, which will allow its proper setting. -
Page 13: Display Of The Control Panel
Auger cleaning – Hopper activation time From 0.0" to 4.0” Encoder – Presence of encoder off - on Time breaking – Hopper brake impulse From 0.0" to 0.5” Threshol pump – Circualtion pump starting threshold From 20°C to 70°C Exclude pressure – Pressure guage exclusion off - on Pressure threshold - water circuit pressure alarm threshold From 1.5b to 3.0b... - Page 14 In this stadium the pellet stove is in the phase of pre-ventilation, the heater and the aspirator are turned on. Pouring pellets After around 90 sec starts the pouring of the pellets (pouring pellets) During this phase the transportation system pours the pellets in the burner at a speed defined by the PR04 parameter.
- Page 15 The circulator is activated when the water temperature reaches the value of the PR33 parameter. It is indicated on the display, as on the following figure The water temperature reaches the desired temperature (SET temperature) Then the following symbol appears: Th20 >Tseth2o and the stove moves to MODULAZIONE. In that moment the effective power decreases, and the display shows the actual effective power.
- Page 16 When the room temperature reaches the desired value, the stove moves to MODULAZIONE and the caloric power is decreasing. As a result, the water temperature decreases until it falls below the PR33 parameter by interruption of the pump operation. TURNING OFF THE STOVE Turning off the stove To turn off the stove it is enough to press the P4 button for couple of seconds.
-
Page 17: Pellets
If there is interruption in the electrical power supply, the pellet stove automatically returns to the previous phase. In some versions there is no such an option, and if it is so, see the explanation below. There is no electrical power supply If there is no electrical power supply long enough to lower the gas temperature below the values of the PR13 parameter, the pellet stove will show BLACK... -
Page 18: Storage Of Pellets
- DIN plus 51731 - UNI CEN/TS 14961 Regarding its products, manufacturer recommends that you should always use pellets with 6 mm diameter. Length of 24-36 mm. 5.1 STORAGE OF PELLETS For proper combustion, pellets should be stored in a dry place. 5.2 POURING THE PELLETS INFORMATION AND ADVICES Many of our clients ask how to recognize good pellets. - Page 19 A list of the most important inspections which should the service centre make when it performs a general inspection of the pellet stove: - Cleaning of the aspirator and the fan; - Cleaning of all unreachable places of the burner; - Inspection of all bars;...
- Page 20 PELLET RESERVOIR It is recommended to periodically clean the reservoir (at least once a month); firstly you should empty it and then clean it using a vacuum cleaner. GAS SYSTEM It is recommended to clean the general gas system once a year. To do it, it is necessary: - to open the door, to take out the ash tray After that, clean the system using a vacuum cleaner.
- Page 21 After cleaning, close the system. FRESH AIR INTAKE SYSTEM At the beginning of the heating season you should check the fresh air system, whether there is any obstacle in EXHAUST GAS SYSTEM At the beginning of the heating season you should clean the exhaust gas system. If the electrical cable is damaged, replace it.
-
Page 22: Failures / Causes / Solutions / Attention
8.0 FAILURES / CAUSES / SOLUTIONS / ATTENTION All repairs should be made by an authorized person The following alarms are available TYPE OF ALARM DISPLAY VISUALIZATION Probe for smoke temperature ALARM SOND FUMI High smoke temperature ALARM HOT TEMP No ignition ALARM NO FIRE Smoke fan does not work... - Page 23 ALARM HIGH SMOKE TEMPERATURE ALARM NO IGNITION ALARM GOING OFF DURING OPERATION ALARM SAFETY PRESSURE SWITCH ALARM SAFETY THERMOSTAT...
-
Page 24: Post-Sale Support
ALARM SMOKE FAN DOES NOT WORK 9.0 POST-SALE SUPPORT When you buy the stove, please contact the nearest authorized service. 10.0 WARRANTY The manufacturer guarantees for its product, except for the parts that normally wear out in a period of two years from the date of purchase of the stove, which will be proven by the fiscal receipt, the written warranty filled by the seller and the installation of the stove by an authorized person.
