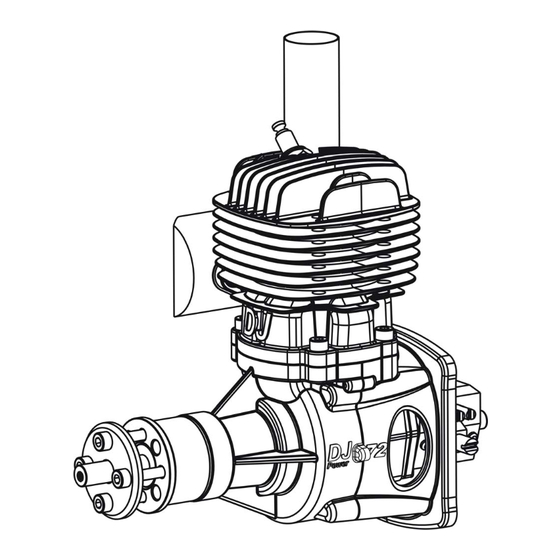

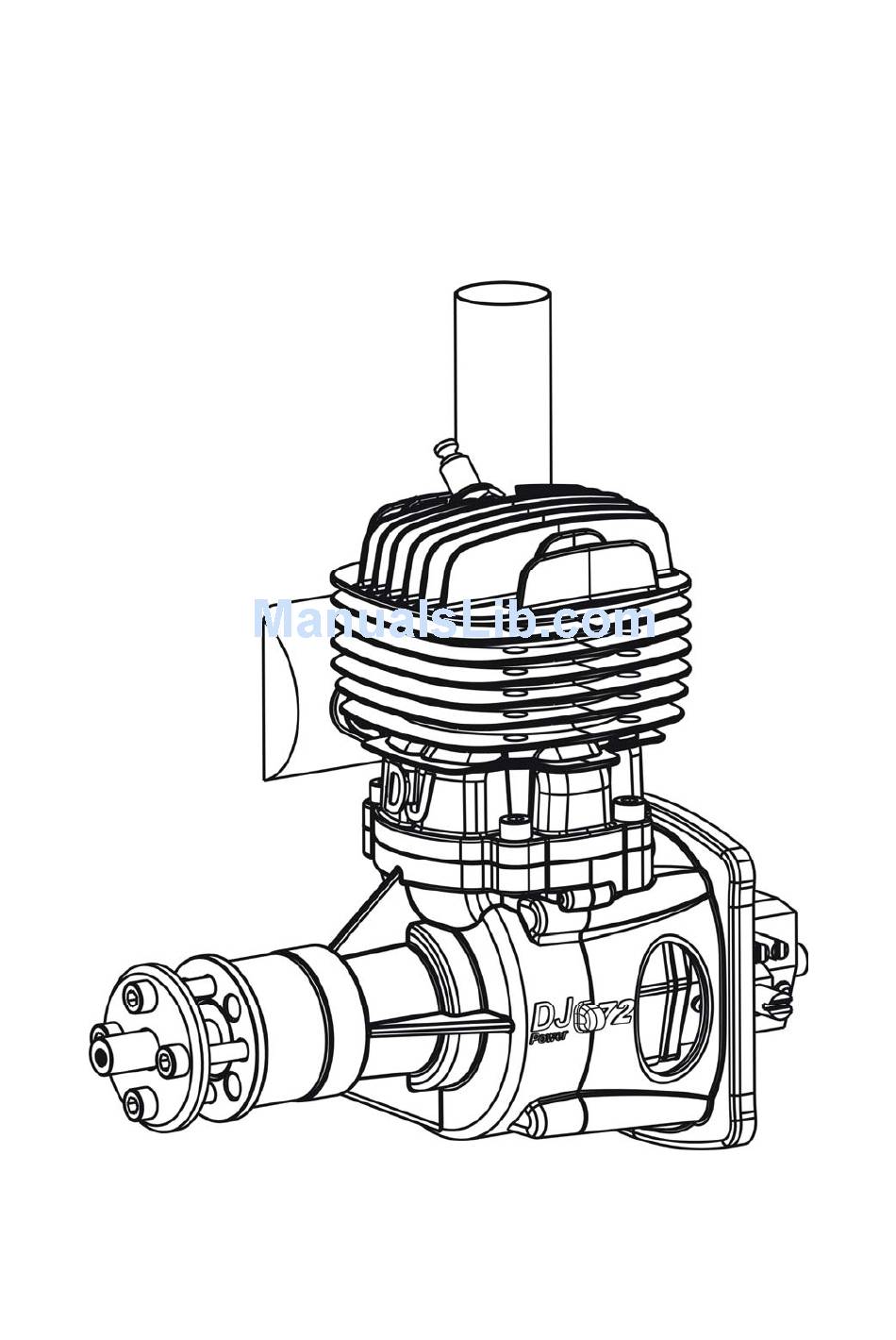

- Page 1 ENGINE GAS ENGINE USER MANUAL DJ72-GTS Accessory: The specifications are subject to alteration for improvement without notice.
-
Page 2: Specifications
而且没有容易松动的零件被吹的进入螺旋桨的旋转面。 ENGING ADJUSTMENT Every DJ engine has been adjusted to average mixture settings which will most likely allow the engine to start and run in most location. However, as altitudes and barometric pressures very by location, it’s very likely that the carburetor mixture setting will need to be adjusted to obtain optimum performance. -
Page 3: Functions And Adjustments
FUNCTIONS AND ADJUSTMENTS 功能及调整 (1) Choke Lever 阻风门 (2) Throttle Lever 油门 (3) Idle Speed Adjusted Screw 怠速螺丝 (4) Low Speed Mixture Adjusted Screw (L) 低速油针 (5) High Speed Mixture Adjusted Screw (H) 高速油针 ADJUSTMENT: A general starting point is 1.5 turns out of the low speed needle (NO: 4). And 1-1.5 turns out of the high speed needle (NO: 5). -
Page 4: Care And Maintenance
过了几轮的飞行之后，拆下火花塞目视检查，火花塞电极的颜色是橘黄色的为最佳。 Carburetor can be rotated 180°for use。 。 化油器可以使用旋转 180 °使用 Start-up the engine 启动引擎 Step 1: Close the choke and turn on the ignition, advance throttle to full position. 。 第 1 步：关闭阻风门，打开点火电源，把油门推倒最大位置 Step 2: briskly flip the prop through compression until the engine fires and then dies. -
Page 5: Safety Instructions And Warnings
8. Running at low speed for too long might carbonize the spark plug. 为确保您的引擎寿命和峰值性能，请遵循以下步骤。 1.请使用 93#（或以上）汽油和两冲程摩托车机油，燃料和润滑油的比例一般为 30：1。不 要让不同品牌的润滑油混合使用，否则可能导致化油器油路的严重阻塞。 2.避免尘土飞扬的条件下运行的引擎。 3.在任何时候都要保持引擎外部清洁。 4.在化油器和油箱之间安装一个燃油过滤器。 5.经常检查油箱至化油器之间的燃料管路，确认没有漏气的情况。 6.燃料不要长留在引擎和燃料箱里。 7.避免不必要地拆解您的引擎 8.引擎长时间工作在低速工况下，可能导致火花塞严重积碳。 ENGINE INSTRUCTIONS IMPORTANT Be sure to carefully read all of the instructions supplied with your engine. Please read and follow the “Safety Instructions and Warnings”... - Page 6 of the propeller manufacturer 为您的引擎选择正确的大小和螺距的螺旋桨。我们只建议您使用木质螺旋桨。所有非木 质螺旋桨都需要按照螺旋桨制造商的指示特别注意事项和使用方法来使用。 4. Install the propeller with the curved side facing you. Tighten propeller nut against the washer and the propeller by using a correct propeller wrench. Propeller wrenches are available from your hobby dealer. 安装螺旋桨时要把桨的圆弧面对着你。使用正确的螺旋桨扳手拧紧桨螺母，垫圈和螺旋 桨。螺旋桨扳手可以从你的经销商那里得到。...
- Page 7 WE RECOMMEND 我们建议 1. Use safety glasses or safety shield when starting or running your engine. 启动或运行您的引擎时使用安全眼镜或安全罩。 2. Do not run the engine in an area containing loose gravel or sand. The propeller can throw such materials into your face and eyes. 不要在一个四周都是松散碎石或沙子的地方发动您的引擎。因为螺旋桨会把杂物抛到您的...
- Page 8 Email： dj.engine@hotmail.com...
