Summary of Contents for SurfRAID LC16 Series

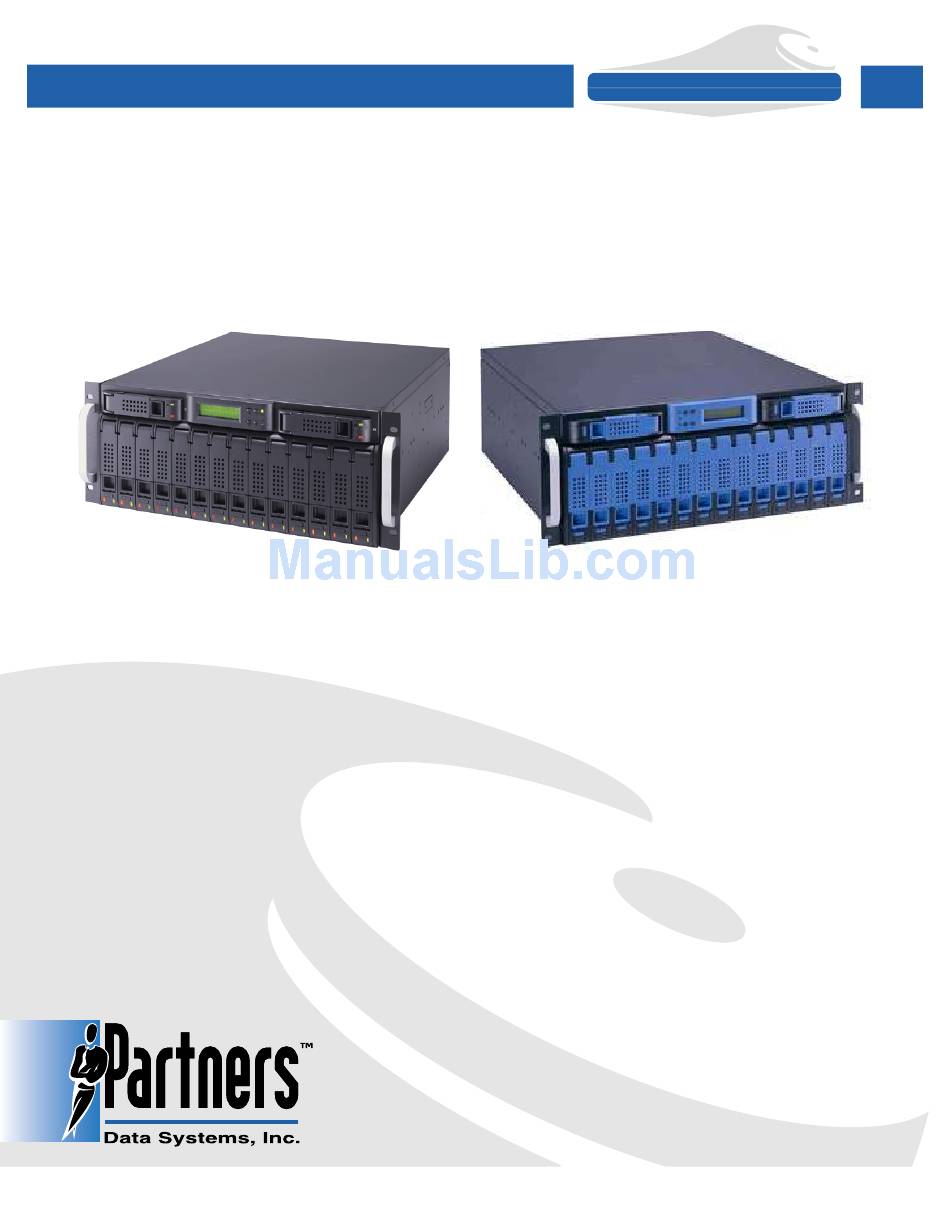

- Page 1 ® SCSI & Fibre Channel - Storage Systems S u r f R A I D SurfRAID LC16 & LCE16 Series Enhanced RAID Storage User’s Manual Support - 800-550-3005...
- Page 2 All brand and product names are the trademarks of their respective owners. Copyright © 2002 by Partners Data Systems, Inc. All rights reserved. Printed in the U.S.A. PARTNERS DATA SYSTEMS, INC. 3663 Via Mercado 91941-8316 La Mesa, CA • U.S.A (619)-415-2000 (619) 415-2001 Telephone: • Fax: SurfRAID LC16 Series User’s Manual...
-
Page 3: Table Of Contents
FEATURE HIGHLIGHTS ..................11 Chapter 2. GETTING STARTED UNPACKING & CHECKING THE EQUIPMENT ..........12 IDENTIFYING PARTS OF THE SurfRAID LC16 ..........12 2.2.1 Front View ....................12 2.2.2 Rear View ....................15 SPACE REQUIREMENTS..................16 SYSTEM CONNECTING ..................16 INSTALLING THE DISK .................. - Page 4 ERROR MESSAGES ..................... 39 APPENDIX B. TECHNICAL SPECIFICATIONS......... 41 APPENDIX C CONNECTORS ............... 42 APPENDIX D GLOSSARY ..............44 APPENDIX E CREATING TWO LUNs ..........46 APPENDIX F FIBRE RAID TO HOST CONNECTIVITY ....47 SurfRAID LC16 Series User’s Manual...
-
Page 5: General Safety Guidelines
General Safety Guidelines DO NOT place or drop objects on top DO NOT place the SurfRAID of the SurfRAID LC16 and do not shove LC16 on uneven or unstable work any foreign objects into it. surfaces. Seek servicing if the casing has been damaged. -
Page 6: Chapter 1. Introduction
About your User’s Guide Welcome to your SurfRAID LC16 Redundant Array of Independent Disks System User’s Guide. This manual covers everything you need to know in learning how to install or configure your RAID system. This manual also assumes that you know the basic concepts of RAID technology. -
Page 7: Raid Concepts
With RAID, storage speed increases as more drives are added. 1.1.1 RAID LEVELS The SurfRAID LC16 supports RAID Levels 0, 1, 3, 5 & 0+1. Each RAID level offers a different performance, functionality and fault tolerance, depending on the application that will be used. -
Page 8: Mirroring (Raid 1)
RAID 3 Data Block1 Striping with Dedicated Parity Block2 Block3 Block1 Block2 Parity1,2 Block4 Block3 Block4 Parity3,4 Block5 Block5 Block6 Parity5,6 Block6 Block7 Block8 Parity 7,8 Block7 Block8 Disk 1 Disk 2 Disk 3 SurfRAID LC16 Series User’s Manual... -
Page 9: Striping With Interspersed Parity (Raid 5)
Disk 1 Disk 3 Data Striping Block1 Block2 Block1 Block3 Block4 Block2 Block5 Block6 Block3 Block7 Block8 Block4 Block5 Mirror1 Mirror2 Block6 Mirror3 Mirror4 Block7 Mirror5 Mirror6 Block8 Mirror7 Mirror8 Striping Disk 2 Disk 4 SurfRAID LC16 Series User’s Manual... -
Page 10: Comparison Table
With Spread Parity parity across some or all of an array’s member disks. Very High Data Striping with * This RAID Level is a combination of [N/2] M irroring RAID 0 (striping) & RAID 1 (Mirrored). SurfRAID LC16 Series User’s Manual... -
Page 11: Feature Highlights
1.2 FEATURE HIGHLIGHTS The SurfRAID LC16 is designed to meet today’s demand of higher storage solutions for the emerging needs of databases, e-mail, web servers and imaging systems. It provides a maximum data protection and exceptional performance in a storage subsystem. Target usage ranges are set from small business to departmental and corporate server needs. -
Page 12: Chapter 2. Getting Started
Remove all the items from the container. If anything is missing or broken, please inform us ASAP. It is advisable to keep the packaging, as you might need to ship your SurfRAID LC16 or send it in for service. You will need the shipping container. -
Page 13: Lcd Display Panel
LCD Display Panel. The front panel LCD continuously displays the status of the SurfRAID LC16. The following is an example of the SurfRAID LC16. Field Description SurfRAID LC16 The model of SurfRAID LC16S SurfRAID LC16 The model of SurfRAID LC16F Total sixteen disks channel status. - Page 14 When the “[Enter]” button is pressed in operation mode, the SurfRAID LC16 will enter Configuration Mode. Note: During Configuration Mode if no button is pressed within 3 minutes (180 seconds), the SurfRAID LC16 will automatically switch back to Operation Mode.
-
Page 15: Rear View
2nd Fibre Channel Loop System Cooling Module 1. System Cooling Module 2. System Cooling Module 3. Power Switch AC Inlet with the Latch Power Supply “Alarm” Reset Button. Power Module 1. Power Module 2. Power Module 3. SurfRAID LC16 Series User’s Manual... -
Page 16: Space Requirements
Slide the latch to the unlocked position. Release the cartridge handle by sliding the release-button. NOTE: If the SurfRAID LC16 is on line, the disk LED will turn from green to Red to indicate the disk is powered down. Lift the handle to disengage the disk cartridge from the slot. -
Page 17: Installing The Disk
Push down the handle to secure the disk cartridge into the SurfRAID LC16. NOTE: If the SurfRAID LC16 is powered up, the disk LED will turn from red to green to indicate that power has been applied to the disk drawer. -
Page 18: Power On And Self-Diagnostic
Turn on the power switch from real panel. 2.6.2 Self-Diagnostic Mode To ensure flawless operation, SurfRAID LC16 has a built-in self-diagnostic utility. Self-diagnostic Mode occurs automatically upon power up or after reset. During this mode, all components are tested, and any potential problems will be reported. -
Page 19: From Control Panel & Lcd On Front Panel
3.1 From control panel on Front The Control Panel The SurfRAID LC16 Control Panel consists of two line by 16-character LCD display, two LED indicators, four push button switches, and a reset button. It provides a way to configure and... -
Page 20: Key Definitions Under Ansi/Vt-100 Terminal
ANSI/VT-100 terminal or terminal emulation program to the RS-232 port located at the back of the SurfRAID LC16 subsystem. Using a PC for Terminal Emulation. If you do not have a dedicated ANSI/VT-100 terminal, you can still use a PC with third-party communication software that supports ANSI/VT-100 terminal emulation. -
Page 21: Using The Monitor Utility
At the top is the “ Monitor Utility” title, which contains the model number and firmware version of the SurfRAID LC16. At the left is the “LCD” window. The contents displayed also appear here on the front Panel LCD screen. Below is the “Menu” window with the Main Menu options. To the right is the “OUTPUT”... -
Page 22: Configuring Raid
3.3 CONFIGURING RAID 3.3.1 Quick Setup This is the easiest way to configure your SurfRAID LC16, but all parameters will be setup as defaults. If you want to change the default value, you have to go to customizing setup to change it. -
Page 23: Raid Params Menu
6 RAID Funcs 3.3.2.1 RAID Params MENU RAID Params menu configures the SurfRAID LC16 for the different supported RAID levels. To avoid accidentally erasing an existing configuration you must specify, using the “Re-Conf RAID” option, if you want to change the configuration. -
Page 24: Scsi/Fibre Params Menu
SCSI ID and the termination must be set to avoid causing a conflict with the SCSI adapter or other SCSI device daisy chained with the SurfRAID LC16. Command Tag Queuing is a function that allows a SCSI device to queue multiple requests without having to serialize the operations. This frees the control- ler to process requests in whatever order is convenient, instead of blindly processing and acknowledging each disk operation before starting the next. - Page 25 Use to setup each Slice to map a logical Lun Number. B. SurfRAID LC16.200F The “Fibre Params” consists of two categories. Each category is used to configure an independent FC-AL of the SurfRAID LC16 subsystem. The following shows the both categories. Each category has sub-menus and options. 3. Fibre Param...
-
Page 26: Rs232 Params Menu
Use to setup each Slice to map a logical Lun Number. 3.3.2.3 RS232 Params MENU The RS232 Params menu configures the external ports of the SurfRAID LC16. The SurfRAID LC16 can communicate with a remote terminal and modem. The SurfRAID LC16 and the remote terminal must be set to the same communication settings (baud rate, stop bit, data bit, and parity). -
Page 27: System Params Menu
3.3.2.4 SYSTEM Params MENU The System Params menu configures the internal operation of the SurfRAID LC16. To avoid having the configuration altered by unauthorized personnel, you can enable password protection to enter Configu- ration Mode. Also, to have the SurfRAID LC16 provide failure event notification use the Pager Info., FAX Info, and Company Info options. -
Page 28: Nvram
3.3.2.5 NVRAM The NVRAM menu options control the configuration information. When using this menu option, the SurfRAID LC16 should be off-line. NOTE: Any changes made in this group will cause data on the drives to be permanently erased. Once a configuration change has been made, the NVRAM (where the settings are stored) must be updated. - Page 29 Use this to view the current settings saved in NVRAM, get a statistical analysis of the read and write operations, plus the percentage of cache hits. This information is only viewable using the Monitor Utility via the RS-232 port. SurfRAID LC16 Series User’s Manual...
- Page 30 Settings 79 IDE Ultra DMA Setting Default Setting Enable, Disable Enable Description: Use to enable the Ultra DMA data transfer mode of the SurfRAID LC16 with the installed disks during initialization. Sub-menu Sub-menu Setting 1 1 Disk 7A Expand Array 7A1 Array 1 2.
-
Page 31: Samples
3.4 SAMPLES 3.4.1 Sample 1. RAID 5 with hot spare disk Following below steps to configure your SurfRAID LC16 as single RAID Level 5 with one of Hot Spare Disk. LCD Display Control Panel Terminal Description Ctl-D Invoke the Monitor Utility... -
Page 32: Sample 2. Change The Password Of Your Raid
Number”, “Slice”, “Stripe Size”, “Erase NVRAM”, “ Init RAID 5” & “R5 Check”, all of them will cause data on the drives to be permanently erased. The following is the procedure for changing the password SurfRAID LC16 Series User’s Manual... - Page 33 51 Update NVRAM Restart” 5 NVRAM Enter To restart the RAID with new 53 Restart configuration. * If you want to enter to configuration mode after RAID start up, you have to use the new password. SurfRAID LC16 Series User’s Manual...
-
Page 34: Chapter 4. Hot Swap Components
CHAPTER 4. Hot Swap Components The SurfRAID LC16 supports hot-swappable disk cartridges, power supply modules and cooling fan unit. The following sections describe how to use the hot swap feature. 4.1 Swapping the Disk To hot swap a disk, perform the following steps (Refer to 2.5.2 Installing the disk). -
Page 35: Swapping The Cooling Fan
Replace with a new Fan module and insert it into the cooling fan module base. The error message on LCD will return to normal and the audible alarm will stop automatically after the above process is completed. Fasten the thumbscrews. SurfRAID LC16 Series User’s Manual... -
Page 36: Chapter 5. Advance Setup
CHAPTER 5. ADVANCED SETUP 5.1 Updating Firmware The embedded firmware of the SurfRAID LC16 can be updated through the RS-232 port using a terminal or PC in terminal emulation mode. When updating the firmware, make sure the SurfRAID LC16 is disconnected from the system to avoid any data loss. Verify the terminal, or terminal emulation software, settings (Baud rate, Stop bit, Data bit, Parity &... -
Page 37: Appendix A. Troubleshooting & Error Messages
This will select a SCSI ID for the SurfRAID LC16. Problem: The SurfRAID LC16 is identified at all SCSI ID’s. Possible Cause: The SCSI ID set for the SurfRAID LC16 is identical to the reserved SCSI ID used by the SCSI adapter in your computer system. - Page 38 Possible Cause: The ID set for the SurfRAID LC16 is identical to the reserved ID used by the FC-AL adapter in your computer system. Fix: Use the Configuration Mode to configure the SurfRAID LC16 for a different FC-AL ID. A. SurfRAID LC16.160S & SurfRAID LC16.200F Problem: Unable to access the SurfRAID LC16 after the operating system boots up.
-
Page 39: Error Messages
Make sure the correct memory type is being installed. The SurfRAID LC16 supports SDRAM. 2. Error Messages The following is a listing of the error messages generated by the SurfRAID LC16 and their meaning. Legend: x= Number of disk channel (1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11,... - Page 40 Param checksum ERROR! The information in NVRAM has been erased. The configuration is lost. SCSI chip ERROR! The SCSI interface of the SurfRAID LC12 controller is faulty. Testing Serial Connection… The RS-232, M odem, or UPS port is faulty. Fail...
-
Page 41: Appendix B. Technical Specifications
APPENDIX B. TECHNICAL SPECIFICATION MODEL SurfRAID LC16.160SD SurfRAID LC16.160SR SurfRAID LC16.200FD SurfRAID LC16.200FR RAID Engine Intel i80303 64bit RISC CPU RAID Levels 0, 1, 3, 5 or 0+1 Cache Support (Write back) 512 Mbytes - standard ECC 144pins SDRAM Memory... -
Page 42: Appendix C Connectors
TERMPWRA TERMPWRA TERMPWRA SCSI_AC_ATN_L+ SCSI_AC_ATN_L- SCSI_AC_BSY_L+ SCSI_AC_BSY_L- SCSI_AC_ACK_L+ SCSI_AC_ACK_L- SCSI_AC_RST_L+ SCSI_AC_RST_L- SCSI_AC_MSG_L+ SCSI_AC_MSG_L- SCSI_AC_SEL_L+ SCSI_AC_SEL_L- SCSI_AC-_CD_L+ SCSI_AC-_CD_L- SCSI_AC_REQ_L+ SCSI_AC_REQ_L- SCSI_AC_IO_L+ SCSI_AC_IO_L- SCSI_AC_DAT <0>+ SCSI_AC_DAT<0>- SCSI_AC_DAT <9>+ SCSI_AC_DAT<9>- SCSI_AC_DAT <10>+ 67 SCSI_AC_DAT<10>- SCSI_AC_DAT <11>+ 68 SCSI_AC_DAT<11>- SurfRAID LC16 Series User’s Manual... - Page 43 * FC-AL HSSDC. Connector * RS-232 & Modem Male Connector SurfRAID LC16 Series User’s Manual...
-
Page 44: Appendix D Glossary
A form of RAID in which Array Management Software maintains two or more identical copies of data on separate disks. MTBF An abbreviation for Mean Time Between Failure, the average time from start of use to failure in a large population of identical components or devices. SurfRAID LC16 Series User’s Manual... - Page 45 A disk reserved for substitution of a like entity in case of the failure of that entity. Swap The replacement of a defective unit with a new unit. Units are parts of a disk subsystem that may either be field replaceable by a vendor service representative or consumer replaceable. SurfRAID LC16 Series User’s Manual...
-
Page 46: Appendix E Creating Two Luns
Appendix E. Creating Two LUN’s on the SurfRAID LC16 1) Build RAID as required (RAID 1, 3, 5…) 2) Enter Main Menu, First Select: RAID Parameters, Second Select: Array (1,2,3,4, etc), Third Select: Slice, Fourth Select: Slice0. Youwill now see the whole size of your RAID system in (MB) -
Page 47: Appendix F Fibre Raid To Host Connectivity
2 GB Point-to-Point 2 GB/S Dual Loop preferred, otherwise Point to Point If the SurfRAID LC16 is set to Auto-Select and the QLA2300 is set to Auto Select the solution will be unstable. SurfRAID LC16 SB1000/2000-SF280R on Board Fibre Solaris 8...
