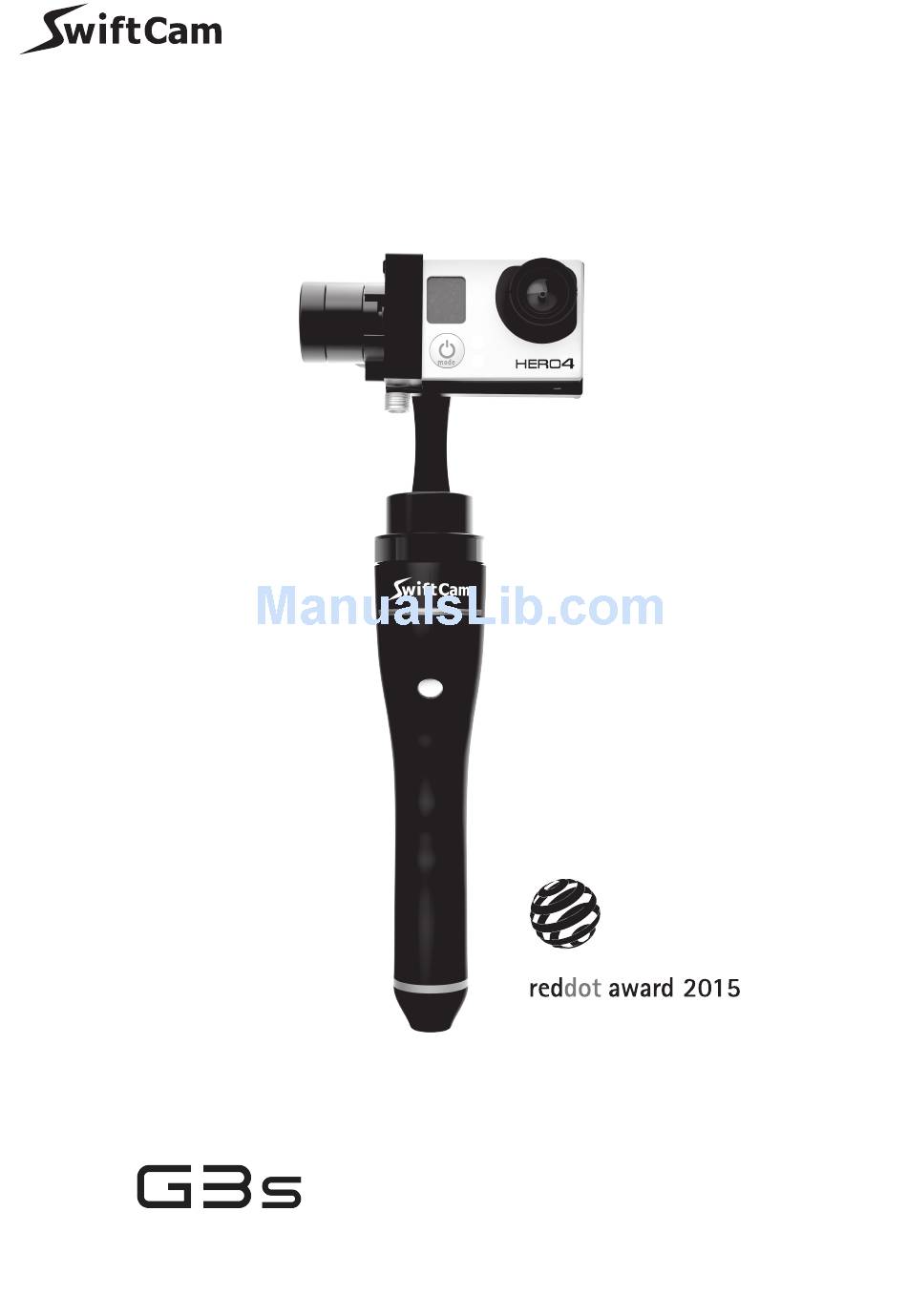

SAVOUR THE MOVING MOMENT
winner
STARTUP GUIDE
3-axis handheld stabilizer for GoPro
*Compatible with Hero 3, Hero 3+ & Hero 4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G3S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SwiftCam G3S

Summary of Contents for SwiftCam G3S

  • Page 1 SAVOUR THE MOVING MOMENT winner STARTUP GUIDE 3-axis handheld stabilizer for GoPro *Compatible with Hero 3, Hero 3+ & Hero 4...

  • Page 2: Table Of Contents

    Contents 1. Overview 1.1. Speci cations 1.2. Package contents 2. Basics 2.1. Set up 2.1.1. Insert batteries 2.1.2. Mount GoPro 2.1.3. Put on balancing weight 2.1.4. Normal Calibration 2.1.5. Switch on the gimbal 2.2. Switch shooting modes 2.3. Power indicator & shooting mode indicator 7 2.4.

  • Page 3: Overview

    3-axis handheld stabilizer for GoPro 1. Overview 1.1.Speci cations Handheld Gimbal Name Model SC-HG-G3S Operating Angles Pan axis: 360 Pitch axis: 0 - 270 Roll axis: +/- 50 Weight 374g (Battery Included) Battery Type AAA alkaline battery 1.5V x 4 - LR03 / UM4 AAA rechargeable battery 1.2V x 4 - HR03 / UM4...

  • Page 4: Package Contents

    1.2.Package contents U Mount Joystick Shooting mode indicator USB cable port Bottom cap Includes: 1.G3s x1 2.U Mount x1 3.Bottom cap x1 4.Screw x1 5.Balancing weight x1 6.USB data link cable x1 7.Flannel bag x1 8.Startup guide x1...
  • Page 5 3-axis handheld stabilizer for GoPro Screw Balancing weight Magnet Magnetic Position Locking System The arm structure can be magnetically held in its desirable position when unused to ensure convenience in storage and travel. Power indicator Power button Flannel bag Balancing weight USB data link cable...

  • Page 6: Basics

    Insert batteries in correct polarity and tighten the bottom cap. 2.1.2. Mount GoPro 1. Loosen the screw. 2. Turn the arm 270 anticlockwise. The logo “G3s” is facing the front. 3. Turn the mount anticlockwise and the screw hole is at the bottom.

  • Page 7: Normal Calibration

    4. The shooting mode indicators will blink for 2s. Hold until both blue and green indicator lights turn on together, then release the joystick. 5. Lay down G3s on a at surface within 10s. G3s will power o after around 40s. 6. Gyro calibration completes.

  • Page 8: Switch On The Gimbal

    Release the arm when it automatically Watch more on YouTube: adjusts to balancing point. Important note Do not switch on when G3s is not in upright position. Do not shake G3s. (SwiftCam G3s - How to start up?) 2.2.Switch shooting modes 1.

  • Page 9: Power Indicator & Shooting Mode Indicator

    Vibration is the signal of improper usage. To stop the vibration, Watch more on YouTube: 1. Hold G3s in upright position and press joystick for 2s. 2. The arm will get balanced automatically. Adjust the camera angles by joystick when the arm stops.

  • Page 10: Free Rmware Upgrade Through Pc

    12. Click “OK” and close the loader. 13. Power o G3s and unplug the USB data link cable. Important note Do not stop the program or power o G3s or unplug USB data link cable until it is 100% updated.

  • Page 11: Advance Calibration

    The shooting mode indicators will blink for 2s. Hold until both green and amber indicator lights turn on together, then release the joystick. f. Lay down G3s on a surface within 10s. G3s will power o after around 40s. g. Temperature Calibration complete.
  • Page 12 6. Turn the joystick to the right position then press it and hold until the the blue and amber indicator LEDs turn o . 7. G3s will power o after around 10s. 8. ACC Calibration complete. horizontal Blink vertical P.10...

  • Page 13: Q&A

    A: System reset is needed, performance Factory Parameter Reset. Q2. Why my SwiftCam G3s has no power even the front blue LED is light on? A: Check if the batteries are new/ fully charged by checking the status of Shooting mode indicator.

  • Page 14: Warranty Information

    6. Warranty information SwiftCam warrants to the original purchaser (“Buyer”) for 1-year full warranty (e ective starting from the date of purchase) that this SwiftCam product will be free from defects in materials and workmanship under normal operations. 6.1. How to obtain warranty service Buyer may obtain warranty service by contacting SwiftCam/dealers.
  • Page 15 SAVOUR THE MOVING MOMENT W. www.swiftcam.com T. +852 9010 8575 E. enquiry@swiftcam.com SG3S201506V5...
