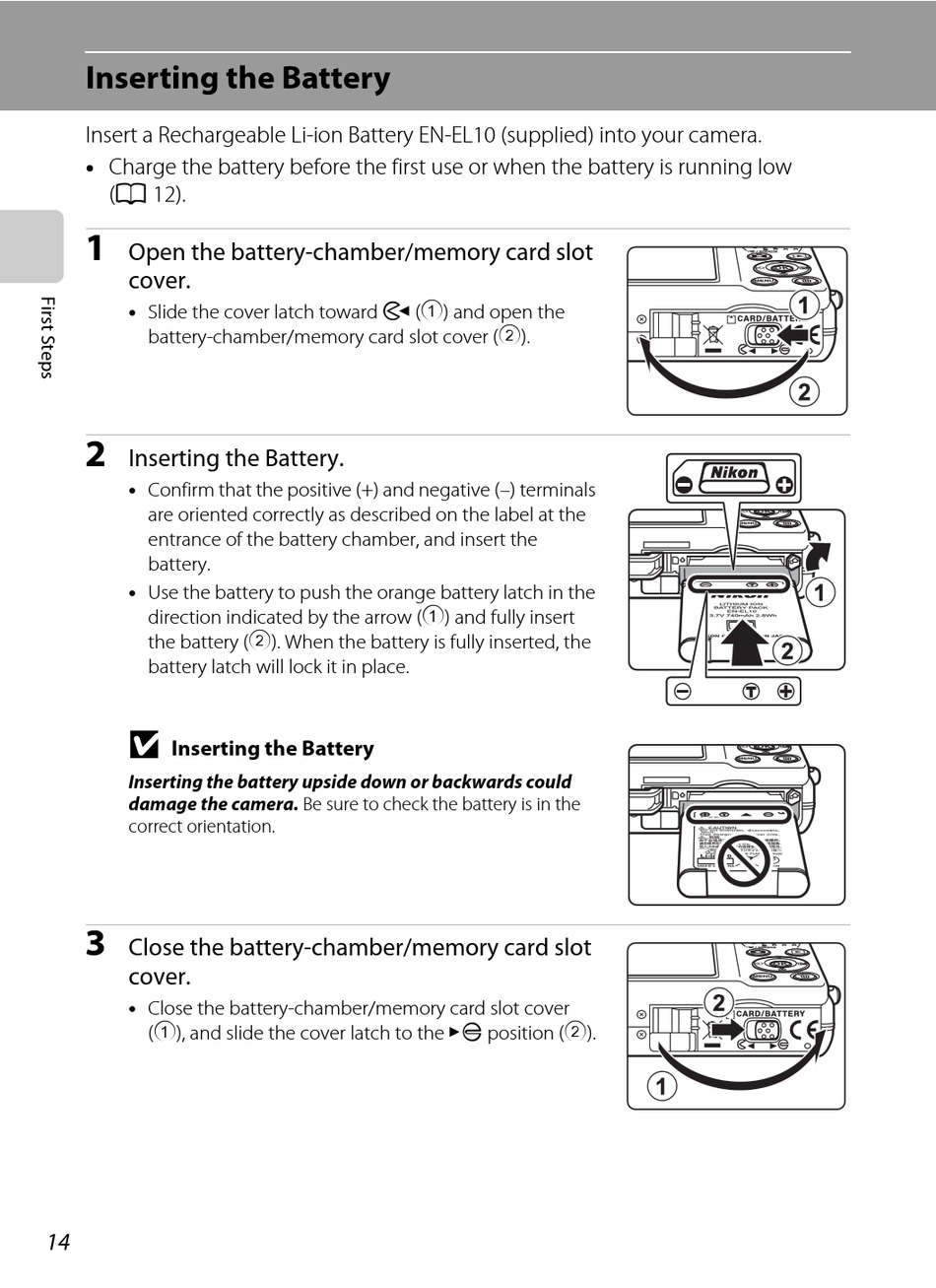

Inserting the Battery

Insert a Rechargeable Li-ion Battery EN-EL10 (supplied) into your camera.
• Charge the battery before the first use or when the battery is running low
(A 12).
1
Open the battery-chamber/memory card slot
cover.
• Slide the cover latch toward Y (1) and open the
battery-chamber/memory card slot cover (2).
2
Inserting the Battery.
• Confirm that the positive (+) and negative (–) terminals
are oriented correctly as described on the label at the
entrance of the battery chamber, and insert the
battery.
• Use the battery to push the orange battery latch in the
direction indicated by the arrow (1) and fully insert
the battery (2). When the battery is fully inserted, the
battery latch will lock it in place.
B
Inserting the Battery
Inserting the battery upside down or backwards could
damage the camera. Be sure to check the battery is in the
correct orientation.
3
Close the battery-chamber/memory card slot
cover.
• Close the battery-chamber/memory card slot cover
(1), and slide the cover latch to the Z position (2).
14
