Nikon COOLPIX S570 User Manual page 17

10
1 Flash lamp ........................................................ 29
2 Speaker........................................................67, 78
A (shooting mode) button..................... 8
3
c (playback) button........................... 8, 26
4
5 Multi selector..................................................... 9
k (apply selection) button...................... 9
6
l (delete) button.................26, 27, 67, 78
7
d button ........ 10, 33, 76, 93, 106, 113
8
9 Monitor.................................................................. 6
11 12
10
11
12
13
14
15

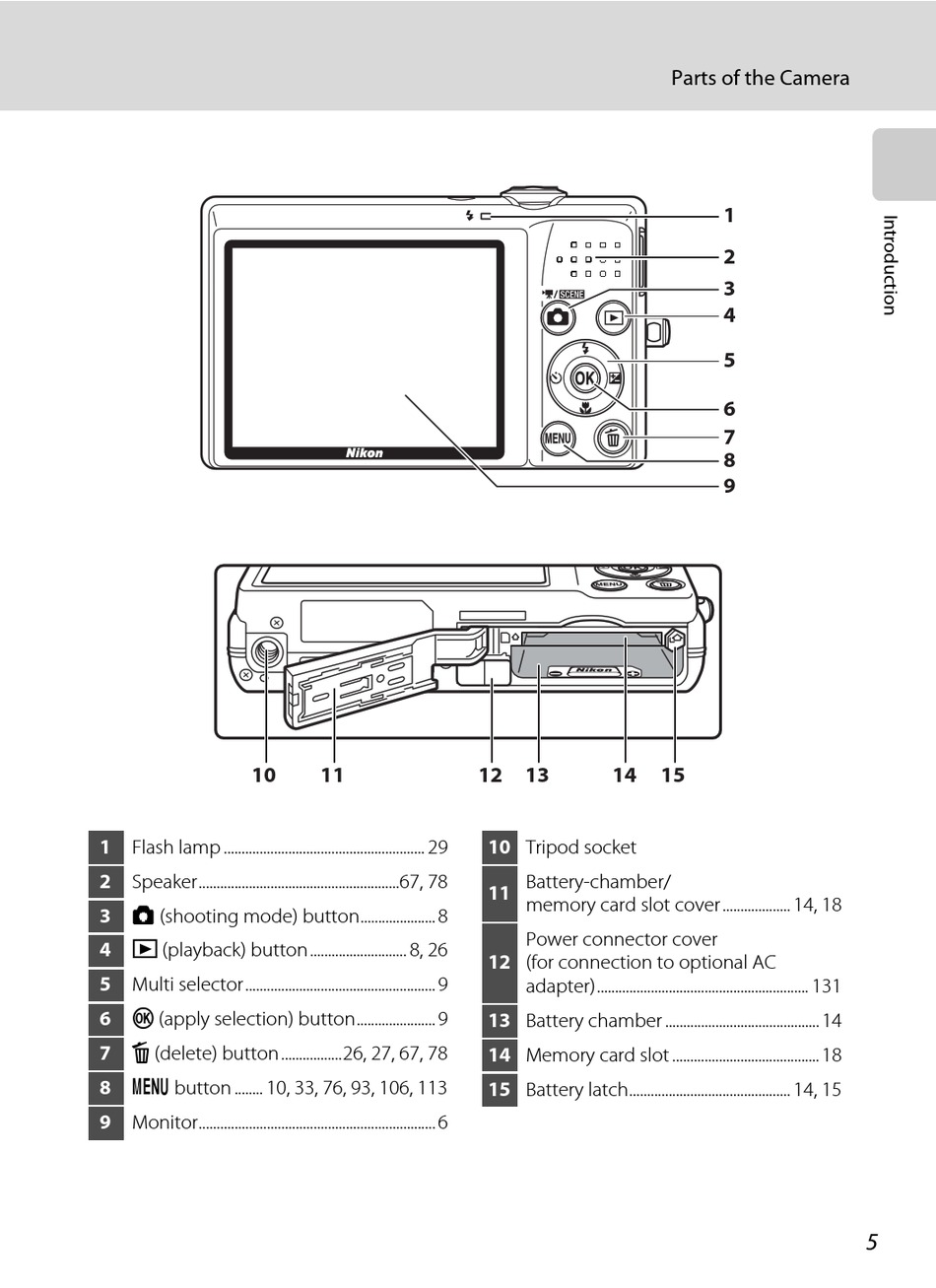

Parts of the Camera
13 14 15
Tripod socket
Battery-chamber/
memory card slot cover ................... 14, 18
Power connector cover
(for connection to optional AC
adapter)........................................................... 131
Battery chamber ........................................... 14
Memory card slot ......................................... 18
Battery latch............................................. 14, 15
1
2
3
4
5
6
7
8
9
5
