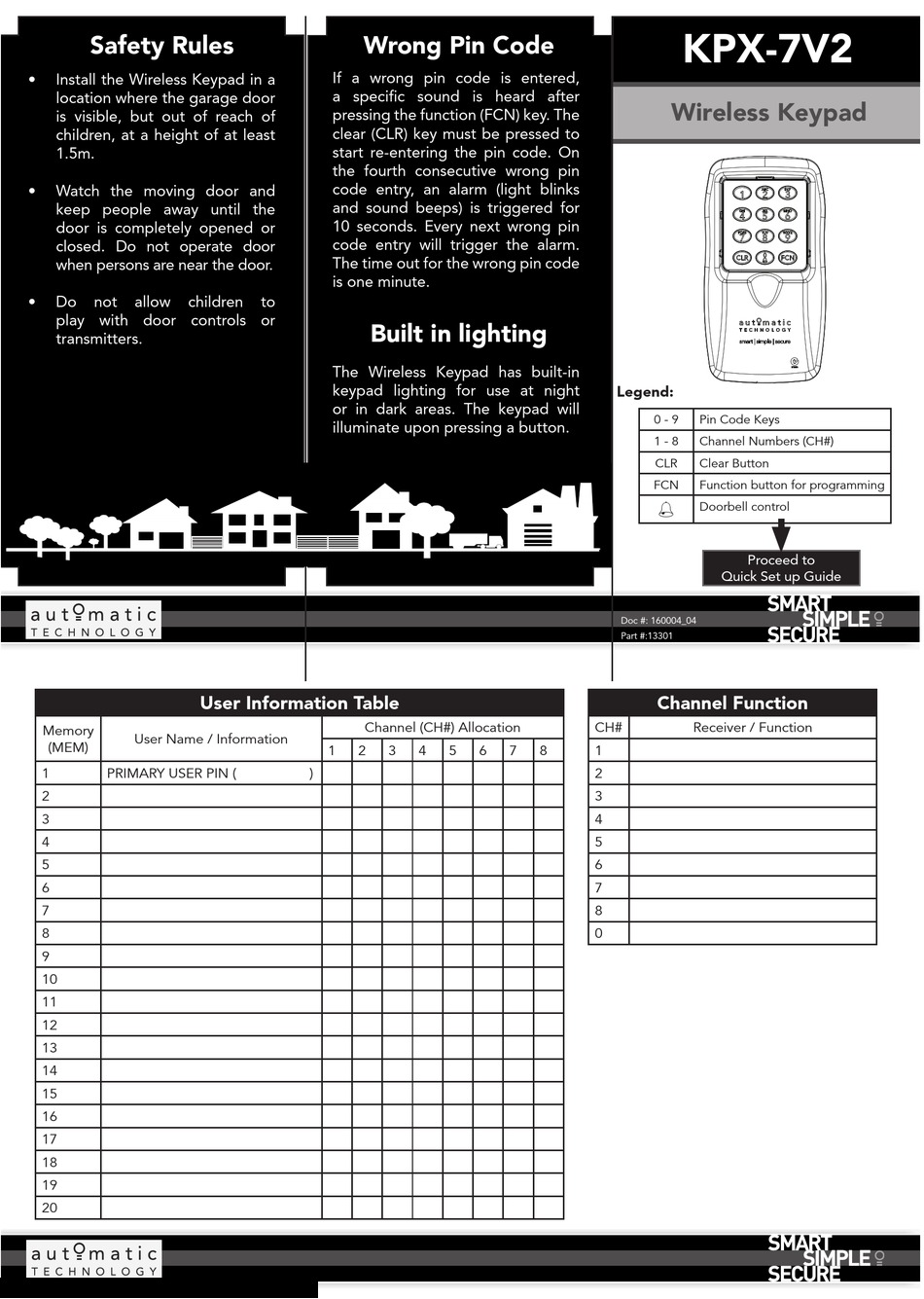

Safety Rules
•
Install the Wireless Keypad in a
location where the garage door
is visible, but out of reach of
children, at a height of at least
1.5m.
•
Watch the moving door and
keep people away until the
door is completely opened or
closed. Do not operate door
when persons are near the door.
•
Do
not
allow
children
play with door controls or
transmitters.
User Information Table
Memory
User Name / Information
(MEM)
1
PRIMARY USER PIN (
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
Wrong Pin Code
If a wrong pin code is entered,
a specific sound is heard after
pressing the function (FCN) key. The
clear (CLR) key must be pressed to
start re-entering the pin code. On
the fourth consecutive wrong pin
code entry, an alarm (light blinks
and sound beeps) is triggered for
10 seconds. Every next wrong pin
code entry will trigger the alarm.
The time out for the wrong pin code
is one minute.
to
Built in lighting
The Wireless Keypad has built-in
keypad lighting for use at night
or in dark areas. The keypad will
illuminate upon pressing a button.
Channel (CH#) Allocation
1
2
3
4
)
Legend:
Doc #: 160004_04
Part #:13301
CH#
5
6
7
8
1
2
3
4
5
6
7
8
0

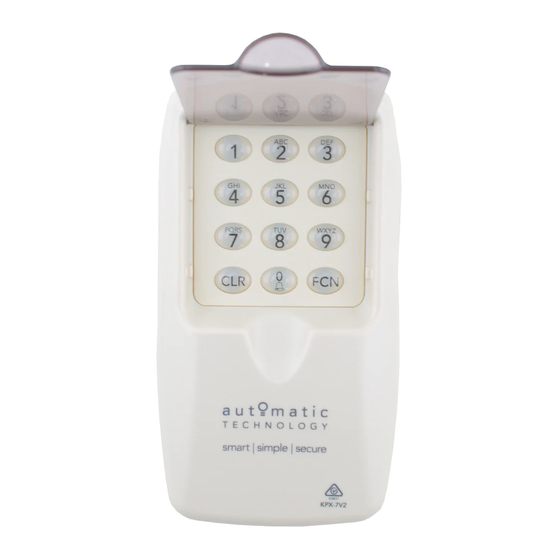

KPX-7V2
Wireless Keypad
0 - 9
Pin Code Keys
1 - 8
Channel Numbers (CH#)
CLR
Clear Button
FCN
Function button for programming
Doorbell control
Proceed to
Quick Set up Guide
Channel Function
Receiver / Function
Advertisement
Subscribe to Our Youtube Channel
Summary of Contents for Automatic Technology KPX-7V2
- Page 1 KPX-7V2 Safety Rules Wrong Pin Code If a wrong pin code is entered, • Install the Wireless Keypad in a a specific sound is heard after location where the garage door Wireless Keypad pressing the function (FCN) key. The is visible, but out of reach of...
-
Page 2: Getting Started
Getting Started There are 8 Channel buttons (keypad no. 1 - 8) in the KPX-7V2 to store functions and these can be programmed for example (1 = Garage Door, 2 = Automatic Gate, 3 = Outside light) If only a single User Pin and one channel function (Garage Door) is required, proceed to the Quick Set Up Guide. - Page 3 1. Does this User need access to all Channel functions (eg. Garage Door, Automatic Gate, Outside Lighting) or only one channel (eg. 2= Automatic Gate). 2. Is this User a Normal User with ongoing access or can I program a Temporary User in the KPX-7V2 Keypad and the User Pin will be deleted after so many uses.
- Page 4 3.2 Coding KPX-7V2 into the other Receivers The KPX-7V2 Keypad can operate other functions such as; door bells, automatic gates, external lighting, etc. as long as each functional product is connected to an Automatic Technology Receiver (available to purchase from dealer) The receiver needs to learn the codes of any keypad / transmitter that will be used by the operator.
