Campbell Hausfeld IN281600AV Operating Instructions Manual

See Warranty on page 5 for important information about commercial use of this product.
Operating Instructions
Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the product described.
Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury and/or
property damage! Retain instructions for future reference.
BUILT TO LAST
Description
This air powered rotary cutting tool is
designed for cutting, sanding and
grinding. This tool may be used with
other brands of cutters, stones, sanding
drums, router bits and grinding points.
Using the correct accessory you can cut,
sand, or grind a large assortment of
materials such as:
Building Material - Acoustical tile,
cement board, ceramic, ceramic wall
tile, drywall, fiberglass, glass,
hardwoods, marble, OSB, plaster,
shell/stone, stucco, underlayment,
wood composites.
Plastic - Acrylic, foam board,
laminates, vinyl siding.
Metals - Aluminum, brass, iron,
steel.
Safety Guidelines
This manual contains information that
is very important to know and
understand. This information is
provided for SAFETY and to PREVENT
EQUIPMENT PROBLEMS. To help
recognize this information, observe the
following symbols.
Danger indicates
DANGER
!
an imminently
hazardous situation which, if not
avoided, WILL result in death or
serious injury.
Warning indicates
WARNING
!
a potentially
hazardous situation which, if not
avoided, COULD result in death or
serious injury.
Caution indicates a
CAUTION
!
potentially
hazardous situation which, if not
avoided, MAY result in minor or
moderate injury.
Notice indicates
NOTICE
important
information, that if not followed, may
cause damage to equipment.
REMINDER: Keep your dated proof of purchase for warranty purposes! Attach it to this manual or file it for safekeeping.
© 2002 Campbell Hausfeld/Scott Fetzer

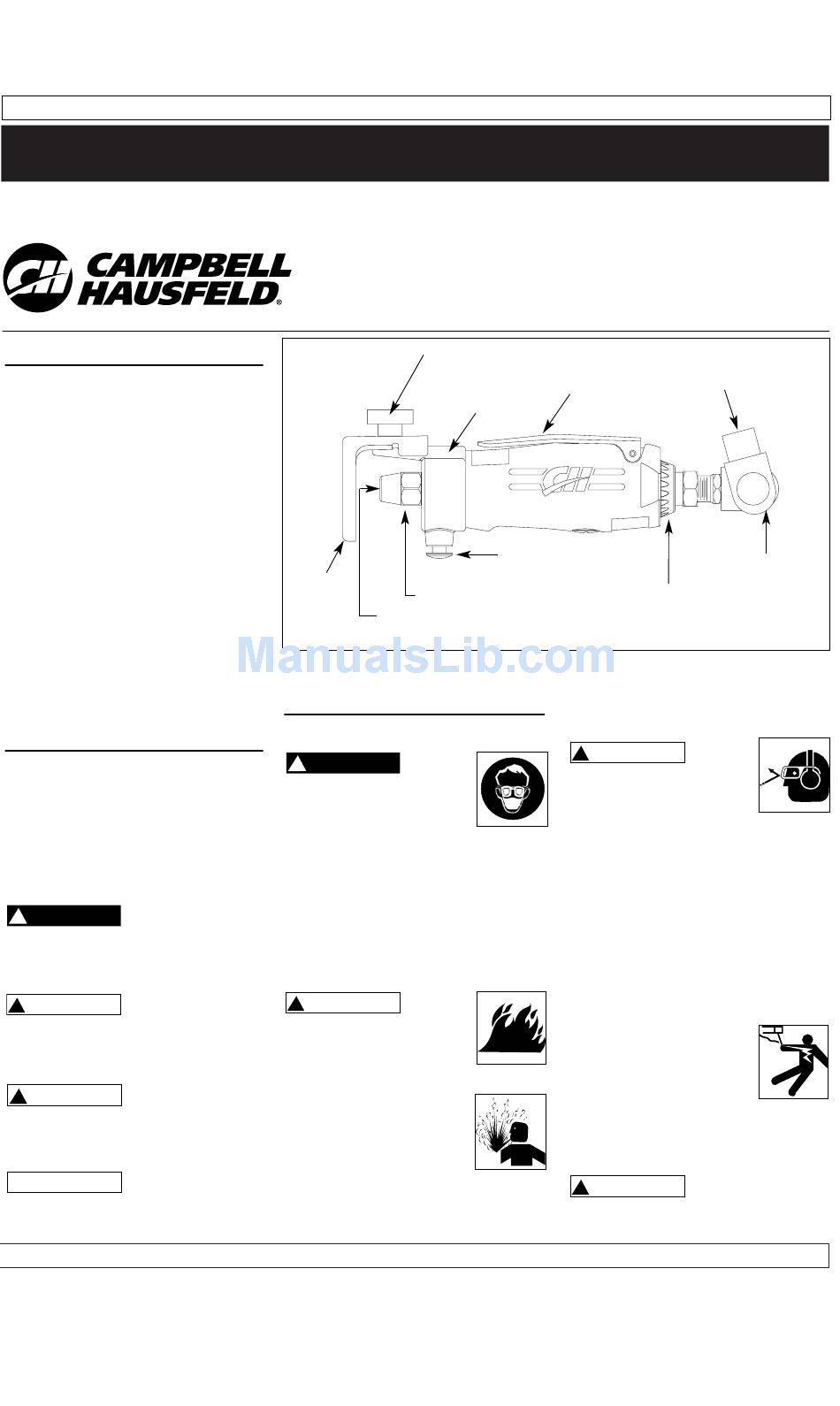

Rotary Cutting Tool
Depth Guide
Locking Knob
Depth
Collet Nut
Guide
Collet Inside
FIgure 1
General Safety
Information
CALIFORNIA PROPOSITION 65
DANGER
!
You can create dust when
you cut, sand, drill, grind
material such as wood,
paint, metal, concrete,
cement, or other masonry. This dust
often contains chemicals known to
cause cancer, birth defects, or other
reproductive harm. Wear protective
gear.
WORK AREA SAFETY
Keep your work area clean and well lit.
Cluttered benches and dark areas invite
accidents.
Avoid
WARNING
!
a dan-
gerous environment. Do not
use air tools in the presence
of flammable liquids or
gases. Avoid chemical or
corrosive environments.
This air tool is part of a high-
pressure air system. Do not
exceed the maximum
pressure rating of this tool
or any component in the
system. Release all pressure from the
system before attempting to install,
service, relocate or perform any
maintenance.
For parts, product & service information
visit www.chpower.com
Trigger
Bracket
Shaft Lock
Button
Keep by-standers, children and visitors
away while operating a power tool.
Distractions can cause you to lose focus
and control.
WARNING
!
and ear protection must be
worn during operation.
Everyone in the work area
must wear the proper safety
equipment. Grinding and cutting
produces sparks, air borne particles and
accessories can fail during use causing
serious personal injury. Use ANSI/OHSA
approved eye, hearing, breathing, skin
and head protection.
Do not overreach. Keep proper footing
and balance at all times. Proper footing
and balance enables better control of
the tool in unexpected situations.
Never work around live
electrical wires. If cutting
into existing walls or other
blind areas where electrical
wiring may exist is
unavoidable, disconnect all fuses or
circuit breakers feeding this work area.
PERSONAL SAFETY
WARNING
!
common sense when operating any
power tool. Do not use tool while tired
Air Inlet
Port
Air
Swivel
Exhaust
Port
Safety
glasses
Stay alert, pay
attention and use
IN281600AV 11/02
