ATMT LITE MP130 User Manual

Atmt digital audio player
Hide thumbs
Table of Contents

Advertisement

Quick Links

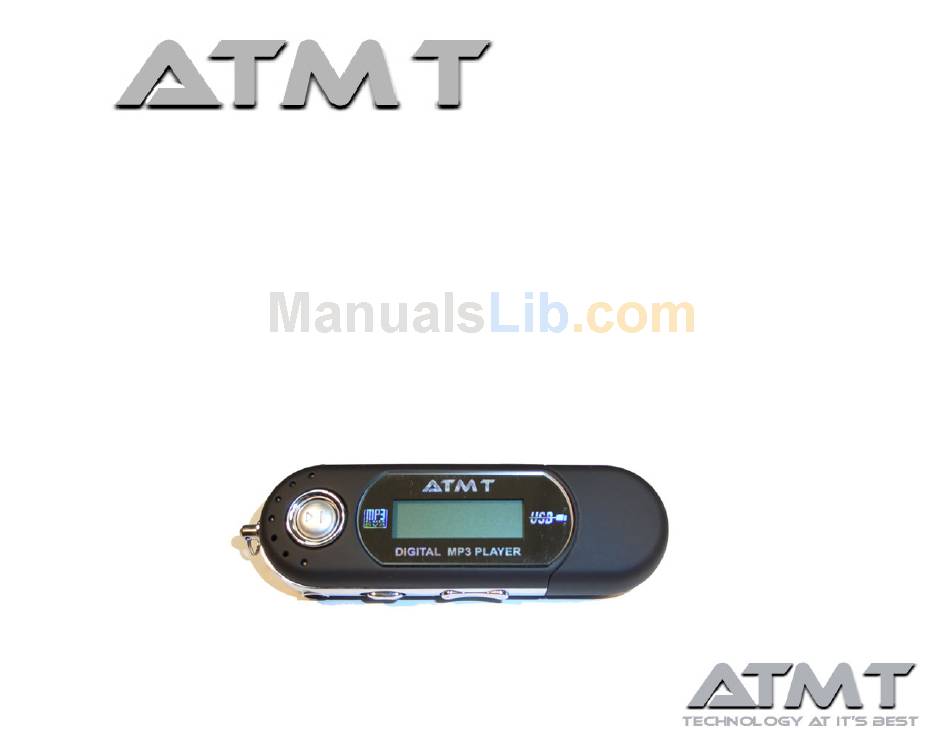

LITE MP3
Digital Audio Player
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LITE MP130 and is the answer not in the manual?

Questions and answers

Related Manuals for ATMT LITE MP130

Summary of Contents for ATMT LITE MP130

  • Page 1 LITE MP3 Digital Audio Player USER MANUAL...

  • Page 2: Table Of Contents

    BEFORE USING THE PRODUCT……………………………………………………………….. 3 IMPORTANT INFORMATION…………………………………………………………………...4 FEATURES………………………………………………………………………………………... 5 INSTALLATION………………………………………………………………………………….. 6 DRIVER SOFTWARE…………………………………………………………………………... 7 MODES……………………………………………………………………………………………. 9 BASIC OPERATION…………………………………………………………………………... 11 Switching On and Off……………………………………………………………………... 11 Playback………………………………………………………………………………………… 11 Previous/Next…………………………………………………………………………………... 12 Hold…………………………………………………………………………………………….. 12 Volume…………………………………………………………………………………………. 12 Fast Forward/Reverse…………………………………………………………………………... 12 Play Submenu…………………………………………………………………………………... 12 Equalizer………………………………………………………………………………………... 12 Record Mode……………………………………………………………………………...

  • Page 3: Before Using The Product

    BEFORE USING THE PRODUCT Introduction: The ATMT Lite MP3 Player has excellent sound quality and is easy to use. It is USB 2.0 compatible and can download MP3 files without additional software. The unit can also be used as a USB Flash Drive.

  • Page 4: Important Information

    IMPORTANT INFORMATION • To operate this device correctly, please read and retain all operating instructions before operating the unit, we do not assume any liability arising out of improper operation or incidental damages. • If the unit is not used for a long period of time please remove the battery to avoid damage by corrosion.

  • Page 5: Features

    • Only use “FAT” File System when you format the USB disk. • Playback of MP1, MP2, MP3, WMA, WMV, ASF and WAV formats. • Dot-Matrix LCD Display with backlight • High Quality digital recording • No Drivers Required for Windows 2000/ME/XP •...

  • Page 6: Installation

    Indicates that the battery is full. Indicates low battery power and a new battery should be inserted. Please note: The battery supplied with your ATMT Lite MP3 Player is a short life battery. So please replace it as soon as you experience the device turning off.

  • Page 7: Driver Software

    CDROM drive or get the driver from our web site. Double click on SETUP.EXE under the PCTOOLS directory and follow the instructions on the screen. Restart the PC then proceed to connect the ATMT Lite MP3 Player to the PC with or without the provided USB cable. After finishing the installation wait for Windows 98 to recognize the MP3 Player.
  • Page 8 Connecting to a PC The MP3 player is connected to a PC with the provided USB cable. You will see a mass storage device with removable media symbol in My Computer after the unit has been recognized by the operating system.

  • Page 9: Modes

    There are certain modes and menus we will refer to in this manual, familiarizing ones self with these menus and modes will make operating the ATMT Lite MP3 Player a breeze. Main Menu This is the main menu of the MP3 Player, It gives you the selection of “Music Mode”, “Record Mode”, “Voice Mode”, “TelBook Mode”...
  • Page 10 Stop Submenu This Submenu can be entered by pressing the “Mode” button when paused whilst playing MP3 or recorded files, in either Music or Voice mode. The Following table shows exactly what each button will do throughout these different modes: Button Action long press...

  • Page 11: Basic Operation

    BASIC OPERATION Switching On and Off Use the Play/Pause button to switch on. To switch off press the Play/Pause button for more than 3 seconds. Playback From the Menu select the Music Mode option. Then press down on the Mode button.

  • Page 12: Previous/Next

    Slide the Mode button to the left or right, depending if you want next or previous track. Hold When Hold in on all other keys on the MP3 Player will be locked. Volume Select + or - on the Volume button depending on if you want to decrease or increase the sound.

  • Page 13: Record Mode

    Record Mode Go to the main menu. You can do this at any time by holding down the Mode button. Select the Record Option. Record: Press the Play/Pause button Pause Record: Press the Play/Pause button Stop Record: Long Press of the Play/Pause button Playback Recorded Files Go to the main menu.

  • Page 14: Copying Files

    Copying Files to ATMT Lite MP3 Player Seen from the PC’s side the ATMT Lite MP3 Player is a normal mass storage device. File transfer therefore is possible in the common way in Windows Explorer. Important Do not disconnect the unit while files are been copied. Otherwise this may cause loss of data.

  • Page 15: System Settings

    SYSTEM SETTINGS Record time Backlight Language Power off (Replay mode Contrast (Back color) Online Mode Memory info. Animation Logo Firmware version Firmware upgrade Exit Set the time and date when recorded files are saved set the period of time (sec.) when Backlight stays on without any operation set different languages displayed set a fixed time after which the player may turn power off automatically set working status on Replay Mode...

  • Page 16: Repeat

    Repeat (Playing Submenu) When playing music and recorded files, different play modes can be selected. (Such as Repeat, shuffle etc.) The first option in Play Submenu is Repeat. Select Repeat and you will be able to change the play mode. The player will play files according to the mode selected.

  • Page 17: Lyric Display

    Lyric Display The ATMT Lite MP3 Player supports *.LRC lyric files and lyrics may be displayed simultaneously whilst playing music. Save the lyric file with the same name as that of the corresponding music file. Music file name: Andy-Water.mp3 Lyric file name: Andy-Water.lrc To view the lyrics whilst playing the song you must be in Play Mode.

  • Page 18: Telephone Book

    3. Press Mode button to enter Tel Book submenu Submenu Options Browser Tel User can browse the Tel Book information through the MP3 player. Import Tel file Use the telephone directory utility (included with the provided CD) Export Tel file This function will export the Tel Book information into a readable text file on the root directory of the MP3 player.

  • Page 19: Private Space Function

    Many MP3 users are puzzled by the problem of information disclosure and private data been accessed by others. However, the “Private Space” function provided by the ATMT Lite MP3 player eliminates this problem. Users may divide USB disk of this player by its accessory tools into two parts in any proportion (users may see two driver letters on PC.
  • Page 20 5. Press “OK”, then PC may restart. 6. Two disks may be displayed after restarting (only one driver letter may be displayed when under Windows 2K SP4). Click to access the encrypted disk (the second one), and there are three files in it, two private files and one executable file with only 300K memory space.

  • Page 21: Trouble Shooting

    • Check whether the battery needs to be replaced • Check to see if the hold button is on • N.B. Battery included with the MP3 Player is a short life battery Why is no sound coming from the headphones? •...
  • Page 22 • Ensure the driver is installed correctly • Make sure the MP3 Players memory is not full • When using encrypted disk on the MP3 Player ensure you have entered the correct username and password, to gain access to the drive before transferring data.

  • Page 23: Specifications

    SPECIFICATIONS Dimension Weight 25g without battery LCM Window LCM, EL backlight PC connection High-speed USB2.0 Flash memory 256MB-1GB 1×AAA Alkaline cell Battery Max Play time: 10 hours Sample rate Record Recording format Recording time Max output of headphone MP3 bit rate MP3, WMA, WMV, WMA, WMV, ASF bit rate...
