Summary of Contents for Double Power Technology DPM1081

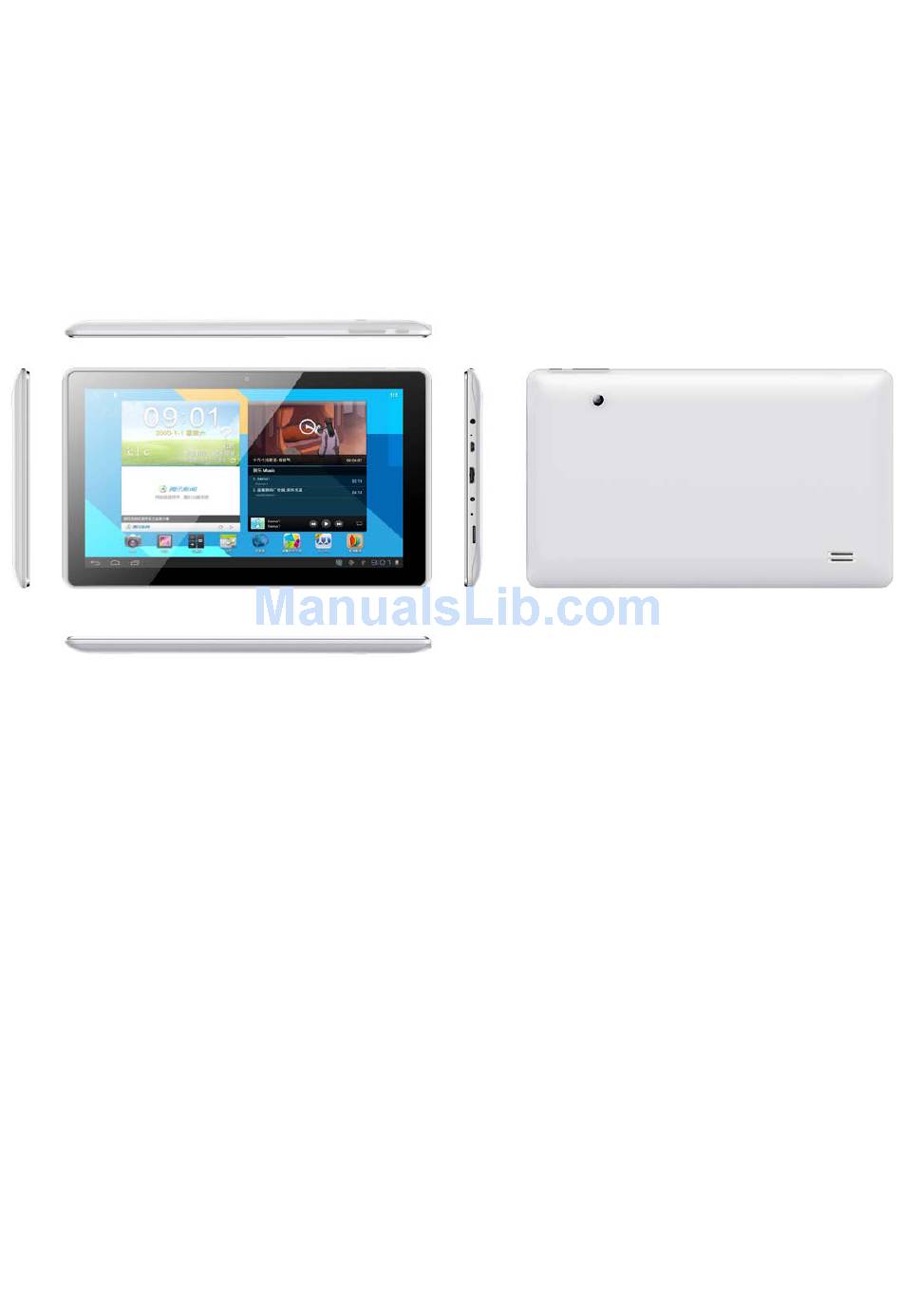

- Page 1 DPM1081 User Manual V1.0...
-
Page 2: Table Of Contents
Contents 1. INTRODUCTION..............3 1.1 Package Contents .............. 3 1.2 Tablet Features ..............3 1.3 Buttons and Connections ........... 4 1.4 Charging the Tablet ............5 1.5 Memory Expansion with Micro SDHC Memory Card ..6 2. GETTING STARTED .............. 7 2.1 Power On and Off............... - Page 3 4. MANAGING APPLICATIONS ..........21 5. OPTIONAL CONNECTIONS ..........23 5.1 Connect to a Computer ............23 5.2 Using a USB (OTG) Full-size Adapter ......23 6. SYSTEM SETTINGS ............23 7. GENERAL INFORMATION ..........25...
-
Page 4: Introduction
1. INTRODUCTION 1.1 Package Contents Please make sure that the items below are included in the package. If an item is missing, please contact the local retailer from whom you purchased this product. Tablet • USB Cable • USB OTG Adaptor •... -
Page 5: Buttons And Connections
1.3 Buttons and Connections... -
Page 6: Charging The Tablet
Button Description 1. Headphone jack Audio output connection for headphones. Note: Speaker output is automatically disabled when headphones are connected to the Tablet. 2. Micro USB 2.0 Connect to a computer to transfer (OTG Host) data (e.g., music, videos, photos, and files). -
Page 7: Memory Expansion With Micro Sdhc Memory Card
When the Tablet is connected to a computer via the USB • cable, the battery will charge via the USB socket, but at a much slower rate than via the DC 5V power adapter. Do not use any other power adapters than the one supplied. -
Page 8: Getting Started
a. From the Home screen, tap the Menu key, and then tap Setting/Storage to go to the storage menu. b. Tap Unmount SD card to prepare the memory card for safe removal. Push the card further into the slot until you hear a click. •... -
Page 9: About The Touch Screen
Unlocking If the screen is currently blank (theTablet is on, but in • standby mode), press the button (short press, do not hold). The screen will turn on. Touch and drag the padlock icon over to the open padlock • symbol. -
Page 10: Display Orientation
Protective Film A thin film has been applied to the touch screen to protect it during shipping. It is recommended to remove the protective film before using the touch screen. To remove it, simply take a corner of the film and peel it away from the screen. Touch Screen Actions You can control all the functions of the Tablet by using the touch screen in combination with the three touch keys located... -
Page 11: Home Screen
Simply turn the Tablet to either the portrait or landscape position, and the display will rotate to match. The sensor works best when the tablet is rotated perpendicular to the ground (i.e., when the Tablet is held upright and not flat on its back). -
Page 12: Customise Home Screen
button moves back one step to the previous menu • / page. button goes to the Android home screen. • button displays a menu of recently opened • applications. buttons decrease and increase the volume. • button displays a menu of options (differs •... -
Page 13: Applications Menu
You can change the Home screen wallpaper by doing the following: Press and hold at a blank spot on the home screen. A pop- • up menu will appear. Choose the wallpaper. Tap to select the wallpaper from the gallery pictures or •... -
Page 14: Preinstalled Applications
If you have more applications that can not fit onto one • page, slide your finger from right to left across the screen to view the next page. Applications Applications provide expanded functionality to the Tablet. A selection of applications is pre-loaded onto your Tablet, and more can be downloaded from various websites. -
Page 15: Installing Applications
Calculator: Perform simple mathematical operations. Camera: Take pictures or videos. Email: Check your e-mail. File Manager: View and manage files stored on the Tablet. Gallery: View photos and play videos. Music: Play music. Settings: Access the Settings menu to adjust the Tablet’s options. -
Page 16: Status Bar/Notification Window
Your use of such third party content, products, applications and services is at the discretion of such third party and expressly governed by such third party’s terms of use, including any such third party’s privacy policies, for such content, products, applications and services. - Page 17 To respond to a notification Touch a notification in the list; the Notifications panel will close and the application associated with the notification will launch. To clear all notifications Drag the notification to the right and the notification will be cleared.
-
Page 18: Entering Text
2.8 Entering Text You can type text using the Android on-screen keyboard . The keyboards automatically rotate to either portrait or landscape mode based on the device orientation. 3. CONNECTING TO THE INTERNET The vast majority of applications support some kind of networking / Internet functionality. -
Page 19: Browsing The Web
After a few seconds, Wi-Fi will be enabled and a list of • available wireless network names (SSID) will appear. Locate your wireless network on the list and touch to select it. You will be asked for the password. Type it in using the •... - Page 20 Some common Browser actions are described below. To go to a Webpage • 1. Touch the Address bar at the top of the Browser screen. The keyboard will open automatically. (If the Address bar is not visible, drag the page down to return to the top of the Browser screen.) 2.
- Page 21 2. Touch a bookmark tile to open it. To delete a Bookmarked Webpage • 1. Touch the Bookmark icon. 2. Touch and hold a bookmark tile to open the option menu. 3. Touch Delete bookmark. 4. Touch OK to confirm. Browser Menu •...
-
Page 22: Managing Applications
Refresh: Refresh the current webpage. Forward: Go to the next webpage. Bookmarks: A list of saved webpage’s for quick access Save to bookmarks: Save a webpage and add it to bookmark list Share page: Use email to send the webpage URL. Request desktop site: Force the browser to open the desktop versions of all sites. - Page 23 Note: Be especially cautious with applications that request access to too many functions or to a significant amount of your data. You are responsible for the results of applications installed on your Tablet. Some developers allow you to download and install applications directly from their website.
-
Page 24: Optional Connections
4. Touch the name of the application you want to uninstall; the Application Info screen will open. 5. Touch Uninstall. The Tablet will prompt you to confirm. 6. Touch OK to uninstall the application. 5. OPTIONAL CONNECTIONS 5.1 Connect to a Computer TheTablet can be connected to a computer running Microsoft Windows for file transfer via a USB cable. - Page 25 To change the settings: Touch the Settings menu icon on the Applications menu. • The Settings menu will open. Glide your finger up or down the left side of the screen to • scroll through the list of available categories. Touch a category title to view further options on the right- •...
-
Page 26: General Information
Backup & Backup and restore data, perform factory reset reset, etc Add / remove accounts, change account account synchronization settings, etc System Date & time Set date, time zone, time, clock format, etc Accessibility Set up large text, auto-rotate screen, speak passwords, etc Developer Advanced functions for Android developers... - Page 27 your lap or any part of the body for long periods of time as the unit may become warm during use. Power Sources: This product should be operated only • with the type of power source indicated on the rating label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company.
- Page 28 USB is a registered trademark of USB Implementers • Forum, Inc. All other trademarks and logos are property of their respective owners unless otherwise indicated.
- Page 29 Specifications LCD Display Size 10.1 TFT Capacitive multi-touch panel 16:9 Resolution 1024*600 MTK8127 Quad Core Cortex A7@1.3 GHz 1GB DDR3 Built-in Flash 16GB Camera 0.3MP (front), 2.0MP (back) Wi-Fi/Bluetooth 802.11 b/g/n, Bluetooth Support USB Port micro USB 2.0 High Speed OTG Memory Slot Support micro SDHC Card, max 32GB 3.5mm headphone out...
