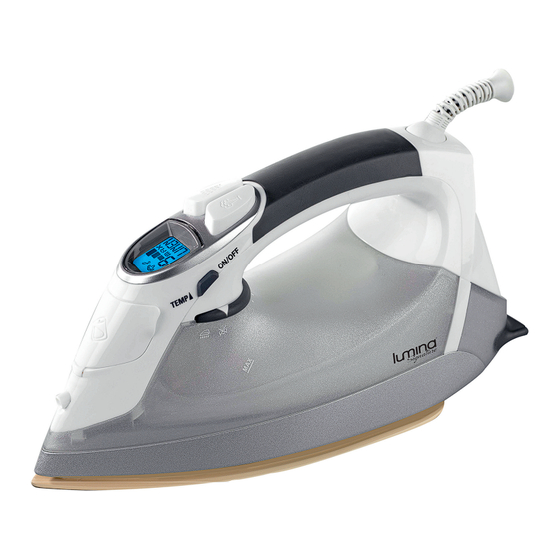

- Page 1 Steam Iron Model Number DB 5000 INSTRUCTION MANUAL After Sales Support Telephone: 1300 366 144 Internet: warrantyhelp@awa.com.au...
-
Page 2: Table Of Contents
Contents 03 Warranty Details 04 Welcome Section 05 General Information and Safety instructions 05 Instruction manual 05 Explanation of symbols 05 Approved use 06 General Safety Information 08 Appliance-based safety advice 10 Assembly and Parts List 11 Before using for the first time 12 Getting Started / Features 13 Fill the water tank 13 Turn on appliance... - Page 3 Steam Iron The product is guaranteed to be free from defects in workmanship and parts for a period of 36 months (dependant on product) from the date of purchase. Defects that occur within this warranty period, under normal use and care, will be repaired, replaced or refunded at our discretion. The benefits conferred by this warranty are in addition to all rights and remedies in respect of the pro- duct that the consumer has under the Competition and Consumer Act 2010 and similar state and territory laws.
-
Page 4: Welcome Section
Congratulations on choosing to buy a Lumina Signature® product. All products brought to you by Lumina Signature® are manufactured to the highest standards of performance and safety, and, as part of our philosophy of customer service and satisfaction, are backed by our comprehen- sive 3 Year Warranty. -
Page 5: General Information And Safety Instructions
General Information and Safety Instructiones Instruction manual Please read this instruction manual thoroughly before switching on the appliance. You will find a number of im- portant and useful tips in these instructions. Keep the instructions in a safe place and be sure to enclose them with the appliance if you sell it. -
Page 6: General Safety Information
General safety information This appliance may be used by children aged 8 and older and by individuals with impaired physical, sensory or mental abilities or with limited experience and/or knowledge, provided they are supervised or have been instructed in the safe use of the appliance and understand the risks resulting therefrom. Children are not allowed to play with the appliance. - Page 7 • Keep packaging away from children - Risk of suffocation! • Electrical appliances are not toys! Always operate and store the appliance beyond the reach of children. Children do not recognize the danger which can result from using electrical appliances. Do not allow the mains lead to hang down to prevent it from being pulled.
-
Page 8: Appliance-Based Safety Advice
Appliance-based safety advice Only use the appliance inside. • Never store the appliance in such a way that it could fall into a tub or a sink. • Never reach for an electrical appliance if it has fallen into water. In this case immediately pull the mains plug from the socket. - Page 9 Risk of damage resulting from misuse! An incorrect ironing temperature may cause damage to the laundry. Hard items may scratch the ironing base. • Never set the iron to a temperature higher than that stated on the care label attached to the item. •...
-
Page 10: Assembly And Parts List
Assembly and parts list mark 1) Handle 2) Steam jet button A) "Steam ironing" indicator 3) Jet button B) "Self-cleaning" indicator 4) LCD display (see also A to E) C) "Automatic shut-off" indicator 5) Water tank (fill opening) D) "Temperature" indicator 6) Nozzle E) "Fabric type"... -
Page 11: Before Using For The First Time
Before using for the first time After unpacking, ensure that the contents are complete and check for any transit damage in order to avoid any danger. If in any doubt, do not use the appliance. Please contact our customer service department. You will find the service address in our warranty conditions and on the warranty card. -
Page 12: Getting Started / Features
Getting Started / Features Ironing instructions Ironing tips • First sort the items to be ironed according to the sensitivity of the fabrics and sort them according to the corresponding temperature levels. Most items of clothing have an international fabric care label; always follow the manufacturer's instructions. -
Page 13: Fill The Water Tank
Ironing base with ionic coating Your steam iron has an ironing base with a special ionic coating. While the ironing base is passing over the fabric, the ionic coating generates ions as a result of the gentle friction. This means that during ironing negatively-charged particles, so-called ions, are given off. -
Page 14: Setting The Temperature
Setting the temperature: In order to TEMPERATURE SETTINGS Fabric type Points • increase the temperature, briefly press button (7) Display (4) "Increase temperature" as many times as required until the display (4) shows the desired temperature Acrylic level (1 to 9) and/or the fabric type. •... -
Page 15: Instructions
Instructions Use of the steam iron Dry ironing 1. Set the stem regulator (9) to position 2. Set the desired temperature according to the type of fabric to be ironed. The steam iron is ready for operation as soon as the number for the temperature level stops blinking and an audible signal sounds. -
Page 16: Anti-Limescale System
Steam jet The increased steam generation caused by the steam jet is primarily suited for linen and wool as well as for dealing with severely crumpled items. Hold the steam iron at a suitable distance from the item being ironed. This will avoid damaging the fabric. -
Page 17: Anti-Drip Function
formed in the steam chamber. 3. Use the self-cleaning function until no more steam and/or hot water escapes. 4. Turn the appliance off and unplug it from the mains. Place the steam iron on the stand (11) and allow it to cool. -
Page 18: Other Useful Information
Other Useful Information • Question: I would like to iron my silk blouse using the steam function. I have therefore set temperature level 3, but no steam is coming from the ironing base, why not? • Answer: Please note that the steam function can/may only be used at temperature levels 5-9. Temperature levels 1-4 are intended for dry ironing. -
Page 19: Problem And Solution
Problem and Solution Problem: Cause: Solution: Steam iron does Auto-shutoff function Tilt and/or move the iron horizontally. not heat up Not plugged into the outlet Plug appliance into outlet Temperature not set Turn the appliance on by pressing the "Higher temperature”... -
Page 20: Maintenance, Cleaning And Care
Maintenance, Cleaning and Care Always unplug the plug and allow the appliance to cool completely before cleaning and storing it. Danger of electrocution! Never touch hot surfaces! Always ensure that no liquid penetrates inside the appliance; never submerge the appliance in water. -
Page 21: Index
Index Approved Use ..........05 Safety ........05, 06, 07, 08, 09 Anti-drip function ........... 17 Self cleaning function ........16 Anti-limescale system ........16 Spraying ............16 Auto-shutoff function ........17 Steam ironing ..........15 Steam jet ............16 Symbols ............05 Before using the first time ...... - Page 22 After Sales Support Telephone: 1300 366 144 Internet: warrantyhelp@awa.com.au...
- Page 23 After Sales Support Telephone: 1300 366 144 Internet: warrantyhelp@awa.com.au...
- Page 24 After Sales Support Telephone: 1300 366 144 Internet: warrantyhelp@awa.com.au...
