Summary of Contents for Hubner MS 150

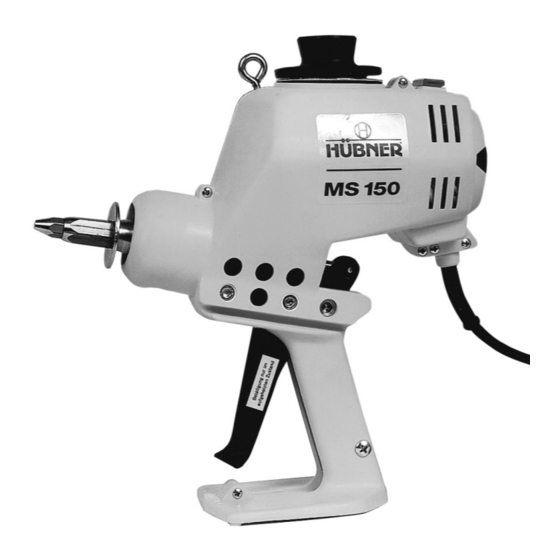

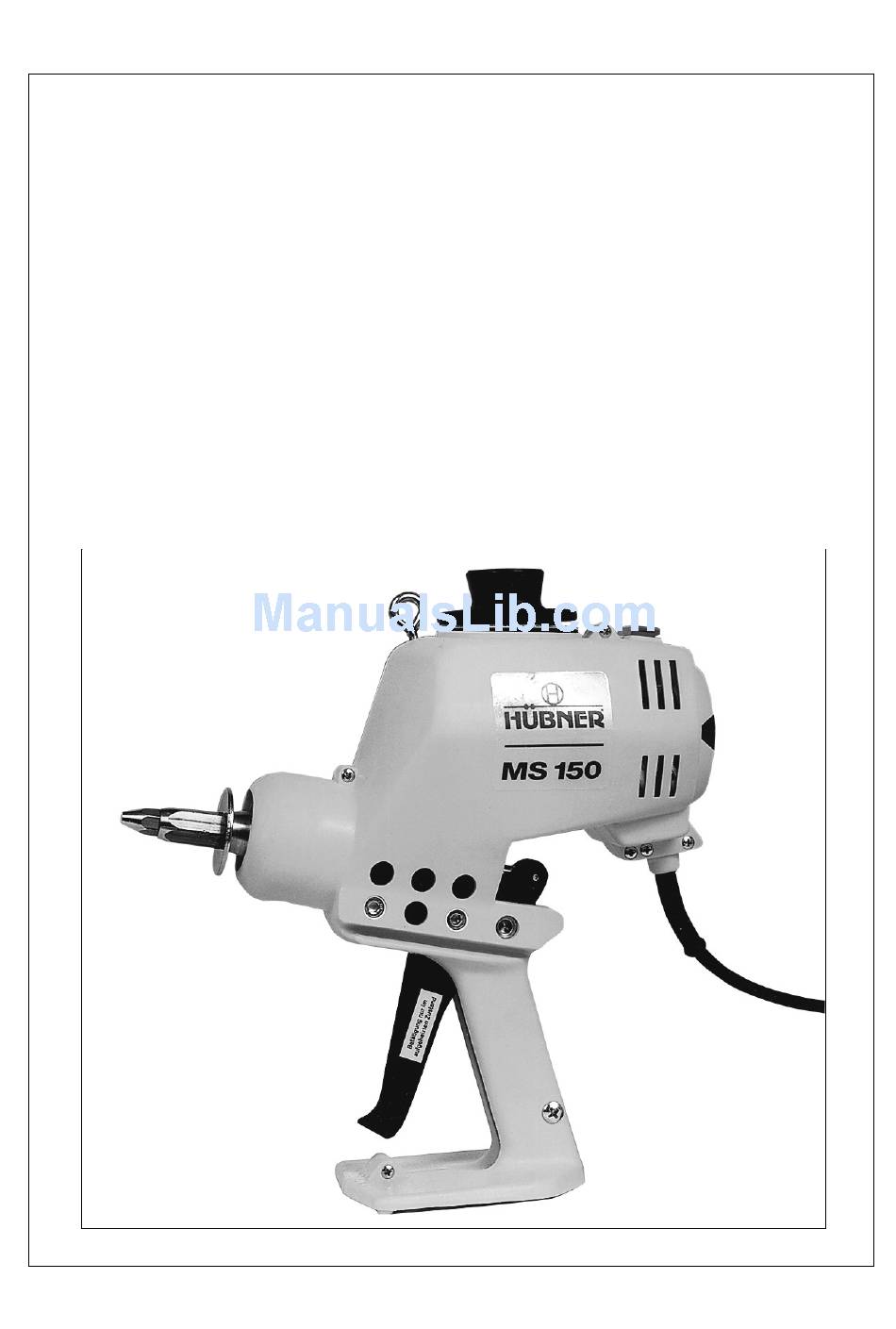

- Page 1 Operating Instructions Hot-Melt Glue Gun MS 150 Glue Gun Art.Nr.9119...
-
Page 2: Table Of Contents
Table of Contents Product Description ............Trouble-Shooting ............General Safety Instructions ..........Start-up ................Operation ................ Additional Information ............10 EC-Conformity Certificate ..........11 Exploded Views .............. 12 Spare Parts Legend ............13 Art.Nr.9119... -
Page 3: Product Description
Dear customer, The glue gun you purchased will help you to glue parts together more easily and more rapidly. Before using the gun, please read these instructions thoroughly. Product Description Proper Use The gun works with and dispenses hot glue. Therefore, the glue gun should only be used by qualified people. -
Page 4: Trouble-Shooting
Trouble-Shooting Survey on Possible Fault Signals and Assistance in Trouble-Shooting In case of damage, send glue gun to Reka. We shall not be responsible for any repair made by the customer. Problems Possible Causes/ Trouble-Shooting Faulty Operation No or too little glue comes off •... -
Page 5: General Safety Instructions
General Safety Instructions User’s Care and Diligence The Glue Gun has been designed and fabricated according to the applicable harmonized standards and further technical specifications. So, it is state of art and ensures a maximum of safety. This safety, however, can only be achieved in practice, if all necessary measures have been taken. The user of the device shall be obliged to plan these measures and to make sure that they are taken. - Page 6 Prior to each use, check the gun for visible damage and make sure that it is in perfect condition! Advise detected defects to your superior at once! Safety Instructions for the Use of the Hot-Melt Glue Gun MS 150 • Always follow the accident prevention regulation VBG 81 - Processing of Glues issued by the Professional Association of the Chemical Industry •...
-
Page 7: Start-Up
Loading of Glue The MS 150 Glue Gun is designed for applying solvent-free hot melts. Never fill the gun with other materials. The hot-melt glue gun can work with all the types of hot melts that are designed for working temperatures of up to max. - Page 8 Nozzle Replacement Only replace nozzles when the glue gun is warm (instrument temperature 60 - 80 °C) and empty. You are advised to wear protective gloves. Prior to exchanging nozzles, unplug connecting cable! Replacing a cold nozzle may damage the gun. If the nozzle is replaced when it is too hot, liquid adhesive may leak out.
-
Page 9: Operation
Operation The glue gun shall only be used/applied according to its intended use. Please see Section “General Safety Instructions“. Improper use of the gun may cause personal injury or material damage. Non-observance of the safety instructions when working with the gun may lead to serious burns. Make a functional test acc. -
Page 10: Additional Information
Note: - Do not lay glue gun on its side - Never overcharge gun - Do not direct glue jet towards people - Do not hold nozzle top upwards - Do not carry out overhead work - Never exceed working temperature of the glue - Stop using the gun, if casing is damaged due to shock, breakage or heavy wear. -
Page 11: Ec-Conformity Certificate
This is to certify that the below-described machine, as regards its design and type, as well as the construction sold by us, is in conformity with the relevant safety and health regulations of the EC guideline. Description of the machine MS 150 Glue Gun Intended use Application of solvent-free hot melts... -
Page 12: Exploded Views
Ersatzteilliste / Spare Parts MS 150 01.02.2002 Ersatzteilliste MS150 01.02.2002 Hübner Reka Art.Nr.9119... -
Page 13: Spare Parts Legend
SPARE PARTS PRICE LIST HUBNER HOT MELT GUN MODEL MS150 Part Number Description Price £ each MS150 021 Cashing - Right hand 42.50 MS150 011 Casing - Left hand 42.50 MS150-031 Melt Pot 125.00 MS150 040 Nozzle 1.75 mm 6.75 MS150 041 A Nozzle Assy 1.75mm... - Page 14 HUBNER HOT MELT GUN MODEL MS150 PAGE -2- Part Number Description Price £ each MS150 520 Screw - Handle MS150 530 Screw - Cable Grip (2 required) MS150 540 Screw - Electrics (5 required) MS150 545 Screw - Terminal Block...
