Summary of Contents for Apollo multispot HT3012

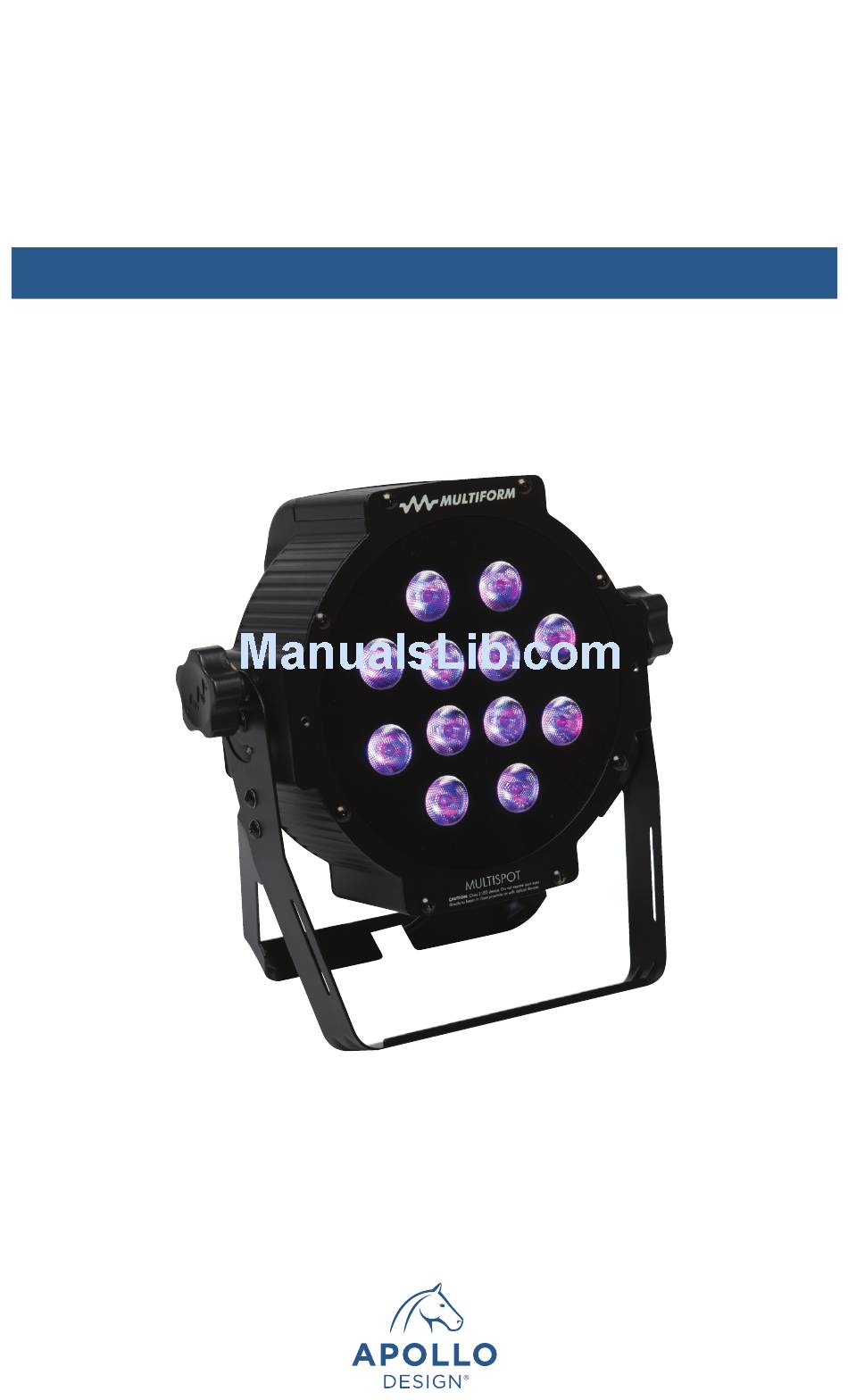

  • Page 1 MultiSpot HT3012 ® Exclusive USA Distributor...

  • Page 2: Product Description

    Introduction Since 1992, Apollo Design Technology, Inc. has been one of the world’s leading innovators, manufacturers and distributors of gobos, color filters, lights and related equipment and accessories for the lighting industry. We are continually engineering new products to help you create and execute the designs of your dreams for theaters, bands, advertising, touring companies, television, motion pictures, museums, retail and architecture.
  • Page 3 USER MANUAL MULTISPOT-GI-HT3012 High-Power RGB LED Lighting Fixture For firmware 50-010-0018-00111-1-00 (RevL) ENGLISH Page 2-15 Updated versions of this document may be available at WWW.MULTIFORM-LIGHTING.COM RevB 08/2013 Order code: 12-010-0253-80102-1-01...

  • Page 4: Safety Information

    User Manual: Multispot-GI-HT3012 ■ Introduction Dear customer, congratulations on the purchase of a Multiform-branded item and the trust having been put in us with this decision. Multiform is one of the leading global manufacturers of professional lighting equipment and has decades of experience in design, production and quality assurance.
  • Page 5 User Manual: Multispot-GI-HT3012 WARNING! Shock hazard. Equipment must be properly grounded. WARNING! Hot surface. Risk of skin burn or skin irritation. WARNING! Fire hazard. WARNING! Laser radiation. Risk of surface damage. WARNING! LED light emission. Risk of eye injury. ■ Security advice before use General advice: Read this manual completely before using the product.
  • Page 6 User Manual: Multispot-GI-HT3012 Protection from electric shock: Only connect this unit to a mains socket outlet with protective earth connection, ground-fault (earth-fault) and overload protection. Where the mains plug or an appliance coupler is used as a dis- connect device, such device shall remain readily operable. To pull the AC Cord out of the wall outlet or the unit’s AC socket, never pull the cable itself, but only the AC plug.
  • Page 7 User Manual: Multispot-GI-HT3012 The surface of the device may get hot during operation, and heat sink areas may reach to or exceed the limits of EN60950. Do not touch heat sink areas of the device during operation, and allow 20 minutes of cool-down time after powering off before touching.
  • Page 8 User Manual: Multispot-GI-HT3012 ■ LED Lifetime advice LED lifetime is determined by the gradually declining brightness of a LED over time, with a point of 50% brightness reduction marking the defined end of its lifetime. The driving factor of this effect is the heat that the chip inside the LED is exposed to. While a chip may under ideal circumstances reach to more than 100000 hours of lifetime, the real-world lifetime may only be 30000 to 50000 hours or less if the LED is exposed to excessive heat, which can be caused by continuously running all LEDs inside this...
  • Page 9 User Manual: Multispot-GI-HT3012 ■ Getting started: secure mounting The Multispot-GI-HT3012 can be positioned for operation in various ways: Floor standing operation • Turn the bracket to the lower side of the unit and fold out the second, inlaying bracket. • Place the unit in a secure position where it can neither be touched by anyone or could possibly become an objective for anyone to stumble.
  • Page 10 User Manual: Multispot-GI-HT3012 ■ Getting started: making AC supply connections Risk of fire / Safety risk The Multispot-GI-HT3012 requires an AC power source with sufficient power carriage and correct grounding to ensure safe operation. The AC power source must be equipped with a circuit breaker and earth leakage detector.
  • Page 11 User Manual: Multispot-GI-HT3012 ■ Operation All user controls are located on the rear, bottom and side of the backpanel of the unit: User interface overview: In A-Mode: Speed Control (except A1 = Mix Control) In C-Mode: Level-Control Display showing the Mode, DMX-address, LOC-function etc. Indicates presence of a DMX signal Indicates the sound-activated mode (internal microphone) MODE selection button...
  • Page 12 User Manual: Multispot-GI-HT3012 Upon the user’s choice, the unit can work stand-alone or may be controlled by external DMX-controllers. Available modes: “A” Auto Mode Press the MODE button (5) until the first digit on the display shows “A”, indicating operation in “A” (AUTO) mode. Then choose your desired pattern by using the UP/DOWN buttons (6/7), see list below.
  • Page 13 User Manual: Multispot-GI-HT3012 Hard switch pink-blue Sound-to-light, Speed Hard switch turquoise-pink Sound-to-light, Speed Hard switch red-green-blue Sound-to-light, Speed Hard switch red-yellow-green-turquoise-blue-pink Sound-to-light, Speed Random speed red-yellow (Fire) Base speed Random speed green-blue (Ocean) Base speed Random speed red-blue (Plush) Base speed Random speed red-green-blue (RGB Burst) Base speed White strobe...
  • Page 14 User Manual: Multispot-GI-HT3012 “d3” Mode (DMX 3-Channel RAW Mode) Press the MODE button (5) until the display shows “d3”, indicating operation in “d3” (3- channel DMX) mode. Shortly after that, the display shows the DMX starting address. You can choose any DMX starting address by simply using the UP/DOWN buttons (6/7). The chosen DMX-address comes effective approximately 3 seconds later and will show up on the display (2) in alternation to the “d”.
  • Page 15 User Manual: Multispot-GI-HT3012 “d5” Mode (DMX 5-Channel Split Master/Strobe Mode) Press the MODE button (5) until the display shows “d5”, indicating operation in “d” (DMX) mode. Shortly after that, the display shows the DMX starting address. You can choose any DMX starting address by simply using the UP/DOWN buttons (6/7). The chosen DMX-address comes effective approximately 3 seconds later and will show up on the display (2) in alternation to the “d”.
  • Page 16 User Manual: Multispot-GI-HT3012 Output mix presets can be activated by means of CH1 whilst the chosen mix can be adjusted with CH2. If the value of CH4 is above 50 the unit is set to tact mode. The tact speed for any fixed output mix chosen on the first channel can be adjusted from zero (value <50) to 23 cycles per second (value 255).
  • Page 17 User Manual: Multispot-GI-HT3012 every 2 seconds). Pressing the MODE button again for more than 3 seconds unlocks the button- and potentiometer-functions. Please note: If the display is in OFF-mode it will take approximately 25 seconds before the display switches off. It will be switched on again if any key is touched and will switch off again after 25 seconds if the keys are not unlocked by the procedure mentioned above.
  • Page 18 User Manual: Multispot-GI-HT3012 ■ Technical data MULTISPOT-GI-HT3012 Panels/Output…………………………………………………………….…..1 panel, 1680 lm LED configuration….………12×3W RGB 3-in-1 (12×1W red 12×1W green 12×1W blue) Optics………………………………………………………………….Secondary, 25 degrees DMX Control & protocol……………………………..……...3-5 Channels DMX 512 (1990) IP Rating………………………………………………………………………..……20 (indoor) Mains Input…………………………………………………………….AC100-250V~ 50/60Hz Power supply type, max. consumption…………………………..……..switch mode, 45W DMX connections…………………………………………………3 pin XLR (Male / Female) Modulation Type…………..……….…………..………….Pulse Density Modulation (PDM) Dimensions (with straight bracket) WxHxD…………………….
  • Page 20 MultiSpot HT3012 ® Apollo Design Technology, Inc. 260.497.9191 ApolloDesign.net © Copyright 2016 Apollo Design Technology, Inc. 4/16...
