MOOSE D1216 User Manual

Dmx512 dimmer 12x 3000w
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
www.moosesound.com
ON
ON
OFF
OFF
MAN181_0
D1216
DMX DIMMERPACK
12X 3000W
1
2
3
4
5
6
7
8
CIRCUIT BREAKERS
USER'S MANUAL
PHASES
ACTIVE DIMMER OUTPUTS
9
10
11
12
1
ON
2
3
4
PHASE 1
PHASE 2
OFF
1-4
5-8
PRE-HEAT
PROUDLY DEVELOPED AND
MANUFACTURED IN PORTUGAL
D1216
DMX512 Dimmer
12x 3000W
INPUT 0-10V
5
9
DMX ADDRESS SELECT
6
10
7
11
OK ERROR
8
12
DMX IN
DMX OUT
PHASE 3
9-12

Advertisement

loading
Need help?

Need help?

Do you have a question about the D1216 and is the answer not in the manual?

Questions and answers

Summary of Contents for MOOSE D1216

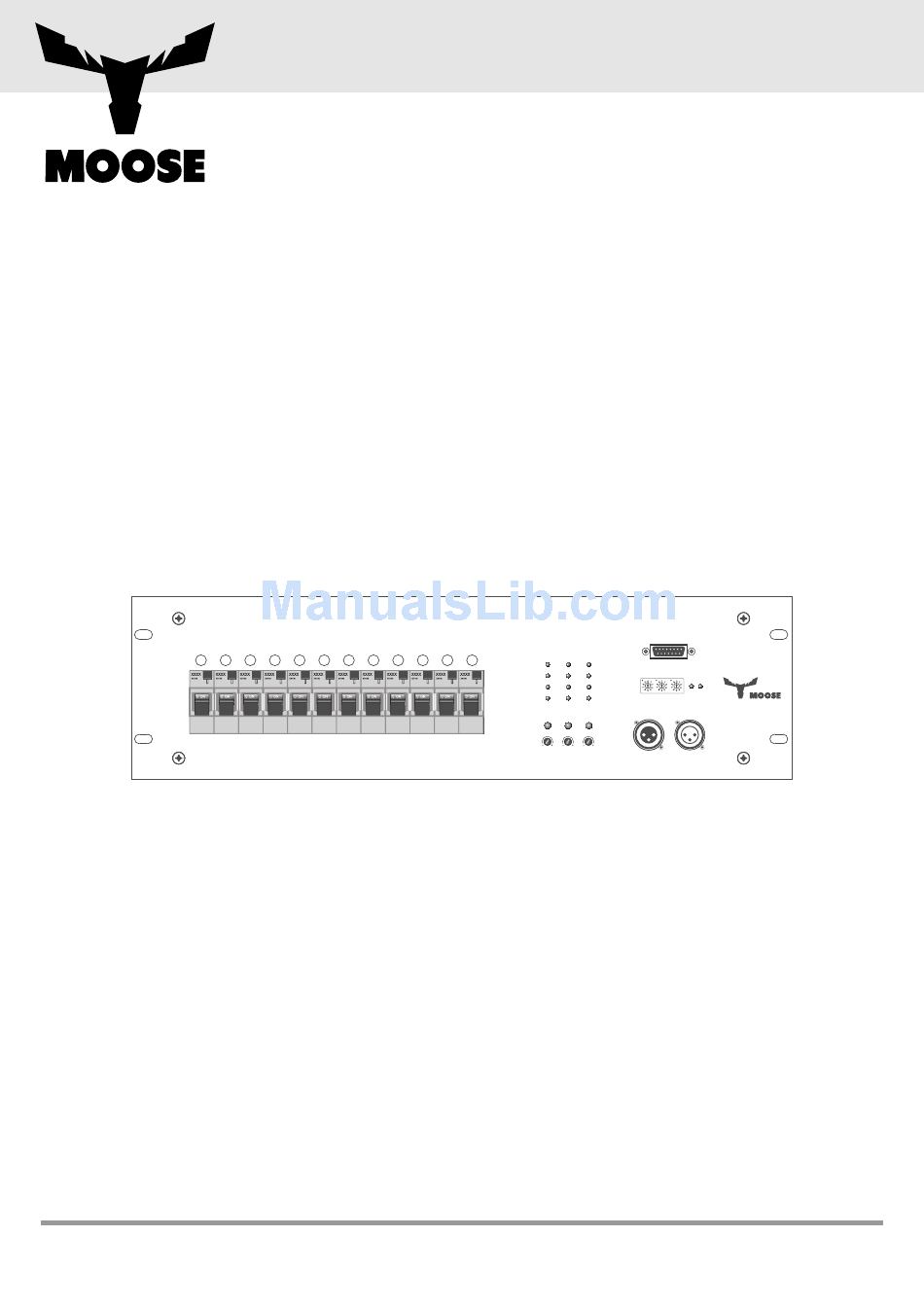

  • Page 1 PROUDLY DEVELOPED AND MANUFACTURED IN PORTUGAL www.moosesound.com D1216 DMX512 Dimmer 12x 3000W D1216 DMX DIMMERPACK 12X 3000W INPUT 0-10V PHASES ACTIVE DIMMER OUTPUTS DMX ADDRESS SELECT OK ERROR DMX IN DMX OUT PHASE 1 PHASE 2 PHASE 3 CIRCUIT BREAKERS...
  • Page 2 Dear customer, Thank for choosing MOOSE branded products! MOOSE is a brand of professional audio & lighting products, proudly developed and manufactured in PORTUGAL. In order to operate this product in a safe and reliable manner, please follow the instructions in this booklet and before operating the equipment read the instructions carefully and please note the technical information.

  • Page 3: Manufacturer's Declaration

    To prevent unneeded devices from consuming power in standby mode, disconnect the mains plug. EC DECLARATION OF CONFORMITY The equipment marketed by MOOSE complies (where applicable) with the essential requirements and other relevant specifications of Directives 1999/5/EC (R&TTE), 2004/108/EC (EMC) und 2006/95/EC (LVD). Additional information can be requested to info@profactor.pt.

  • Page 4: Connections And Controls

    D1216 12x 3000W DMX Dimmer Connections and Controls Please refer to the following scheme and instructions: D1216 DMX DIMMERPACK 12X 3000W INPUT 0-10V PHASES ACTIVE DIMMER OUTPUTS DMX ADDRESS SELECT OK ERROR DMX IN DMX OUT PHASE 1 PHASE 2...
  • Page 5 15. HARTING OUTPUT B: Harting socket for output channels 7 to 12: pin numbers are shown on the rear panel; Procedures 1. - Connect correctly and according to your installation all the Lamps to their respective outputs: D1216 ( 10 / 11 / 12 ), D1216S ( 13 ) and D1216H ( 14 / 15 );...
  • Page 6 D1216 12x 3000W DMX Dimmer Connections and Controls As an example to work with channels 13 -24, DMX Selector ( 4 ) must be like the picture: After taking all this steps correctly Green Led indicator must be lighted; If this occurs, communication is “OK”...

  • Page 7: Technical Specifications

    D1216 12x 3000W DMX Dimmer Technical specifications MODEL D1216 TYPE Triac Dimmerpack with mixer CHANNELS 12 (six) POWER OUTPUT 3000w CHANNEL OUTPUT RATING 16 Amps LOAD TYPE Resistive and Inductive OUTPUT CONNECTOR Shuko, Terminal and Harting CHANNEL MCB TYPE 1 pole...
  • Page 8 PROUDLY DEVELOPED AND MANUFACTURED IN PORTUGAL MOOSE is a brand or PROFACTOR S.A. PROFACTOR S.A Rua do Padrão 52 4440-617 Valongo PORTUGAL Telf.: +351 224 119 160 Fax: +351 224 155 822 info@profactor.pt www.moosesound.com...
