Summary of Contents for Triotech clear stream zoomtak T8+
-

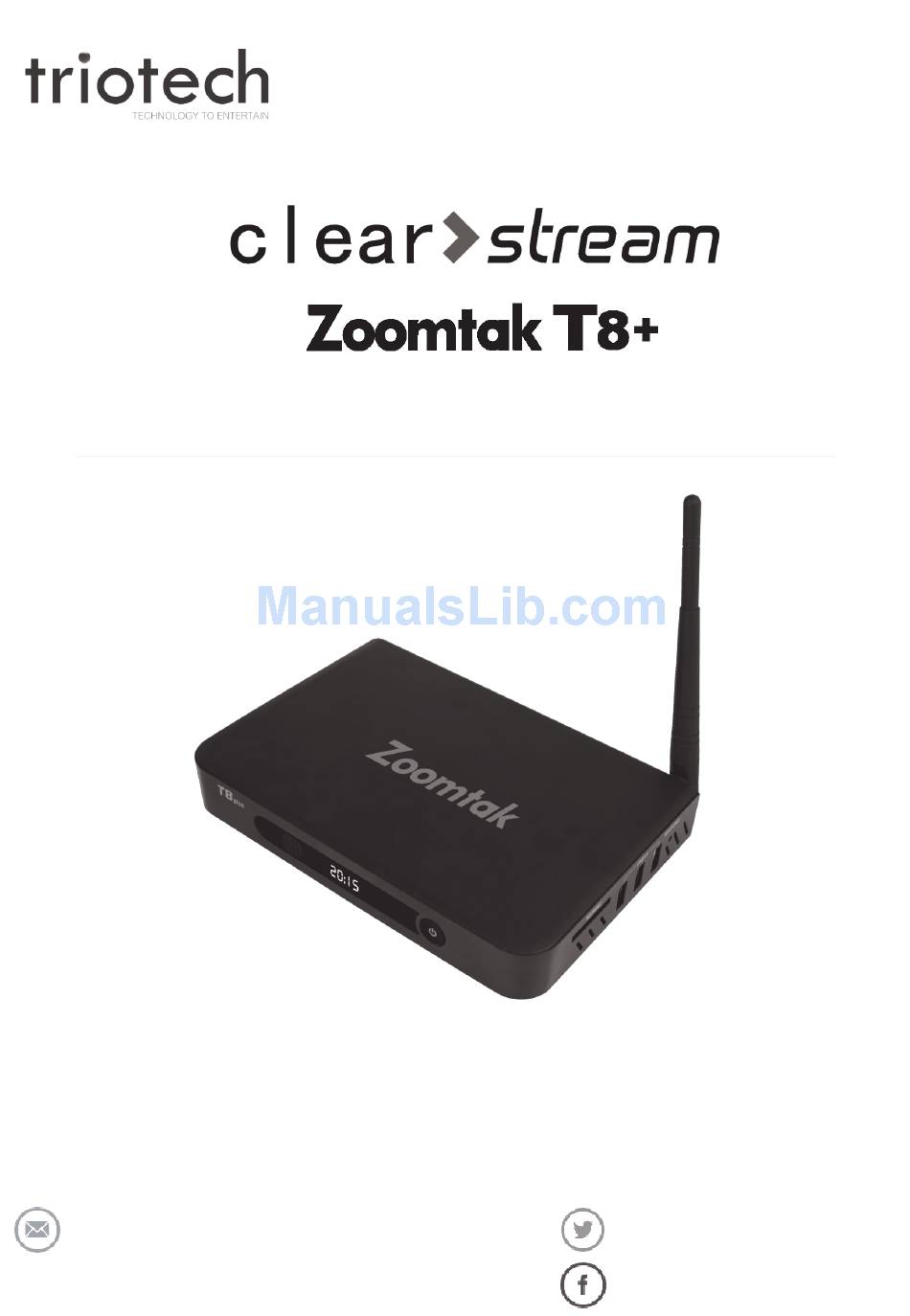

Page 1: Quick Start Guide
Quick Start Guide www.triotechgroup.com/ @clearstream2013 www.triotechgroup.com/contact-sales www.triotechgroup.com/contact-support /clearstream.freeTV Version 1.10... - Page 2 Product specifications, size, and shape are subject to change without notice, and ac- tual product appearance may differ from that depicted herein. All trademarks and brand names are the properties of their respective holders. © 2013-15 Triotech Media. All rights reserved.
-
Page 3: Table Of Contents
Contents Chapter 1 System Introduction 1.1 Key Features 1.2 System Environment 1.3 Package Contents Chapter 2 Connecting Your System 2.1 Cabling Your System 2.2 Powering On/Off 2.3 Check Your Network Connection 2.4 Enable Smart DNS for UK Services 2.5 Configure Your Network 2.6 Calibrating Your System 3 0 Using Your Remote Controller Chapter 4 System Overview &... -
Page 4: Chapter 1 System Introduction
Chapter 1 System Introduction 1.1 Key Features OpenELEC embedded Linux, or Android operating system with ARM Multicore Processing Multiple format support including VC-1, H.264, MPEG-2, MPEG-1, MPEG-4, DIVX Video formats include avi, mpg, vob, mkv Audio Formats include MP3, WMA, AC3, DTS and AAC ... -
Page 5: Chapter 2 Connecting Your System
Chapter 2 Connecting Your System Rear View Router/ Ethernet Modem Network Cable Wi-fi Antenna HDMI TV Connection Power Adapter Time Display On/Off Button The ports on your unit may differ in terms of location/order on the unit. 2.1 Cabling Your System Connect the HDMI cable supplied into the interface marked HDMI on your media unit and the other end into a HDMI socket on your TV. -
Page 6: Powering On/Off
2.2 Powering on/Off Once your unit is plugged in, the on/off button on the front of the unit will turn red. You can switch the unit on and off by either pressing the button or using the power button on your remote. By selecting the appropriate HDMI source on your television remote, you should see Clearstream Home Screen as below. -
Page 7: Configure Your Network
2.5 Configure your Network You can access the network settings by choosing the Home Screen OpenELEC Configuration Icon. Select the NETWORK section as below and ensure the blue radio button is showing next to either WIRED or WIRELESS options depending on how you intend to connect your system. -
Page 8: Calibrating Your System
2.6 Calibrating Your Screen If you find that some of the text is missing in the corners of your Home screen, your system needs to be calibrated to your TV. To do this, from the Home screen, go RIGHT to the SETTINGS heading and press OK. Then choose the SYSTEM heading, then VIDEO OUTPUT, then the VIDEO CALIBRATION option on the right. -
Page 9: Chapter 4 System Overview & Using Video Addons
4. System Overview Your Clearstream model is based upon an award-winning free and open source (GPL) software media player and entertainment hub for digital media. It was designed for network playback, so you can stream your multimedia from anywhere in the house or directly from the internet using practically any protocol available. - Page 10 4.1 Video Addons Cont.. There are literally hundreds of video addons available that provide Live TV, Movies, TV Catchup , Radio and much more. For UK Live TV Live UK TV. Usually in higher resolution than Filmon. Our first choice for live TV and written in house. You will find the Expat TV icon on your Home screen, and in the Video Addon’s section.
-
Page 11: Main Playback Screen
4.2 Main Playback Screen The main video playback screen is the same regardless of which addon you are using. This can be accessed by pressing the MENU button on your remote. Here you can adjust settings such as audio offset, aspect ratio and subtitles. Note: This is not available whilst using the FTV TV Guide. -
Page 12: Using Live Tv Addons
It is important to note that with the volume of content available through these Addons, Triotech Media cannot be held responsible for either the reliability, suitability or legality of some content in terms of copyright. Some content may be unsuitable for young children. -
Page 13: Chapter 5 Clearstream Maintenance
5.0 Clearstream Maintenance Addon The Clearstream maintenance tool is designed to give you all the tools and support you need to keep your unit up to date and Functioning optimally. Here you will find all of the fixes, updates, and version upgrades as well as diagnostic tools such as checking your Internet connection. -
Page 14: Help & Support For Your Clearstream
5.1 Help and Support For Your Clearstream One of the key differences between our system and many others is that we understand how important customer service is. In addition to the standard hardware warranty, we provide lifetime technical support for your unit with online help, videos, & FAQ sections etc. -
Page 15: Troubleshooting
S/N prefix when entering the number. Support for Addons With the exception of Triotech Media authored Addon’s, all of the Addons are free public domain software and as such we do not offer direct support should an individual Addon stop working or malfunction. - Page 16 Earn Rewards & Cash by Referring a Friend! It’s great to recommend a good product to friends and family for them to enjoy. Hundreds of our customers have already referred us, so why not get a discount for your friend and receive a free gift for yourself? Just go to www.triotechgroup.com/refer for details on how to get something extra for you and your friend.
