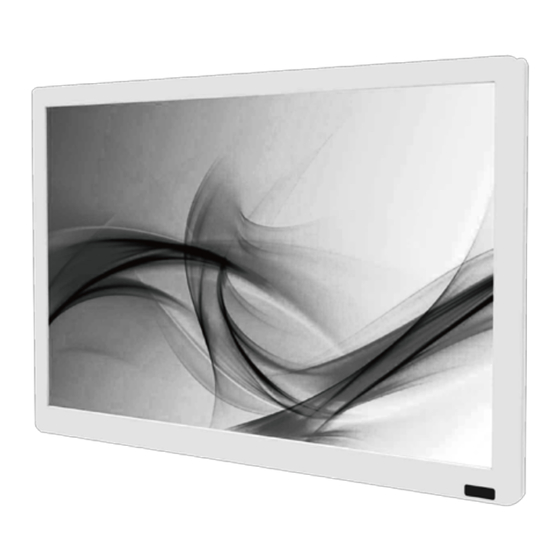

Summary of Contents for ExorVision EX2401TS

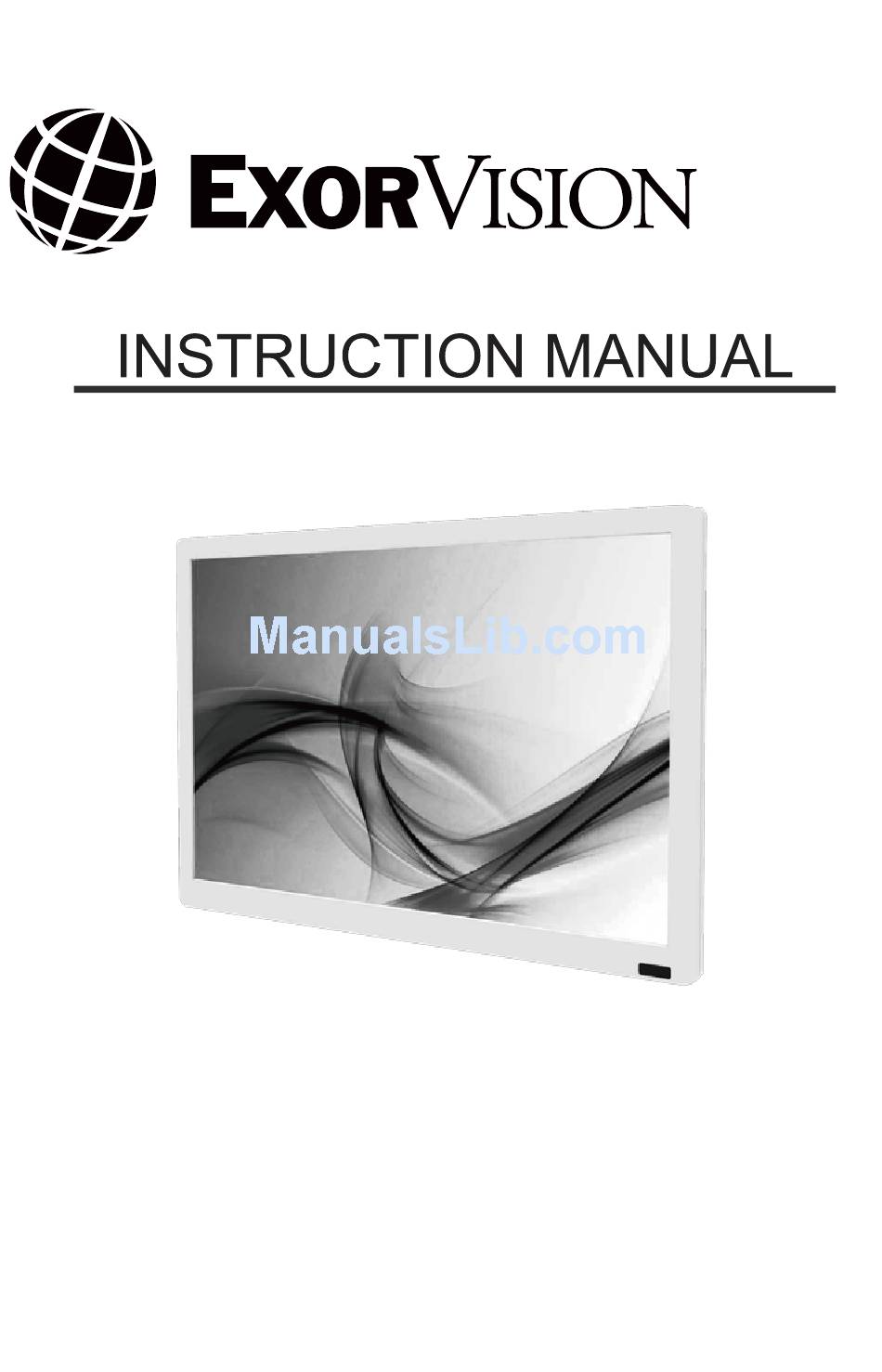

- Page 1 Model: EX2401TS...
-
Page 2: Table Of Contents
CONTENTS Important Safety Instructions Safety Information Preparation Packing content Front View Rear View Wall Mount or track mount installation Remote Control Connecting External Devices Customizing TV Settings Initial Setup Selecting Input Source Picture Settings Audio Settings Time Settings Setup Settings Channel Settings Troubleshooting Display Mode... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS • Excessive sound pressure from earphones and • Read these instructions – All the safety headphone can cause hearing loss. and operating instructions should be read • Refer all servicing to qualified service personnel. before this product is operated. Servicing is required when the apparatus has been • Keep these instructions –... -
Page 4: Safety Information
SAFETY INFORMATION To ensure reliable and safe operation of this equipment, please read carefully all the instructions in this user guide, especially the safety information below. Electrical Safety • The TV set should only be connected to a main power supply with voltage that matches the label at the rear of the product. -
Page 5: Preparation
PREPARATION Packing content: •24"TV set • AC/DC Power Adapter (AC 100~240V Input / DC 19V Output) • AC Power Cord • Audio cable • VGA cable (15 pin) • User’s guide • Remote Control • Battery(AAA) -
Page 6: Front View
PREPARATION Front View 1. VOL +/- Press to adjust the volume. 2. CH ˄ / ˅ Press to select a channel. 3. MENU Display the OSD (on screen display) menu. 4. SOURCE Press to select among different input signal sources. 5. POWER Switch the TV between On / Standby mode. Receive IR signals from the remote control. -
Page 7: Rear View
PREPARATION Rear View 1. DC 19V AV IN / AUDIO IN Connect to AC Adapter power outlet. Connect a external device to the composite VIDEO(V) and AUDIO(L/R)out jacks found 2. USB Service Port on most video equipment. Update firmware. 7. RF Input 3. -
Page 8: Wall Mount Or Track Mount Installation
PREPARATION Wall Mount or track mount installation 100mm x 100mm 100mm (size M4x16mm screw) -
Page 9: Remote Control
PREPARATION Remote Control : Switch the TV between on and standby mode : Mute and restore your TV sound 3. 0~9: Select a program (ATV/DTV mode) : Enter multiple program channel number such as 2-1 : Return to previous viewing channel 6. -
Page 10: Connecting External Devices
CONNECTING EXTERNAL DEVICES DC 19V... -
Page 11: Customizing Tv Settings
CUSTOMIZING TV SETTINGS Initial Setup • Connect the power cord to the power socket after you have completed all the physical connections. At this stage, the TV will enter Standby Mode and the orange LED indicator will illuminate. • In Standby Mode, press the button on the main unit or on the remote control to turn the TV on. -
Page 12: Picture Settings
CUSTOMIZING TV SETTINGS Picture Settings • Press the MENU button on the remote control and then press buttons to select Picture menu. • Press buttons to select the following picture options and then press buttons to adjust each option’s setting. Cycle among picture mode: Dynamic/Standard/Mild/ Picture Mode User Adjust the difference between light and dark levels in... -
Page 13: Audio Settings
CUSTOMIZING TV SETTINGS Audio Settings • Press the MENU button on the remote control and then press buttons to select Audio menu. • Press buttons to select the following audio options and then press the button to adjust each option’s setting. Lock Channel Audio Allow the selection your favorite sound mode: Standard/... -
Page 14: Time Settings
CUSTOMIZING TV SETTINGS Time Settings • Press the MENU button on the remote control and then press buttons to select Time menu. • Press buttons to select the following time options and then press button to adjust each option’s setting. Lock Channel Audio Select a period of time after which the TV automatically switches to standby mode: OFF/5/10/…/180/240 min. -
Page 15: Setup Settings
CUSTOMIZING TV SETTINGS Setup settings • Press the MENU button on the remote control and then press buttons to select Setup menu. • Press buttons to select the following setup options and then press the button to adjust each option’s setting. Audio Lock Channel Transparency... -
Page 16: Channel Settings
CUSTOMIZING TV SETTINGS Channel Settings • Press the MENU button on the remote control and then press buttons to select Channel menu. • Press buttons to select the following channel options and then press the button to adjust each option’s setting. Channel Audio DTV Signal: Air/Cable... -
Page 17: Troubleshooting
TROUBLESHOOTING If your TV does not operate normally or cannot be turned on, please check the following troubleshooting questions. Remember also to check any other connected electronic device, such as DVD or Blu-ray player to pinpoint the problem. If the TV still fails to operate normally, please contact technical support. The TV does not operate properly The TV does not respond • The TV may freeze up during use. - Page 18 TROUBLESHOOTING The audio function does not work • Press the VOL +/- buttons. • Sound muted? Press the MUTE button. Picture OK but no sound • Try another channel. The problem may be caused by the broadcaster. No output from one of the • Adjust the Balance settings in the AUDIO menu.
-
Page 19: Display Mode
DISPLAY MODE SPECIFICATION Panel Size 23.6 inch diagonally Display Type Panel Technology Panel 60 Hz Vs. 120 Hz 60 Hz Panel Resolution 1920 x 1080 Aspect Ratio 16:9 Front Screen Waterproof Contrast Ratio-Panel 1000:1 Brightness (Centre Typ.) Cd/M² 440(±10%) Response Time (G To G) 5 ms Lamp Life (Typ. - Page 20 The FCC Wants You to Know This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed or used in accordance with the instructions, may cause harmful interference to radio communications.
