XtendLan XL-DM317G User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
XL-DM317G
User manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XL-DM317G and is the answer not in the manual?

Questions and answers

Related Manuals for XtendLan XL-DM317G

Summary of Contents for XtendLan XL-DM317G

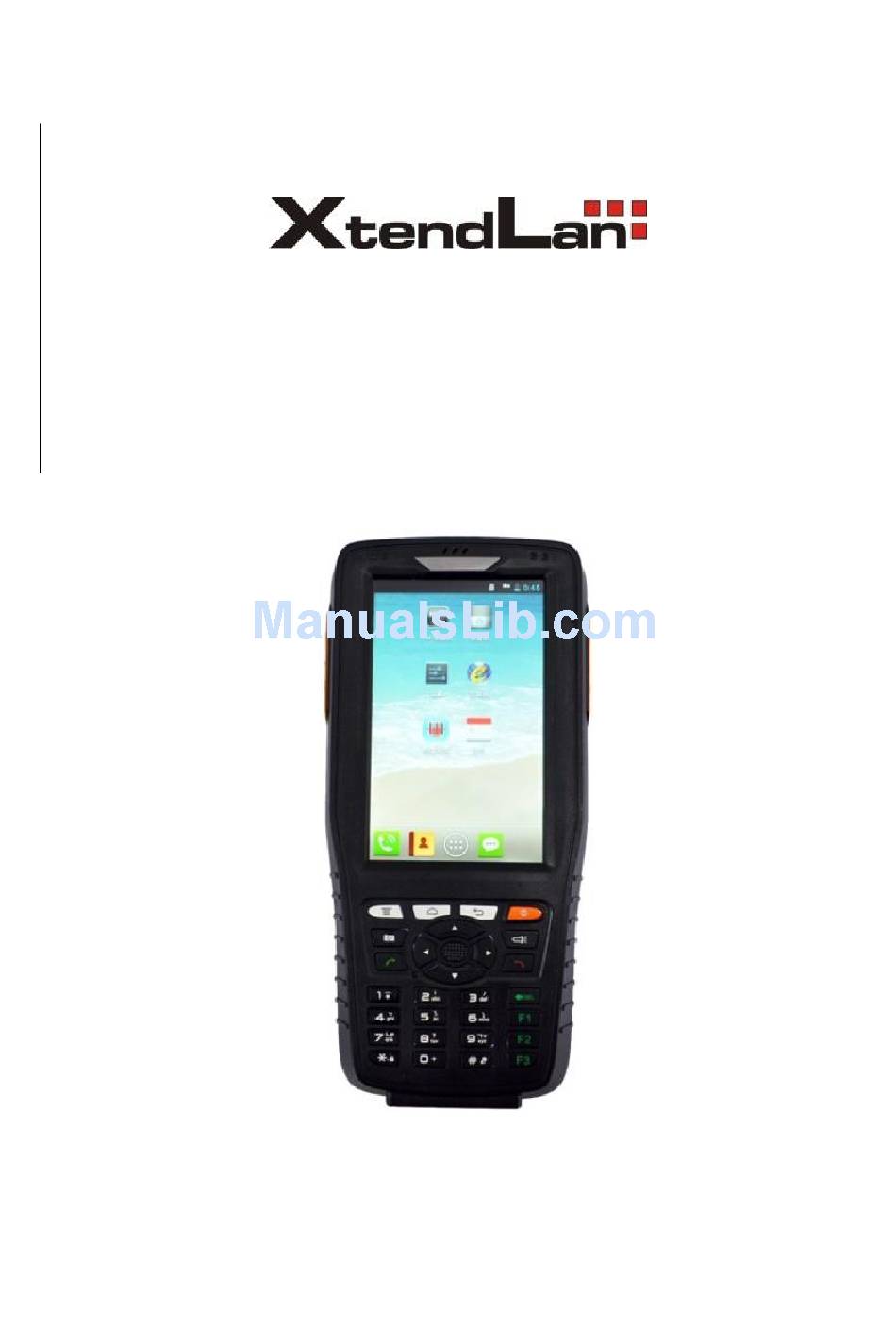

  • Page 1 XL-DM317G User manual...

  • Page 2: Table Of Contents

    Contents Chapter I Summary and System Structure ..1 1. Summary ..............1 2. Checking the Package ..........2 3. Safety Warning and Attentions ........4 4. General Operation Standards and Attentions ....6 4.1. Operation Standards ..........6 4.2. Attentions ..............7 5.
  • Page 3 1.3. Optical Power Index (optional) ......24 1.4. Visual Fault Locator (optional) ......24 2. General Functions ..........25 2.1. On/Off ..............26 2.2. Standby and Wakeup ..........25 2.3. Table Management ..........26 2.4 Open / Close net card ......... 30 2.5 PPPoE dial ............
  • Page 4 Chapter III Usage of Main Functions ..... 43 1 Test Functions ............. 44 2. SN Code ..............66 3. Test Setting ..............68 4. Records ..............73 5. Read Serial ............... 74 6. Control of the electric quality and wireless dial ..75 7.

  • Page 5: Chapter I Summary And System Structure

    20. Recorder ............... 103 21. Downloads ............104 22. G-Sensor Calibration ..........104 23. How to Install and Uninstaill Software ....105 24. How to Install the USB Driver ....... 107 Chapter IV Usage and Maintenance ....110 Chapter V Faults and Solutions ..... 112 Chapter VI market ...........

  • Page 6: Summary

    Modem in order to test the connectivity of IP network and the problem of user’s Modem or eliminate malfunctions that leads to failing logon Web Pages caused by user’s PC. XL-DM317G adopts 480*800 TFT IPS true color LCD resistive touch screen, and embedded with Android 4.1.2 JB operation system.

  • Page 7: Standard Accessories

    XL-DM317G Multi-service Access Test PDA results. It can meet the installation and maintenance requirements of wireless device, xDSL access, LAN access and optical access and so on. Meanwhile, it’s a powerful tool for improving the efficiency of maintaining Internet. Standard Accessories:...

  • Page 8: Safety Warning And Attentions

    XL-DM317G Multi-service Access Test PDA User Manual Other Accessories: (It is different due to different modules.) USB inverting power line Test Line Tracing receiver Belt 2. Safety Warning and Attentions In order to use the tester safely and efficiently, please read the following information before using.
  • Page 9 XL-DM317G Multi-service Access Test PDA ➢ Please keep far away from the precision instrument ➢ Do not use chemical solvent to clean the equipment. ➢ Do not throw away the waste battery. Put it into the battery recycling bins. ➢...

  • Page 10: General Operation Standards And Attentions

    ➢ Please use the equipment within network coverage range. ➢ The LCD display effect will change a little in the temperature severely-changed and long-time conversation environment. 3. General Operation Standards and Attentions 3.1. Operation Standards ➢ Test Interface Please firstly connect the test cord to test interface and then connect to the test line.

  • Page 11: Attentions

    ➢ When moving the instrument Please make sure the power cord and connection cables are removed before shift the instrument. And unplug all the connecting cables from socket after using. ➢ When the instrument is unused for a long time If the instrument is unused for a long time, the battery characteristics may have deteriorated.
  • Page 12 XL-DM317G Multi-service Access Test PDA temperature change rapidly. In such situation, let the instrument adjust to the new environment for at least one hour before using the instrument. ➢ Using the instrument near strong magnetic field sources will have adverse affects on the internal circuit of the instrument.

  • Page 13: Structures And Functions

    XL-DM317G Multi-service Access Test PDA 4. Structures and Functions...
  • Page 14 XL-DM317G Multi-service Access Test PDA Name Functions Connect with the fiber interface, Optical power can be used as optical power port meter Connect with the fiber interface, VFL port can be used as visual fault locator. Dust-proof Protect the optical port from dust...
  • Page 15 XL-DM317G Multi-service Access Test PDA Window of bar code scanning Scanning Head engine, which is used to scan the bar codes. Dust-proof Protect the electric port from dust of electric port and water Ethernet port The port to connect with Ethernet...
  • Page 16 XL-DM317G Multi-service Access Test PDA Battery Cover It is used for fix or loose the Screw battery cover Fixed groove of It is used to fix the hand belt. the hand belt Loudspeaker Loudspeaker hole Camera Make a photo or video.
  • Page 17 XL-DM317G Multi-service Access Test PDA Switch and volume Turn it down to increase the adjustment key volume and turn it up to decrease the volume Buttons: Buttons Name Functions Under power-on state, shortly pressing the button can close or light the screen; long...
  • Page 18 XL-DM317G Multi-service Access Test PDA Long pressing the button to Camera enter into camera interface, Button and shortly pressing enter into photo interface Hang up When a call is coming, it can Button hang up the call. Dial or answer the phone;...
  • Page 19 XL-DM317G Multi-service Access Test PDA following: Indicator light 1: Mobile phone light, indicating the mobile state, which have 3 glittering state. 1) Normal state: 0.5s on, 4.5s off 2) Incoming call state: 0.5s on, 0.5s off 3) Receive the message or missed call: 0.5s on, 1.5s Indicator light 2: Unused Indicator light 3: xDSL Link indicator;...

  • Page 20: Instructions Of Fixed Icon Display Area

    XL-DM317G Multi-service Access Test PDA : Click to enter into dialing plate interface. : Click to enter into message interface. : Click to enter into browser interface. : Click to enter into contacts 5. Instructions of Fixed Icon Display Area...

  • Page 21: Charging Battery Icon

    XL-DM317G Multi-service Access Test PDA Means that the alarm clock has been set. Means that TF card has been inserted into the equipment. Means that TF card hasn't been inserted into the equipment. Means the current battery power.。 Means the battery is charging Means it is on the phone Means there is missed call.

  • Page 22: Install Uim/Sim Card

    XL-DM317G Multi-service Access Test PDA insert the TF card into the slot, when there is a slight sound of clicks, the buckle will seize up the card automatically, and installation work is finished, please see the following: Uninstall TF card: Push the TF card, when there is a slight sound of clicks, the card buckle has loosed, and the TF card will pop up automatically.

  • Page 23: Battery Usage

    Notice: Insert CDMA/EVDO UIM card for EVDO edition; and the GSM/WCDMA SIM card for WCDMA, Please insert the corresponding card for different mode to keep the phone function. 9. Battery Usage Install battery Firstly, unscrewed the two screws, remove the battery cover;...
  • Page 24 environment, system setting, service test, taking photos and using data service. Calling or opening a backlight will consume more power than standby and standby time will shorten. The standby time of no service area will be short than the normal standby time. The battery performance will change with the charging status, temperature, local network as well as the background light status.
  • Page 25 XL-DM317G Multi-service Access Test PDA The charging time is about 7~9 hours. (More accurate time will depend on the battery condition.) The environment temperature of normally charging should be 0℃~40℃. Charging under below 0℃ or above 40℃, the battery performance will descend and the battery life will shorten.

  • Page 26: Main Specification Of The Equipment

    XL-DM317G Multi-service Access Test PDA 10. Main Specification of the Equipment ➢ It adopts 480×800 TFT IPS true color touch screen ➢ It adopts the built-in Android 4.1.2 JB operation system. ➢ It supports CDMA 1x, EVDO Rev.A 800MHz/1900MHz; also supports voice and data service. (XL-DM317GE) ➢...

  • Page 27: Chapter Ii Specifications And Functions

    XL-DM317G Multi-service Access Test PDA Chapter II Specifications and Functions 1. Technical Specifications 1.1 xDSL Index (Optional) 1) It can meet the following standards: ITU G.994.1 (G.hs), ITU G.992.5, ITU G.992.5 Annex L. The max distance which can be connected is 6.5km. Be compatible with ADSL, ADSL2 and READSL.

  • Page 28: Optical Power Index (Optional)

    XL-DM317G Multi-service Access Test PDA ◆ Downstream Channel Rate (interweaved / fast mode): 0~24Mbps ◆ The maximum rate and capacity ratio of upstream Channel and downstream channel. ◆ The modulating bits in the DMT sub-channel: 0~15 and each sub-channels' frequency points ◆...

  • Page 29: General Functions

    ➢ Connector: 2.5mm universal adapter(SC, FC, ST) ➢ Working mode: CW or 2Hz modulation ➢ Applicable fiber: SM/MM 2. General Functions 2.1. On/Off Open the tester Under the "off "condition and there is electricity in the battery, long press the power key to start the equipment. Close the tester Under standby interface and there is electricity in the battery, long press the power key to pop up an option menu...

  • Page 30: Table Management

    2.3. Table Management There are five default pages of the table screen and it can display different screens by sliding with finger. Lock or Unlock If there is no equipment operation, after some time the keypad will automatically locked. Press the power button to wake up the screen, click the lock icon, you can slide in different directions respectively, into different functional, as shown below...
  • Page 31 XL-DM317G Multi-service Access Test PDA keep pressing the icon during the operate) Delete the desktop icon Keep pressing the desktop icon, after icon vibrate, the top of the screen appears "× Remove", move the icon to "× Remove" place , release after the icon turns red , the target can be deleted.
  • Page 32 XL-DM317G Multi-service Access Test PDA Add /Remove desktop plug To add desktop clock and other desktop plug, you need to enter the menu, and then click on the widgets, Keep pressing the icon of plug-ins, plug-in icon vibrate, you can...
  • Page 33 XL-DM317G Multi-service Access Test PDA Quick Uninstall Installed Programs Enter the menu screen, select the program icon you want to uninstall, keep pressing the icon, icons vibrate, you can move, move to the desktop uninstall icon will pop uninstall interface, click OK to start the uninstall program,...

  • Page 34: Open / Close Net Card

    XL-DM317G Multi-service Access Test PDA View program information Enter the menu screen, select the icon for the program you want to view, keep pressing the icon, icons vibrate, you can move, move to the desktop App info, the application will pop up the relevant information.

  • Page 35: Pppoe Dial

    XL-DM317G Multi-service Access Test PDA Select Using LAN, you can choose to open DHCP or fixed IP mode, the DHCP mode, you can click again to reacquire to make the device to obtain an IP address from a DHCP server. In the static IP status, you can modify the...

  • Page 36: Task Manager

    XL-DM317G Multi-service Access Test PDA In the dial-up interface to enter a user name and password, click CONNECT can be established PPPoE link. 2.6 Task Manager Equipment systems have Task Manager, you can close opened programs to release program memory, improve system efficiency.

  • Page 37: Dialer

    XL-DM317G Multi-service Access Test PDA Enter into a running program menu; click on the Stop button corresponding to the task, which can close the current task and free the occupied memory space. (The Launcher is desktop manager, so it can not be turned off) 2.7 Dialer...

  • Page 38: Answer The Phone

    XL-DM317G Multi-service Access Test PDA 2.8 Answer the phone The system call interface pops up in the caller interface, slide right to the green icon to answer the call; slid left to red icon can reject an incoming call; slide up to SMS icon can...

  • Page 39: Input Method

    XL-DM317G Multi-service Access Test PDA 2.9 Input Method Click the application's text box; the system will automatically bring up the built-in input method. As shown below: System using TouchPal input method, tap on the keyboard to switch the input character case.
  • Page 40 XL-DM317G Multi-service Access Test PDA digital / character input method, which includes English characters, facial expressions, network, digital, Greek, Latin, mathematics and other options, as shown below: Keep pressing the bottom left corner to switch the input method window pops up as shown below:...
  • Page 41 XL-DM317G Multi-service Access Test PDA Where you can select the desired input mode, (You can also install other input methods, such as stroke, etc.) devices also support install other input methods, such as, Sogou input method, Baidu input method. Change the text input method In the system settings have language &...

  • Page 42: Flashlight

    XL-DM317G Multi-service Access Test PDA can click the check box in front to set the default input method. 2.10 Flashlight This device supports flashlight, camera fill light can be used as lighting in the boot state. Keep pressing seconds or so) can be turned on or off flashlight. (Flashlight...
  • Page 43 PC can be copied or deleted U disk file. Through Mini USB data cable to connect the device with the PC, the device prompts bar prompts a USB connection, pull down the prompt bar, click the USB connection, select USB Mass storage, PC machine will find U disk, which can be operated via a PC U disk content.

  • Page 44: Headset

    XL-DM317G Multi-service Access Test PDA 2.14 Headset Device supports headset, listening to music, the device's headphones as an ordinary hole, the device is equipped with a headset plugged into the headphone jack, that is to meet the needs of calls and listening to music, the...

  • Page 45: Gpsone Passive Positioning

    XL-DM317G Multi-service Access Test PDA changes in the vibration mode only. You can also press the power button on the pop-up screen; click the icon to enter the vibration modes Ring & vibration modes need to enter the Setting> Sound to select Vibrate and ring.
  • Page 46 XL-DM317G Multi-service Access Test PDA Select the Portable WLAN hotspot, which you can open WIFI portable hotspot, through other devices with WIFI hotspot that can search the AP and connect Login networks. Click the set up WLAN hotspot; you can set up WIFI hotspot...

  • Page 47: Chapter Iii Usage Of Main Functions

    XL-DM317G Multi-service Access Test PDA Chapter III Usage of Main Functions Click on the bottom of the standby screen, pop up the main menu. As shown below: Slide left or right to view more menu items, press the Back button to close the main menu, you can directly click the application or widget to switch applications and widgets options.

  • Page 48: Test Functions

    XL-DM317G Multi-service Access Test PDA Test Functions The test function is professional test software, which includes xDSL test, Modem emulation, optical power test, visual fault locator, network layer test, E Netcom, download meter, FTP client, etc. The customer can choose the corresponding functions.
  • Page 49 XL-DM317G Multi-service Access Test PDA Physical layer test can test physical layer parameter, which including xDSL connection status, connection mode, Upstream/downstream channel rate, noise margin, attenuation, the output power, the number of error codes (CRC, HEC, FEC, NCD, OCD) and channel bits picture.
  • Page 50 XL-DM317G Multi-service Access Test PDA Physical layer parameter Error codes statistics Bits in map Bits in text The current status means: Handshake: Shake Hands...
  • Page 51 XL-DM317G Multi-service Access Test PDA Discovery: Discover the local DSLAM; Training: it is training; Showtime: distal end DSLAM is connected. Connection mode: G.DMT: ADSL G.DMT protocol mode, in accordance with ITU-T G992.1 standard; G.LITE: ADSL G.LITE protocol mode, in accordance with ITU-T G992.2 standard;...
  • Page 52 XL-DM317G Multi-service Access Test PDA Modem Parameter Setting Modem parameter setting including Modem mode setting and VPI/VCI setting. In Modem setting, can set up Modem working mode and seven groups VPI/VCI value. Modem mode supports two modes: ADSL compatible mode and ADSL 2+ mode, through choosing, you can set up current working mode (after setting, you should restart Modem).
  • Page 53 XL-DM317G Multi-service Access Test PDA Modem parameter setting interface PPPoE Dial PPPoE is in the status bar, you can see it pull-down list, as follows:...
  • Page 54 XL-DM317G Multi-service Access Test PDA Click icon, the dialing window will pop up, as follows:...
  • Page 55 XL-DM317G Multi-service Access Test PDA Input the user name and password, click connect to do the PPPoE dial, the equipment will memorize the user name and password automatically. User can test the web browsing. Internet When dialing succeeded, click web icon to open the...
  • Page 56 XL-DM317G Multi-service Access Test PDA xDSL test wiring diagram Entering into xDSL test interface, it can show activation situation, when line activated, it can show the parameter of Up/down steam channel rate, noise margin, attenuation, the output power, the number of error codes (CRC, HEC, FEC, NCD, OCD) and channel bits picture, it can check all test parameter when sliding screen.
  • Page 57 XL-DM317G Multi-service Access Test PDA The tester will emulate user Modem to realize PPPoE dial through PC. (If the VPI/VCI value needs to be modified, please modify it from Modem Parameter window). Tester can realize PPPoE dial through user Modem emulation, and check the fault of user Modem.
  • Page 58 XL-DM317G Multi-service Access Test PDA Optical power test (optional) Optical power test can test the power of optic fiber, please see the picture:...
  • Page 59 XL-DM317G Multi-service Access Test PDA There are six wavelengths as calibration wavelength, choose corresponding wavelength can test current optical power value. It is shown as dBm and xW when having a test. User can stop testing by pressing "Stop Test", and the data displayed is the latest testing result.
  • Page 60 XL-DM317G Multi-service Access Test PDA Input the name of the line to separate different lines. Inspection significance is: test one fiber on different positions of the optical power value, then draw the power curve (test curve is similar to the OTDR), you can view any attenuation values between 2 points.
  • Page 61 XL-DM317G Multi-service Access Test PDA Visual Fault Locator (Optional) Can be used as the visual fault locator; can output the CW and 2Hz modulation. Click "Red Light", the tester can used as the visual fault locator. As follows:...
  • Page 62 XL-DM317G Multi-service Access Test PDA Click "Open" to turn on the VFL, and click "Close" to turn off the VFL. CW/2Hz is the switch button of the continuos and modulated light, the tester can memorize the VFL mode automatically. The output power is 1mw/3mw/5mw/10mw...
  • Page 63 XL-DM317G Multi-service Access Test PDA interface. As follows: Cable tracing interface Click “Open” to start cable tracing, tester start sending video signal, and then click "Close" to stop the video signal sending, and user can exit cable tracing by pressing return.
  • Page 64 XL-DM317G Multi-service Access Test PDA switch test items. Ping Test Type IP address or domain name; choose the data package size and Ping times. At last click "Yes".
  • Page 65 XL-DM317G Multi-service Access Test PDA Ifconfig Test Click "Yes" to see current network information.
  • Page 66 XL-DM317G Multi-service Access Test PDA Route Test Click "Yes" to check the current web information.
  • Page 67 XL-DM317G Multi-service Access Test PDA Traceroute Test Typed the destination address, choose overtime, click "Yes". E Netcom Test Click "Search Device" to look for the network equipment in the local network. The IP, MAC address and host name of the equipment will display on the interface.
  • Page 68 XL-DM317G Multi-service Access Test PDA Download Meter Download speed test can test the web download speed, reflect the web state directly. Can browse the download attachment by entering the website, and user can also download the well-settled attachment in menu. (the homepage and the address of attachment download is settled in setting.)
  • Page 69 XL-DM317G Multi-service Access Test PDA Tester will statistic the max and average download speed and download progress, the screen will display as follows after finishing download:...

  • Page 70: Sn Code

    XL-DM317G Multi-service Access Test PDA FTP Client FTP Client can log on FTP server, upload and download programs like the following picture: Typed FTP server address, user name, password and port number, and then clicking "Connect" can log on FTP server.
  • Page 71 XL-DM317G Multi-service Access Test PDA (Should know IP address, and set up network card IP address and Modem IP address in same range). This tester can set up four SN code address, see the following picture: SN code device address is IP address of SN code device.

  • Page 72: Test Setting

    XL-DM317G Multi-service Access Test PDA Input the user name and password, and login the configuration page of WEB, double-click the browser to enlarge the content, slide the screen to view the different area of the webpage. 3. Test Setting Test setting used in device software setting, including...
  • Page 73 XL-DM317G Multi-service Access Test PDA Webbrowser Config Set the homepage address of the testing speed, the download address of files and whether the speed testing file need to be stored. As follows:...
  • Page 74 XL-DM317G Multi-service Access Test PDA SN code equipment address This option is setting for SN code default IP address; it can setup four IP address. Modem power off time setting It is used to setup Modem working time; over the setting...
  • Page 75 XL-DM317G Multi-service Access Test PDA Settings of shortcut key Set the corresponding program for F1 and F2, which can start the setting related program through the two keys, the setting widow is as follows:...
  • Page 76 XL-DM317G Multi-service Access Test PDA Click shortcut key F1 or F2, the program selected window is as follows: Select the program need to be started, and then long...

  • Page 77: Records

    XL-DM317G Multi-service Access Test PDA press F1 or F2 will start the program. About Device software version and company contact way: 4. Records Browse the test records which have stored. See the picture:...

  • Page 78: Read Serial

    XL-DM317G Multi-service Access Test PDA Note: when show device name, if the name is too long, it will intercept appropriate name automatic. Click corresponding test records can open and check records. 5. Read Serial Barcode scan test interface is shown as below:...

  • Page 79: Control Of The Electric Quality And Wireless Dial

    XL-DM317G Multi-service Access Test PDA In the "Read Serial" interface, after pressing "SCAN" key on the side, it can work. The red light just aim at bar code, the test result will show on screen. Tester can scan continuously and show the scan result in table, and record the scan time.
  • Page 80 XL-DM317G Multi-service Access Test PDA open. Please see the following picture: Description of the control item is as follows: Settings: shortcut icon of setting open, click it can open the setting quickly. Task Manager: Shortcut icon of task manager and click it can open the task manager quickly.

  • Page 81: Web

    XL-DM317G Multi-service Access Test PDA search and pair with it when searching other Bluetooth user. GPS icon: the switch for GPS Brightness icon: Adjust the brightness of the screen, click it to adjust the brightness, which includes low, middle, high, user can adjust the brightness continuously in setting.
  • Page 82 XL-DM317G Multi-service Access Test PDA Enter into the website or IP address in the address bar to login the webpage. Internet setting menu will pop up when clicking the menu key which includes refresh, forward, bookmarks, save to bookmarks, share page, find on page and so on.

  • Page 83: Dialer

    XL-DM317G Multi-service Access Test PDA 8. Dialer Click dialing key or the number key to enter into the dial interface. As follows: Dial interface Call interface Press call or dial key after input the phone number to make a phone call; click key to hang up the phone.

  • Page 84: Contacts

    XL-DM317G Multi-service Access Test PDA Click to show the stored contacts. Click to conceal the dialing keyboard. 9. Contacts Contacts are the storage information about personal and business. Press menu key in "Contacts" interface, can display the contacts information and Import/Export contacts.
  • Page 85 XL-DM317G Multi-service Access Test PDA until you find the person you want. Create new contact In Contacts list interface, click "Add" , can add contact person into device. Note: More contact persons will affect the system running speed. The operation for each contact person Press the contact person shortly to enter into the interface with detailed info of the contact person.

  • Page 86: Messaing

    XL-DM317G Multi-service Access Test PDA 10. Messaging In main menu interface, click "Messaging" to enter into message list interface. Press menu key to show setting item, delete old messages, and click "settings" can set the content of the message. Clicking "delete " can delete all the messages.

  • Page 87: Clock

    XL-DM317G Multi-service Access Test PDA Click "Receiver" to type into the number of receipts and then type the content need to be sent in "Type Message". Clicking number edit box can type number. Click to add the attachment. Click to add the attachment.
  • Page 88 XL-DM317G Multi-service Access Test PDA Click alarm, and then tester will enter into the alarm add interface. As follows:...

  • Page 89: Calendar

    XL-DM317G Multi-service Access Test PDA Setting: you can turn on/off the alarm, set time, repeat, ring tone, vibrate and so on. Open alarm Click on the top right corner of the alarm interface and bright display means the function is open.

  • Page 90: Settings

    XL-DM317G Multi-service Access Test PDA 13. Settings "Settings" includes all the content needed to be set, detail see the following: 13.1 Wireless & Networks WLAN Slide the switch from left to right to open or close WLAN and click the icon into WLAN setting, as follows:...
  • Page 91 XL-DM317G Multi-service Access Test PDA Bluetooth Slide switch from left or right to open or close Bluetooth and click the icon into Bluetooth setting, as follows: When open Bluetooth, click "device name" can make the device be found, and detect all the equipments around.
  • Page 92 More: Do the operation of airplane mode, VPN, tethering & portable hotspot, WLAN direct, WLAN direct setting and mobile networks. 13.2 Device Sound Open or close the silent mode. Set the volume, ring tone, default notification and so on. Open or close the vibration and ring, dial pad touch tones, touch sound, screen lock sound, vibrate on touch and emergency tone.
  • Page 93 XL-DM317G Multi-service Access Test PDA font size. As follows: Storage Check TF card space capacity and available system space as follows:...
  • Page 94 XL-DM317G Multi-service Access Test PDA Battery Check the quantity of the electricity.
  • Page 95 XL-DM317G Multi-service Access Test PDA Application program You can manage the application program. Application management: used in managing the installed applications including display application program storage, permissions and other information as well as clear data, clear default settings and forced stop.
  • Page 96 XL-DM317G Multi-service Access Test PDA 13.3 Personal Includes the settings related to personal: Location Services: Click to choose the different location modes such as GPS satellite. Security: ● Choose the screen lock mode; ● Owner info; ● Open or close the password visible function;...
  • Page 97 XL-DM317G Multi-service Access Test PDA ● Install the unknown sources with default password 1234 and you can change the password in "Application Password". ● Choose the trusted evidence. ● Install from the SD card; ● Clear credentials Language and input ●...

  • Page 98: Camera

    XL-DM317G Multi-service Access Test PDA Accessibility ● Press power key to end the phone call. ● Choose the touch and hold delay time. ● Choose whether install the network script or not. Developer Options: Choose the options for develop person.
  • Page 99 XL-DM317G Multi-service Access Test PDA Click to enter into the basic setting for the camera, which includes select storage position, scene mode, picture size, picture quality and so on. “Store location” can record the geographical location information of camera. After opening and GPS location, the photo will have longitude and latitude information.

  • Page 100: Gallery

    XL-DM317G Multi-service Access Test PDA Click to enter into flash mode Click to enter into manual adjustment setting Click to take photos Video In the camera preview interface, clicking can be switched to the video. In video mode, the operation is as following shows:...

  • Page 101: My Files

    XL-DM317G Multi-service Access Test PDA Click the folder to enter into the picture and video browsing mode; sliding from left to right can browse the pictures in the folders; and clicking the video can play it. 16. My files View the files stored in the device or SD card.
  • Page 102 XL-DM317G Multi-service Access Test PDA From the "My Files", you can browse and manage the files and folders on the memory card. Long press the selected file icon, the following picture will pop up:...
  • Page 103 XL-DM317G Multi-service Access Test PDA is to choose all files. is to open file. is to rename. is to delete. ➢ More operation: copy, cut, share and property. Press menu key to pop up : ➢ New: Edit the folder name and save file.

  • Page 104: Calculator

    XL-DM317G Multi-service Access Test PDA ➢ Photo and video storage path is "DCIM/Camera". ➢ Download file storage path is "Download". ➢ System test record storage path is "Record". 17. Calculator Use calculator function to make simple arithmetic. You can click the number and symbol to do corresponding calculation, as the following picture: Press menu key and click "advanced panel"...

  • Page 105: Music

    XL-DM317G Multi-service Access Test PDA Note: support formats: 3gp, MP4 etc. 19. Music Click music to show all the music types and click file to play the music. As follows:...
  • Page 106 XL-DM317G Multi-service Access Test PDA ➢ Songs: check all the music ➢ Artist: in accordance with the artist's name to divide the type of songs. ➢ Album: in accordance with the album name to view the songs. ➢ Genre: check different genres ➢...

  • Page 107: Recorder

    XL-DM317G Multi-service Access Test PDA Share: built-in many methods to share ● Remove: remove this song. ● During playing the song, you can press the side keys to adjust the volume. Note: support formats: MP3, AMR, WAV, mid, Ogg etc.

  • Page 108: Downloads

    XL-DM317G Multi-service Access Test PDA click pop up the record list to check the record file. ➢ After the recording, it will save automatically. ➢ Click menu key to choose the storage location and choose the file type. Tip: Using media player can directly play the recorded file.

  • Page 109: How To Install And Uninstaill Software

    XL-DM317G Multi-service Access Test PDA Please follow the tip on the screen to calibrate. As the following picture shows: Click “Calibrate” to start this program. When the water ball is located in the cross center, the calibration has finished and press “ok” to accomplish the calibration.
  • Page 110 XL-DM317G password (default password is 1234); then returned to the "Settings--apps" to click "Install". After successful installation, go back to the main menu to run the installed application. Uninstall Enter " Settings > apps > Manage apps". Choose the application; click "uninstall". Or enter into...

  • Page 111: How To Install The Usb Driver

    XL-DM317G Multi-service Access Test PDA professional adaptation and test. 24. How to Install the USB Driver Connect the USB data cable to the tester, pull down the prompt bar and click the “Connected to a USB accessory”, as the following:...
  • Page 112 XL-DM317G Multi-service Access Test PDA Close the installation window; computer will display a more drive as (drive code will change with the number of computer drives). Open the Disk, the content will be as follows: Click install the cell-phone drive only, the following...
  • Page 113 XL-DM317G Multi-service Access Test PDA After finish install the drive, the program will display as follows: Click OK, and restart PC to enforce the program.

  • Page 114: Chapter Iv Usage And Maintenance

    XL-DM317G Multi-service Access Test PDA Chapter IV Usage and Maintenance The following suggestions are helpful for the users to use and maintain this tester. ➢ Put the tester and all the accessories in the place where the children can't reach.
  • Page 115 XL-DM317G Multi-service Access Test PDA rude using method break the inside main board. ➢ Please don't use the irritant chemicals, irritant cleanser or caustic cleanser to clean the tester. When cleaning the tester, please use rag with mild soap water to wipe gently.

  • Page 116: Chapter V Faults And Solutions

    XL-DM317G Multi-service Access Test PDA Chapter V Faults and Solutions If you meet the following problems during the using process, please try to use the "Faults and Solutions" first to do the relative operation. If the problems still exist, please contact the professional maintenance person.
  • Page 117 XL-DM317G Multi-service Access Test PDA time. Poor contact Check the contacts or Charging fault change plug. Low battery There will be no voltage. charging display. Charging for about half an hour and then unplug it to recharge. Battery fault Change battery.
  • Page 118 XL-DM317G Multi-service Access Test PDA realize. exceed the limit. Setting fault Check whether set "calling barring". Can't find The equipment Use the original card is changed. equipment card. Contacts. There is no Wrong setting or The saved data have number in...

  • Page 119: Chapter Vi Market

    XL-DM317G Multi-service Access Test PDA not. Get accident Restart interference. test Sensor interface Clean sensor error is dirty interface Chapter VI market 1. Summary market is a software market especially designed for PDA by Shandong Electronic Co., Ltd. Users can download and install the test application programs and the third-party programs.

  • Page 120: Usage Of Main Functions

    XL-DM317G Multi-service Access Test PDA Customer raise problems real-time communication. 4) Leave a message Give an advice; point out mistakes; recommendation 3. Usage of Main Functions Click the market icon to start, as follows: Note: This software is an internet application software so the software can only be used under the network connection.
  • Page 121 XL-DM317G Multi-service Access Test PDA some third-party test tools as well as system software are also provided. Click to run this software; it will interact with the server, the program which needs to be installed will be displayed as follows:...
  • Page 122 XL-DM317G Multi-service Access Test PDA User can also download the program through pressing "Download" button under this interface. The download progress will be displayed in the pull-down list...

  • Page 123: Installation And Update

    XL-DM317G Multi-service Access Test PDA Note: Download speed will be affected by various elements when using 3G networks, please use other connection method to download the software installation package. What's more, the 3G internet needs to pay and you should pay the operator for the flow. All the fee produced during this process is not related with market.

  • Page 124: Remarks

    XL-DM317G Multi-service Access Test PDA clicking “update” in upgrade tester interface, it will inform users whether to replace the software. Click “OK” to install and upgrade the software. Click “update” label and you can see the software which can be upgraded.

  • Page 125: Feedback

    XL-DM317G Multi-service Access Test PDA function. Users can remark the software by sliding stars. Note: Submit the remarks after star modification and then you can upload your remarks to the server and the beginning star is the comprehensive marks. The default is 3 stars.
  • Page 126 XL-DM317G Multi-service Access Test PDA Please restart the Server is software after a period of abnormal. time, and contact with us for further problem. The Market has been installed on The unauthorized Please purchase the the unauthorized visit authorized equipment.
  • Page 127 XL-DM317G Multi-service Access Test PDA Chapter VII The Instruction of Program Installation after Resetting The testing program will be lost after resetting the Multi-service Access Test PDA. User can install the Market through file manager, and then install testing program online through Market.
