Summary of Contents for Country Living bembridge

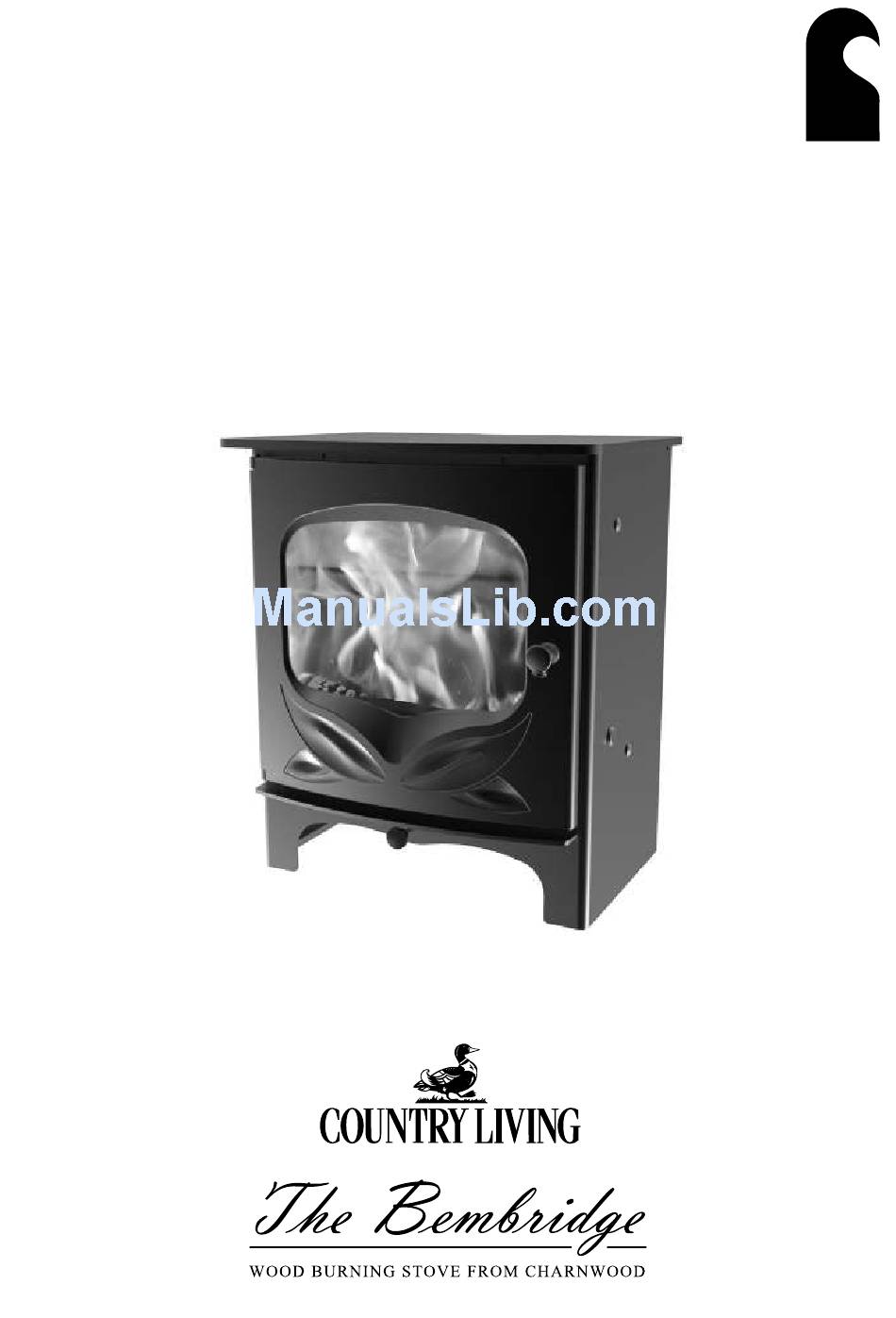

- Page 1 ® Operating & Installation Instructions...
-
Page 3: Table Of Contents
......15 Parts List ......16 Ref.Bembridge v1 03.15... -
Page 4: Door Handle
OPERATING INSTRUCTIONS QUICK GUIDE Your Charnwood Bembridge at a glance ® ® Throat plate Improves efficiency of stove by slowing down flue gases Door Keep closed when stove is in use Door handle Open with the supplied tool Fuel retainer... -
Page 5: Operating Instructions
OPERATING INSTRUCTIONS ® Congratulations on becoming the owner of a Charnwood Bembridge OPTIONAL WOOD ASH REMOVAL GRATE Stove. Your stove has been approved in smoke control areas to burn Wood can be burnt on the base. There is an optional wood ash wood logs if it is used in accordance with these instructions. -
Page 6: Riddling
The Charnwood Bembridge is fitted with an air control stop for use At first only light a small fire and burn it slowly for two hours to allow in a smoke control area. -
Page 7: Refuelling
OPERATING INSTRUCTIONS ® ‘click position’ or for low burning to the fully closed position. be emptied regularly before it becomes too full. Never allow the ash to accumulate in the ashpan so that it comes in contact with the When the fire is burning normally the air control gives enough underside of the grate as this will seriously damage the grate bars. -
Page 8: Throat Plate & Flueway Clearing
OPERATING INSTRUCTIONS ® deposits should then be swept from the plate and into the fire. When Not in Use If the fire is going to be out of use for a long period (for instance in Return the throat plate to its correct position- At an angle, insert the the summer) then to prevent condensation, and hence corrosion, the throat plate so that it sits on top of either the right or left side brick. -
Page 9: Co Alarm
OPERATING INSTRUCTIONS ® Blackening of Door Glass blockage. For your own safety these must be kept clean. Differences in chimney draughts mean that the best settings of the air Fire blazing out of control controls will vary for different installations. A certain amount of Check that: experimentation may be required, however the following points a) The door is tightly closed. -
Page 10: Installation Instructions
INSTALLATION INSTRUCTIONS ® use in a shared flue system. UNPACKING THE STOVE In addition to these instructions the requirements of BS.8303 and The stove arrives bolted and strapped to its pallet. There must be BSEN 15287-1:2007 must be fulfilled. Local Authority Bylaws and adequate facilities for unloading and manoeuvring into position The Building Regulations, including those referring to national and wrapping is first removed, then the stove released from the pallet by... -
Page 11: Hearth & Fire Surround
INSTALLATION INSTRUCTIONS ® should not have an excessive cross sectional area. If it was previously the beam or mantelpiece to protect it. used by an open fire then the chimney should be swept one month In order for the fire to operate correctly and to allow for access, after installation to clear any soot falls which may have occurred due there must be an air gap behind the appliance of at least 75mm, but to the difference in combustion between the stove and the open fire. -
Page 12: Connection To Flues
INSTALLATION INSTRUCTIONS ® Fig. 9. Horizontal Register Plate With Optional vertical rear flue connector does allow the chimney to be swept Vertical Rear Flue Connector through the stove. Soot doors may either be in the actual brickwork of the chimney or in the register plate. Various positions of soot doors Alternative Soot Door Positions are shown in Figs. - Page 13 Order made and signed by the Secretary of State or Minister in the devolved administrations. The Charnwood Bembridge has been recommended as suitable for use in smoke control areas when burning wood logs. Further information on the requirements of the Clean Air Act can be found here : https://www.gov.uk/smoke-control-area-rules...
-
Page 14: Certification
Bishops Way, Newport, Isle of Wight PO30 5WS, United Kingdom A Division of A.J.Wells & Sons Limited Registered in England No. 03809371 CE Certificate for compliance with EN13240:2001 EN13240:2001 ROOMHEATERS FIRED BY SOLID FUEL BEMBRIDGE EC Certificate of conformity no: AT044-CPD-2015 Fuel type: WOOD LOGS Emission of CO in combustion 0.06%... -
Page 15: Dimensions
CHARNWOOD BEMBRIDGE DIMENSIONS (mm) ® Plan View 140 i/d to suit 125mm (5") flue pipe Optional Vertical Rear Flue Adapter Side Front Rear... -
Page 16: Parts List
CHARNWOOD BEMBRIDGE PARTS LIST ® Issue A Optional Wood Ash Removal Kit 35 34 Item Part No. Description Item Part No. Description 008/AT002 Rope Door Seal 10mm 008/AT95 Door Tool 008/FW29 Door Seal Adhesive 010/CR005 Air Control Plate 006/NR019 Glass... - Page 19 y o u r p r e m i e r d e a l e r charnwood BISHOPS WAY, NEWPORT, ISLE OF WIGHT PO30 5WS, UNITED KINGDOM T : + 4 4 ( 0 ) 1 9 8 3 5 3 7 7 7 7 • F : + 4 4 ( 0 ) 1 9 8 3 5 3 7 7 8 8 • C O N T A C T U S A T W W W . C H A R N W O O D . C O M ®...
