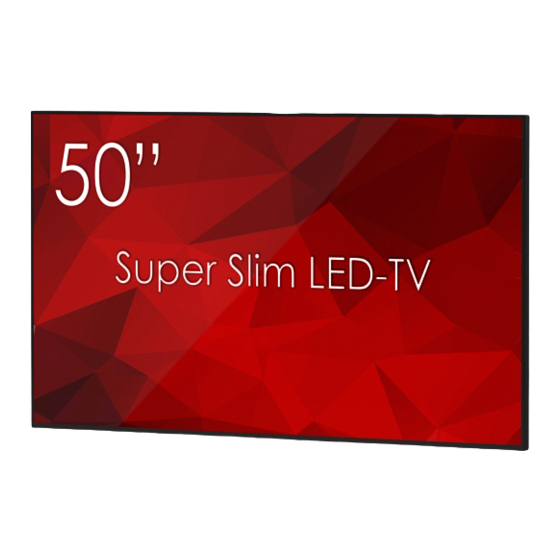

Summary of Contents for SWEDX SS-40K16
- Page 1 User’s Guide SS-40K16 SS-42K16 SS-50K16 SS-58K16 SS-65K16 SS-75K16...
- Page 2 ﺳﯾﻧﻣﺎ ﻣﻧزﻟﯾﺔ SWEDX Soundbar SWEDX Wave SWEDX Direct SWEDX offers a wide range of LED-TVs and digital signage products and its accessories. For more information please visit www.swedx.com Digital Signage Screens SWEDX V SWEDX Kiosk SWEDX Matrix Video Walls SWEDX Lamina...
-
Page 3: Table Of Contents
INDEX Page Introduction Safety precaution Basic operation Contents Inputs Remote Control Remote control buttons First Time Installation Main Operations Volume Control OSD Menu Operations OSD Menu Structure: Setup Menu Channel Menu (Satellite) Channel Menu (DTV) Picture Menu Sound Menu Time Menu Lock Menu USB Media Player Supported file formats and codecs... -
Page 4: Introduction
Introduction 2. This device must accept any interference Thank you for choosing SWEDX LED/LED-TV. received, including interference that may Please read this manual thoroughly before cause undesired operation operating the product. Make sure the display was not damaged in transit. Should the product be... -
Page 5: Basic Operation
Basic operation technical authorized by SWEDX brand. • Use AC 100-240V 50~60 Hz power outlet for Departure in holidays the product power supply. • Unplug the product during lightning storms or • lf the screen of the product is not on, please when unused for long periods of time. -
Page 6: Contents
Contents Inputs Included items: 1. HDMI3 / MHL Input for HDMI3 (Ver. 1.4). Supports maximum resolution 3840x2160 @ 30 Hz. Supports MHL (Mobile High-definition Link) 2. SAT Input for Satellite receiver (DVB-S/S2) Supports Full-HD channels 2 x AAA Battery Notice AC Cable 3. -
Page 7: Remote Control
SWEDX products is close by. A On/Off key is also available in recent SWEDX products. If your product is equipped with paring key please... -
Page 8: Remote Control Buttons
Remote control buttons 1. On/Off button 29. Enter sleep mode in 2. Shortcut to HDMI1,2,3 certain chosen time 3. Number buttons for 30. Fast-text topic direct channel access selection in Teletext 4. Display additional Blue information 31. Fast-text topic 5. Volume increase selection in Teletext 6. -
Page 9: First Time Installation
First Time Installation First Time Installation Language English Sweden Country Energy Mode Home Mode Auto Tuning The first time the TV is turned on an installation guide will be presented. Chose the desired language and country. In the energy mode you can choose between Home and Dynamic mode. -
Page 10: Main Operations
Main Operations sub-menu. • Use UP & DOWN buttons to navigate in the Turning On And Off OSD Menu. Press POWER on the remote control or • Press EXIT button to exit the OSD Menu. the On/Off button on the control buttons. The product will turn on and will be ready OSD Menu Structure to be used. -
Page 11: Setup Menu
SETUP Aspect Ratio Set the various picture options such as picture size and aspect ratio. Setup Depending on the input source, the picture size > > options may vary. Language English Your cable box/satellite receiver may have its > > own set of screen sizes as well. -
Page 12: Channel Menu (Satellite)
Reset This function will reset the TV to the default settings. Software Update (USB) This function will update the TVs firmware by using the USB input. Contact SWEDX to check if an update for the TV firmware is available. - Page 13 Channel (Satellite) Auto Tuning CHANNEL Satellite Tuning Setup > > > Auto Tuning Country Sweden > > > Programme Edit Satellite 2E Ku_Astra 19 > > > Schedule List Scan Mode Default > > > Recorded List Channel Type All Channels >...
-
Page 14: Programme Edit
Programme Edit channel. If the TV is turned Off it will execute the recording as scheduled and the LED power indicator will flash RED/BLUE while the recording Programme Edit is in progress. Channel 1 Signal Information Display information about the signal Channel 2 CI Information Channel 3... - Page 15 Recording Time Shift Function Recording Time: [0000:25:10] Max Recording Time: [0001:51:40] Shift Time/Max Shift Time: [01:51:40/00:01:50] Play Prev. Next Pause Stop Play Prev. Next Pause Stop 005 Channel Name Shift Time/Max Shift Time: [01:51:40/00:01:50] Use the Record Start Menu to start recording a program.
-
Page 16: Channel Menu (Dtv)
Channel (DTV) Auto Tuning In this Menu you can search for TV channels Use the Auto tuning to search for TV-channels. manually or automatically, manage the TV You can choose to search for ATV and or DTV. If channels such as deleting, adding to favorites, you care searching DVB-C channels and it is skipping and locking. - Page 17 ATV Manual Tuning ATV Manual Tuning > > Current CH Colour System Sound System Fine-Tune Unregistered Search Move Adjust Back MENU You can perform a manual channel search for analog channels (ATV). You can choose the channel you want to save to and also use Fine Tune to adjust the tuning for the channel to get better picture.
-
Page 18: Picture Menu
Picture Screen (only in PC mode) Picture SCREEN > > > Picture Mode Standard Auto Adjust > > Contrast H-Offset > > Brightness V-Offset > > Colour Size > > Tint Phase Sharpness > > Color Temp Normal > > Move Adjust Noise Reduction... -
Page 19: Sound Menu
Sound AD Switcher This function allows to set the audio volume when AD (advertisements) are broadcasted. Sound > > AD Volume Sound Mode Standard Set the volume level for the AD (advertisements). Treble Bass > > Balance > > Auto Volume >... -
Page 20: Time Menu
Time Off Time Time Off Time > > > Clock – -- -- -- Off Time > > Time Zone London GMT Hour > Off Time Minute On Time > > Sleep Timer > > Auto Standby > > OSD Timer Move Adjust Move... -
Page 21: Lock Menu
Sleep Timer Hotel Mode: Set the TV to turn off after a certain time. The time intervals are 240, 180, 120, 90, 60, 30, 20 Hotel Mode and 10 min. > > Hotel Mode Auto Standby > Options: Off / 3 / 4 / 5 hrs Source Lock Define the time duration when the LED-TV will turn on after the last interaction. -
Page 22: Usb Media Player
USB Media Player the played file). The subtitle file should be saved in UNICODE In order to display the correct characters. Functions Repeat the file Repeat A.. PHOTO MUSIC TEXT MOVIE Go to defined time position in the file Goto TL. Repeat the file. -
Page 23: Supported File Formats And Codecs
Supported file formats and codecs The built-in media player (USB mode) supports the following file formats: The K16 series USB Media Player supports the following formats/codecs: Format Video Codec Audio Codec Resolution Frame Rate Mbit/s Mp3, WMA, 23,976~30≤ MJPEG 1280x720 AAC, MP2, PCM 16Mbps Xvid/MPEG4/H.264/WVM9/VC-1... -
Page 24: Text-Tv / Teletext
Text-TV / Teletext can be selected by pressing the colored buttons. Press one of them corresponding to the required. The page is displayed with other colored information that can be selected in the same way. To display the previous or next page, press the corresponding colored button. -
Page 25: Product Base Assembly
Product base assembly The product base contains the following parts A. Wooden base B. Metal part C. M6 screw, 4 pcs, 10mm (Part No. 064-0178-00) D. M6 screw, 4 pcs , 16mm (Part No. 064-0147-00) Assemble the base with the LED-TV according to the following illustrations:... -
Page 26: Wall Mount Assembly
Wall mount assembly 65 inch SWEDX offers several wall mount devices which can be purchased from your dealer or www.swedx.com 400 mm See the Wall mounting parameters in the illustrations 400 mm 40/42 inch 200 mm 200 mm 75 inch... -
Page 27: Troubleshooting
Troubleshooting recommended resolution is 1920x1080 (for PC mode). In HDMI mode the Before contacting SWEDX service or your recommended resolution is dealer, perform the following simple checks. If 3840x2160@60Hz you cannot solve the problem using the instructions below, note the model and serial... -
Page 28: Warranty And Service
Before you contact us, please consult the workmanship during the warranty period, troubleshooting section in your user's manual or SWEDX will, at its sole option repair or replace SWEDX's FAQ web pages at the product with a similar product, provided the http://www.swedx.com to see if you can easily... -
Page 29: How To Get Service
Limitation of liability If your SWEDX product fails to work as warranted above, your sole and exclusive remedy shall be repaired or replaced. SWEDX's maximum liability under this limited warranty is expressly limited to... - Page 30 www.swedx.com...
