Z5 SERIES
DRUM SET
ASSEMBLY AND SET-UP GUIDE
1-YEAR LIMITED WARRANTY
Congratulations on your purchase of this Pacific Drum Kit. The following directions
are a step-by-step guide to get you playing your new drums as quickly as possible.
The only tool you need is the drum key that is supplied with your kit.
Additional tips and information can be found at www.pacificdrums.com
PACIFIC DRUMS & PERCUSSION 1 YEAR LIMITED WARRANTY
This warranty protects the original retail purchaser only. If a covered product or component fails due to a manufacturing or material
defect, Pacific will repair or replace the product at no charge. To obtain warranty service, return the product to your authorized Pacific
Drums dealer along with your original proof of purchase. In the case that the dealer is unable to correct a warranty defect, the dealer
will then contact Pacific for further instructions and to obtain a Return Authorization (RA) number. No shipments will be accepted
without an RA number. Any and all shipping charges are the responsibility of the purchaser.
This warranty does not apply to 1) drums purchased from a source other than an authorized Pacific Drum dealer, 2) any owner other
than the original purchaser, 3) defects caused by neglect, moisture, extreme temperatures, handling, shipping or use under normal
playing conditions, 4) finishes, 5) alterations made after the product leaves the factory, 6) sticks and 7) drumheads. Pacific drums and
percussion shall not be liable for incidental, consequential or other damages that may arise as a result of or related to any defect or
failure of this product. This warranty gives you specific legal rights. You may also have other rights, which vary from state to state.
Component
drum shells
Length of Coverage
l year
drum finishes
drum hardware
1 year
1 year

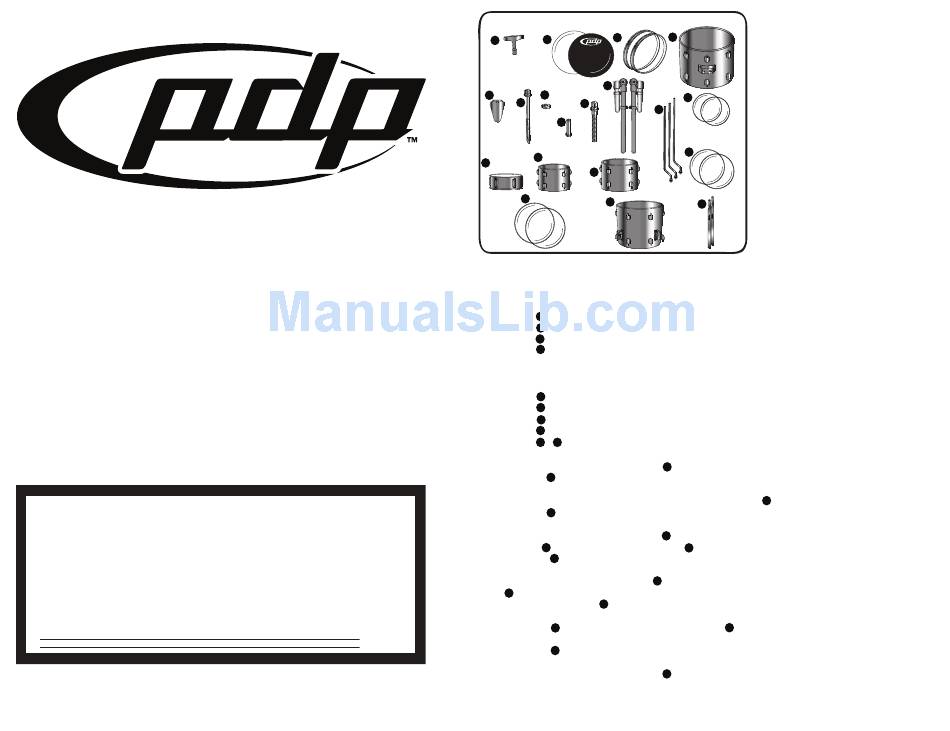

Package Contents

C
B
A
J
E
G
F
I
K
H
N
M
O
Q
R
1. Before removing anything from the box, place the box in a location where you will be able to remove
the contents of the boxes easily and safely.
2. Remove the top packet that holds the Drum Heads.
This packet contains:
B
*
Two Bass Drum Heads (One Clear Batter & One Black Logo Resonant)
*
Q
Two 14" Floor Tom Drum Heads (Two Clear Batter)
P
*
Two 12" Tom Drum Heads (Two Clear Batter)
L
*
Two 10" Tom Drum Heads (Two Clear Batter)
3. On the side of the box you will find a rectangular box with type that reads: "Attention: this box contains
parts necessary for the assembly of the drums. Please keep it together with the drums."
This box contains:
S
*
One pair of PDP drum sticks
J
*
Bass Drum mounted tom arms (qty 2)
E
*
Bass Drum claw hooks
F
*
Tension rods for the claw hooks
*
H
+
G
Spare PDP true pitch lug receiver nuts and washers
4. Place this box next to the box holding the Drum Heads for the time being.
5. Remove the extra cardboard that holds the
O
6. Remove the
12" unassembled Tom Drum sitting inside the shell of the Bass Drum and place the drum
on a smooth and sturdy surface to prevent damage to your drum.
7. On the side of the Bass Drum shell you will find the box holding the
8. Remove the
14" Snare Drum from the box and place the drum on a smooth and sturdy surface to
M
prevent damage to your drum.
9. Remove all the excess packing around the
10. Inside the
D
Bass Drum shell you will find the
11. Remove the 10" unassembled tom drum and place the drum on a smooth and sturdy surface to
N
prevent damage to your drum.
12. Remove the extra cardboard inside the
R
D
Bass Drum shell to ensure easy removal.
13. You can now remove the
R
14" unassembled Floor Tom Drum. Place the drum on a smooth and sturdy
surface to prevent damage to your drum.
14. Remove the
Bass Drum Hoop located on the top of the
C
box holding the Drum Heads.
15. Remove the
D
Bass Drum Shell and place the drum on a smooth and sturdy surface to prevent damage
to your drum.
16. At the bottom of the box, remove the last
Drum Heads.
A Drum key (1)
B Bass Drum Heads (2)
D
(One Clear Batter & One Black Logo
Resonant)
C Bass Drum Hoops (2)
D 16X22" Bass Drum Shell (1)
E Claw Hooks (16)
F Bass Drum Tension Rods
L
(16 + 2 spares)
G Metal Washers (48 + 4 spares)
H Lug Receivers (6 spares)
I
Smaller Tension Rods For Toms
(32 +2 spares)
P
J
Bass Drum Mounted Tom Arms (2)
K Floor Tom Drum Legs (3 Legs)
L 10" Tom Tom Drum Clear Heads (2)
M 5X14" Snare Drum (1 - Assembled)
N 8X10" Tom Tom (1 - Unassembled)
S
O 9X12" Tom Tom (1 - Unassembled)
P 12" Tom Tom Drum Clear Heads (2)
Q 14" Floor Tom Drum Clear Heads (2)
R 12X14" Floor Tom Drum
(1 - Unassembled)
S PDP Drum Sticks (2)
12" unassembled Tom Drum box.
O
M
14" Snare Drum.
Bass Drum shell to ensure easy removal.
D
N
10" unassembled Tom Drum.
unassembled Floor Tom Drum and the Styrofoam inside the
D
Bass Drum Shell and place it next to the
Bass Drum Hoop and place it next the box holding the
C
1
