- Page 1 054-0932-4 CORDLESS RADIO INSTRUCTION IMPORTANT: Read and understand this instruction manual thoroughly MANUAL before using the product.
-
Page 2: Table Of Contents
headline bars TABLE OF CONTENTS Technical Specifications Safety Guidelines Key Parts Diagram Operating Instructions continuation tabs Maintenance Troubleshooting Parts List Warranty notes warnings NOTE: If any parts are missing or damaged, or if you have any questions, please call our toll-free helpline at 1-800-689-9928. SAVE THESE INSTRUCTIONS •... -
Page 3: Technical Specifications
054-0932-4 | contact us 1-800-689-9928 SAFETY GUIDELINES: TECHNICAL SPECIFICATIONS WARNING! AM Tuner 520–1710 KHz Safety symbols in this instruction manual are used to flag possible dangers. The safety FM Tuner 87.5–108 MHz symbols and their explanations require your full understanding. The safety warnings do not, Auxiliary Cable 3.5 mm plug... - Page 4 054-0932-4 | contact us 1-800-689-9928 ELECTRICAL SAFETY SAFETY GUIDELINES FOR RADIO • A battery operated product with integral batteries or a separate battery pack must be • Know your product. Read the operator’s manual carefully. Learn the applications and recharged only with the specified charger for the battery.
-
Page 5: Key Parts Diagram

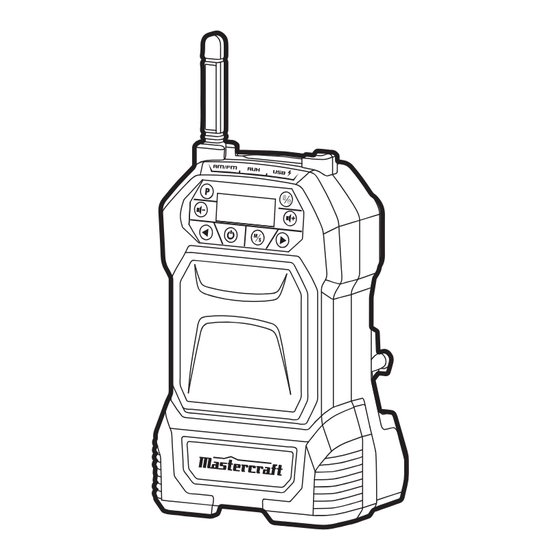

054-0932-4 | contact us 1-800-689-9928 PACKAGE CONTENTS: Description Description Radio and instruction manual. Antenna Volume down button LCD display Volume up button KEY PARTS DIAGRAM Retainer strap Tune/seek down button USB power port Tune/seek up button... -
Page 6: Operating Instructions
054-0932-4 | contact us 1-800-689-9928 OPERATING INSTRUCTIONS LCD DISPLAY The LCD display on the front of the radio illuminates when the radio is turned on. It will display the TO INSTALL/REMOVE AAA fig 1 radio mode and frequency/channel setting. - Page 7 054-0932-4 | contact us 1-800-689-9928 Changing channels Setting the clock The buttons are used to manually tune to the desired radio frequency. The selected frequency The time is always displayed when the radio is turned off and in AUX mode.
-
Page 8: Maintenance
054-0932-4 | contact us 1-800-689-9928 MAINTENANCE TROUBLESHOOTING Problem Possible Causes Solution BEFORE EACH USE The radio does not work The 20 V battery pack is depleted Charge the battery pack 1. Inspect the radio and the accessories for damage. - Page 9 054-0932-4 | contact us 1-800-689-9928 EXPLODED VIEW No. Part No. Description Part No. Description 0540932401 Speaker grill 0540932409 Usb rubber cover 0540932402 Front cabinet 0540932410 Belt 0540932403 Speaker 0540932411 Fm antenna 0540932404 Main pcb board...
-
Page 10: Warranty
This Mastercraft product is guaranteed for a period of 3 years from the date of original retail Notice to Consumer...
