I-View Now easynet ed-p series Installation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
DVR Installation Manual
5/21/2013
V1.0
EasyNet ED-P Series DVRs

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the easynet ed-p series and is the answer not in the manual?

Questions and answers

Summary of Contents for I-View Now easynet ed-p series

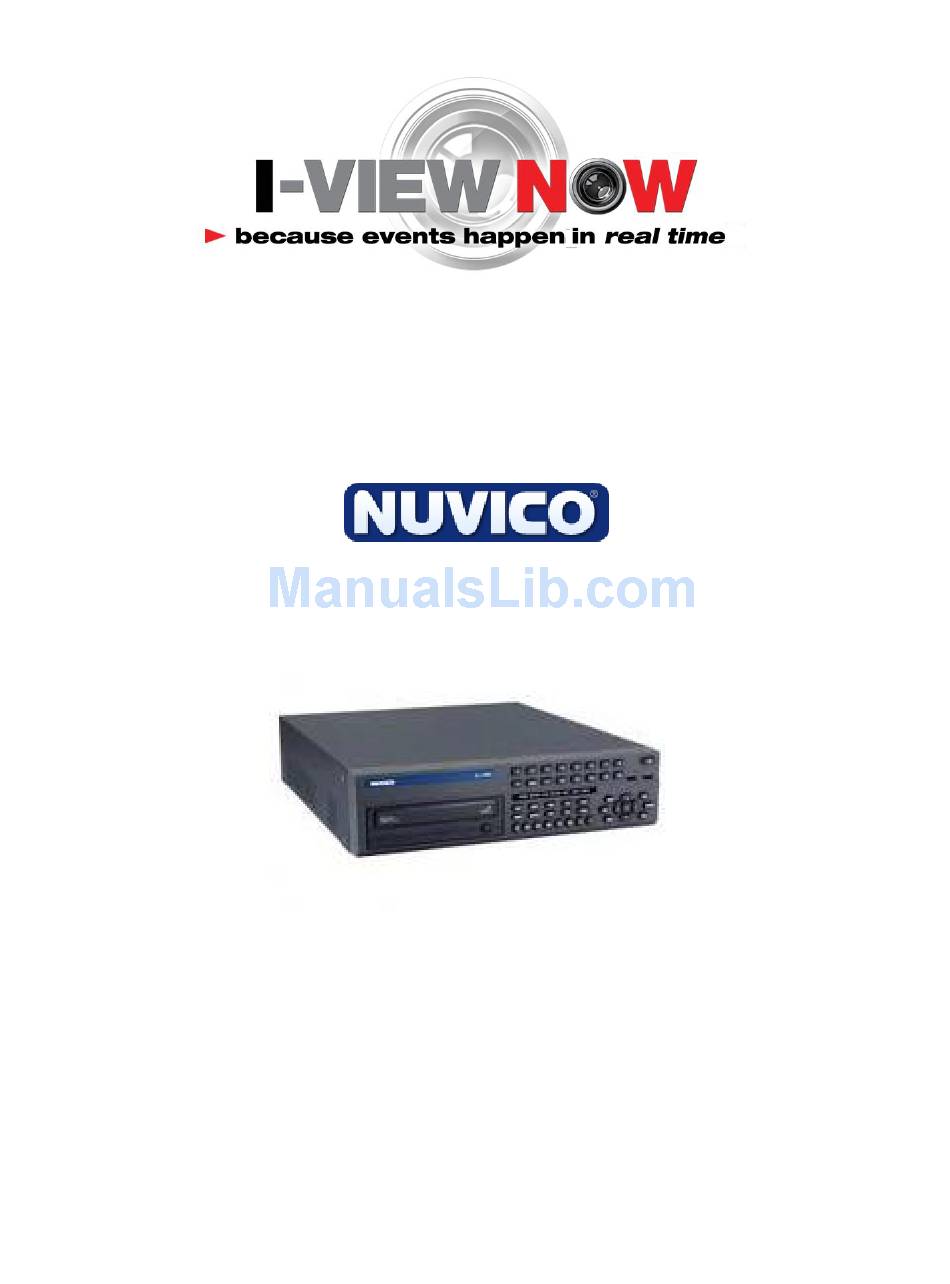

  • Page 1 DVR Installation Manual 5/21/2013 V1.0 EasyNet ED-P Series DVRs...

  • Page 2: Table Of Contents

    Motion Camera Masking (optional) ..............................13 ALARM INPUT SETUP ..............................14 CONFIGURE I-VIEW NOW ENTRY DELAYS ......................15 TEST SETTINGS ................................15 © 2013 I-View Now, LLC. All Rights Reserved. Nuvico EasyNet ED-P Series Installation Guide rev 1.0 Page 2...

  • Page 3: Workflow

    Port Setup: Forward ports to allow Device commands to be sent from I-View Now 2. Configure SMTP email: This will be used to communicate alerts and alarms to I-View Now. The SMTP server and SMTP ID provided on the “Installer Data” Worksheet will be used here 3.

  • Page 4: Installation Worksheet

    Installation Worksheet The I-View Now Portal will provide an Installation Worksheet after entering the DVR make and model into the system. This sheet will contain configuration information for the DVR’s notifications area, and it provides a form to fill in details about the site setup (alarms, zone names).

  • Page 5: Network Setup

    If port 7000 is already in use, another port may be assigned here. If available, default port 7000 may be used  Click Save to finalize settings Setup Menu->Advanced tab->Network Menu->Network © 2013 I-View Now, LLC. All Rights Reserved. Nuvico EasyNet ED-P Series Installation Guide rev 1.0 Page 5...

  • Page 6: Network Time Protocol (Ntp) Setup

    Pressing the Test button will verify availability  Click save to apply settings, a verification message will be displayed  Click OK Setup Menu->Advanced tab->Network Menu->NTP © 2013 I-View Now, LLC. All Rights Reserved. Nuvico EasyNet ED-P Series Installation Guide rev 1.0 Page 6...

  • Page 7: Smtp Settings

    SMTP Settings This section describes how to set up SMTP (email) on the DVR to allow Alarm notifications to be sent to I-View Now.  Navigate back to the Network Setup Menu  Click Notification The SMTP id for the DVR is generated upon adding the device Setup Menu->Advanced tab->Network Menu...

  • Page 8: Network Port Setup

    Router Settings Router settings must be examined on a case by case basis. I-View Now requires one port to be forwarded to the device. This can be done either through port forwarding or NAT (Network Address Translation) depending on what the installation site’s router supports.

  • Page 9: Rtsp Setup

    RTSP Setup I-View Now utilizes the EasyNet DVR’s RTSP stream for streaming both live and pre-event video.  Navigate to Setup->Advanced Setup Tab->Network  Click RTSP  Check RTSP Server On  Uncheck Standard Port (554)  Check RTSP Over TCP ...

  • Page 10: User Settings

    Check Network Login, Check Copy, Check PTZ Control, Check Display Control, Check Local Playback, Check Network Playback  Click Apply  Click save settings to finalize Setup->Advanced Setup->System->Account->Group Tab->General © 2013 I-View Now, LLC. All Rights Reserved. Nuvico EasyNet ED-P Series Installation Guide rev 1.0 Page 10...

  • Page 11: Changing The Admin Password

    Changing the Admin Password The I-View Now System will use the administrator account and password to retrieve video from the DVR. An auto generated password is provided on the Dealer’s Web Portal upon device creation. The provided password may be used or another password may be used so long as it is updated in both the DVR and the Dealer portal.

  • Page 12: Recording Setup

    The Recording setup determines the format of the video recorded onto the DVR. For clips to be decoded properly all utilized streams use both the same Frame Rate and Resolution settings. I-View Now suggests setting up all recording channels in this manner to avoid any potential issues when upgrading or adding cameras to the system.

  • Page 13: Motion Camera Masking (Optional)

    Click the Set button  Click Apply  Click Save  Repeat Steps for all desired cameras Example of masking a doorway for motion detection. © 2013 I-View Now, LLC. All Rights Reserved. Nuvico EasyNet ED-P Series Installation Guide rev 1.0 Page 13...

  • Page 14: Alarm Input Setup

    Alarm Input Setup Alarm inputs are to be configured to send SMTP notification to I-View Now whenever an alarm event occurs. I-View Now suggests recording on all camera channels whenever an alarm event is detected.  Navigate to Setup->Advanced Setup->Event ...

  • Page 15: Configure I-View Now Entry Delays

    Configure I-View Now Entry Delays Entry Delays are configurable through the I-View Now Dealer Portal. Log in to configure. Test Settings Once the DVR has been properly configured and the necessary settings entered into the i-viewnow.com portal, it is a good idea to test each alarm input on the DVR by triggering the corresponding device on your alarm panel.
