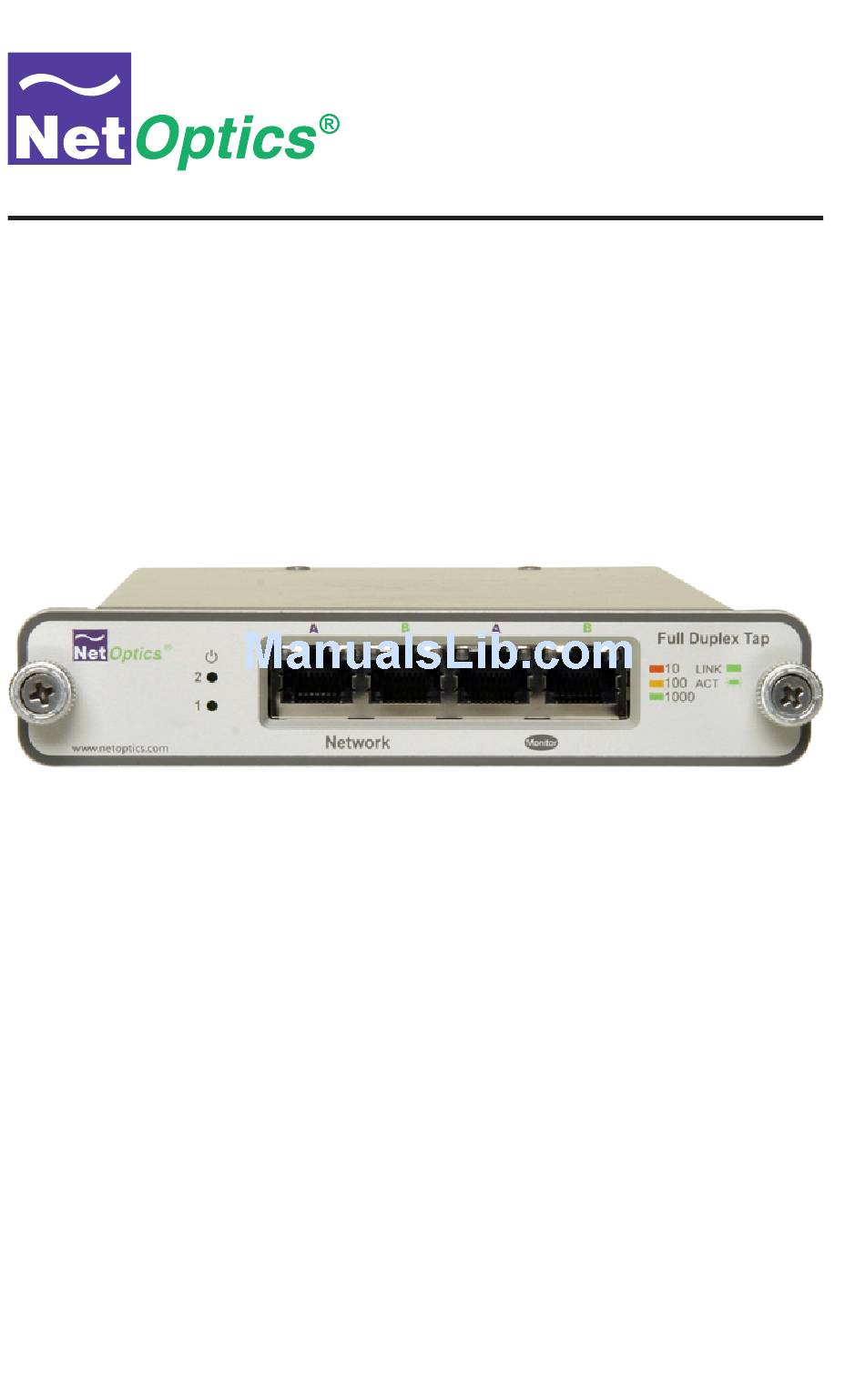

- Page 1 Installation Guide for 10/100/1000BaseT Tap Doc. PUBTPCU3U Rev. 2, 06/06...
-
Page 3: Table Of Contents
10/100/1000BaseT Tap Contents Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Key.Features. - Page 4 No. licenses,. express. or. implied,. are. granted. with. respect. to. any. of. the. technology. described. in. this. manual ..Net.Optics.retains.all.intellectual.property.rights.associated.with.the.technology.described.in. this.manual ..This.manual.is.intended.to.assist.with.installing.Net.Optics.products.into.your.network . Trademarks and Copyrights ©.2007.by.Net.Optics,.Inc ..Net.Optics®.and.Link.Fault.Detect .are.registered.trademarks.of.. Net.Optics,.Inc ..Additional.company.and.product.names.may.be.trademarks.or.registered.trademarks.of. the.individual.companies.and.are.respectfully.acknowledged . Additional Information Net Optics, Inc. reserves the right to make changes in specifications and other information contained in.this.document.without.prior.notice ..Every.effort.has.been.made.to.ensure.that.the.information.in.this. document.is.accurate .
-
Page 5: Introduction
Get total traffic visibility for 10/100/1000 monitoring and security devices by placing Net Optics 10/100/1000BaseT Taps on critical network links. 10/100/1000BaseT Taps support passive monitoring of 10/100/1000 links at 10,.100,.or.1000.Mbps ..This.Tap.is.ideal.when.a.passive.Tap.is.required.for. use.with.a.variety.of.copper.monitoring.devices . For superior reliability, the 10/100/1000BaseT Tap features Link Fault De- tect .(LFD),.which.gives.the.devices.connected.to.the.Tap.critical.informa- tion.about.link.status ..If.either.side.of.the.bi-directional.link.fails,.the.Tap.im- mediately.communicates.the.fault.to.both.devices,.reducing.the.time.required. -
Page 6: Key.features
10/100/1000BaseT Tap Key Features Passive, Secure Technology • Provides passive access at 10/100/1000 Mbps without data stream interfer- ence.or.introducing.a.point.of.failure • Permanent.in-line.installation.without.affecting.network.performance • Link.Fault.Detect.prevents.undetected.link.failures • Passes all full-duplex traffic (including errors) from all layers for compre- hensive.troubleshooting • No.IP.address.is.needed.for.the.Tap.or.monitoring.device,.enhancing.moni- toring.security •... -
Page 7: About This Guide
10/100/1000BaseT Tap About This Guide This guide explains how to install the 10/100/1000BaseT Tap. Please read the Guide before attempting to install the 10/100/1000BaseT Tap. This.guide.covers.the.following.models:.Model.TP-CU3 Unpacking and Inspection Carefully unpack the 10/100/1000BaseT Tap and check for damaged or missing.parts ..The.Tap.ships.with.the.following: •... -
Page 8: Product.diagrams

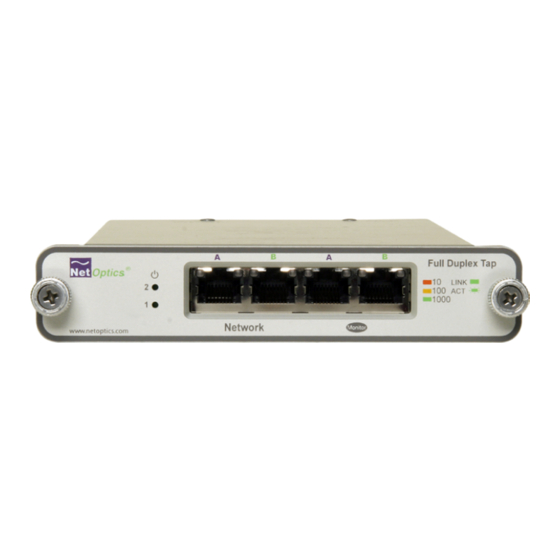

10/100/1000BaseT Tap Product Diagrams Power Network A & B Monitor A & B LEDs Full Duplex Tap Full Duplex Tap ® LINK 1000 Network Monitor www.netoptics.com Figure 1: Front Panel DIP Switch Power DC Jacks 3 4 5 6 7 8... -
Page 9: Led.indicators
LED flashes.. • 10/100/1000 Indicator:.Located.in.the.upper.left.hand.corner ..If.the.Port. is.set.to.10.Mbps,.the.LED.will.illuminate.orange ..If.the.Port.is.set.to.100. Mbps,.the.LED.will.illuminate.yellow ..If.the.Port.is.set.to.1000.Mbps,.the. LED.will.illuminate.green . Link Fault Detect The 10/100/1000BaseT Tap has Link Fault Detect on the Network ports. The Tap.negotiates.separately.with.each.side.of.the.full-duplex.link,.detecting.if. either.side.fails ..In.the.event.of.a.failure,.the.Tap.ceases.negotiation.with.the. remaining.side,.enabling.a.clean.fail-over.to.a.redundant.network.connec- tion.(if.one.is.available) ..Link.Fault.Detect.requires.that.both.sides.of.the.. full-duplex.link.and.communicating.at.the.same.speed . Cabling Guidelines •... -
Page 10: Connecting.to.the.network
10/100/1000BaseT Tap Connecting to the Network 1 ...Connect.Network.Port.A.to.the.appropriate.switch,.server.or.router.using.a. CAT5e.cable .. 2 ...Connect.Network.Port.B.to.the.appropriate.switch,.server.or.router.using.a. CAT5e.cable .. Full Duplex Tap Full Duplex Tap ® LINK 1000 Network Monitor www.netoptics.com To switch, server or router To switch, server or router Figure 4: Connecting to the Network... -
Page 11: Connecting.to.the.monitoring.device
10/100/1000BaseT Tap Connecting to the Monitoring Device 1 .. Supply.power.to.the.Tap.using.the.two.redundant.power.supplies.included. with.the.unit ..Verify.that.the.Power.LED.illuminates . 2 .. Connect.Monitor.Port.A.to.the.appropriate.port.on.the.monitoring.device. using.a.CAT5e.straight-through.cable . 3 .. Connect.Monitor.Port.B.to.the.appropriate.port.on.the.monitoring.device. using.a.CAT5e.straight-through.cable . Note: _______________________________________________________________ The second power supply is available to support the flow of traffic to the monitoring device in the event that the first power supply becomes unavailable. -
Page 12: Dip.switch.settings
10/100/1000BaseT Tap DIP Switch Settings You.set.the.communication.parameters.from.the.8-position.DIP.switch.located. on the rear panel of the 10/100/1000BaseT Tap. Parameters set with the DIP switch apply to all ports. If you plan to used fixed settings, connected devices must.match.the.settings.you.select.for.the.Tap .. Switch Position Description Link.Fault.Detect.(LFD).is.active.on.the.Network.Ports . -
Page 13: Specifications
10/100/1000BaseT Tap Specifications Environment Operating Temperature: 0˚C to 55˚C Operating Temperature: -10˚C to 70˚C Relative.Humidity:.10%.min,.95%.max,.non-condensing Power Power.Supply. Input:.100-240VAC,.0 .5A,.47-63Hz Output:.12V.1 .5A -48V.Power.Supply Input: -48V.DC.typical,.-36V.DC.min,.-75V.DC.max Mechanical Dimensions:.1 .125”.high.x.6 .25”.deep.x.5 .375”.wide Cable Interface Copper.Cable.Type:..22-24.AWG.unshielded.twisted.pair.cable,.CAT5e Link.Distance.Supported:.100.meters Connectors (2).RJ45,.8-pin.connectors.(monitor.ports) (2).RJ45,.8-pin.connectors.(network.ports) Certifications Fully.RoHS.compliant... -
Page 14: Limitations.on.warranty.and.liability
..Every.effort.has.been.made.to.ensure.that.the.information.in. this.document.is.accurate ..Net.Optics.is.not.responsible.for.typographical.errors . THE.WARRANTY.AND.REMEDIES.SET.FORTH.ABOVE.ARE.EXCLUSIVE.AND.IN.LIEU.OF. ALL.OTHERS,.EXPRESS.OR.IMPLIED ..No.Net.Optics.reseller,.agent,.or.employee.is.authorized. to make any modification, extension, or addition to this warranty. Net Optics is always open to any comments or suggestions you may have about its products and/or this.manual . Send.correspondence.to. Net.Optics,.Inc .. 5303.Betsy.Ross.Drive. - Page 16 www.netoptics.com ©.2007.by.Net.Optics,.Inc ..All.Rights.Reserved ...
