- How to - LED Status chart Saving files - File saving - Resolution - Recording time - Auto file naming and using PC Connect Port - Supported resolutions - Audio/commentary recording Product specifications Frequently asked questions Contact Kaiser Baas...
SAFETY PRECAUTIONS WHAT’S IN THE BOX Before using the Game Recorder HD, please ensure that you read and understand the Please make sure the product package has the following contents: safety precautions below. Game Recorder HD Do not attempt to open the case of the Game Recorder HD or modify it in any way, as AC power supply this will void the warranty.

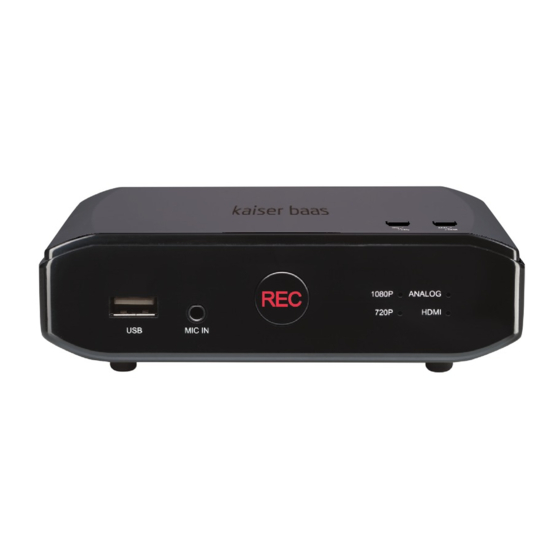

PRODUCT DIAGRAM PRODUCT DIAGRAM Power DC input Back Breakout (Mini 8)/Component port (YPbPr – optional) – connect to an XBOX360/Playstation3 HDMI In* HDMI Out* PC connect Resolution select (720p or 1080p**) 720p/1080p status indicator (LED) Analogue/HDMI selector Analogue/HDMI status indicator (LED) Record button Audio / Mic input USB 2.0 port (compatible with USB 3.0)
CONNECTION GUIDES CONNECTION GUIDES PlayStation 3 1. Make sure the PS3 video/audio output settings are setup correctly before you begin: It may be necessary to change the Video Output Settings manually to Component/D-Terminal. Navigate to Settings> Display Settings>Video Output Settings> Select Component/D-Terminal as the connector type on your display. At this point the PS3 will ask whether you wish to Set Audio Output Settings;...
CONNECTION GUIDES CONNECTION GUIDES XBOX 360 1. Connect Game Recorder HD, from HDMI out, to TV via an HDMI* cable. 2. Connect XBOX 360, to HDMI in, on the Game Recorder HD via an HDMI* or composite/RCA*** cable (if available). 3.
CONNECTION GUIDES CONNECTION GUIDES Nintendo Wii 1. Connect Game Recorder HD, from HDMI out, to TV via an HDMI* cable. 2. Connect Wii to Game Recorder HD via composite video/audio L&R. 3. Make sure game is visible on TV screen. 4.
CONNECTION GUIDES CONNECTION GUIDES VHS player/other analogue video output devices Your Game Recorder HD can capture any video from any video source/device all you need is the right ports/connections! 1. Connect Game Recorder HD to TV via HDMI* cable. 2. Connect VHS, or any other device with composite/audio L&R output, to ANALOGUE Game Recorder HD.
HDD FORMATS & RECORDING The Game Recorder HD LED lights will illuminate different colours/ways to indicate functions. LED Status Chart CAPACITIES GREEN: flashing No USB storage device connected Booting still in progress Windows Game Recorder HDD formats Mac OS 95-Windows 8 HDD not supported - if flashing for extended amount of time Cable not connected properly FAT32...
SAVING FILES SAVING FILES File saving Supported resolutions Game Recorder HD will record a new file when the previous file reaches a capacity Input/output 1920 x 1080 (50p), 1920 x 1080 (60p) of 2GB. 1920 x 1080 (24p), 1920 x 1080 (25p), 1920 x 1080 (30p) When HDD or USB storage is full, Game Recorder HD stops recording and record 1920 x 1080 (50i), 1920 x 1080 (60i), 1280 x 1024 (60p) light will change from RED to solid GREEN.
SAVING FILES PRODUCT SPECIFICATIONS Audio/commentary recording Capture format mp4 (h.264) Video format (input) NTSC, PAL, PAL-60 You can add audio commentary to your captured gameplay by connecting a microphone* to the Game Recorder HD, via the Audio input (11). Audio format With your microphone connected, simply press Record on the Game Recorder HD and File recording format support FAT, FAT32, NTFS...
FREQUENTLY ASKED QUESTIONS FREQUENTLY ASKED QUESTIONS Q: Will the Game Recorder HD work with my console? Q: Will the Game Recorder HD continue to record over the recorded files once my storage device is full? A: Please go to www.kaiserbaas.com/gamerecorderhd for an updated list of compatible consoles, or email helpdesk@kaiserbaas.com A: No, the Game Recorder HD will stop once all free space is used up on the storage device.
Page 14
- Videorekorder / Analoggeräte helpdesk@kaiserbaas.com Festplatten-Formate Aufnahme www.kaiserbaas.com/gamerecorderhd - Anleitung www.facebook.com/kbgamerecorder - LED Statustabelle Dateien speichern - Anleitung - Auflösung - Aufnahmedauer - Automatische Dateibenennung - Auto Dateibenennung- und Verwendung PC Connect Port - Audio / Kommentaraufnahme Produktdetails Kontakt Kaiser Baas...
SICHERHEITSVORKEHRUNGEN PACKUNGSINHALT Bitte stellen Sie sicher, die folgenden Sicherheitsvorkehrungen vor Benutzung des Vergewissern Sie sich, dass das Produktpaket folgende Gegenstände enthält: Game Recorder HD .gelesen und verstanden zu haben. Game Recorder HD Versuchen Sie nicht, das Gerät zu öffnen oder umzubauen. Dies führt zum Erlischen Netzteil der Garantie.
VERBINDUNGSANLEITUNG VERBINDUNGSANLEITUNG PlayStation 3 1. Bevor Sie beginnen, stellen Sie sicher, dass die Audio / Video-Output Einstellungen Ihrer PS3 korrekt eingestellt sind: In manchen Fällen müssen die Videoausgangs-Einstellungen manuell auf Component/D-Terminal geändert werden. Wählen Sie hierzu unter Einstellungen> Bildschirmeinstellungen>Videoausgangseinstellungen> Component/D-Terminal als Verbindungsart Ihres Displays aus. Sie werden nun aufgefordert, die Audioausgangs-Einstellungen Ihrer PS3 COMPONENT einzustellen;...
VERBINDUNGSANLEITUNG VERBINDUNGSANLEITUNG XBOX 360 1. Schließen Sie den Game Recorder HD über dessen HDMI-Ausgang mit einem HDMI-Kabel* an Ihrem Fernsehgerät an. 2. Verbinden Sie die XBOX 360 über deren HDMI-Eingang mit Hilfe eines HDMI-, Composite- oder RCD-Kabels*** (falls verfügbar) mit Ihrem Game Recorder HD. XBOX 3.
VERBINDUNGSANLEITUNG VERBINDUNGSANLEITUNG Nintendo Wii 1. Schließen Sie den Game Recorder HD über dessen HDMI-Ausgang mit einem HDMI-Kabel* an Ihrem Fernsehgerät an. 2. Verbinden Sie die Wii über ein Composite Video/Audio-Kabel mit Ihrem Game Recorder HD. 3. Vergewissern Sie sich, dass das Spielgeschehen auf dem Bildschirm sichtbar ist. 4.
VERBINDUNGSANLEITUNG VERBINDUNGSANLEITUNG Videorekorder / Analoggeräte Ihr Game Recorder HD kann jedes beliebige Video von jeder Quelle / jedem Gerät erfassen, sofern geeignete Anschlüsse zur Verfügung stehen. 1. Verbinden Sie den Game Recorder HD über ein HDMI-Kabel* mit Ihrem Fernsehgerät. ANALOGUE 2.
FESTPLATTEN-FORMATE Je nach Zustand leuchtet die LED des Game Recorder HD in unterschiedlichen Farben auf: LED Statustabelle Windows Game Recorder GRÜN blinkend: Kein Speichermedium angeschlossen HDD formats Mac OS 95-Windows 8 oder: Ladevorgang noch nicht abgeschlossen oder (falls länger andauernd): Festplatte wird nicht unterstützt FAT32 oder:...
DATEIEN SPEICHERN DATEIEN SPEICHERN Anleitung Unterstützte Auflösungen Sobald eine Videodatei 2GB Dateigröße erreicht, wird automatisch eine neue Ein- / Ausgang 1920 x 1080 (50p), 1920 x 1080 (60p) Videodatei angelegt. 1920 x 1080 (24p), 1920 x 1080 (25p), 1920 x 1080 (30p) Ist das Speichermedium voll, beendet der Game Recorder HD die Aufnahme und 1920 x 1080 (50i), 1920 x 1080 (60i), 1280 x 1024 (60p) die Statusanzeige wechselt von GRÜN auf ROT.
DATEIEN SPEICHERN PRODUKTDETAILS Audio / Kommentaraufnahme Aufnahmeformat mp4 (h.264) Videoformat (Eingang) NTSC, PAL, PAL-60 Durch Anschließen eines Mikrofons* an den Audio-Eingang (11) des Game Recorder HD können Sie Ihrer Aufnahme einen Audiokommentar hinzufügen. Audioformat Sobald ein Mikrofon angeschlossen und der Aufnahmeknopf gedrückt ist, wird die Unterstützte Dateisysteme FAT, FAT32, NTFS Aufnahme gestartet und Sie können während des Spiels kommentieren.
Q: Kann ich den Game Recorder HD mit meiner Konsole verwenden? Q Werden bisher aufgenommene Dateien überschrieben, wenn mein Speichermedium voll ist? A: Unter www.kaiserbaas.com/gamerecorderhd finden Sie eine Liste aller unterstützten Konsolen. Noch immer unsicher? Schreiben Sie uns unter A: Nein. Sobald das angeschlossene Speichermedium voll ist, beendet der helpdesk@kaiserbaas.com und wir helfen Ihnen gerne weiter.
Page 25
- Fichier de sauvegarde - Résolution - Le temps d’enregistrement - Nomination automatique du fichier et utilisation d’un port de connexion de PC - Résolutions suportée - Enregistrement Audio / Commentaire Spécifications du produit Foire aux questions Contactez-nous Kaiser Baas...
Alimentation façon, car cela annulera la garantie. L’entretien et les réparations doivent être effectuées par Kaiser Baas. Gardez le Game Recorder HD à l’abri de l’eau et d’autres Câble Mini USB de sortie liquides, car cela pourrait provoquer le dysfonctionnement de l’appareil.
SCHÉMA DE L’APPAREIL SCHÉMA DE L’APPAREIL Bouton d’alimentation Entrée d’alimentation Derrière Cable mini USB de sortie (YPbPr - en option ) – Pour connecter à une XBOX360 ou Playstation3 Entrée HDMI* Sortie HDMI * Connexion PC Selectionner de la résolution (720p ou 1080p**) 720p/1080p Indicateur d’état (LED) Sélecteur Analogique/HDMI Indicateur d’état (LED) Analogique/HDMI...
GUIDE DE CONNEXION GUIDE DE CONNEXION PlayStation 3 1. Assurez-vous que les paramètres de sortie audio vidéo PS3 / sont configurés correctement avant de commencer. Il peut être nécessaire de modifier les paramètres de sortie vidéo manuellement Composant / D-Terminal. Accédez à Paramètres > Paramètres d’affichage > Paramètres de sortie video >...
GUIDE DE CONNEXION GUIDE DE CONNEXION XBOX 360 1. Connectez le Game Recorder au téléviseur via un cable HDMI * 2. Connectez votre XBOX 360, au port HDMI qui se trouve sur le Game Recorder HD en ultilisant un câble HDMI *ou un câble composite / RCA *** (si disponible). 3.
GUIDE DE CONNEXION GUIDE DE CONNEXION Nintendo Wii 1. Connectez le Game Recorder au téléviseur via un cable HDMI * 2. Connectez votre Wii au Game Recorder HD via un cable vidéo composite 3. Assurez-vous que votre jeu vidéo est visible sur l’écran du téléviseur 4.
GUIDES DE CONNEXION GUIDES DE CONNEXION Lecteur VHS ou autres périphériques de sortie vidéo analogiques Votre Game Recorder HD peut capturer n’importe quelle vidéo à partir de n’importe quelle source vidéo ou appareil, vous avez simplement besoin d’avoir les bon ports ou connexions! 1.
Les lumières du Game Recorder HD s’allument de différentes couleurs, de manière à indiquer les les différentes fonctions. FORMAT DU DISQUE DUR ET CAPACITÉS Tableau LED d'état D’ENREGISTREMENT VERT: clignotant Aucun périphérique de stockage n’est connecté Le démarrage est en cours Disque dur Windows Game Recorder...
ENREGISTREMENT DE FICHIERS ENREGISTREMENT DE FICHIERS Fichier de sauvegarde Résolutions suportée Game Recorder HD va enregistrer un nouveau fichier lorsque le précédent fichier Entrée / Sortie 1920 x 1080 (50p), 1920 x 1080 (60p) atteint une capacité de 2Go. 1920 x 1080 (24p), 1920 x 1080 (25p), 1920 x 1080 (30p) Quand le disque dur ou USB de stockage est plein, le Game Recorder HD s’arrête et la lumière d’enregistrement passe du rouge au vert.
SPÉCIFICATIONS DU PRODUIT ENREGISTREMENT DE FICHIERS Format de capture mp4 (h.264) Enregistrement Audio / Commentaire Le format vidéo (entrée) NTSC, PAL, PAL-60 Vous pouvez ajouter des commentaires audio à vos sequences de jeu capturées en Format audio connectant un microphone * sur le Game Recorder HD, via l’entrée audio (11). Support du format FAT, FAT32, NTFS Avec votre microphone connecté, appuyez simplement sur le bouton enregistrer du...
FOIRE AUX QUESTIONS FOIRE AUX QUESTIONS Q: Est-ce que le Game Recorder HD f0nctionne avec ma console? Q: Est-ce que le Game Recorder HD va continuer à enregistrer sur les fichiers enregistrés une fois mon périphérique de stockage plein? S’il vous plaît, rendez vous à l’adresse suivante pour une liste à jour des consoles compatibles : www.kaiserbaas.com / gamerecorderhd, ou contactez nous A: Non, le Game Recorder HD s’arrêtera une fois que tout l’espace libre est utilisé...
Page 36
- Tabella di stato LED Salvataggio di files - Salvataggio dei files - Risoluzione - Tempo di registrazione - Nominare file in automatico e usare PC Connect Port - Risoluzione supportata - Audio/ Commento registrazione Specifiche dei prodotto Frequeti domande/risposte Contattaci Kaiser Baas...
Non provare di aprire il Game Recorder HD o modificarlo in quanto annullerebbe la Alimentatore Ac garanzia. La manutenzione e la riparazione sara’ provveduta dalla Kaiser Baas. Cavo breakout (mini 8) Tieni il Game Recorder HD lontano dall’acqua e da altri liquidi in quanto potrebbe causare malfunzionamenti.
DIAGRAMMA DEL PRODOTTO DIAGRAMMA DEL PRODOTTO Accensione Dc input Betro Dreakout (mini 8) componente porta (YpbPr- opzionale) - connesso a un XBO360/Playstation 3 Ingresso HDMI Uscita HDMI PC connect Risoluzione selezionata (720p o 1080p) 720p/1080p indicatore di stato (LED) Simile / selezionatore HDMI Simile/ indicatore di stato HDMI (LED) Pulsante di registrazione Audio/entrata Mic...
LA GUIDA PER LE CONNESSIONI LA GUIDA PER LE CONNESSIONI PlayStation 3 1. Assicurati che le impostazioni d’uscita video/audio siano impostate prima di iniziare. Potrebbe essere richiesto di cambare le impostazioni uscita video manualmente in Componente/D-Terminale. Naviga in impostazioni> impostazioni display> impostazioni uscita Video t>...
LA GUIDA PER LE CONNESSIONI LA GUIDA PER LE CONNESSIONI XBOX 360 1. Connetti Game recorder HD, dall’uscita HDMI alla TV con il cavo HDMI 2. Connetti l’ XBOX 360, nell’entrata HDMI, dell Game Recorder HD col cavo HDMI o composito/RCA*** cavo (se disponibile) 3.
LA GUIDA PER LE CONNESSIONI LA GUIDA PER LE CONNESSIONI Nintendo Wii 1. Connetti Game recorder HD, dall’uscita HDMI alla TV con il cavo HDMI. 2. Connetti la WII al Game recorder HD con il composito video/audio L&R. 3. Assicurati che il gioco sia visible sulla tua TV. 4.
LA GUIDA PER LE CONNESSIONI LA GUIDA PER LE CONNESSIONI Lettore VHS/altri apparecchi con uscita video Il tuo Game Recorder HD puo’ catturare ogni video da qualsiasi sorgente/ apparecchio video tutto cio’ di cui hai bisogno e’ la giusta porta/connessione! 1.
FORMATI HDD E CAPACITA’ DI La luce LED del Game recorder HD s’illuminerà in diversi colori/modi per indicare le seguenti funzioni Tabella di stato LED REGISTRAZIONE VERDE: lampeggiante Nessuna chiave USB connessa Fase di avvio Windows Game Recorder HDD formats Mac OS 95-Windows 8 HDD non supportato - se lampeggia è...
SALVATAGGIO DEI FILES SALVATAGGIO DEI FILES Salvataggio dei files Risoluzione supportata Game Recorder HD registrerà un nuovo files quando il precedente file raggiunge la Entrata/uscita 1920 x 1080 (50p), 1920 x 1080 (60p) capacità di 2 GB. 1920 x 1080 (24p), 1920 x 1080 (25p), 1920 x 1080 (30p) Quando il dispositivo HDD o USB è...
SALVATAGGIO DEI FILES SPECIFICHE DEI PRODOTTO Audio/ Commento registrazione Formato rilevamento mp4 (h.264) Formato video (entrata) NTSC, PAL, PAL-60 Puoi aggiungere un commento audio sul tuo gioco rilevat con la connessione di un microfono al Game Recorder HD, attraverso l’uscita Audio (11) Formato audio Formato registrazione file sopportate FAT, FAT32, NTFS Con il microfono connesso, premi semplicemente il tasto registrazione sul Game...
FREQUETI DOMANDE/RISPOSTE FREQUETI DOMANDE/RISPOSTE Q: Il Game Recorder HD funzionerà con la mia console? Q: Il Game Recorder HD contiunerà a registrare sopra a un file registrato una volta che la memoria del dispositivo sarà piena? A: Si prega di visitare www.kaiserbaas.com/gamerecorderhd per le liste aggiornate delle console compatibili, o email a helpdesk@kaiserbass.com A: No, il Game Recorder HD si fermerà...
Page 47
Almacenamiento de archivos - Guardar el archivo - Resolución - Duración de grabación - Auto nombrado de archivos y uso del Puerto PC Connect - Resoluciónes soportadas - Audio /comentario grabación Especificaciones del producto Preguntas frecuentes Contacto Kaiser Baas...
Fuente de alimentación de CA que esto anularía la garantía. Mantenimiento y reparaciones deben ser llevadas a cabo por Kaiser Baas. Cable Breakout (Mini 8) Mantenga el Game Recorder HD alejada del agua y otros líquidos, ya que esto puede Guía del usuario...
DIAGRAMA DEL PRODUCTO DIAGRAMA DEL PRODUCTO Potencia De entrada de CC Breakout (Mini 8) / puerto de componente (YPbPr - opcional) Atrás - Conectarse a un XBOX360/Playstation3 En HDMI * Salida HDMI * PC Connect Resolución selección (720p o 1080p **) Indicador de estado 720P/1080P (LED) Analógico / selector HDMI Indicador de estado analógica / HDMI (LED)
GUÍAS DE CONEXIÓN GUÍAS DE CONEXIÓN 1. Asegúrese de que el video PS3 / ajustes de salida de audio están configurados PlayStation 3 correctamente antes de: Puede que sea necesario cambiar la configuración de salida de vídeo manualmente para componentes / D-Terminal. Vaya a Ajustes> Ajustes de pantalla> Ajustes de salida de vídeo>...
GUÍAS DE CONEXIÓN GUÍAS DE CONEXIÓN XBOX 360 1. Conecte el Game Recorder HD, través la salida HDMI, al televisor mediante un cable HDMI. 2. Conecte XBOX 360, de HDMI al Game Recorder HD HD a través de un cable HDMI * o compuesto / RCA *** cable (si está...
GUÍAS DE CONEXIÓN GUÍAS DE CONEXIÓN 1. Conecte el Game Recorder HD través de HDMI,al TV mediante de un cable HDMI. Nintendo Wii 2. Conecte Wii Game Recorder HD a través del vídeo compuesto / audio L y R. 3. Asegúrese de que partido es visible en la pantalla del televisor. 4.
GUÍAS DE CONEXIÓN GUÍAS DE CONEXIÓN Su Game Recorder HD puede capturar cualquier vídeo desde cualquier fuente / VHS /jugador/ otros dispositivos de salida de vídeo analógico dispositivo de vídeo. Todo lo que necesita son los puertos apropiadas de conexiones. 1.
Game Recorder HD. Los LED luces se iluminarán varios colores por indicar las diversas funciones. HDD FORMATOS Y CAPACIDADES DE Tabla de estado LED VERDE luz- intermitente Falta- algún dispositivo de almacenamiento del USB GRABACIÓN Arranque(booting) en curso. HDD no es soportado –si es intermitente por largo tiempo. Windows Game Recorder HDD formats...
ALMACENAMIENTO DE ARCHIVOS GUARDAR ARCHIVOS Guardar el archivo Resoluciones soportadas - Game Recorder HD grabará un nuevo archivo cuando el archivo anterior alcanza E ntrada/salida 1920 x 1080 (50p), 1920 x 1080 (60p) una capacidad de 2 GB. 1920 x 1080 (24p), 1920 x 1080 (25p), 1920 x 1080 (30p) - Cuando el disco duro o USB de almacenamiento está...
ESPECIFICACIONES DEL PRODUCTO GUARDAR EL ARCHIVO Captura formato mp4 (h.264) Audio / comentario grabación Formato de vídeo NTSC, PAL, PAL-60 Puede añadir comentarios de audio a su juego (gameplay) capturado mediante la Formatos de audio conexión de un micrófono * al Game Recorder HD, a través de la entrada de audio (11). Formato de grabación de FAT, FAT32, NTFS Con el micrófono conectado, pulse Record/Grabar en el Game Recorder HD y hablar...
PREGUNTAS FRECUENTES PREGUNTAS FRECUENTES P: El Game Recorder HD funcionara en mi consola? P: El Game Recorder HD continuara grabando sobre archivos ya grabados una vez que el almacenamiento este lleno? R: Por favor visite www.kaiserbaas.com/gamerecorderhd por una lista actualizada de consolas compatibles , o envié...
Page 58
CONTACTO Soporte Técnico Si necesita asistencia con el Game Recorder HD, por favor contactase con nosotros a través estas tres opciones : Live chat/charlar vivo! kaiserbaas.com/contact (haga clic en chat en vivo) Email helpdesk@kaiserbaas.com www.kaiserbaas.com/gamerecorderhd www.facebook.com/kbgamerecorder...
