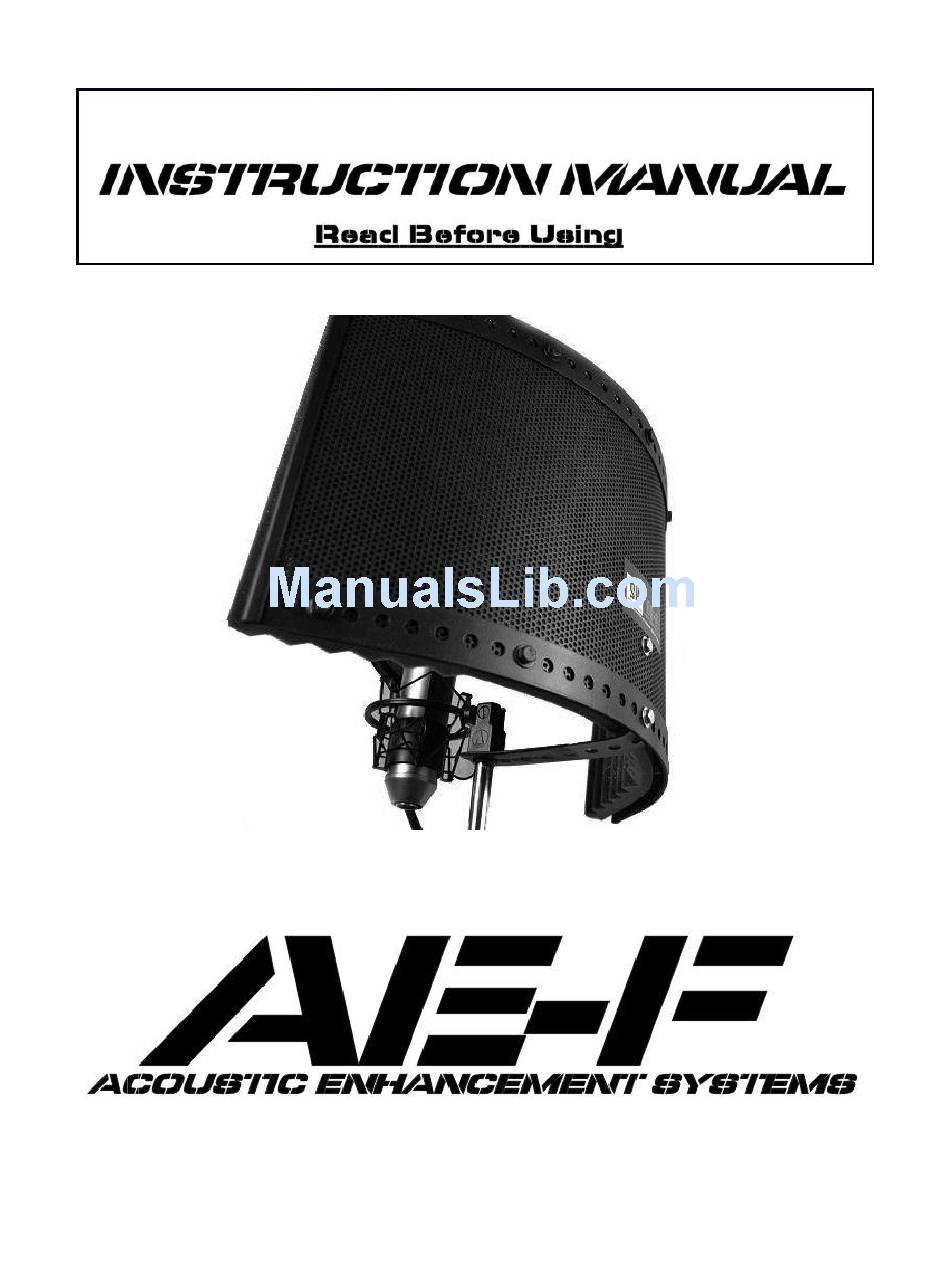

Summary of Contents for Soundkitz AE-F
- Page 2 The quality of our equipment and your satisfaction is our top priority. If you have any questions or need additional assistance with setting up your AE-F please feel free to contact us at Servicedept@soundkitz.com.
-
Page 3: General Information
-When storing your AE-F when not in use, it is best to keep unit in a cool dry place. It is suggested that a cover or bag be placed over the unit to keep contamination from dust and debris from entering the filter ports. -
Page 4: Installation Instructions
INSTALLATION INSTRUCTIONS NOTE: Before mounting your AE-F please be sure your stand is securely placed on a flat level surface or weighted down to avoid topple over. It is ideal to test fit your microphone mount to ensure you have adequate clearance to install your microphone. - Page 5 AE-F’s mount. Please slip the “1” stability washer overtop the “Stop Ring” and ensure it sits flush. 3. Locate the 5/8 sized hole on the AE-F Mount (largest hole) and slide over the tip your microphone stand so that it sits firmly on top of the stability washer.
- Page 6 To utilize the AE-F’s smaller inner holes a 3/8” Male to 5/8” Female adjusting adapter can be used. NOTE: If you intend to use your AE-F in the table top mounting position (filter turned upside down with the microphone hanging) a 5/8-27 microphone flange or bolt and washer are recommended to secure your...
- Page 7 -While the AE-F’s are designed to assist in rooms with little to no acoustic treatments, quiet and well isolated areas can provide additional boosts in recorded audio quality while using an AE-F.
- Page 8 SK ADAPTER INSTALLATION 1. Lower your microphone stand’s lock ring to the lowest available thread. 2. Locate the 5/8 to 3/8 attachment located on the bottom of your adapter and unscrew it.
- Page 9 5. Select the desired 3/8 positioning hole for your microphone and place your AE-F’s mount on top of the base adapter. NOTE: If you are using the revised SK Adapter the AE-F will be placed on top of the lower Stabilizing washer for added support.
- Page 10 NOTE: If you are using the revised version of the SK Adapter please place the upper stabilizing washer on top of the exposed tip of the 3/8 threaded adapter so it is resting on top of the AE-F’s mount before completing step 6.
- Page 11 Recording Use and Trouble Shooting Tips: - The SK Adapter can be pre-mounted to the AE-F so that the unit can be installed as a complete recording assembly. By installing your microphone mount to the SK Adapter first, and then connecting the Adapter to AE-F Mount, you are able to place the complete pre-setup assembly on top of your microphone stand or boom by simply screwing the complete unit into your stand.
