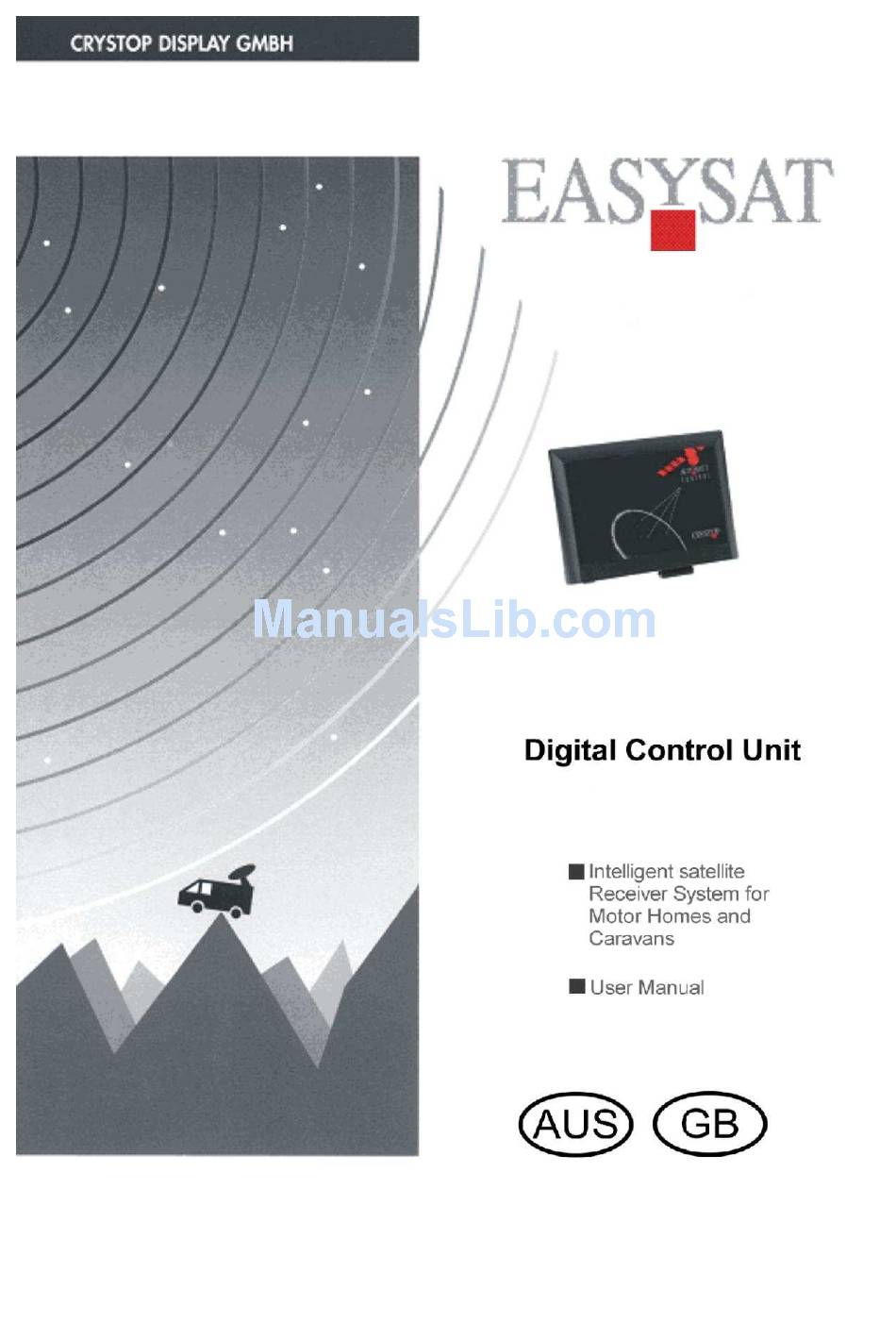

Summary of Contents for Crystop Display Gmbh easysat
- Page 2 ® EasySat Page 2 S E R A N U A L...
-
Page 3: Table Of Contents
Error code table ..................... 10 Mounting instructions ....................11 Choice of installation site ..................11 External unit......................11 Mounting the external unit..................12 ® Cable connection to the EasySat ..............13 ® 5.4.1 EasySat connectors illustration ..............13 Power supply ......................14 Connection and commissioning................... - Page 4 EasySat Dear Customer, ® congratulations, that you have decided on a EasySat . This User Manual should help you, to utilise the functions of your new satellite system optimally. We have kept the operational details as understandable as possible, while keeping them short.
-
Page 5: Please Read This First
(optional) User manual 1.1 Important Note ® Before installation and start-up of your EasySat , please read this user manual carefully. ® Always make sure (even when your EasySat will be retracted by your starter key) that the system has really retracted when starting your vehicle. -
Page 6: Safety Considerations
Furthermore the Crystop Guarantee becomes inapplicable, which may lead to a loss of warranty rights. ® WARNING: In order to prevent damage to your vehicle roof, your EasySat should not be operated in high winds and gusts. -
Page 7: Disposal Considerations
1.5 General considerations ® Always make sure (even when your EasySat will be retracted by your starter key) that the system has really retracted when starting your vehicle. In case of interrupted supply voltage, for instance, the aerial can no longer be automatically retracted. -
Page 8: Remote Control
® 2 Figure remote control EasySat On / off – button with power light Connector to controlbox ® Figure Digital Control Box EasySat ® EasySat Page 8 S E R A N U A L... -
Page 9: Sequence Of Automatic Satellite Search
To retract the antenna you must activate the ® EasySat by pressing the “On / Off” button once and then press it again to retract the ® antenna. On reaching the parking position, the EasySat switches itself off completely. 4 Operating instructions 4.1 Quick reference Funktion... -
Page 10: Error Code Table
Tuner faults Tuner module registers faults. Try to search again after switching off the control devices. If the fault remains, send-in the control device for repairs. ® EasySat Page 10 S E R A N U A L... -
Page 11: Mounting Instructions
!!! Note: Please read the mounting instructions before starting the installation 5.1 Choice of installation site ® Firstly, check the location where you would like to place the EasySat and the receiver. ® When selecting the installation location for the EasySat , please observe that the system is operated from the device itself. -
Page 12: Mounting The External Unit
The aerial dish can only be mounted after the system has been connected electrically to the power supply and is ready for operation, since the aerial arm has to be raised ® EasySat Page 12 S E R A N U A L... -
Page 13: Cable Connection To The Easysat
5.4.1 EasySat connectors illustration ® Lay cables from the external unit on the inside of the vehicle to the EasySat . The cables should not rub on sharp edges and should not be laid close to sources of heat. Prior to inserting contacts in the connector housing, ®... -
Page 14: Power Supply
Attention! If the power supply cable is altered or a different cable is used, make sure the ® polarity is correct. If the polarity is wrong, the EasySat . will be damaged. To keep cable losses to a minimum. use a cable with a cross- section of at least 2,5 mm²... -
Page 15: Connection And Commissioning
6 Connection and commissioning ® 6.1 Mounting the EasySat ® To fix the EasySat . or the receiver, it is best to use double-sided adhesive tape Scotch 3M or Tesa Power Strip. (If screws are used, always make sure they do not make contact with the electronic circuit or cause any other damage.) -
Page 16: Connection Receiver
. The cable connecting the remote control is 2.5 m long. Extensions to 10 m are possible. ® Plug the cable to the socket labelled “Remote”, located on the underside of the EasySat Make sure the plug is engaged fully in its socket. 6.1.6 Initial operation If all the steps described have been carried out, the system can be commissioned. -
Page 17: Fault Elimination
4) LNB has been turned. 1) Check the battery voltage. System shuts down 2) Your vehicle was started. immediately ® 1) Switch your EasySat off and then on again by briefly unplugging Inexplicable the connection plug error condition ® EasySat... -
Page 18: Technical Data
LNB-control 14/18 V, max. 400 mA Measurements: ® EasySat 20 x 15 x 7 cm (W x H x D) Approval by the German Federal Motor Transport Authority (KBA) of the EC type label (e1) according to the EMC Directive 2005/83/EC for installation and operation in motor vehicles. - Page 19 ® EasySat S E R A N U A L...
- Page 20 76 131 Karlsruhe : 0721 / 61 10 71 : 0721 / 62 27 57 info@crystop.de www.crystop.de No warranty for information in this manual Subject to technical alteration 03/2013 ® EasySat Page 20 S E R A N U A L...
