- Page 1 Revision Date: Rev: Document Number: 02/24/2014 MAN – FD932DVD-LP-2-AV Page 1 of 24 Installation and Operation Manual FD932DVD-LP-2-AV Low-Profile DVD PLAYER with AUDIO/VIDEO INPUTS © 2015 Flight Display Systems. TECHNICAL SUPPORT All Rights Reserved. 470-239-7421 or FlightDisplay.com...
- Page 2 Revision Date: Rev: Document Number: 02/24/2014 MAN – FD932DVD-LP-2-AV Page 2 of 24 FD932DVD-LP-2-AV Low-Profile DVD PLAYER with AUDIO/VIDEO INPUTS © 2014 Flight Display Systems. All Rights Reserved. Flight Display Systems 6435 Shiloh Road Alpharetta, GA 30005 470-239-7400 Phone 678-867-6742 Fax sales@FlightDisplay.com...
-
Page 3: Table Of Contents
Revision Date: Rev: Document Number: 02/24/2014 MAN – FD932DVD-LP-2-AV Page 3 of 24 Table of Contents General Information ........................5 Features ............................5 Additional Information ......................5 Front View/Cautions ........................6 Specifications ..........................7 Installation Instructions ......................7 Power ............................7 Video Wiring Suggestions ......................8 Composite and Audio Wiring ....................8 Power and Ground Wiring .......................8... - Page 4 Revision Date: Rev: Document Number: 02/24/2014 MAN – FD932DVD-LP-2-AV Page 4 of 24 Warranty Information ......................23 Log of Revisions ........................24 © 2015 Flight Display Systems. TECHNICAL SUPPORT All Rights Reserved. 470-239-7421 or FlightDisplay.com...
-
Page 5: General Information
This window will display all folders on the left and the folder contents will be displayed on the right. The FD932DVD-LP-2-AV will always play the first song on the SD media upon starting. It does not recognize the last song played when turned off. The FD932DVD-LP-2-AV can support SD cards up to 2GB in Size. -
Page 6: Front View/Cautions

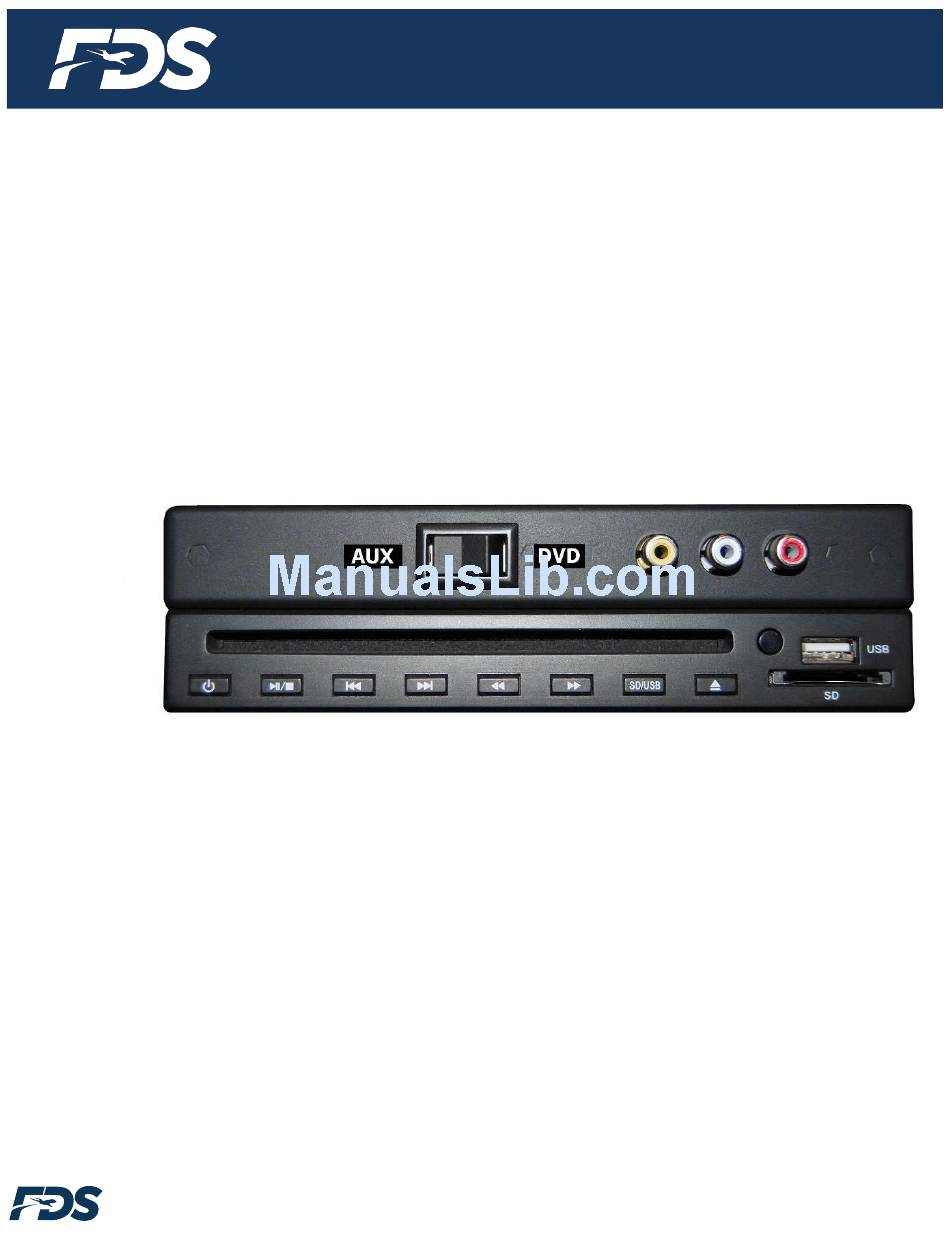

Page 6 of 24 Front View FD932DVD-LP-2-AV Cautions In order to prevent damage to the FD932DVD-LP-2-AV, please follow the following precautions: Do not open and/or disassemble the unit. Do not attempt to insert a 3” disc (Mini-CD/Mini-DVD) Do not use sharp objects (such as pens, pencils, ice pick, etc.) to operate the buttons ©... -
Page 7: Specifications
Power The FD932DVD-LP-2-AV requires 12VDC rated at a minimum of .50 Amps or 28VDC rated at a minimum of .25 Amps to function. The rated current of the equipment should be taken into consideration when selecting wire gauge. -
Page 8: Video Wiring Suggestions
Revision Date: Rev: Document Number: 02/24/2014 MAN – FD932DVD-LP-2-AV Page 8 of 24 Video Wiring Suggestions Avoid routing video wiring parallel to: AC wiring Strobe wiring DC motor supply cables Inverter cabling Or any other potential noise source. -
Page 9: Wiring Options
Revision Date: Rev: Document Number: 02/24/2014 MAN – FD932DVD-LP-2-AV Page 9 of 24 Wiring Pinout for DB-9 Part numbers for DB-9 connectors, manufactured by Amp: Connector P/N M24308/2-281 Crimp Contacts P/N M39029/63-368 DB9 Pinout & Female Mating Face Profile Description... - Page 10 MAN – FD932DVD-LP-2-AV Page 10 of 24 There are two ways to connect an auxiliary input device to the FD932DVD-LP-2-AV: 1) Connect RCA AV inputs on the front face of the unit. 2) Connect pins 6, 7, 8 & 9 on the DB9 to a Composite Video/Audio source.
-
Page 11: Rca Breakout Cable
Revision Date: Rev: Document Number: 02/24/2014 MAN – FD932DVD-LP-2-AV Page 11 of 24 RCA Breakout Cable Flight Display Systems supplies an optional RCA breakout cable which allows for power on a DB9 connector with (3) RCA Connectors for Composite Video <OUT> (Yellow), Left Audio <OUT>... -
Page 12: Remote Eye
Page 12 of 24 Remote Eye The FD932DVD-LP-2-AV has an available remote IR sensor (“remote eye”) that can be used to accept remote signals in addition to the main unit. For instance, the remote eye can be mounted by a monitor, to allow both the monitor and the DVD player to be controlled by pointing the remote at the same spot. -
Page 13: Ship Kit Items
Revision Date: Rev: Document Number: 02/24/2014 MAN – FD932DVD-LP-2-AV Page 13 of 24 SHIP KIT ITEMS PRODUCT – FD932DVD-LP-2 SHIPPING MATERIALS 1 – SHIPKIT-DB9F-LATCH 1 – REMOTE CONTROL © 2015 Flight Display Systems. TECHNICAL SUPPORT All Rights Reserved. 470-239-7421 or FlightDisplay.com... - Page 14 Revision Date: Rev: Document Number: 02/24/2014 MAN – FD932DVD-LP-2-AV Page 14 of 24 1- 650-00056-00 Optional RCA Breakout Cable 1 – REMOTE IR EXTENSION CABLE 1 - FERRITE INSTALL © 2015 Flight Display Systems. TECHNICAL SUPPORT All Rights Reserved. 470-239-7421 or FlightDisplay.com...
- Page 15 Revision Date: Rev: Document Number: 02/24/2014 MAN – FD932DVD-LP-2-AV Page 15 of 24 1 – FERRITE (240-2072-ND) Additional Shipping Materials (2) MOUNTING BRACKETS (4) M4x6 SCREWS © 2015 Flight Display Systems. TECHNICAL SUPPORT All Rights Reserved. 470-239-7421 or FlightDisplay.com...
-
Page 16: Operation Instructions
(away from the controls, if mounted vertically). The CD or DVD will load and automatically begin to play. The FD932DVD-LP-2-AV 2 does not retain the volume setting when powered down. When powered off either from the front panel on/off button or from the aircraft, it powers to half volume. -
Page 17: Remote Button Controls
*The remote control for the FD932DVD-LP-2-AV supports two different sets of IR commands, but the unit itself only supports one. If the FD932DVD-LP-2-AV does not seem to be responding to remote control button presses, press either A or B to make the remote switch between IR command sets A and B. -
Page 18: Auxiliary Panel Switch
Page 18 of 24 Auxiliary Panel Switch The FD932DVD-LP-2-AV has a toggle switch on the front panel. This switch allows the user to source either the DVD player or the AUX input connections located on the front & rear panels. Toggle the switch RIGHT to source the DVD player and LEFT to source the AUX inputs. -
Page 19: Usb & Sd Card Video File Types
Revision Date: Rev: Document Number: 02/24/2014 MAN – FD932DVD-LP-2-AV Page 19 of 24 USB & SD Card Video File Types The FD932DVD-LP-2 is capable of playing videos from the USB port and SD card slot on the front of the unit. Only certain types of files and encoding types are supported. This is a hardware limitation of the DVD player chipset and additional support cannot be added with firmware updates. -
Page 20: Technical Drawing
Revision Date: Rev: Document Number: 02/24/2014 MAN – FD932DVD-LP-2-AV Page 20 of 24 Technical Drawing © 2015 Flight Display Systems. TECHNICAL SUPPORT All Rights Reserved. 470-239-7421 or FlightDisplay.com... -
Page 21: Troubleshooting
Revision Date: Rev: Document Number: 02/24/2014 MAN – FD932DVD-LP-2-AV Page 21 of 24 Troubleshooting Snow or Sweeping Lines Lines that slowly sweep up and down are a result of AC noise. This AC noise can be generated by a power cart on the aircraft. Take the power cart off of the aircraft. Be careful of inverter wiring, which can also cause noise. -
Page 22: Technical Support
For further product information, technical data and sample wiring diagrams, please click on the Dealers section of our web site at www.FlightDisplay.com Instructions for Continued Airworthiness The FD932DVD-LP-2-AV is designed not to require regular general maintenance. © 2015 Flight Display Systems. TECHNICAL SUPPORT All Rights Reserved. -
Page 23: Limited Warranty
This warranty is not transferable. Any implied warranties expire at the express limited warranty expiration date. FDS shall not be held liable for any indirect, special, punitive, incidental or consequential damages. Some states do not allow limitation on the length of an implied warranty. In such states, the exclusions or limitations of this limited warranty may not apply. - Page 24 Revision Date: Rev: Document Number: 02/24/2014 MAN – FD932DVD-LP-2-AV Page 24 of 24 Revisions Log Date Page Description 12/07/2010 Initial Release Removed product FD932DVD-LP-2-4B, Removed DB-15 Pinout, Updated product name descriptions, Updated cautions and remote 02/01/2011 control buttons, Updated DB-9 Pinout, Added important info to option...
