Summary of Contents for Carinci evolution

  • Page 2: Table Of Contents

    Air scoop ........................pag. 15 Presentation of the Thermo Fireplace CARINCI EVOLUTION SYSTEM ......pag. 16 Technical specifications and dimensions of the Thermo Fireplace CARINCI EVOLUTION SYSTEM ..pag. 17 KIT SYSTEM position on the Thermo Fireplace CARINCI EVOLUTION ..........pag. 17 Installation of the Thermo Fireplace CARINCI EVOLUTION.........pag.
  • Page 3 Proper functioning ........................pag. 30 Covering .........................pag. 30 10.0 Recommendations for use ..................pag. 31 10.1 Using the Thermo Fireplace CARINCI EVOLUTION in adverse weather conditions ......pag. 31 10.2 Door opening ......................... pag. 31 10.3 Use of the Thermo Fireplace CARINCI EVOLUTION with open door ..........pag. 31 10.4...

  • Page 4: Preliminary Warnings

    Dear Customer, Carinci Group S.p.A. thanks you for having chosen the Innovative Thermo Fireplace CARINCI EVOLUTION, the last technological innovation in the heating industry. The new Thermo Fireplace is available in two versions ,EVOLUTION G with cast iron-covered combustion chamber and EVOLUTION R , with refractory material-covered combustion chamber This Manual provides all the information and practical recommendations for the correct installation, use and maintenance of the product in compliance with the regulations in force.

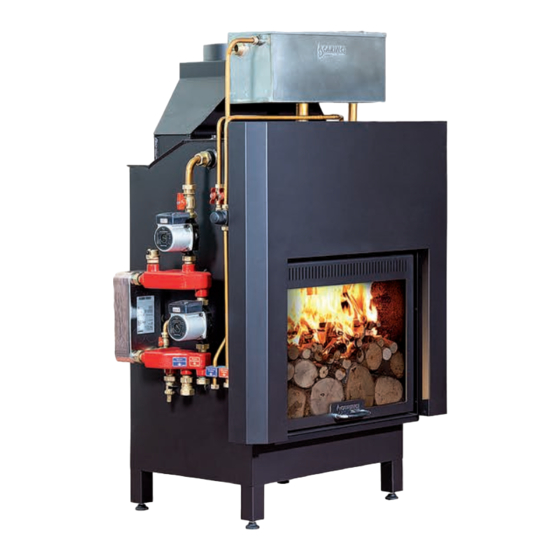

  • Page 5 PRODUCT PRESENTATION The CARINCI EVOLUTION Thermo Fireplace is built to satisfy the needs of the customer. Its design allows the placement in any environment. The innovation of our product is in the technical enhancements, which provide an efficiency like no other.
  • Page 6 1.1 THERMO FIREPLACE CARINCI TECHNICAL SPECIFICATIONS AND DIMENSIONS THERMO FIREPLACE CARINCI EVOLUTION Mod. 150 FRONT VIEW AND SIDE VIEW THERMO FIREPLACE CARINCI EVOLUTION Mod. 200 FRONT VIEW AND SIDE VIEW...
  • Page 7 THERMO FIREPLACE CARINCI EVOLUTION Mod. 250 FRONT VIEW AND SIDE VIEW THERMO FIREPLACE CARINCI EVOLUTION Mod. 300 FRONT VIEW AND SIDE VIEW 1100 1100...

  • Page 8: Combustion Chamber

    COMBUSTION CHAMBER The combustion chamber base of the Thermo Fireplace CARINCI is made entirely of fire resistant bricks with a refractori- ness of 1620°C with high efficiency suitable for cooking oven food, vertically positioned in order to arrange a uniform base of a 60 mm thickness.

  • Page 9: Positioning Of The Thermo Fireplace Inside The Room

    POSITIONING OF THE THERMO FIREPLACE INSIDE THE ROOM It is absolutely necessary to do the displacement and unpacking of the Thermo Fireplace with adequate tools and to verify the compatibility of the internal room where you require to install. DISPLACEMENT OF THE THERMO FIREPLACE When moving and unpacking the Thermo Fireplace you must absolutely: a) Keep it upright at all times;...

  • Page 10: Flue

    FLUE (in compliance with Regulation UNI cig 7129/92) The flue is an important component for the heating system with a wood-burning thermo fireplace. Its function is not only to evacuate and disperse the fumes, but also to ensure, thanks to an excellent draft, the proper functioning of the Thermo Fireplace with its natural draft.

  • Page 11: Flue Functions

    FLUE FUNCTIONS Pag. 13 The functions of the flue are: a) To function as a fumes exhaust system; b) To ensure the proper functioning of the thermo fireplace thanks to a good draft. FLUE FUNCTIONS The flue must have the following features: a) a diameter measuring no less than 250 mm;...

  • Page 12: Chimney Stack

    CHIMNEY STACK It is necessary to install a chimney stack at the top of the flue to facilitate the dispersion of fumes. The chimney stack must comply with the following requirements: a) Have the same diameter of the flue; b) Be well-isolated; c) Be located in the highest point;...

  • Page 13: Air Scoop

    AIR SCOOP The thermo fireplace must have the right amount of air to ensure proper combustion. For this reason, it is recommended to create, in the internal installation area, an external air scoop of adequate size. Air scoop must be calculated based on the requirement of the internal environment where the thermo fireplace is installed, and must be protected with a grill.

  • Page 14: Presentation Of The Thermo Fireplace Carinci Evolution System

    The thermo replace works with an open vent (already included) in compliance with the Italian regulation to ensure maximum safety, while the system is operated in closed circuit with any other heat source. h) The thermo replace with double circuit CARINCI SYSTEM can also be installed on the ground oor and supply the upper oors.

  • Page 15: Technical Specifications And Dimensions Of The Thermo Fireplace Carinci Evolution System

    157 (± 2) 4 (± 2) 40 (± 2) 43 (± 2) Measurements are expressed in cm 5.2 KIT SYSTEM POSITION ON THE THERMO FIREPLACE CARINCI EVOLUTION KIT SYSTEM left side KIT SYSTEM right side expansion tank expansion tank output over ow pipe...

  • Page 16: Installation Of The Thermo Fireplace Carinci Evolution

    INSTALLATION OF THE THERMO FIREPLACE CARINCI EVOLUTION OPEN-VENTED SIMPLE INSTALLATION SCHEME LEGEND: 1. Copper safety pipe minimum diameter 28 mm (if needed, short bended tracts can be used, using only 45° open curves, always upsloping towards the expansion vessel) 2. Copper load pipe system minimum diameter 28 mm 3.

  • Page 17: Expansion Vessel

    INSTALLATION INSTRUCTIONS FOR THE THERMO FIREPLACE CARINCI EXPANSION VESSEL The thermo fireplace CARINCI must be installed exclusively with an open vent, in compliance with the Italian regula- tion, and this open vent must have a capacity proportionate to three times the water expansion volume. Expansion percentage to 90°C = 3/3,5%.

  • Page 18: Installation Combined With A Gas Boiler

    (see figure A); 3. It is necessary to do a full cleaning of the heating system before the installation of thermo fireplace CARINCI SYSTEM or IDROKIT;...
  • Page 19 INSTALLATION DIAGRAM: CARINCI SYSTEM COMBINED WITH A GAS BOILER (figure B) BOILER output overflow pipe Domestic hot water outlet mixed non-return valve Cold water inlet Heating system return motorized valve Heating system ow boiler return boiler ow...

  • Page 20: Double Circuit Installation With Carinci Idrokit

    6.14 DOUBLE CIRCUIT INSTALLATION WITH CARINCI IDROKIT - Thermo fireplace working with open vessel - System working with closed circuit This type of system should be set up when boiler, radiators and pipes are higher than the thermo replace open expansion vessel.

  • Page 21: Advice For The Installer

    It is mandatory to install an inspection grill on the hood; this grill can be used to access the expansion vessel for any inspection or repair work. 6.16 INSPECTION SIDE DOOR INSTALLATION (for Thermo fireplace CARINCI SYSTEM) It is necessary to leave, on the side where the kit system is installed, an inspection door for any maintenance of the same kit components.

  • Page 22: Electronic Control Unit Of The Thermo Fireplace Carinci

    6.20 ELECTRONIC CONTROL UNIT OF THE THERMO FIREPLACE CARINCI Control unit instruction manual mod. TC 110-22-A 1 2 3 4 5 6 7 Fig. 1 External appearance and power linkage diagram INPUTS PROBE Thermo fireplace probe : Temperature range 0 - 100 ° C...
  • Page 23 FUNCTIONALITIESS Start-up/Shut down: • Start-up/shut down of the control unit can be carried out pressing and holding the P4 (ON/OFF) button; • The OFF state is indicated by the OFF led. ALARM function; If the temperature detected by the exceeds the Alarm thermostat value PROBE •...

  • Page 24: Electronic Control Unit Of The Thermo Fireplace Carinci System

    6.21 ELECTRONIC CONTROL UNIT OF THE THERMO FIREPLACE CARINCI SYSTEM AND CARINCI MIX Control unit instruction manual mod. TC 110-22B-31 SONDA FLUX www.termocaminicarinci.it Pompa 1 Pompa 2 Valvola LINEA POMPA VALVOLA POMPA 2 Acqua Plus 230 Vac 230 Vac 230 Vac...
  • Page 25 FUNCTIONALITIESS Start-up/Shut down: • Start-up/shut down of the control unit can be carried out pressing and holding the P4 (ON/OFF) button; • The OFF state is indicated by the OFF led. ALARM function; If the temperature detected by the exceeds the Alarm thermostat value PROBE •...

  • Page 26: First Start-Up With Wood Burning Of Thermo Fireplace Carinci

    FIRST START-UP WITH WOOD BURNING OF THERMO FIREPLACE CARINCI a) Put the switch in the ON position of the digital control unit CARINCI ; b) Ensure that the inspection plate, at the bottom of the combustion chamber, is closed; c) For everyday use, it is recommended, for the first start-up of the day, to place 20 to 30 kg of dry wood inside the Ther- mo fireplace, placing the large wood on the bottom, then the smaller one in the middle and the bundles above, trig- gering fire to the bundles, burning the wood initially upwards and then spread throughout the combustion chamber;...

  • Page 27: Fuel Dimensions

    COMBUSTION ADJUSTMENT Every thermo fireplace CARINCI is equipped with a very simple system for adjusting the combustion which is located in the upper right side of the door, that, by using a 5 mm hexagonal key (called Allen key), allows the user to adjust the width of the air throttler rings, in order to have a homogeneous flame throughout the combustion chamber.
  • Page 28 AIR THROTTLER (GLASS SCREEN) b) If the flame is too powerful, unscrew using the hexagonal key in order to narrow the air throttler rings, decreasing the inlet air and thus slowing down the combustion; d) If the flame is too weak, screw using the hexagonal key, in order to widen the air throttler rings, increasing the inlet air and thus increasing the combustion;...

  • Page 29: Secondary Air Adjustment

    PRIMARY AIR ADJUSTMENT To make the adjustments: a) Remove the side covering; SEZ. A-A b) Adjust the grill using the specific Allen key (the picture in paragraph 14.4 shows the air inlet); c) Check the right amount of combustive secondary air; d) Put back the side covering;...

  • Page 30: Inspections

    The Carinci Group SpA, with its qualified technicians is always available for guidance and/or advices, please contact our cus- tomer service at +39 0776/812704 Monday-Friday working hours.

  • Page 31: Recommendations For Use

    Open the shutter-door; c) Use of a non-abrasive cloth; d) Proceed to clean the glass using CARINCI glass cleaner or a similar product. 11.2 BOILER COMPARTMENT CLEANING a) It is recommended to clean the boiler compartment when the thermo fireplace is off;...

  • Page 32: Routine Maintenance

    12.0 ROUTINE MAINTENANCE We recommend the following routine maintenance be carried out for our product. 12.1 HEAT EXCHANGERS CLEANING At least twice a year, the inside of the combustion chamber should be cleaned following these easy steps: a) Open the shutter-door of the thermo fireplace; b) Unscrew the two screws located on the front side of the cast iron plate and open it.
  • Page 33 c) Perform the cleaning of the exchangers using the specific scraper supplied with the thermo fireplace; plate to take away scraper based thermo replace d) Once the cleaning is completed, put back the cast iron plate rescrewing the two screws removed beforehand. CAUTION!!! For your personal safety, before proceeding with the cleaning of the thermo fireplace, make sure that the combustion chamber is cold.

  • Page 34: Extraordinary Maintenance

    12.2 INSPECTION OF CORRECT FUNCTIONING Before switching on the boiler for the first time during the winter season, it is advisable to: a) Check the circulator is functioning correctly; b) Check for any obstructions in the flue due to the machinery not being used for a long period of time; c) Check the control unit is functioning correctly;...

  • Page 35: Sliding Mechanism Lock

    13.3 SLIDING MECHANISM LOCK Due to incorrect transport and displacement movements of the thermo fireplace, the sliding mechanism lock of the door can become detached from the chain from the pinion. To restore the sliding door perform the following procedures: a) Unscrew the four screws located on the removable covering, the screws on the side first, then those on the upper removable covering (see figure A) b) Raise the counterweight;...
  • Page 36 14.0 TECHNICAL DATA Thermo Fireplace Connections Mod. 140 - 190 - 240 - 290 Type of junction Ø Safety exit Female junction 1”1/4 2 sx/dx Heating system flow Female junction 1”1/4 3 sx/dx Heating system return Female junction 1”1/4 3 sx/dx Filling pipe Female junction 1”1/4...
  • Page 37 EVOLUTION G EVOLUTION R SYSTEM SYSTEM 25,1 34.2 25.1 34.2 24.6 34.2 24.6 34.2 Thermal Power Thermal Power 20.5 28.5 20.5 28.5 Nominal Heating Power 5 kW 5 kW 8 kW 9 kW 8 kW 9 kW Performance (environment) Heating Power 15.5...
  • Page 40 Our products are guaranteed against manufacturing defects for 2 (two) years from the date of purchase as required under European warranty, only if proof of purchase may be provided in the form of a proof of purchase document and the ‘Protocol for Use’. Within this period, at the discretion of the Carinci Group SpA, the buyer will have the right to repair free of charge, or the replacement of defective parts, excluding glass, bricks and ceramic plates.
  • Page 41 PROCEDURAL GUIDE ON IGNITING THE MACHINERY FOR THE FIRST TIME The T.A.C., only when authorised in advance by CARINCI GROUP S.p.A., can perform the "Set Up" procedure: STAGE 1: Regulating the combustion 30 minutes after ignition, regulate the combustion using the designated regulators on the extractor speed (combustion air input) and auger speed (fuel input).
  • Page 42 Our products are guaranteed against manufacturing defects for 2 (two) years from the date of purchase as required under European warranty, only if proof of purchase may be provided in the form of a proof of purchase document and the ‘Protocol for Use’. Within this period, at the discretion of the Carinci Group SpA, the buyer will have the right to repair free of charge, or the replacement of defective parts, excluding glass, bricks and ceramic plates.
  • Page 43 © 2016 Carinci Group S.p.A. Reproduction, also partial, is forbidden - I ed. January 2016...
