Summary of Contents for Farmakom GULIVER

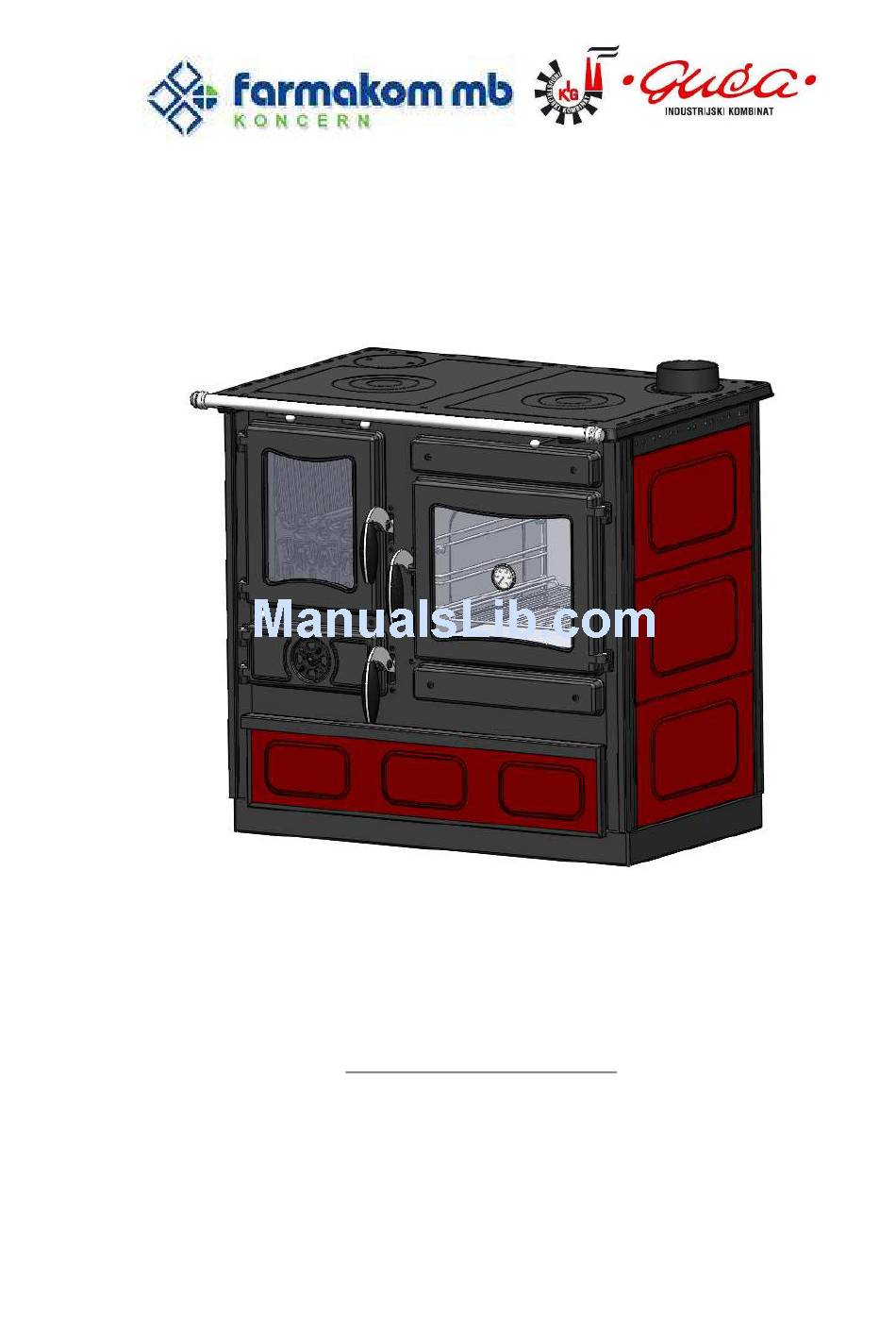

- Page 1 Concern Farmakom M.B. Šabac- Industrijski kombinat“ Guča“ AD Guča industrial complex Imported by: Sopka Inc www.sopkainc.com Solid fuel stove – GULIVER NOT UL 1482, ULC-S627 Tested USER MANUAL...
- Page 2 Dear user, By purchasing our product you have shown us trust which will not be failed because Guliver stove is the leading product in its category due to its design and characteristics. Please read these instructions carefully to learn about Guliver stove’s characteristics and possibilities before first operating it, and keep them for future reference to ensure avoiding...
- Page 3 Owners Manual Guliver Imported by: Sopka Inc 4181 Plymouth Road Cleveland, OH 44109 www.sopkainc.com NOT tested to UL 1482, ULC-S627 Solid Fuel Room Heater PLEASE READ ALL INSTRUCTIONS BEFORE YOU INSTALL YOUR NEW STOVE. FAILURE TO FOLLOW INSTRUCTIONS MAY RESULT IN PROPERTY DAMAGE, BODILY INJURY, OR EVEN DEATH.
-
Page 4: Safety Instructions
SAFETY INSTRUCTIONS Read all instructions carefully. 1. The installation of this stove must comply with your local building codes. Please observe the clearance to combustible. Stove must be 20"(50 cm) from any combustible material, wall, wood, furniture, paper, etc. Note: Drywall faced with bricks or stone should be consid- er a combustible surface. -
Page 5: Installation Instruction
INSTALLATION INSTRUCTION CAUTION: STOVE IS HEAVY. MAKE SURE YOU HAVE ADEQUATE HELP AND USE PROPER LIFTING TECHNIQUES WHENEVER MOVING STOVE. 1. Proper clearances must be maintained for adequate air circulation. Adequate ventilation must be provided while operating this stove. 2. The stove must be placed on solid masonry, solid concrete, or when installing on combus- tible floor, on a UL 1618 listed floor protector or flammable floor must be protected by in- sulating plate ( steel, brass, marble, stone, ceramic tiles, etc.) . - Page 6 Chimney connector systems and clearances Chimney connector shall not pass through attic or roof space, closet or similar concealed space, or a floor, or ceiling. When passage through a wall, or partition of combustible is desired, the installation shall con- form to CAN/CSA-B365, Installation Code for Solid-Fuel-Burning Appliances and Equipment:...
- Page 7 CLEARANCES: Combustible NON-combustible Back of Stove 20" (50cm) 10" (25cm) Side of Stove 20" (50cm) 10" (25cm) Note: Please do not place stove to close to the wall or protective shield for proper air circulation. Do Not enclosed stove with walls. It might overheat.
-
Page 9: Minimum Clearances To Combustible Surfaces
MINIMUM CLEARANCES TO NOTE: DRYWALL FACED WITH BRICK OR COMBUSTIBLE SURFACES STONE SHOULD BE CONSIDER A COMBUS- TIBLE SURFACE. Unit to Sidewall - - - - - - - - - - - -20" (50 cm) Unit to Backwall - - - - - - - - - - - -20" (50 cm) CAUTION: KEEP FURNISHING AND OTHER COMBUSTIBLE MATERIALS AWAY FROM Unit Corner to wall - - - - - - - - - 20"( 50 cm) -
Page 10: Operating Safety Precautions
CAUTION: HOT WHILE IN OPERATION. KEEP CHILDREN, ANIMALS, CLOTH- ING AND FURNITURE AWAY FROM THE STOVE. DO NOT TOUCH HOT STOVE. CONTACT MAY CAUSE SKIN BURNS. TRAIN CHILDREN TO STAY A SAFE DIS- TANCE FROM THE UNIT. CHILDREN SHOULD BE ALL THE TIME CAREFULLY SUPERVISED WHEN THEY ARE IN THE SAME ROOM WITH THE STOVE. -
Page 11: Floor Protector
BACK WALL CEILING 18" 46 c m 20" 50 c m 48" 122 cm 20" 50 c m 20" 50 cm SINGLE WALL PIPE-MINIMUM CLEARANCES FOR USA/CANADA Some example of clearance reduction; - Using heat shields on back and sidewalls allowing at least 1" of space away from the walls for ventilation. - Page 12 1. INTRODUCTORY NOTES Please read and observe the instruction carefully. Hereinafter, you shall find the data regarding the stove and recommendations for the installation and maintenance. The efficiency depends on the correct installation, which must be carried out by a professional observing the standards and valid security regulations.
-
Page 13: Rules For Installation
The smoke pipe must not be too deeply positioned in the chimney in order not to reduce the surface of the cross cut and disturb the draft in the chimney. Guliver provides the possibility of smoke vent hole from the upper or back side of the stove through appropriate connections which are on the side opposite from the hearth. - Page 14 This part shown in the picture is delivered with the stove, but unassembled. It is connected by screws in the manner shown in the picture (Image 3). This part should not be used for moving the stove, because it is not its function and its handles made of grey cast can be broken.
- Page 15 4.1 General characteristics Add chimney sections, according to the manufacturer’s installation instructions. The chimney must extend at least, 3 feet above its point of contact with the roof and at least 2 feet higher than any wall, roof, building or obstacle within 10 feet horizontally.
-
Page 16: Stove Operation
• Position the primary air regulator into the open position, • open the hearth door, • put the necessary fuel into the hearth (ungreased paper, small pieces of wood), • Ignition is performed, • The hearth and ashtray door is closed, •... -
Page 17: Cleaning The Stove
Regulation of primary air The primary air control should be put in the opened positionduring lighting and kept that way till the moment of the establishment of the stabile operation of the stove after putting larger pieces of wood. After that the regulator should be put in the closed position and held in that position during the stove operation. -
Page 18: Stove Description
The stove Guliver has the possibility of air flow regulation for combustion, thus selecting the regime of the stove operation, thus achieving the better efficiency and better level of wood usage. - Page 19 11. FIRE SAFETY During the installation of the stove the following safety measures are to be followed: a) In order to ensure sufficient thermal insulation, respect the minimum safety distance from objects or furniture components which are flammable and sensitive to heat (furniture, wood, fabrics etc.) and from materials with flammable structure.
-
Page 20: General Notes
12. WHAT TO DO IF YOUR STOVE DOES NOT OPERATE AS INDICATED 12.1 Difficulties during operation − Check whether the chimney entrance is made adequately. − Check whether the chimney dimensions are correct and suitable for the device. − Check the thermic insulation of the chimney and if it is made according to standard. −... -
Page 21: Component Parts
14. COMPONENT PARTS... - Page 23 "Guca IK" products are manufactured under the strict Standard of the World Recognize ISO 9001: 2000 Quality Assurance Certificate. Limited One year Warranty "Guca IK" warrants its products against manufacturing defects to the original pur- chaser only—i.e., individual (register customer) whose name appear on the warran- ty registration card., for a period of One year from date of purchase from only an authorized dealer.
