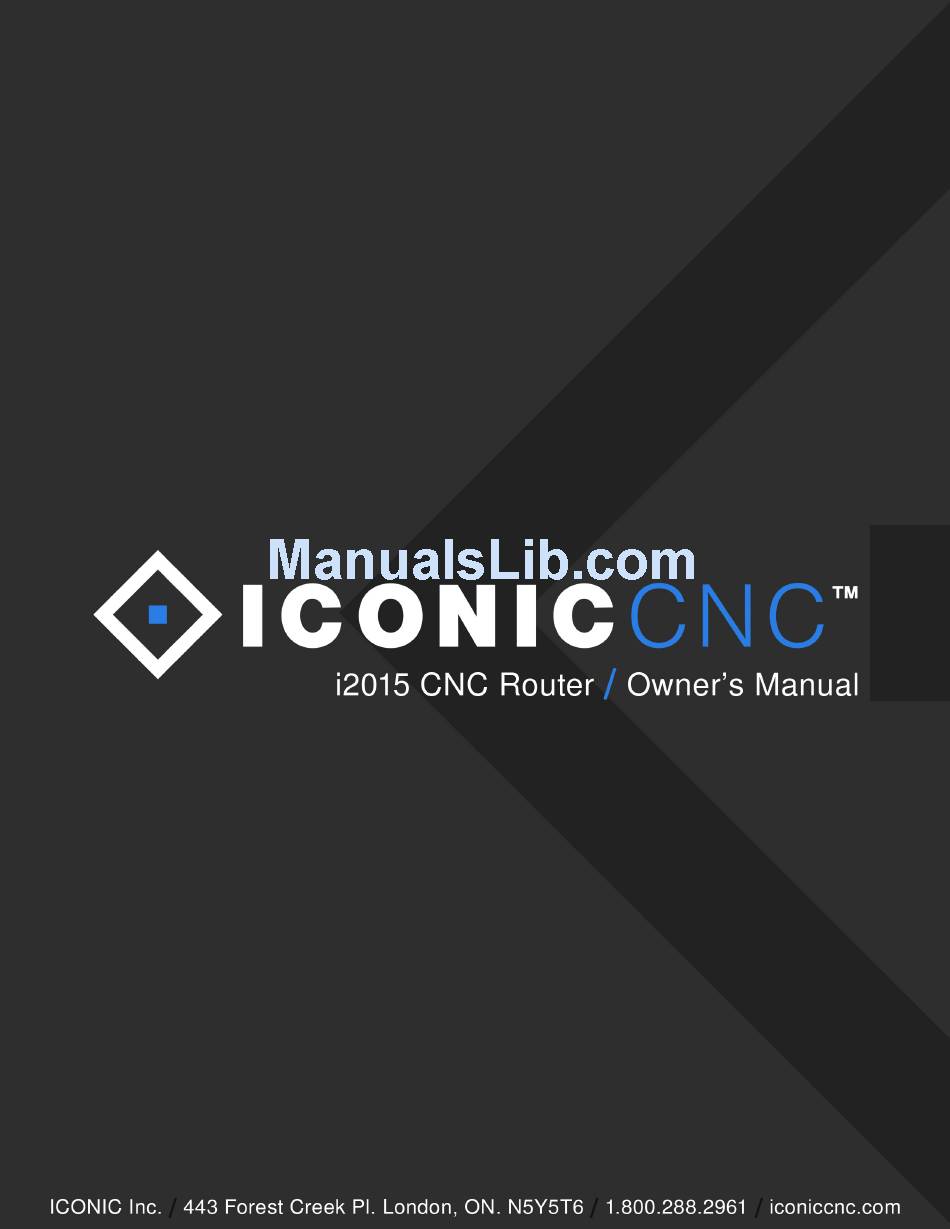

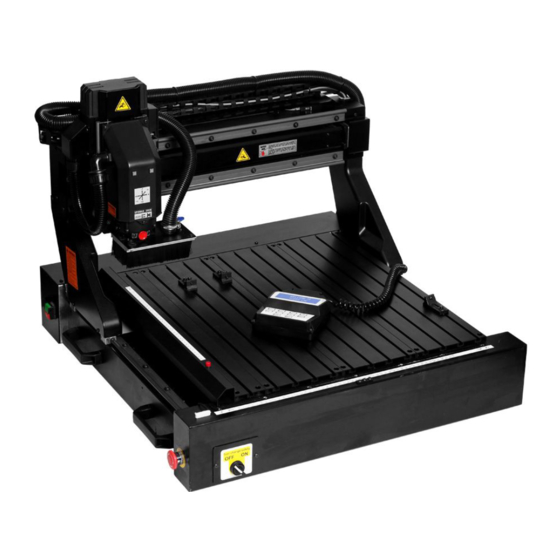

  • Page 1 i2015 OWNER’S MANUAL...
  • Page 2 i2015 OWNER’S MANUAL...

  • Page 3: Table Of Contents

    Table Of Contents ICONICCNC i2015 Specifications Routine Maintenance Pre-Operation Warning Warning Labels Machine Safety Electrical Safety Environment Safety Grounding Instructions Hazardous Areas Machine Components Unpacking Your ICONICCNC Machine Decibel Levels Machine Structure Electrical Systems & Controls X, Y, Z Movements Installing Cutting Tools Standard Tooling Tool Box Contents...

  • Page 4: Iconiccnc I2015 Specifications

    ICONICCNC i2015 Specifications Specifications Item Description 23.75” x 25” (604mm x 635mm) Table Size Width x Length 20” x 15” x 4” (508mm x 381mm x 102mm) Travel Max. Carving Area (XYZ) 1/4” and 1/2” (6mm and 12mm) Shaft Size Conical Bit: 1/32”...

  • Page 5: Routine Maintenance

    ICONICCNC i2015 Specifications (Cont.) Specifications Item Description 98 oz-in (0.69N-m) X/Y/Z Max. Torque 1.2° Step Motor X/Y/Z Step Angle 24V/Phase (Max.) & 3A/Phase X/Y/Z Voltage & Current 1” x 3” (26mm x 78mm) 12 x 4 Display Characters 5.5” x 5.7” (140mm x 145mm) Control Panel Size Control Interface (incl.

  • Page 6: Pre-Operation Warning

    Pre-Operation Warning Please read this manual thoroughly before operating the machine. ICONIC Inc. reserves the right to alter its contents without prior notice. This machine is designed for wood/plastic carving only. Do not tamper and operate this machine for any application other than for which it is designed.

  • Page 7: Machine Safety

    Machine Safety For support/warranty purposes, keep a record of your machine’s model & serial number.
 Ensure the power is off before installing a new cutting tool.
 To avoid the risk of danger, make sure that the workpiece is properly secured.
 Please use a collet that match cutting tools (See Chapter 2).
  • Page 8 FOR YOUR OWN SAFETY, PLEASE READ THE INSTRUCTION MANUAL BEFORE OPERATING TOOLS: KEEP GUARDS IN PLACE and in working order.
 REMOVE ADJUSTING KEYS AND WRENCHES. Form habit of checking to see that keys and adjusting wrenches are removed from tool before turning it on.
 KEEP WORK AREA CLEAN.
  • Page 9 Safety Guidelines (Cont.) DISCONNECT TOOLS before servicing; when changing accessories, such as blades, bits, cutters, and the like.
 REDUCE THE RISK OF UNINTENTIONAL STATING. Make sure switch is in off position before plugging in.
 USE RECOMMENDED ACCESSORIES. Consult the owner's manual for recommended accessories.

  • Page 10: Grounding Instructions

    Grounding Instructions All grounded, cord-connected tools: In the event of a malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This tool is equipped with an electric cord having an equipment-grounding conductor and a grounding plug.

  • Page 11: Hazardous Areas

    Hazardous Areas
 i2015 OWNER’S MANUAL...

  • Page 12: Machine Components

    Machine Components
 Description Description Z-Axis Stepper Motor Z- Limit Switch X-Axis Stepper Motor Y- Limit Switch Brushless DC Spindle Motor Y+ Limit Switch Y-Axis Stepper Motor X- Limit Switch USB Port X+ Limit Switch Main Power Z-Axis Auto Tool Indexer Emergency Stop Button Tool Bit Change Safety Button Z+ Limit Switch...

  • Page 13: Unpacking Your Iconiccnc Machine

    Manual has been read. This machine was designed for wood and plastic carving only. Warranty voids if users intend to carve or metal (or other non-approved) material. All instructions and tutorials for your i2015 CNC machine can be found on our website (www.iconiccnc.com) under the Training Videos section.

  • Page 14: Decibel Levels

    Decibel Levels
 When machine is under dry run operation, decibel level should be <85db.
 Decibel is measured from the front of the machine, in which the operator‘s distance to the spindle should be approximately 50cm. Measured Front, Back, Right, and Left of the machine.

  • Page 15: X, Y, Z Movements

    X, Y, Z Movements X+ Moves Spindle to the Right Moves Spindle to the Left Z+ Moves Spinde Up Moves Spindle Down Y+ Moves Spindle Backwards Moves Spindle Forwards Installing Cutting Tools Press round pin. Lock cutting tool nut manually. Insert tool into the net.

  • Page 16: Standard Tooling

    Standard Tooling Tool Description Suitable For Tool Description Suitable For 60° V-Bit
 Conical Bit
 Sign-making
 Carving 3D models
 1/4” (6mm)
 Decorative machining 1/4” (6mm) Projects with fine details 60 Degrees R = 0.8mm 90° V-Bit
 End Mill
 Sign-making
...

  • Page 17: Setting Up A Project

    Setting Up A Project Plug in your USB Stick, which contains your G-Code files. Turn on machine’s power. A welcome message will appear on the LCD Screen; press the Enter key on your Keypad, which will move the Spindle to its default Home Position. Handheld controller will ask you to confirm that there is a USB Stick inserted.

  • Page 18: Using On-Board Sd Card Storage

    Using On-Board SD Card Storage To avoid accidental USB disconnection during operation, users may choose to transfer their G-Code files from the USB Stick to the Onboard SD Card. Plug in your USB Stick, which contains your G-Code files. Turn on machine’s power. A welcome message will appear on the LCD Screen;...

  • Page 19: Adjusting Manual Jog Speed

    Adjusting Manual Jog Speed The default jogging speed (level 2) can be adjusted manually, from 0.6 - 3.6M/min. From the Main Menu on your handheld controller, select Position. Select Manual Jog Mode. Move the cursor the the desired Axis, and press Enter. The cursor will become a solid block, indicating that this Axis has been selected.

  • Page 20: Activating Safety Enclosure Sensor

    Activating Safety Enclosure Sensor When the Safety Enclosure is chosen (optional accessory), users may Activate/ Deactivate the Safety Enclosure Sensor. When the sensor is activated, the Spindle Motor will come to an immediate stop when the enclosure is lifted. To resume machine operation, the enclosure must be properly closed again.

  • Page 21: Iconiccnc I2015 Parts List

    ICONICCNC i2015 Parts List Part Number Internal Ref. # Description Specifications Quantity 490777-000 LED (Green) 490778-000 LED (Right) 000303-101 Phillips Head Screw M5*0.8P*6 280182-000 Spring 251083-615 Spindle Front Cover 360931-908 000303-103 Phillips Head Screw M5*0.8P*10 172744-902 Steel Plate 000103-103 CAP Screw M6*1.0P*12 11 Complete 924084-000 Collet Complete...
  • Page 22 ICONICCNC i2015 Parts List Part Number Internal Ref. # Description Specifications Quantity 000103-102 Cap Screw M6*1.0P*10 310459-911 Sliding Plate For Z-Axis 173510-902 Plate for Z-Axis 310285-923 Rail for Z-Axis (L) 310270-909 Sliding Block for Z-Axis 000102-106 Cap Screw M5*0.8P*20 922494-000 Sliding Block Complete WJ200UM-01-10 029402-101...
  • Page 23 ICONICCNC i2015 Parts List Part Number Internal Ref. # Description Specifications Quantity 174194-904 Cable Tubing Bracket 174005-904 Bracket 174209-000 Adjusting Bracket 174182-000 Switch Plate 310458-911 X Spindle Bracket 490925-000 Limit Switch 000301-204 Phillips Head Screw M3*0.5P*15 000102-103 Cap Screw M5*0.8P*10 251082-615 Spindle Bracket Cover 021802-000...
  • Page 24 ICONICCNC i2015 Parts List Part Number Internal Ref. # Description Specifications Quantity 001802-102 CAP with Spring Wahser M6*1.0P*20/6.1*12.3 006001-022 Washer 6.3*13*1.0t 011103-105 5*12 090272-008 Left Column 173190-000 Cover for Beam 923979-000 Chain for X-Axis (24-links) 000401-201 Countersunk Screw M4*0.7P*8 174003-904 Chain Bracket for X-Axis 310449-911 Beam...
  • Page 25 ICONICCNC i2015 Parts List Part Number Internal Ref. # Description Specifications Quantity 95.2 173010-902 Clamp Nut SPHC 95.3 000303-112 Phillip Head Screw M5*0.8P*18 95.4 006302-100 Spring Washer 5.1*9.3 95.5 000304-107 Phillips Head Screw M6*1.0P*16 174051-902 Wire plate 015207-000 Belt for Gear 3GT-312-12 173243-902 Plate for Y-Axis...
  • Page 26 ICONICCNC i2015 Parts List
 Part Number Internal Ref. # Description Specifications Quantity 008005-100 Hexagon Nut M6*1.0P(10B*5H) 000002-105 Hexagon Screw M6*1.0P*25 021107-100 Cord Clamp ACC-1.5-B 923978-000 Chain for Y-Axis (18-links) 250144-615 Cable Clamp 000801-108 Button Head Screw M6*1.0P*8 000301-201 Phillips Head Screw M3*0.5P*6 490964-000 EMC Filter...
  • Page 27 ICONICCNC i2015 Parts List
 Part Number Internal Ref. # Description Specifications Quantity 001202-602 Self Tapping Screw M3*1.06P*6 001106-601 Self Tapping Screw M2*0.63P*6L 169 Complete 923343-000 Cover for Right Column 169.1 250860-615 Right Cover 169.2 573676-000 Display Label 169.3 573677-000 Controller Key Label 001201-701 Self Tapping Screw M4*1.59P*12L...
  • Page 28 ICONICCNC i2015 Parts List
 Part Number Internal Ref. # Description Specifications Quantity 192.5 006302-100 Spring Washer 5.1*9.3 192.6 006001-012 Washer 5.3*12*1.0t 491003-000 Tool Measurement Switch R13-24BL-05-BR-WH (24AWG*2C*120mm) 000804-104 Button Head Screw M5*0.8P*6 174155-000 Adjusting Plate 021711-000 Bushing AMB-2 45mm i2015 OWNER’S MANUAL...

  • Page 29: Electrical Schematic Diagram

    Electrical Schematic Diagram i2015 OWNER’S MANUAL...

  • Page 30: Exploded Diagrams

    Exploded Diagrams
 i2015 OWNER’S MANUAL...
  • Page 31 Exploded Diagrams (Cont.) i2015 OWNER’S MANUAL...
  • Page 32 Exploded Diagrams (Cont.) i2015 OWNER’S MANUAL...
  • Page 33 Exploded Diagrams (Cont.)
 i2015 OWNER’S MANUAL...
  • Page 34 Exploded Diagrams (Cont.)
 i2015 OWNER’S MANUAL...

  • Page 35: Contact Information

    Contact Information i2015 OWNER’S MANUAL...
