FONDI T602B User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
User Manual
ideas forever
T602B

Advertisement

loading
Need help?

Need help?

Do you have a question about the T602B and is the answer not in the manual?

Questions and answers

Related Manuals for FONDI T602B

Summary of Contents for FONDI T602B

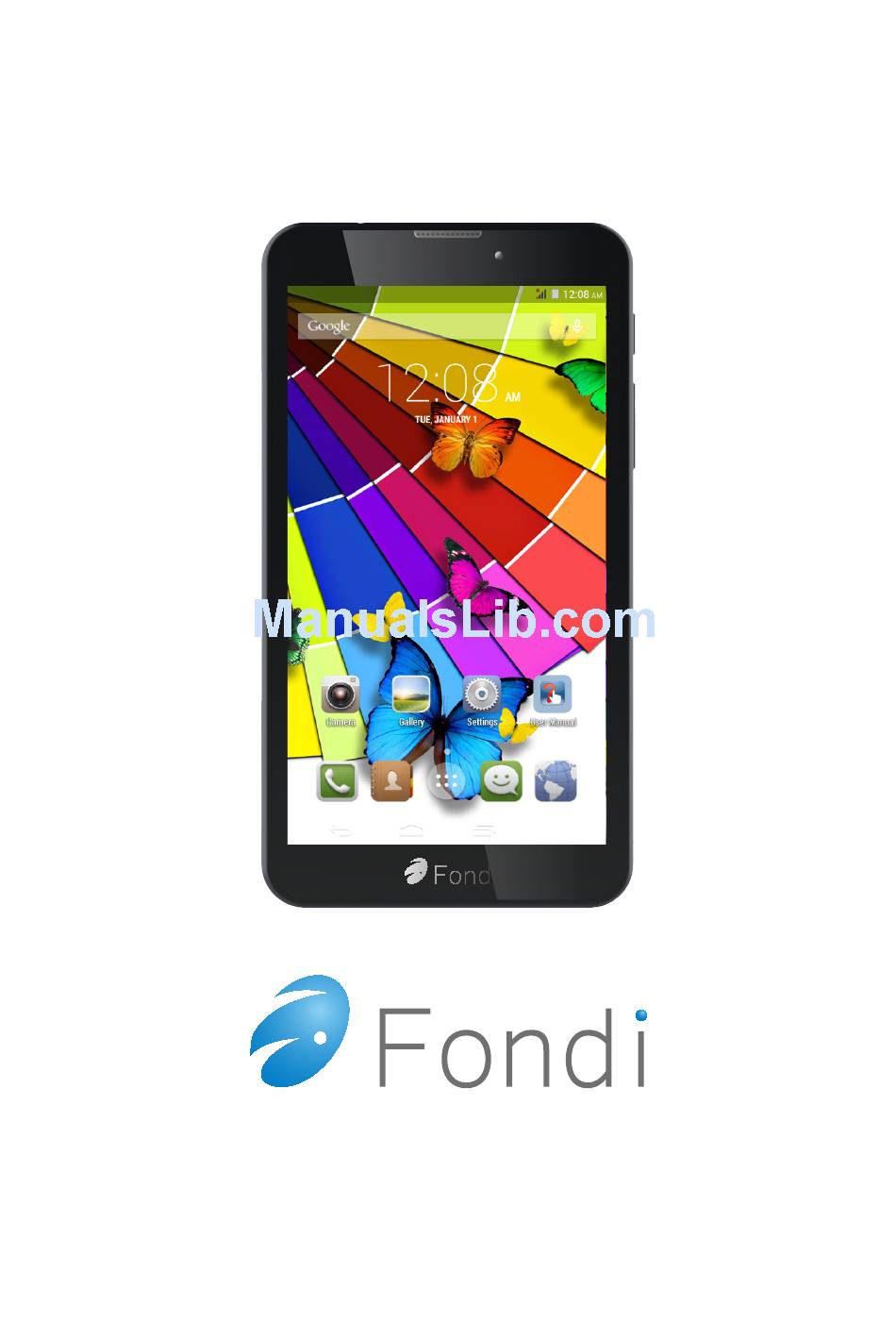

  • Page 1 User Manual ideas forever T602B...
  • Page 2 1. Introduction to Tablet PC 1.1 Overall Machine Diagram of Tablet PC Front Diagram: Receiver Camera Figure 1-1 Side Diagram: Earphone SIM1 SIM2 Figure 1-2 Side Diagram: POWER VOL- VOL+ Figure 1-3...
  • Page 3 Bottom Diagram: POWER Speaker EARPHONE Figure 1-4 1.2 Tablet PC Usage and Preparation Battery charging Charge the battery before using the Tablet PC at the first time. 1. Use the charger and data line authorized by our company only. Unauthorized charger or data line may lead to battery explosion or damage your device.
  • Page 4 1.3 Tablet PC Status and Notice Mail notice Mute Gmail notice No SD card is inserted Computer and Tablet PC is Uploading/downloading connected through USB line. Things to be done Download is completed. General notice (such as Start alarm clock synchronization error) Music is being played.
  • Page 5 1.5 Start screen in close status If the screen is in close status, you can short press the power source key or long press the return key to start the screen. After the start, the screen enters lock status, use your finger to press and hold “Lock”...
  • Page 6 Drag Before beginning to drag, you must use your finger to press, hold, and apply certain pressure and do not loosen your finger before you drag the item to the position you desire. Rotation Regarding most pictures, you only need to rotate the Tablet PC sidewise, and the screen can be automatically turned from horizontal to vertical direction, such as the cases when you input words and see a movie.
  • Page 7 ※When dialing or receiving a phone call, do not contact or touch the receiver and the loudspeaker to avoid influencing the conversation quality. Dial a phone call through dialing application. 1. On the main screen, click and choose the application program, and dial to open the phone call application.
  • Page 8 Reject an incoming call. When there is an incoming phone call, drag the phone call icon toward the left to reject the phone call. ※ You can also drag it upward to the short message icon, reject the phone call and send a shor message to the caller.
  • Page 9 1. Use USB transmission line to connect the Tablet PC and the computer. A notice prompt will appear in the notice column. 2. Click status column, and status column option appears. 3. In the status option, click and choose USB connected, and then click and choose Open USB Storage Device.
  • Page 10 1.11 Storage card Copy the file to the storage card You can transmit files between your Tablet PC and the computer, such as music and picture. When wanting to check the files in your Tablet PC, you only need to click and choose the file browser, and you can browse the contents in the SD card.

  • Page 11: Create Connection

    2. Choose the input method you need. ① ② ③ Figure 1-10 Switch inputting uppercase and lowercase. Switch words input mode and sign/number input mode. Blank space can be inserted by clicking and choosing. 2. Create Connection 2.1 WIFI connection Your Tablet PC can connect to the Wi-Fi network, and the connection operation is: 1.
  • Page 12 4. After Wi-Fi is open, the device in the window on the right automatically scan out the searched Wi-Fi network. 5. Choose the Wi-Fi network you want to connect. If it is encrypted, a window pops up for inputting password. Input the corresponding password. Click Connect.
  • Page 13 Settings Click this to scan and Click this to search for open and devices. detect function. Figure 2-2 2.3 3G connection 1. Insert the correspoding SIM card in the close status. 2. Start and enter the main interface of the system, click and choose menu key. 3.
  • Page 14 3. Other main Application 3.1 Camera Picture taking function 1. Click and choose camera. 2. The system enters the camera interface. 3. Click and choose Take a picture button, and a picture can be taken with ease. 4. Can also set functions such as picture size, storage position, white balance and focal length setting.
  • Page 15 Video recording function Figure 3-2 3.2 Internet Enter homepage The browser always habitually opens the last webpage browsed by the user. Upon entering the browser after starting, the homepage appears. Change your Home Page 1. Click and choose Browser. 2. Press Main menu key to pop up browser Setting menu. 3.
  • Page 16 Access webpage 1. Click and choose Browser. 2. On the site column, input your website. 3. On the soft keyboard, click and choose Begin. Click here to edit your browser. Input here the content you want to search. Figure 3-4 Browse webpage Upon opening the webpage, you can slide your finger on the screen to browse and check other parts of the webpage.

  • Page 17: Solutions To Problems

    Figure 3-5 4. Solutions to Problems 1. The first startup of tablet is slow After the tablet system upgraded, the first startup need to install the pre-installed application softwares, the lead time is around 2-3 minutes, the startup afterwards will be much quicker. 2.

  • Page 18: Specification

    5. The system is abnormal and can’t work. When you install some third party application procedure, it may cause abnormal work, you can press Reset key(next to power port) to reset the system. 6. The webpage can’t be opened Please keep the distance between from route to tablet in effective range. Please restart WIFI and try again.

This manual is also suitable for:

T702
