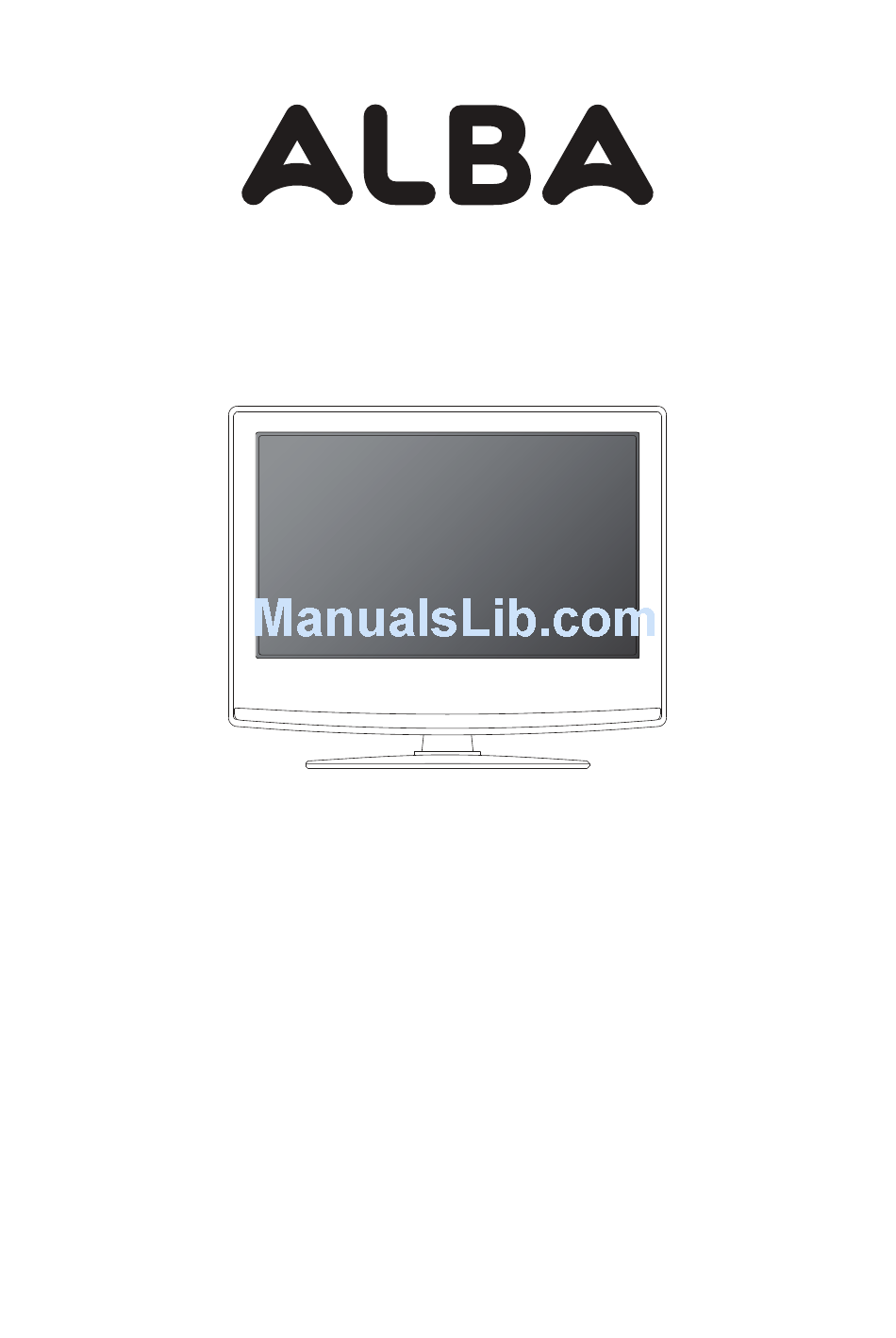

LED TV with Freeview & USB Media Player
User Guide
Model No
22/207F
22/207FDVD
24/207
24/207DVDB
24/207DVDW
24/207DVDP
24/207DVDS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 22/207F and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Alba 22/207F

  • Page 1 LED TV with Freeview & USB Media Player User Guide Model No 22/207F 22/207FDVD 24/207 24/207DVDB 24/207DVDW 24/207DVDP 24/207DVDS...
  • Page 2: Table Of Contents

    Connecting a sky digital set top box 42-43 TV buttons Frequently asked questions 44-45 Remote control Technical specification 46-47 Alba warranty information Connections TV buttons and input source TV connections 23-24 Standard features How to navigate the menus Channel menu...
  • Page 3: Safety Information

    Safety information...
  • Page 4: Safety Information

    Safety information Important - Please read these instructions fully before installing or operating WARNING - Never place a television set on an unstable location. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as: •...
  • Page 5 Safety information Important - Please read these instructions fully before installing or operating • Always place the television on a flat level surface Packaging avoiding anywhere which may be subject to • The safest way to transport your item is in the strong vibration.
  • Page 6 Safety information Important - Please read these instructions fully before installing or operating Disposal • HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered UK: Waste electrical products should not trademarks of HDMI Licensing LLC. be disposed of with household waste. Please dispose •...
  • Page 7: Getting To Know Your Tv

    Getting to know your TV...
  • Page 8: Accessories

    Getting to know your TV You’ll be up and running in no time Accessories 1 x User guide 1 x Remote control User Guide 2 x AAA batteries 1 x Quick start guide 1 x TV 1 x Stand installation pack 4 x ST(4x12) 3 x M(4x12) 1 x RF cable...
  • Page 9: Stand Installation

    Getting to know your TV You’ll be up and running in no time Stand installation To complete the stand installation you will require a cross head screw driver. 3 x M(4x12) 4 x ST(4x12) M (4x12) fig 1) Attach the stand neck to the rear of the TV set. fig 2) Secure the neck to the TV using the 3 x M (4x12) screws provided.
  • Page 10: Detaching The Stand

    Getting to know your TV You’ll be up and running in no time Detaching the stand To detach the stand please remove the 3 screws highlighted then remove the stand feet from the rear of the TV set. M (4x12) Securing the TV using anti-tip straps For maximum security in the home, when using a TV with its stand, anti-tip straps should be fitted.
  • Page 11: Wall Mounting

    Getting to know your TV You’ll be up and running in no time Wall mounting IMPORTANT: Before drilling any holes in the wall ensure you are not drilling where there could be any electric wires, water or gas pipes. 1) Remove the four screws located at the back of the TV set. 2) The wall mount can now be easily attached to the mounting holes, located on the back of the TV, using the same four screws removed.
  • Page 12: Remote Control

    Getting to know your TV You’ll be up and running in no time TV buttons and input source For models with built in DVD player 1) Volume up and menu right 1) Stop/Eject DVD 2) Volume down and menu left 2) Play/Pause DVD 3) Programme/Channel up and menu up 3) Volume up and menu right...
  • Page 13 Getting to know your TV You’ll be up and running in no time Remote control functions For Models with Integrated DVD players For Models with PVR Function For Models with USB Playback For Models with 3D Feature 1) STANDBY 2) MUTE 3) DTV 4) RADIO 5) DVD...
  • Page 14 Connections...
  • Page 15 Connections Bringing it all together Connections EARPHONE Earphone socket Video Video input L/R audio input COMPONENT (HD) Component input (YPbPr) HDMI 1 HDMI input HDMI 2 (ARC) HDMI input SCART SCART input RF IN RF / TV aerial input COAX audio out Digital audio output USB input CI CARD IN...
  • Page 16 Connections Bringing it all together Connections Connecting a camcorder, camera or games console. The TV source should be set to composite/AV. L (white) R (red) Video (yellow) Connecting a DVD player/recorder, video recorder or cable/satellite box. Source should be set to SCART.. Scart Scart Connecting a High Definition (HD) Device Option 1 - via HDMI to HDMI cable...
  • Page 17 Connections Bringing it all together Connections Connecting a High Definition (HD) Device Option 2 - via Component cable If you are supplied with a cable from the device which has RED, GREEN, BLUE, RED & WHITE connectors you must connect via Component (for picture) and by phono cable (for sound). TV Source should be set to Component/YPbPr.
  • Page 18: Standard Features

    Standard features...
  • Page 19: How To Navigate The Menus

    Standard features Simple everyday use How to navigate the menus To access this menu, press [MENU] button on the remote control. To enter a menu press [OK] If you wish to make changes to any of the default settings, use the scroll buttons.
  • Page 20: Channel Menu

    Standard features Simple everyday use Channel menu Auto Tuning - Allows you to retune the television for all digital channels, digital radio stations and analogue channels. Analogue Manual Tuning - Allows you to manually tune your analogue signal Freeview Manual Tuning - Allows you to manually tune your digital signal Channel Edit - Allows you to delete, move, skip and add favourite channels.
  • Page 21: Picture Menu

    Standard features Simple everyday use Picture menu Noise Reduction • Off - Turns noise reduction off. • Low - Minor system adjustment. • Middle - Medium system adjustments. • High - Maximum system adjustments. Aspect Ratio - Within the UK the picture format varies depending on the channel/broadcast.
  • Page 22: Sound Menu

    Standard features Simple everyday use Sound menu Surround Sound • Off - Off. • TruSurround HD - TruSurround HD™ creates an immersive, feature-rich surround sound experience from two speakers, complete with rich bass, high frequency detail and clear dialog. Audio Description - This allows the user to increase and decrease the AD (Audio Description) volume level.
  • Page 23: Time Menu

    Standard features Simple everyday use Time menu System/Hotel lock menu Clock - Shows the date and time. System/Hotel Lock - Allows you to lock or unlock the menu. You will be asked to enter a 4 digit password use Off Time - Allows you to set a specific time for your TV button to quit the password input.
  • Page 24: Setup Menu

    Standard features Simple everyday use Setup menu HDMI CEC (Consumer Electronic Control) - Allows HDMI devices to control each other and allows the user to operate multiple devices with one remote control. (only available with compatible devices). LED Status - Allows the user to switch the LED Power indicator light ON or OFF, when the TV is being operated.(When this option is set to OFF the LED Power indicator light will flash when the remote...
  • Page 25: Advanced Features

    Advanced features...
  • Page 26: Day Tv Guide

    Advanced features Getting the most from your TV 7 day TV guide and channel list Record function for 24” models only. TV Guide is available in Digital TV mode. It provides information about forthcoming programmes (where supported by the freeview channel). You can view the start and end time of all programmes and on all channels for the next 7 days and set reminders.
  • Page 27: Usb Media Player

    Advanced features Getting the most from your TV USB media player USB mode offers playback of various different types of content that you have saved on your USB Memory Stick. On switching to USB source the menu screen will appear. The content will be divided into Photo, Music, Movie and Text based on file type.
  • Page 28: Usb Record

    Advanced features Getting the most from your TV USB Record - Digital / Freeview Mode USB Record – Digital/Freeview Mode for 24” models only. Built into this television is a USB record facility. This function is available in Digital/Freeview mode when used in conjunction with a compatible USB memory stick or USB hard drive.
  • Page 29: Dvd Setup

    Advanced features Getting the most from your TV DVD setup Applies to TV models with built in DVD players only. TV Display - Choose from the following options 4:3 Pan Scan PS Traditional picture format, often used on old fi lm 4:3 Letter Box LB Traditional picture which has been adapted for widescreen Wide...
  • Page 30: Product Support

    Product support...
  • Page 31: Connecting A Sky Digital Set Top Box

    Product support Help is always at hand Connecting a sky digital set top box Using a Sky Remote or a Universal Remote to operate your TV Sky Remote Control - If you wish to use your Sky remote to operate the basic functions of your TV, you need to program a 4 digit code into it.
  • Page 32 Product support Help is always at hand Connecting your TV to your Sky box (when your Sky box is located in a different room to the TV) Option 2) Please note, if you are adding a ‘Magic Eye/TV Link’ to your system so that you can use your Sky remote control to change the Sky channel in the room where the 2nd TV is located, please refer to the instructions included with the TV link/magic eye in order to ensure the RF or RF2 output on your Sky box is powered on.
  • Page 33: Frequently Asked Questions

    Product support Help is always at hand Frequently asked questions General I would like to have 1) Use the 3.5mm headphone output and a 3.5mm to phono cable (available louder sound by separately) to connect to an amplifi er/surround sound system. Please note connecting additional this will deactivate the TV’s built in speakers.
  • Page 34: Frequently Asked Questions

    Product support Help is always at hand Frequently asked questions Game I have connected my Component cables only provide HD pictures. For the sound you will need Consoles Playstation/Xbox to to connect the red & white audio cables on the Playstation/Xbox to the red the TV via Component &...
  • Page 35: Technical Specification

    Product support Help is always at hand Technical specifi cation Product fiche Trademark Alba Model ID 24/207DVDB 24/207DVDW 22/207F 22/207FDVD 24/207 24/207DVDS 24/207DVDP Energy effi ciency class Visible screen size (diagonal) 55 cm / 21.5 inches 60 cm / 23.6 inches On mode power consumption 20.0 W...
  • Page 36 Product support Help is always at hand Technical specifi cation Compatible files in USB Mode Codec Media File Ext. Remark Video Audio Max Resolution: 1920x1080 .mpg MPEG-1, MPEG-2 Max Data rate: 40 Mbps Xvid, MJPEG, .avi MPEG-4 SP/ASP, H.264 MPEG-2, H.264 Max Resolution: 1920x1080 MP3, WMA, .mov/...
  • Page 37 • The guarantee does not cover accidental damage, • Specifications are subject to change without notice. misuse, cabinet parts, knobs or consumable items. • Alba disclaim any liability for loss or damage arising • The product must be correctly installed and from the breakdown of the product.
  • Page 38 Contact: www.argos-support.co.uk Helpline: 0330 024 0805 ALB/MAN/0005...
