BLUETOOTH
GRAMOPHONE 2.0
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Bluetooth Gramophone 2.0 and is the answer not in the manual?

Questions and answers

Summary of Contents for GRAMOVOX Bluetooth Gramophone 2.0

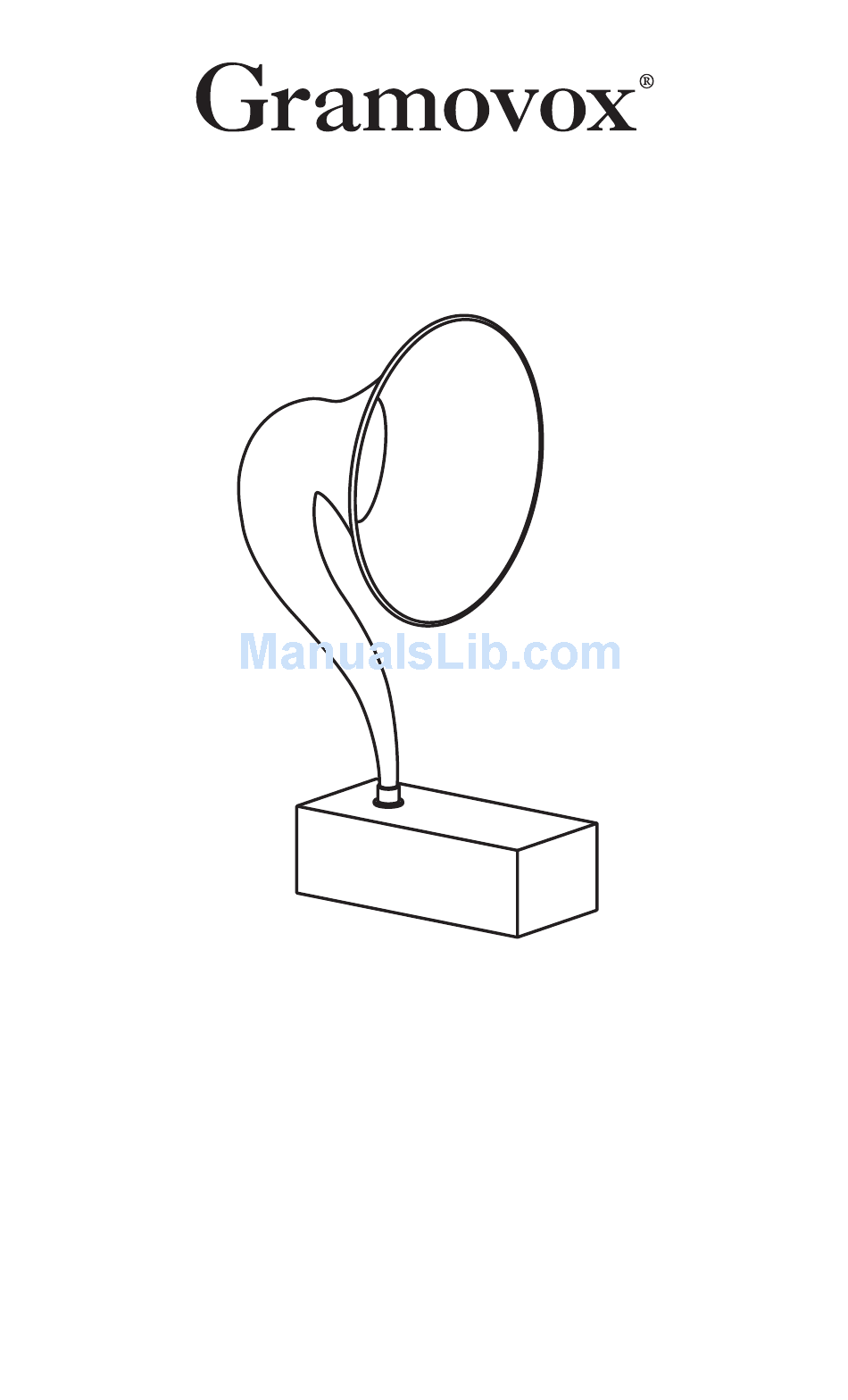

  • Page 1 BLUETOOTH GRAMOPHONE 2.0 USER MANUAL...
  • Page 3: Thank You

    THANK YOU FOR PURCHASING THE GRAMOVOX BLUETOOTH GRAMOPHONE 2.0. At Gramovox we’re dedicated to reimagining vintage design with modern technology. With Gramophone 2.0 you can stream music through a speaker horn and experience full-range sound. Enjoy! CHEERS, THE GRAMOVOX TEAM...
  • Page 4: Table Of Contents

    TABLE OF CONTENTS 1 Equipment List 2 Packaging 3 Assembly 4 Controls 5 How to Use 6 Using the Auxiliary Input 7 Sound Cues 8 Light Cues 9 Charging 9 Maintainance 10 Detailed Specifications...
  • Page 5: Equipment List

    EQUIPMENT LIST 1 Steel Horn 1 Wood Base 1 6ft micro-USB cable 1 AC Power Adapter 1 4ft 3.5mm Audio Cable SYMBOLS Dangerous Voltage Caution...
  • Page 6: Packaging

    PACKAGING The packaging your Bluetooth Gramophone 2.0 arrives in should be kept for storage of the product. This packaging is also required to process a return or service request, if needed. See the diagram below for instruction on how to re-pack your product.
  • Page 7: Assembly

    NOTE: Use caution when moving the product. Do not attempt to lift the Bluetooth Gramophone 2.0 by the steel horn, as the horn does not lock into the wood base. Doing so may result in injury to yourself or others and/ or damage to the product.
  • Page 8: Controls

    CONTROLS On the back of the wood base: ( A ) On/Off switch ( B ) Micro USB port ( C ) LED Battery indicator light ( D ) Recessed Reset button ( E ) 3.5mm auxiliary input...
  • Page 9: How To Use

    HOW TO USE 1. Power on the Bluetooth Gramophone 2.0 by switching the “On/Off” switch to “On”. 2. Ensure that Bluetooth is enabled on your mobile device or computer. 3. When prompted, select “Gramovox” to pair. It may take up to a minute to synchronize.
  • Page 10: Using The Auxiliary Input

    USING THE AUXILIARY INPUT 1. Power on the Gramophone by pressing the “On/ Off” switch to “On”. 2. Connect the auxiliary cable to the Gramophone by plugging it into the 3.5mm audio jack on the back of the wood base. 3.
  • Page 11: Sound Cues

    ON tone. LOW BATTERY: Three descending notes that sound like a “sad horn”. You will hear this when the battery in your Gramophone needs to be charged. NOTE: You can hear examples of the tones above at www.gramovox.com/support...
  • Page 12: Light Cues

    LIGHT CUES There is a small LED light on the back of the wood base of the Bluetooth Gramophone 2.0 that changes color to indicate battery level. GREEN : Battery is fully charged RED : Power connected, battery is charging...
  • Page 13: Charging

    CHARGING To charge the battery, simply plug the included Micro USB cable into the USB port at the back of the Gramophone. Plug the other end into the USB adapter, and then plug the adapter into a wall outlet. Please refer to page 8 for battery indicator light cues. MAINTENANCE Maintain your Gramophone by regularly dusting it with a clean, dry, microfiber cloth.
  • Page 14: Detailed Specifications

    DETAILED SPECIFICATIONS LOUDSPEAKER (LOW FREQUENCY) PHYSICAL PROPERTIES Driver: 2.5” (63.5mm) Full Range Total Height: 19.9 in. Magnet: Ferrite Horn Diameter: 10.64 in. Impedance: 8 ohm Horn Height: 17.99 in. Cone Type: Aluminum Wood: 8.50in. x 4.00in. x. 2.75in. Weight: 8 lbs. LOUDSPEAKER (HIGH FREQUENCY) AUDIO Driver: 1.5”...
  • Page 16 WARNING • Gramovox is not responsible or liable for any injuries, damages or death caused by negligence, misuse or any other action taken involving your Gramovox® Bluetooth Gramophone 2.0. • Please read these safety warnings and cautions carefully to ensure your personal BATTERY/CHARGER HAZARD safety and prevent property damage.
  • Page 17 THIS DEVICE COMPLIES WITH • • Do not place the Gramovox Bluetooth PART 15 OF THE FCC RULES. Gramophone 2.0 within reach of children OPERATION IS SUBJECT TO THE or pets.
  • Page 19 CONTACT INFO support @ gramovox.com 844-472-6686 M-F 9am - 5pm CST...
  • Page 20 GRAMOVOX.COM...
