Mediastar 782 Quick Start Manual

Quick Start Guide - 782-AV 4K UHD IPTV and Media Player

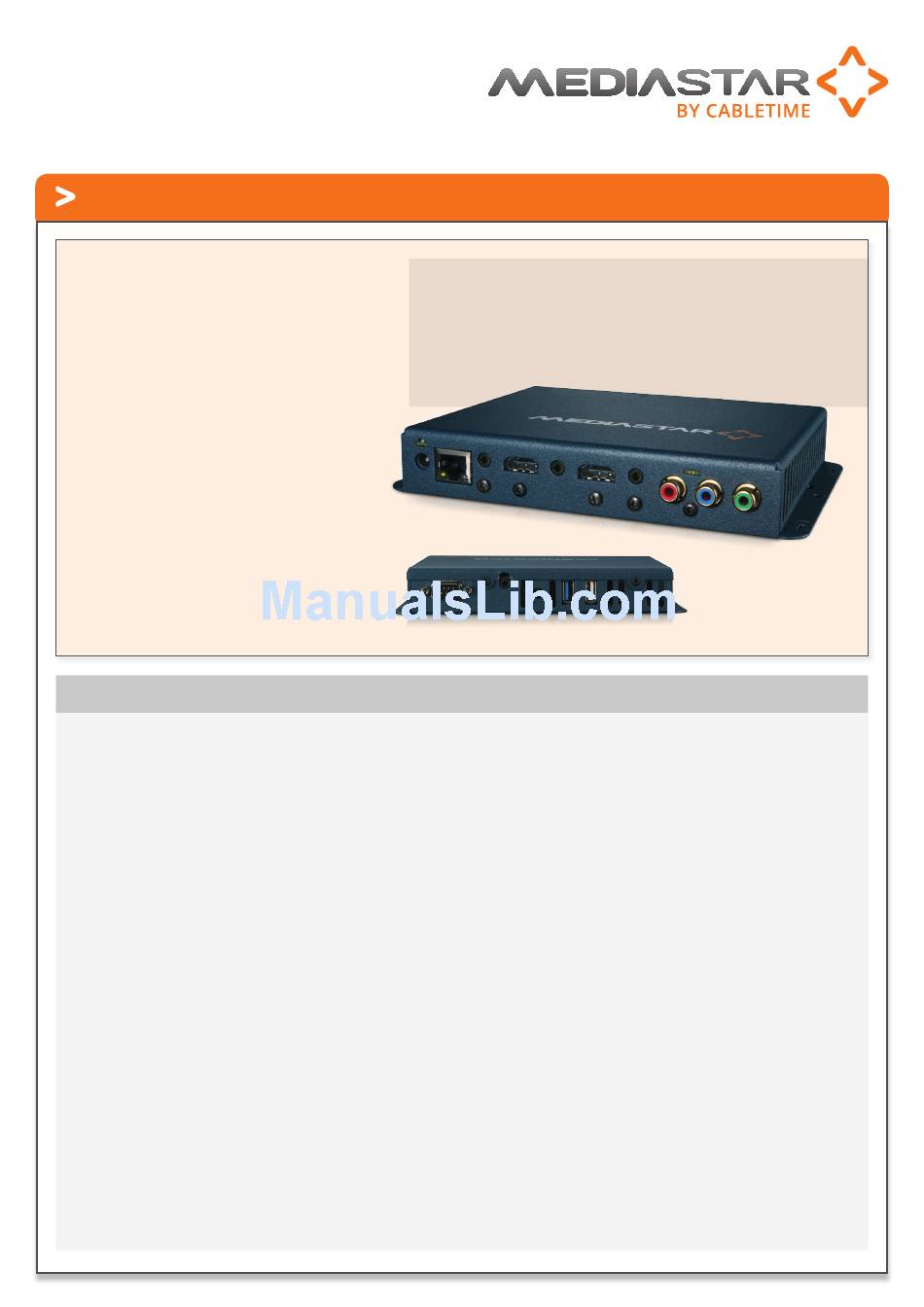

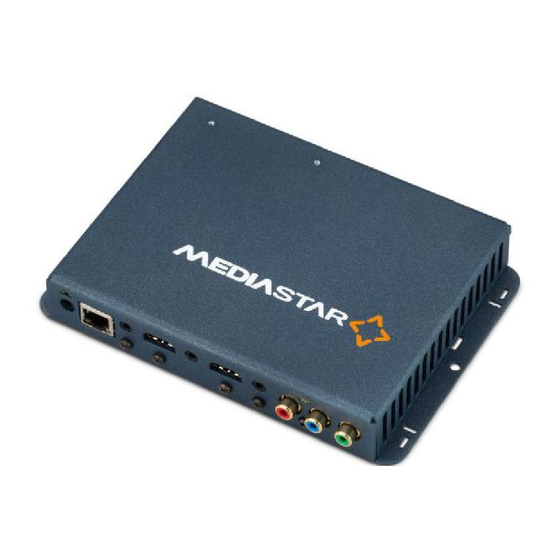

The MediaStar 782 Digital Media Player is a fully
featured video and audio media player, specifically
designed for corporate, sports, digital signage and
other commercial applications. It can output 4K
pictures that come from live IP streams, web pages,
locally stored video file content or content from a
corporate video server. Company-wide deployments
of 782 units can be configured and monitored using
the Media Manager software, with its easy 'automatic
device discovery' and 'drag and drop' interface.
The 782 has been designed to be deployed
throughout a corporate environment with high
reliability and low maintenance as priorities. It is a
fully 'static' hardware platform (no disks, no fans)
built around a Linux OS, and has been designed
specifically to be situated close to the display screen.
It provides HDMI, YPbPr and composite video outputs,
together with internal flash storage, USB2/3 ports
for local connectivity and a PoE power option.

Product Specification

Dimensions
18.0 x 12.4 x 2.8 cm / 7 1/4" x 4 7/8" x 1 1/8"
Weight
0.42Kg / 0.9Ib
Ambient operating temperature range
0 - 40°C / 32 - 104°F
Power supply
AC mains adapter:
LPS 100-240VAC, 47-63Hz Output: +5VDC (+/- 5%), 3.0 Amps, with a
DC jack plug (centre positive voltage, 5.5/2.1mm diameter)
Power over Ethernet:
802.3af class 0 device (13 W max), 802.3at class 4 device (25 W max)
Unit Power dissipation:
12W max
Network
RJ45 802.3 10/100/1000 Base-T Auto MDIX. Static or DHCP IP address.
UDP, TCP, ARP, DHCP, ICMP, IGMP V2/V3, HTTP, HTTPS, SNMP, SMTP, NTP
Video Output
HDMI: 1.4b. 480i, 480p, 576i, 576p, 720p50/60, 1080i50/60,
1080p50/60, UHD 2160p25/30
Phonos (AV variant only): YPbPr: 480p, 576p, 720p50/60, 1080i50/60,
1080p50/60, CVBS, PAL, NTSC
AUDIO OUTPUT
HDMI: PCM stereo, Dolby Digital Plus.
3.5mm Jack: Multi-channel audio down-mix to stereo output, 3 or 4 pole
jack compatible, 30 ohm headphone drive, microphone input with
key-press switch detection
Video Input
HDMI: 480p, 576p, 720p50/60, 1080i50/60, 1080p50/60
AUDIO INPUT
HDMI: PCM stereo and Dolby Digital Plus
3.5mm Jack: Stereo 2.2V pk-pk line level, Microphone input from PC style
jack (software selectable)
Part No. 200-2440 V1
What's in the box
• 782 Digital Media Player
• HDMI Cable
• CAT5 patch cable
• AC mains adapter (non PoE versions)
USB
1 x USB2, 1 x USB3, USB2 500mA. USB3 150mA or 900mA when connected
to 802.3at PoE or 3A AC mains adapter. Mouse, Keyboard, HID compatible,
USB memory keys used for local media load and secure software upgrades
IR Receiver
Integrated 38KHz modulated IR receiver module. Optional external remote
IR receiver (part number 911-5154)
IR Blaster/Aux port
Compatible with optional MediaStar blaster (part number 911-4153).
Digital outputs may alternately be used as contact closure inputs with
external audio mute functionality (software selectable)
RS232 Port
Male 9 way-D
Used for Display Control, SIPI 3rd party command interface or transparent
IP to RS232 pass through
4 pins used for external contact closures, normally open or closed
(software selectable)
Internal storage
8GB media flash. Units with larger flash sizes (up to 128GB) can be ordered
Video Decoding
MPEG2, H264, H265 files and UDP MPEG2-TS streams
Audio Decoder
MPEG2-II, HE-AAC LC, Dolby Digital Plus
Subtitles
DVB subtitles, Teletext, Closed Captions
On-board Web browser
HTML5 compatible, Webkit based
Media Manger compatible
Fully configurable with Media Manager software
Proof of play
Media playout logs, downloadable via on-board webpage or emailed
from 782 to destination via external SMTP server
1
