Allen Sports OT-70 Owner's Manual

Mini walkie talkie
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

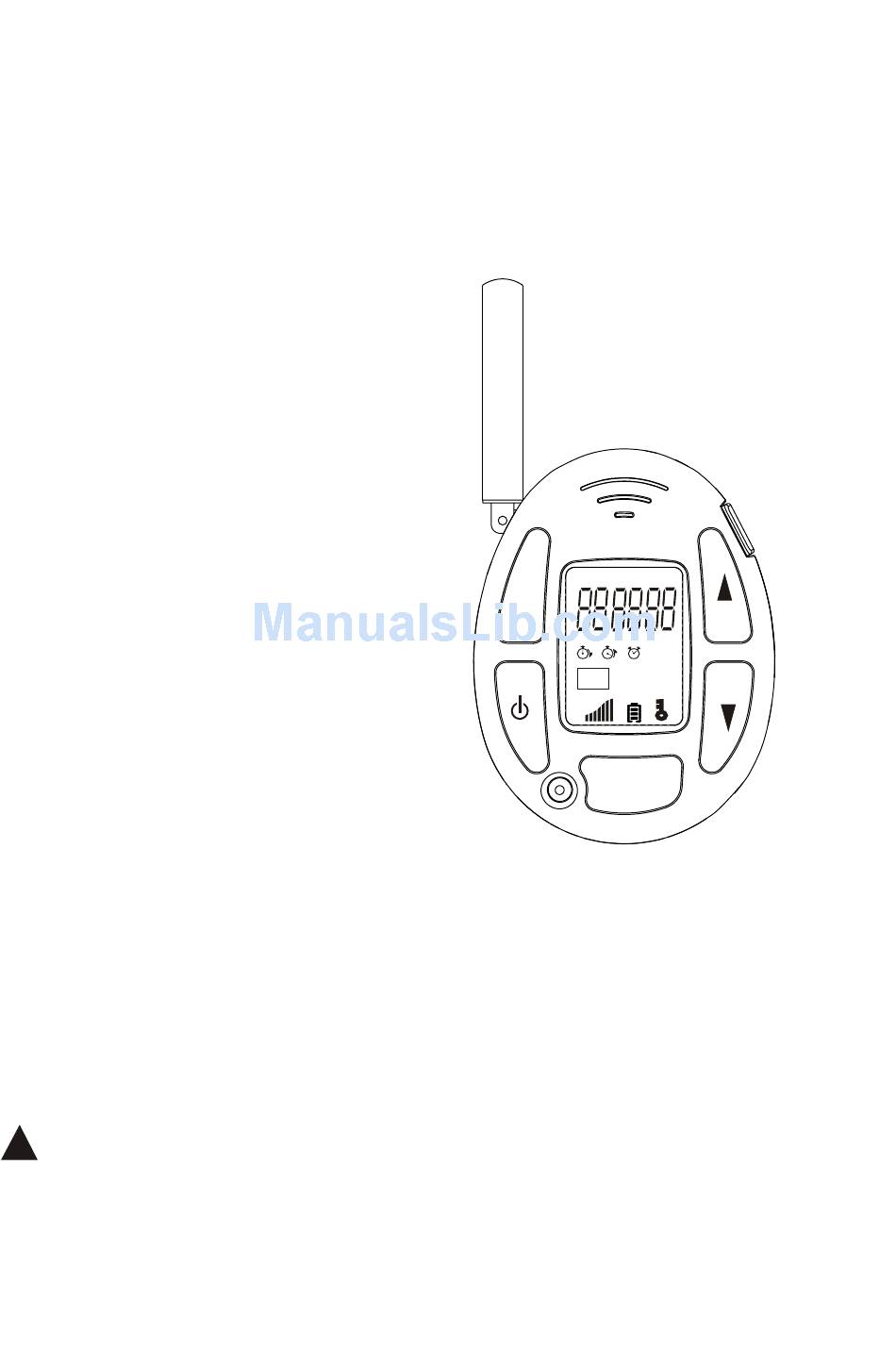

MINI WALKIE TALKIE
MODEL OT-70
OWNER'S MANUAL
INSTALLATION AND

OPERATING INSTRUCTIONS

PLEASE READ THIS
OWNER'S MANUAL
CAREFULLY BEFORE
USE. KEEP FOR
YOUR REFERENCE.
!
CAUTION: Do not use charger before inserting battery.
NOTE: Charge the Battery for approximately 12 hours before initial use.
SUN MON TUE WED THU FRI SAT
S
RADIO
DATE
CH
TIME
CTC
AM PM
TX
RX
CALL
VX
SC
PTT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OT-70 and is the answer not in the manual?

Questions and answers

Summary of Contents for Allen Sports OT-70

  • Page 1: Operating Instructions

    MINI WALKIE TALKIE MODEL OT-70 OWNER'S MANUAL INSTALLATION AND OPERATING INSTRUCTIONS SUN MON TUE WED THU FRI SAT RADIO DATE TIME AM PM CALL PLEASE READ THIS OWNER'S MANUAL CAREFULLY BEFORE USE. KEEP FOR YOUR REFERENCE. CAUTION: Do not use charger before inserting battery.
  • Page 2 STOP Make certain you receive the best performance from your MINI WALKIE TALKIE Read this Owner's Manual first. Made in China...

  • Page 3: Table Of Contents

    Contents Contents Special Features ..............2 ............Mini Walkie Talkie Contents GETTING STARTED Battery Installation ..............Changing the Battery ..............LCD Screen ................6 Turning the Unit ON ..............Turning the Unit OFF ..............Adjusting the Speaker Volume............Receiving a Signal ..............Transmitting a Signal ..............

  • Page 4: Special Features

    Special Features Congratulations on your selection of a quality MINI WALKIE TALKIE Product. With proper care and adherence to the set-up and user instructions in this Owner's Manual, this unit will provide you with years of trouble-free service. The MINI WALKIE TALKIE is the newest generation in personal two-way communications.

  • Page 5: Mini Walkie Talkie Contents

    Mini Walkie Talkie Controls Display Icon, LCD and Button Description SUN MON TUE WED THU FRI SAT RADIO DATE TIME AM PM CALL Set Button - Press to enter setting and Scan function 2. Headset/Charger Jack - Use for Hands free communication. 3.Power/Menu - Press and hold to turn the unit ON/OFF.

  • Page 6: Getting Started

    Getting Started Battery Installation Your MINI WALKIE TALKIE is powered by a Lithium-Ion BATTERY. To install and replace the BATTERY: 1. Release the BATTERY COMPARTMENT COVER LATCH located on the rear side of the unit, and pull up the BATTERY COMPARTMENT COVER (See Figure 1).

  • Page 7: Charging The Battery

    Getting Started Charging the Battery Your MINI WALKIE TALKIE comes with an A/C ADAPTER CHARGER. To charge your Lithium-Ion BATTERY: 1. Lift the HEADSET/CHARGER JACK COVER located on the left side of your MINI WALKIE TALKIE ( See Figure 1). 2.

  • Page 8: Lcd Screen

    Getting Started LCD Screen SUN MON TUE WED THU FRI SAT DATE RADIO TIME AM PM CALL A. Day display B. Hour segment display C. Minute segment icon in Watch mode. Channel number icon in Walkie Talkie mode. D. Second segment icon in Watch mode. CTCSS channel number in Walkie Talkie mode.

  • Page 9: Turning The Unit On

    Getting Started Turning the Unit ON button. The unit will “ beep” and the Press and hold the Power LCD Screen will display the current channel. Turning the Unit OFF button. The unit will “ beep” and the Press and hold the Power LCD Screen will return back to Watch mode.

  • Page 10: Mini Walkie Talkie Operation

    Mini Walkie Talkie Operation Changing CHANNELS To change channels: 1. In Walki e Talkie mode, press the bu tton once, the cur rent channel number flashes on the LCD Screen. 2. While the channel number is flashing: Press the UP button to move to a higher channel.

  • Page 11: Channel Scan

    Mini Walkie Talkie Operation CHANNEL SCAN CHANNEL SCAN performs searches for active signals in an endless loop . 1. In Walkie Talkie mode, press the button the LCD screen will display the channel and sub-channel number continuously changes. The unit will only stop until an active signal is detected. 2.

  • Page 12: Melody Call Tone

    Mini Walkie Talkie Operation Melody Call Tone Selection This function will let user to select the desired Melody Call Tone. 1. In Walkie Talkie mode, press the button 4 times, to select Melody Call tone mode. 2. Press the UP or DOWN button to select the desired Melody Call tone.

  • Page 13: Calendar Date Setting

    Mini Walkie Talkie Operation Calendar Date Setting This unit has been pre-set at the factory according to the country format where it is intended for use. (Field 1) (Field 2) ( Field 3) In Europe DATE MONTH YEAR In USA MONTH DATE YEAR...

  • Page 14: Clock Countdown

    Mini Walkie Talkie Operation Clock Countdown This function allows user to adjust the Clock Countdown setting 1. In Watch mode, press the button 5 times to set the Clock Countdown function. 2. Press the b utton the M inute segm ent will fl ash. 3.

  • Page 15: Clock Hour Mode

    Mini Walkie Talkie Operation Clock Hour Mode This function allows user to select Clock Hour mode. 1. In Watch mode, press the button 8 times to activate the Clock Hour mode. 2. Press the button to set the Clock hour into 12 hour or 24 hou r mode 3.

  • Page 16: Accessories

    Accessories To Assemble Other Accessories This Mini Walkie Talkie have the following accessories wherein the user can select,such as; Wrist Band Belt Clip Pendant Loop To Assemble Wrist band 1. Connect the Wrist band holder on the back of unit as shown on Figure 1.

  • Page 17: Accessories

    Accessories To Assemble Pendant Loop 1. Insert the string into the hole on the top of unit as shown in Figure 1. 2. See Figure 2 for Pendant Loop final assembly. Figure 1 Figure 2...

  • Page 18: Troubleshooting

    Troubleshooting SYMPTOM SOLUTION No power. Check battery. Ensure that the battery are installed properly. battery may be weak. Replace the old battery with new Li-ion 3.6V, 650mA. Reception Press the UP button to increase VOLUME. is weak. The receiving signal may be weak and/or out of range. Cannot change BUTTON LOCK mode must be deactivated if the BUTTON LOCK CTCSS sub-...

  • Page 19: Care And Safety

    Care and Safety WARNING Do not use any W a l k i e Talkie that has a damaged ANTENNA. If a damaged ANTENNA comes in contact with the skin, a minor burn may result. Batteries All batteries can cause property damage and/or bodily injury such as burns if conductive material such as jewelry, keys, or beaded chains touches exposed terminals.

  • Page 20: Care And Safety

    Care and Safety Care and Safety To clean the unit, wipe with a soft cloth dampened with water. Don't use cleaners or solvents on the unit; they can harm the case and leak inside, causing permanent damage. Battery contacts may be wiped with a dry, lint- free cloth.

  • Page 21: Specifications

    Specifications 3.6V, 650mAh Lithium-ion Battery Power Source: 38 for each Channel CTCSS Sub-channel Output Power (TX) 0.5W Range About 2 Miles Operating Temperature NOTE: The maximum transmission range will vary depending on terrain and environment. SUB-CHANNEL TABLE Freq CTCSS Freq CTCSS Freq CTCSS...
  • Page 22 Specifications CHANNEL TABLE AMERICA(22 CH.) Freq. (MHz) Freq. (MHz) 462.5625 467.6625 462.5875 467.6875 467.7125 462.6125 462.6375 462.5500 462.6625 462.5750 462.6875 462.6000 462.7125 462.6250 467.5625 462.6500 467.5875 462.6750 467.6125 462.7000 467.6375 462.7250 AUSTRALIA 40 CH. Freq. (MHz) Freq. (MHz) Freq. (MHz) 476.425 476.775 477.125...
  • Page 23 Specifications CHINA 20 CH. Freq. (MHz) Freq. (MHz) 409.875 409.75 409.7625 409.8875 409.775 409.9 409.7875 409.9125 409.8 409.925 409.8125 409.9375 409.825 409.95 409.8375 409.9625 409.85 409.975 409.8625 409.9875 EUROPE(8 CH.) Freq. (MHz) 446.00625 446.01875 446.03125 446.04375 446.05625 446.06875 446.08125 446.09375...
  • Page 24 Specifications JAPAN 21 CH. Freq. (MHz) Freq. (MHz) 422.05 422.1875 422.0625 422.2 422.075 422.2125 422.0875 422.225 422.1 422.2375 422.1125 422.25 422.125 422.2625 422.1375 422.275 422.15 422.2875 422.1625 422.3 422.175 KOREA 25 CH. (MHz) (MHz) Freq. Freq. 448.75 448.9125 448.7625 448.925 448.775 449.15 448.7875...
  • Page 25 Specifications RUSSIA 69 CH. Freq. (MHz) Freq. (MHz) Freq. (MHz) 433.075 433.65 434.225 433.1 433.675 434.25 433.125 433.7 434.275 433.15 433.725 434.3 433.175 433.75 434.325 433.2 433.775 434.35 433.225 433.8 434.375 433.25 433.825 434.4 433.275 433.85 434.425 433.3 433.875 434.45 433.325 433.9 434.475...
  • Page 26 Specifications TAIWAN 14 CH. Freq. (MHz) Freq. (MHz) 467.5125 467.6 467.525 467.6125 467.5375 467.625 467.55 467.6375 467.5625 467.65 467.575 467.6625 467.5875 467.675...
