- Page 3 Always inspect your machine for loose parts or fuel leakage. Repair all damage by a competent mechanic before operating the machine. Always ensure the cutting attachments are properly installed and fastened correctly. Check the condition of the working area to avoid accidents caused by hitting hidden obstacles such as stumps, beer cans or glass bottles.

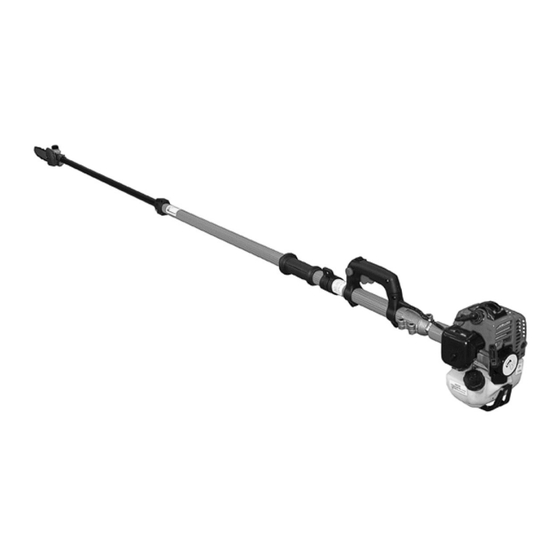

- Page 5 ASSEMBLY The carry handle and orange driveshaft section of pole is supplied pre-attached to the Engine & Gearbox mountings. The Black extension part of the driveshaft slides inside the end of the orange driveshaft section as shown. Ensure the correct end of the black extension shaft is inserted into the orange driveshaft. To ensure the black drive shaft pole is correctly positioned, attach the chainsaw head to the other end of the black extension drive shaft ensuring the locating screw screws into the hole at the end of the pole.
- Page 6 Connecting the Chain Saw Head Chain Blade Holder 1) Insert the end of the long drive shaft into the end of the branch cutter ( ensuring the locking screw locates into the locating hole to ensure the correct cutting position ) and tighten the screw securely.
- Page 7 Operating Instructions Starting the engine (1) Ensuring the fuel to oil mixture is 25:1, fill up the tank and securely close the lid. (2) Lay the machine flat on the floor for starting. (3) Check there are no objects obstructing the head of the machine. (4) Push the clear rubber fuel window behind the air filter a few times until it is full of fuel.
- Page 8 Trouble Shooting Engine Fails to Start Check Fuel is in the tank Check Fuel is visible in the fuel pipe Check Spark Plug is not saturated with fuel or clogged with carbon Check Spark Plug Lead is well connected to the Spark Plug Check operation of Choke.
- Page 9 Specification Sheet Engine Air cooling single cylinder ( 25:1 petrol : oil mixture ) Type 1E34FL Power 25.4cc Rotating speed 0 – 7500 r/min Maximum torque 1N.M Fuel consumption 380g/kwh Total displacement 25.4CM Fuel 90# gasoline Mixture 25 parts fuel to 1 part oil ( 25:1 ) Size 4.0m ( long ) max extension ( 2.5m min Extension ) Weight...
- Page 10 Exploded Parts List of Pole with Chainsaw...
- Page 12 GUIDELINES FOR THE USE OF A CHAINSAW So you now own a power chain saw! When you bought it, you not only acquired a very useful tool, but you also acquired the safety hazard that accompanies its operation. Here are some suggestions for safely using the chain saw at home as well as in the woods.
- Page 13 someone is cut, cover the wound with a clean cloth and press hard to stop the flow of blood. Get the injured person to a doctor or hospital immediately. HOW TO FELL A TREE Preparation and Positioning 1. You can fell large trees with the small, lightweight saws that homeowners usually buy, but it is a risky job for inexperienced, nonprofessional workers and demands extra caution.
- Page 14 4. If the tree is small enough (6 to 8 inches) that an assistant can push it, you will not need a wedge. Both persons must be alert, however, and plan to leave the area without stumbling over each other as the tree starts to fall. Caution: Always make a last-minute check to see that other persons are out of danger before completing the back cut.
