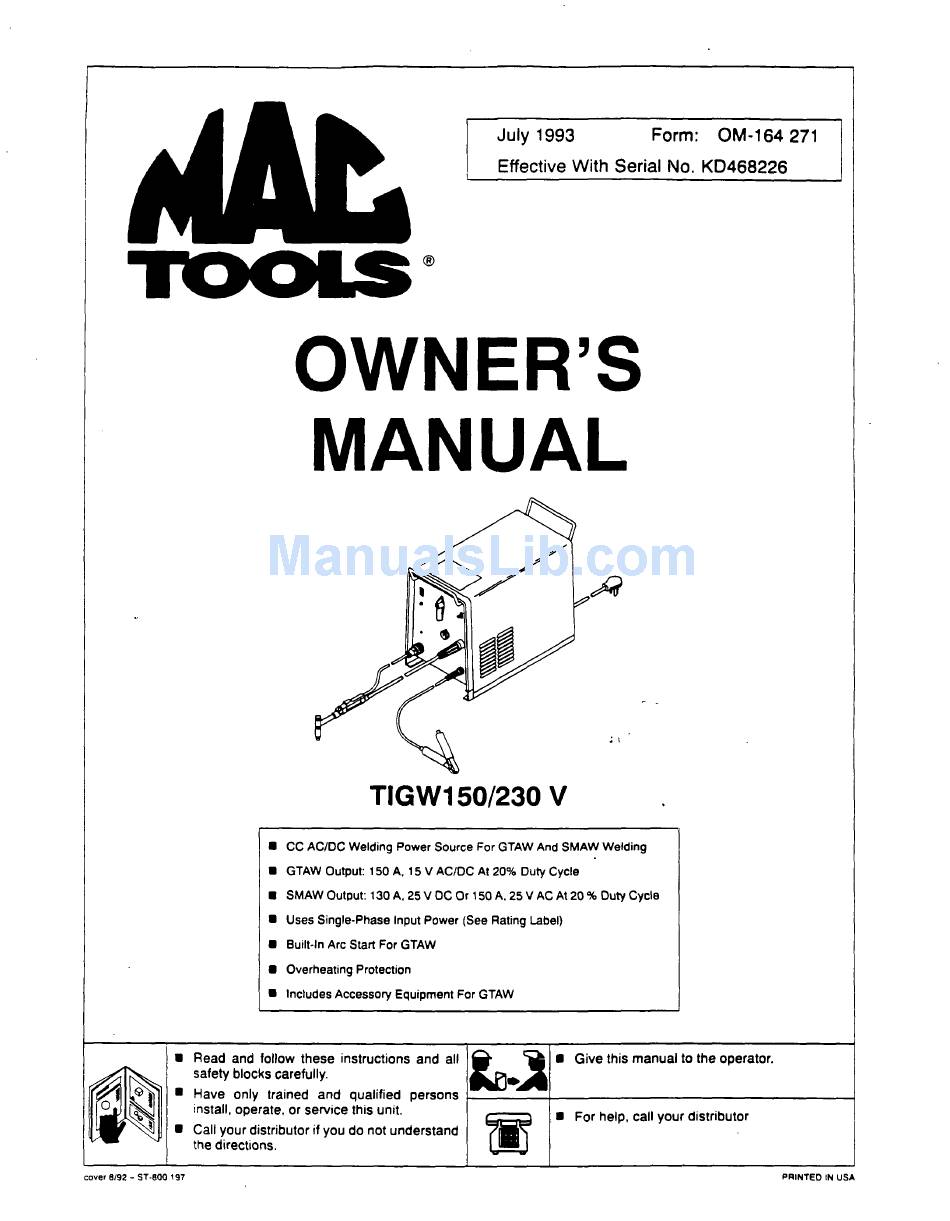

MAC TOOLS TIGW 150/230 V Owner's Manual

~July
1993
Effective With
Form:
Serial
No.
OM-164271
KD468226
1~oLsfi
OWNERS
MANUAL
U
U
Read and follow these instructions and all
safety blocks
carefully.
Have only trained and qualified
persons
r~stall,
operate, or
service this unit.
Call your distributor
if you do
not
understand
the
directions.
U
Give this manual to the
operator.
U
For
help,
call your distributor
I
TIGW15O/230 V
CC AC/DC Welding Power Source For GTAW And SMAW
Welding
GTAW Output:
150 A. 15 V
AC/DC
At 20% Duty Cycle
SMAW Output:
130 A, 25 V DC Or 150 A. 25 V AC At 20% Duty Cycle
Uses Single-Phase
Input
Power (See
Rating Label)
Built-In Arc Start For GTAW
Overheating Protection
Includes
Accessory Equipment For
GTAW
cover
8/92 ST.800 197 PRINTED IN USA
