Multitone RPR 563GS Technical Manual

Radio transceiver handset
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

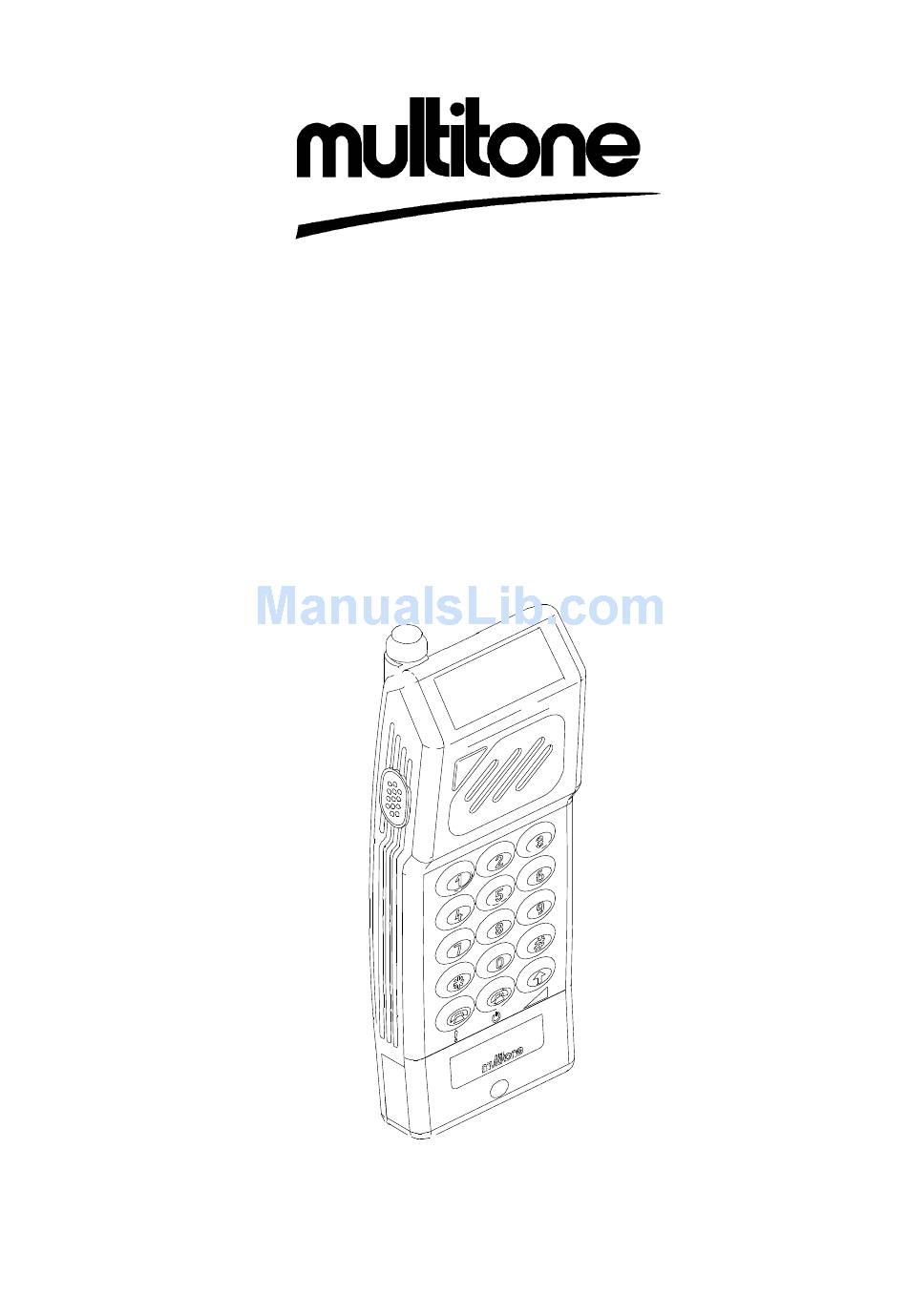

RPR 563GS/KGS
TECHNICAL MANUAL
for
RADIO TRANSCEIVER HANDSET
MODELS RPR 563GS and RPR 563KGS
Printed and Published in England
TM1187A Issue C
Page (i)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RPR 563GS and is the answer not in the manual?

Questions and answers

Summary of Contents for Multitone RPR 563GS

  • Page 1 RPR 563GS/KGS TECHNICAL MANUAL RADIO TRANSCEIVER HANDSET MODELS RPR 563GS and RPR 563KGS Printed and Published in England TM1187A Issue C Page (i)
  • Page 2 The information in this manual has been carefully compiled and checked for technical accuracy. Multitone Electronics plc accept no liability for inaccuracies or errors. In line with the company policy of technical advancement, the information within this document may be changed.
  • Page 3 RPR 563GS/KGS CONTENTS Page (i) Title Page Page (ii) Company Liability Page (iii) Contents Page (iv) Effective Page List Page (v) Safety Summary Warning Page (vi) Caution Section 1 Introduction and Specification Section 2 Operating Instructions Section 3 Technical Description Section 4 Installation &...
  • Page 4 RPR 563GS/KGS EFFECTIVE PAGE LIST Page No. Issue Page No. Issue Page No. Issue Page No. Issue 2-13 5C-1 (ii) 2-14 5-10 5C-2 (iii) 2A-1 5-11 (iv) 2A-2 5-12 2A-3 5-13 (vi) 2A-4 5-14 5-15 5-16 5-17 5-18 5-19 5-20...
  • Page 5 RPR 563GS/KGS SAFETY SUMMARY The following information applies to both operating and servicing personnel. General Warnings and Cautions will be found throughout the manual, where they apply, which refer to the applicable part of this summary. WARNING statements identify conditions or practices that could result in personal injury or loss of life.
  • Page 6 RPR 563GS/KGS CAUTION STATIC SENSITIVE DEVICES ARE USED WITHIN THIS EQUIPMENT. CARE MUST BE USED TO ENSURE DAMAGE TO THESE DEVICES IS NOT CAUSED BY HIGH LEVELS OF STATIC ELECTRICITY. SPARE BOARDS OR COMPONENTS SHOULD BE STORED IN ANTI-STATIC PACKAGING WHEN NOT INSTALLED IN THE EQUIPMENT.

  • Page 7: Table Of Contents

    25. Display Direction at Switch-On 26. Speech Timeout 27. Address Digits Displayed 28. Test Mode 29. System Number 30. System Retry Interval 31. Line Service (RPR 563GS only) 32. Switch-On and Rack Message SPECIFICATION 33. Receiver 34. Transmitter 35. Signalling Formats 36.

  • Page 8: Role

    (telephone-style) mode. Selective calling and telephone calls are made via a DTMF keypad. A reduced keypad version of the transceiver, designated the RPR 563GS, (which does not have a DTMF keypad) is available which is able to make limited telephone-style calls.

  • Page 9: Message Storage

    RPR 563GS/KGS Message Storage Up to five messages may be stored by the transceiver for review later. They are held on a first in/first out basis. Message Length The maximum length of any received message is between 63 and 81 characters, depending on whether beep code alpha and time stamp are in use.
  • Page 10 RPR 563GS/KGS OPTIONAL FEATURES Permanent On 15. When a battery pack is fitted and the Permanent On option enabled, the transceiver cannot be switched off. Alert Duration 16. This is the duration of the alert tone at normal volume level. Options are 8s, 16s, 32s, or continuous alert.
  • Page 11 RPR 563GS/KGS Mute Mode 22. When Mute Mode is enabled, tone alert is suppressed when calls are received. However, if a mute override beep code is received (triple pip or continuous pips), mute is ignored and the transceiver responds with audible and visual alerts.
  • Page 12 The default Switch-On message is "Multitone 560" and the default Rack message is "Absent". Page 1 - 6 TM1187A Issue C...
  • Page 13 RPR 563GS/KGS SPECIFICATION Receiver 33. The following parameters apply to the receiver section of the transceiver: Frequency Range: 440.025MHz to 441.000MHz Number of Channels: Channel Spacing: 25kHz. Intermediate Frequencies: 21.4MHz and 455kHz. Crystal Frequencies: 1st oscillator (XL303) carrier frequency + 21.4MHz 2nd oscillator (XL302) 20.945MHz...
  • Page 14 Signalling Formats 35. The transceiver signalling parameters are as follows: Tone Squelch Frequencies: 88.5, 103.5, 114.8, 127.3, 141.3Hz Selective calling Code Format: Multitone Mk7 digital format (Manchester encoded). DTMF Frequency Pairs: see Table 1. Page 1 - 8 TM1187A Issue C...
  • Page 15 RPR 563GS/KGS Table 1: DTMF Frequency Pairs HIGH FREQUENCY GROUP (Hz) TONE FREQUENCY 1209 1336 1477 1633 PAIRING FREQUENCY GROUP (Hz) Power Supplies 36. The following battery packs are available for powering the transceiver: Battery Type: Battery Pack P566: 3.6V (nominal) 600mAH Metal-Hydride re- chargeable pack.
  • Page 16 RPR 563GS/KGS Indicators: 14 character (7 x 5 dot matrix) Liquid Crystal Display (LCD) with icon. Viewing area 33.1mm x 5.8mm. Alert LED (red). Transmit LED (green). Keyboard backlight. Audible Alert 78dB (82dB typical) SPL @ 30cm (full volume). Physical Characteristics 38.
  • Page 17 RPR 563GS/KGS SECTION 2 OPERATING INSTRUCTIONS CONTENTS: CONTROLS AND INDICATORS OPERATION Fitting the Battery Pack Switching On Quiescent Mode 10. Receiving a Non-Speech Call 17. Receiving a Speech Call (Selective Calling) 21. Receiving a Speech Call (Telephone Style) 23. Loud Speech (Simplex) 25.
  • Page 18 RPR 563GS/KGS CONTROLS AND INDICATORS Controls and indicators for the transceiver are shown in Figure 2. PSG10150-1 KEY: Microphone Loudspeaker Function Keys DTMF Keypad (RPR563KGS only) Press-to-Talk Button Antenna Cancel/On/Memory Button Wrist Strap Loop Alert LED Pocket Clip Liquid Crystal Display...
  • Page 19 RPR 563GS/KGS DTMF KEYPAD (RPR563KGS ONLY) FUNCTION KEYS PSG10516-1 Figure 2: DTMF Keypad and Function Keys The following controls are found on both the full and reduced keypad versions of the transceiver: PRESS-TO-TALK Used to manually key the transmitter on (selective calling only).

  • Page 20: Fitting The Battery Pack

    RPR 563GS/KGS The transceiver has the following indicators: A 14-character alphanumeric display. This displays selective call messages, and transceiver and system status messages. Tx KEY Lights when the transmitter is active. ALERT Lights when a selective call has been received.

  • Page 21: Switching On

    RPR 563GS/KGS Removal is a reversal of the above procedure, but press the battery button before releasing the battery pack. Switching On Check that a fully-charged battery pack has been fitted. Press once. The transceiver will initiate its switch on sequence as shown in Figure 4.

  • Page 22: Beep Code Alpha

    RPR 563GS/KGS 11. The displayed message comprises combinations of the following elements: Element Example Time stamp + space 12:00 Beep Code (Tone Only message) Speech call Call ended Beep code alpha Fire Off-Air Message (Alpha) Please call reception Message Terminator ** or **? 12.

  • Page 23: Receiving A Speech Call (Selective Calling)

    RPR 563GS/KGS 16. The transceiver is able to receive new calls during an alert, although receiver sensitivity may be degraded. The new call takes over the previous call, which is placed in memory. Preceding calls have "new" status unless cancelled during the alert.

  • Page 24: Loud Speech (Simplex)

    RPR 563GS/KGS Loud Speech (Simplex) 23. Under some circumstances telephone-style communication will not be possible, e.g. noisy environment, wearing of protective headgear, etc. The high volume levels required for listening would inhibit operation because of feedback. In this situation a PMR-style of operation is desirable.

  • Page 25: Extended Alert

    RPR 563GS/KGS Table 2: Beep Code and Alert Patterns PIP/BEEP TONE ALERT PATTERN BEEP CODE Single Beep Double Beep Triple Beep Continuous Beep Single Pip Double Pip Triple Pip Continuous Pip Silent Alert The escalating alert and the Mute mode are overridden by beep code 5 (triple pip) and beep code 8 (continuous pip).

  • Page 26: Memory Replay

    RPR 563GS/KGS Memory Replay 30. Incoming messages are automatically entered into the transceiver's memory store which can accommodate up to five calls. To start the memory replay cycle, from the quiescent display, press the button twice. If in extended alert, press the key once only.

  • Page 27: Making A Call To A Telephone (Rpr 563Kgs Only)

    RPR 563GS/KGS 37. On RPR 563GS (reduced keypad version), connection to the designated point is automatic once has been pressed. Making a Call to a Telephone (RPR 563KGS only) 38. Once the dialling tone has been received, the telephone number may be dialled as if calling from another telephone.

  • Page 28: Program Volume Modes

    RPR 563GS/KGS 45. If a team call is transmitted, or another user makes an emergency "Burst-In" call, the system will override and terminate the call without prior warning. The transceiver that has been overridden will display the message "Call Override".

  • Page 29: Recharging The Battery Pack

    RPR 563GS/KGS 52. If the interrogation is unsuccessful there are two possibilities: If there is no contact between system and transceiver, the following display is shown: Absent or PROGRAMMED MESSAGE If there is no user number associated with the transceiver address the following...
  • Page 30 RPR 563GS/KGS INTENTIONALLY BLANK Page 2 - 14 TM1187A Issue C...
  • Page 31 RPR 563GS/KGS SECTION 3 TECHNICAL DESCRIPTION CONTENTS: CIRCUIT SUMMARY RADIO BOARD Power Supplies 10. Receiver 18. Data Filter 19. Tone Squelch Decoder/Encoder 22. Transmitter DECODER BOARD 30. Power Supplies 34. Receiver Audio Stages 36. Microphone Audio Stages 37. Decoder 41. Gate Array (IC105) 44.
  • Page 32 RPR 563GS/KGS CIRCUIT SUMMARY The transceiver comprises two printed circuit boards, the Radio Board and Decoder Board, which are connected directly to each other via a 14-way plug and socket. The Radio Board carries all the components for the transmitter and receiver with the exception of the microphone and loudspeaker circuits.

  • Page 33: Battery Economy Circuit (Bec

    RPR 563GS/KGS RADIO BOARD Power Supplies Battery Voltage (B+), TxB+, SPEECH3V and the +4.5V supply lines are derived from the Decoder Board and are available at PL301. Receiver IF Amplifier IC302 is gated on and off by the Battery Economy Circuit (BEC) line from the Gate Array on the Decoder Board (via PL301 pin 12).
  • Page 34 RPR 563GS/KGS Figure 1: Receiver Block Diagram Page 3 - 4 TM1187A Issue C...
  • Page 35 RPR 563GS/KGS 15. Output from FL304 is amplified by the first amplifier in IC302 before application to a second 455kHz filter FL305. The signal is then fed back into IC302 for further amplification and application to the internal quadrature discriminator.
  • Page 36 RPR 563GS/KGS Transmitter 22. A block diagram of the transmitter is shown in Figure 2. Tx TONE TR345, TR350, TR346 TR351 LOW-PASS FILTERS IC306a TR347/348 SUMMING CLAMP AMPLIFIER IC306b RV303 MOD GAIN DTMF FL301 TR301 TR302 TR303 TR305 OSCILLATOR/ TRIPLER/...
  • Page 37 RPR 563GS/KGS 24. The sub-audio tone derived from IC303 and IC304 (see paragraph 21) is applied to IC306 via potential divider R435/R444. When DTMF tones are generated by the Decoder Board, they are applied to IC306a via R419, R420 and R445. The tones are also applied to IC306b for amplification, rectified by D303 and C451, and applied to TR341, which mutes the speech circuits from the microphone.
  • Page 38 RPR 563GS/KGS DECODER BOARD Power Supplies 30. Battery voltage (B+) is supplied from the battery pack at PL101 pin 3 and is split into two supplies, B+ and TxB+. TxB+ powers the Radio Board transmitter power amplifier only, via SK101 pin 13. B+ is used on both the Radio and Decoder Boards, the Radio Board connection being at SK101 pin 7.
  • Page 39 RPR 563GS/KGS Receiver Audio Stages 34. Receiver audio (RXAUDIO) from the Radio Board is applied to SK101 pin 3 and fed through the squelch gate transistor TR119 which is controlled by the decoder squelch output. If valid audio is received then the transistor conducts and the signal is passed to pin 7 of pre-amplifier IC106.
  • Page 40 RPR 563GS/KGS MIC.SIG IC106 TR126 MIC+ PRE-AMP PRE-AMP SPEECH3V TR122 TR120,121 SP.EN ARDATA IC102 TONE.Rx EEPROM TxDTMF LCD101 IC101 MODULE µP S103 KEYPAD D0-D3 DATA TR111-114 VOLUME IC105 SWITCH GATE ARRAY SQUELCH LS101 S101 BEEP IC107 IC106 CANCEL PRE-AMP AMPLIFIER...
  • Page 41 45. A thermistor is provided in the high capacity battery pack to allow fast charging circuits to sense battery temperature as a part of their control loop. Trickle-charging from 12V is possible via a small DC socket on the side of the battery pack using Multitone Charger 6603-0001.
  • Page 42 RPR 563GS/KGS INTENTIONALLY BLANK Page 3 - 12 TM1187A Issue C...
  • Page 43 RPR 563GS/KGS SECTION 4 INSTALLATION AND COMMISSIONING Any relevant information on the installation and commissioning procedures for the transceiver are contained within Section 2 of this manual. TM1187A Issue C Page 4 - 1...
  • Page 44 RPR 563GS/KGS INTENTIONALLY BLANK Page 4 - 2 TM1187A Issue C...
  • Page 45 RPR 563GS/KGS SECTION 5 SERVICING CONTENTS: ROUTINE MAINTENANCE SERVICE POLICY WORKSHOP PROVISIONS TEST EQUIPMENT, TOOLS AND ANCILLARIES Test Equipment Tools and Ancillaries DISASSEMBLY Belt Clip Assembly Removing the Antenna 10. Decasing the Transceiver 11. Removing the Display Module 12. Re-Assembly FAULT FINDING 13.

  • Page 46: Test Mode

    RPR 563GS/KGS TABLES Page Radio Board DC Levels (A) 5 - 16 Radio Board DC Levels (B) 5 - 17 Decoder Circuit Detailed Test Sequence 5 - 19 Decoder Board DC Levels 5 - 21 Microprocessor (IC101) Pin Connections 5 - 22...
  • Page 47 RPR 563GS/KGS ROUTINE MAINTENANCE This is limited to battery replacement and surface cleaning of the outer case using a lint free cloth moistened with soapy water. Spirit or other solvents should not be used as this may damage the case.
  • Page 48 RPR 563GS/KGS AF Frequency Counter. SINAD Meter. AC Millivoltmeter. Modulation Meter. AF Signal Generator. Digital Multimeter. P800 TEM Cell. * Equipment to have 50mW, 50 input Tools and Ancillaries The following tools and ancillaries are required: Power Supply Unit, 3.6V DC Tape, Copper Tin plated (Part No.
  • Page 49 RPR 563GS/KGS DISASSEMBLY Belt Clip Assembly Referring to Figure 1, apply pressure to the centre of the clip (marked `A') so that its mounting spring sits proud of its recess, then use a 4mm wide blade (at position `B') to prise the spring away from the case.
  • Page 50 RPR 563GS/KGS PSG10518-1 Figure 2: Decasing the Transceiver c) With the transceiver held face downwards, squeeze the sides of the case at point `C'. At the same time hook the first and second fingers of the other hand round the lip at the end of the case back, and then peel back.
  • Page 51 RPR 563GS/KGS PSG10157-1 KEY: Case Front Radio Board Speaker Decoder Board Retainer (Speaker) 10. Battery Connector PCB Display Module 11. Keypad Membrane Case Rear 12. Battery Pack Antenna 13. Microphone Pocket Clip Figure 3: Exploded Diagram - Transceiver Page 5 - 7...
  • Page 52 RPR 563GS/KGS Removing the Display Module 11. The procedure for removing the Display Module is as follows: a) Unclip the Interface moulding from the Display Module. b) Remove the two screws securing the moulding to the Decoder PCB. Remove the moulding.
  • Page 53 RPR 563GS/KGS Power Supply Voltage Adjustment 15. Adjustment of the power supply is limited to the 1V rail. The procedure is as follows: a) Remove the case back. b) Fit a fully-charged battery pack and switch on. c) Connect a link between SK301 pins 3 and 10 to disable the battery economy circuit.
  • Page 54 RPR 563GS/KGS ANTENNA CONTACT (TEST PROBE) ANTENNA PLATE 1 TP306 TP303 TP301 ANTENNA PLATE 2 TP302 SK301 TP308 TP307 ANTENNA TP305 GUIDE TP309 ANTENNA CONTACT Rx ANTENNA ANTENNA (AE303) CONTACT (END) PA FILTER SCREEN COPPER TAPE COPPER EXCITER TAPE MIXER...
  • Page 55 RPR 563GS/KGS TRANSCEIVER SUSPECT FIT NEW BATTERY PACK AND SWITCH ON. ARE ALL LCD SEGMENTS VISIBLE DURING SWITCH- ON SEQUENCE? BLANK FLASHING IS DISPLAY BLANK OR FLASHING? CORRUPTED EEPROM. RE-PROGRAM. RE-TEST. DOES RED LED LIGHT DURING SWITCH-ON SEQUENCE? IS BEEP AUDIBLE...

  • Page 56: Transmitter

    RPR 563GS/KGS SEND CALL DECASE CALL AND PLACE RECEIVED? IN P654 CONNECT TEST CHECK TR322, RECEIVER CHECK LEAD, DISABLE TR323 & IC302 SENSITIVITY O.K. CHECK BEC & ENABLE TRANSMITTER SPEECH3V. >3dBm LOW IS 1V LINE OK? RE-ALIGN RECEIVER INJECT MODULATED SIGNAL*.
  • Page 57 RPR 563GS/KGS Figure 8: General Fault Finding Guide (3 of 3) Page 5 - 13 TM1187A Issue C...
  • Page 58 RPR 563GS/KGS TRANSMITTER SUSPECT CONNECT A FULLY-CHARGED BATTERY PACK. REMOVE ANTENNA, CONNECT POWER METER AND FREQUENCY COUNTER VIA Tx O/P CONNECTOR TO P654. PUT TRANSCEIVER INTO TEST MODE 4. KEY UP TRANSMITTER. IS RF 20mW NONE POWER GREATER THAN 20mW?
  • Page 59 RPR 563GS/KGS TELEPHONE MODE SUSPECT PRESS GREEN BUTTON DOES MESSAGE `PLEASE WAIT' APPEAR ON DISPLAY? FAULTY KEYPAD. ARE DTMF TONES GENERATED? CHECK IC101, PINS 28 AND 32. IS MESSAGE `PLEASE WAIT' DISPLAYED? SYSTEM BUSY. TRY AGAIN CHECK DECODER CIRCUIT &...
  • Page 60 RPR 563GS/KGS Table 1: Radio Board DC Levels (A) COMP. COLLT'R BASE EMITTER REMARKS TR301 2.35 1.33 0.45 EXCITER OSCILLATOR & DOUBLER TR302 2.34 0.31 0.113 EXCITER 1ST TRIPLER TR303 1.99 0.25 EXCITER 2ND TRIPLER TR304 3.43 2.77 3.58 TRANSMITTER ENABLE TR305 3.35...
  • Page 61 RPR 563GS/KGS Table 2: Radio Board DC Levels (B) COMP. COLLT'R BASE EMITTER REMARKS TR345 3.60 2.26 1.70 DARLINGTON PAIR MICROPHONE FILTER TR346 3.60 2.54 2.26 TR347 MICROPHONE CLAMP TR348 TR349 2.33 1.79 1.39 LOW-PASS FILTER Tx SUB-AUDIO TR350 2.24 1.68...
  • Page 62 RPR 563GS/KGS Decoder Faults 17. If the Decoder PCB is suspect, proceed as follows: a) Remove the case back. b) Separate the two PCBs and connect them via the 14-way lead (supplied with the P654). c) Place the two PCBs on an anti-static mat. Connect a fully-charged battery pack and switch on.
  • Page 63 RPR 563GS/KGS IC105 PIN 3 f = 32kHz (CLOCK) IC101 PIN 8 (SCK) (INTERRUPT) IC105 PIN 68 (TMI) IC101 PIN 38 (X2) 8.4ms 125ms IC105 PIN 26 WHEN CANCEL IS PRESSED IC105 PIN 9 (BEC) 30ms NOTE: WAVEFORMS ARE TAKEN IN BATTERY ECONOMY MODE UNLESS STATED OTHERWISE.
  • Page 64 RPR 563GS/KGS Table 4: Decoder Board DC Levels COMP. COLLT'R BASE EMITTER REMARKS TR101 0.55 0.55 0.07 4.5V REGULATOR TR102 2.96 0.55 CURRENT MIRROR CONTROL TR103 3.25 2.96 3.52 CURRENT MIRROR CONTROL TR104 0.15 3.25 3.52 CURRENT MIRROR CONTROL TR105 0.06...
  • Page 65 RPR 563GS/KGS Table 5: Microprocessor (IC101) Pin Connections PIN No. CCT REF DESCRIPTION INT4 DATA INTERRUPT (INPUT) EEPROM CLOCK OUTPUT DATA OUT DATA IN SYNC DETECT(INT0) (INPUT) SWITCH/TIMER INTERRUPT (INPUT) /TONE.Rx DETECT SAMPLING CLOCK INPUT E (DISPLAY DATA CLOCK) OUTPUT...
  • Page 66 RPR 563GS/KGS Table 6: Gate Array (IC105) Pin Connections NAME DESCRIPTION OSEN Oscillator cell enable Clock input: 512 baud = 32.768kHz, 1200 baud = 38.400kHz RESB Reset input: 0 = reset Data input Radio enable: 0 = radio on, 1 = radio off VDD1 Low voltage supply rail (0.9V - 1.5V)
  • Page 67 RPR 563GS/KGS BAT 74 SCI7700YBA UPD 65026 BAV 99 BFG196 BCW33 BFR520 BCW61C BFS17 BCX17 NE02133-D BFR182 BAKUPB+ TEST 24C16 74HC74 OUTPUT1 -INPUT1 +INPUT1 OUTPUT2 +INPUT2 -INPUT2 IF1 IN DE-COUPLE PNP base TDA2822 DE-COUPLE 1V POT IF1 OUT IF2 IN...
  • Page 68 RPR 563GS/KGS ALIGNMENT PROCEDURE Preliminaries 18. Prior to alignment, remove the antenna and case back. Fit a fully-charged battery pack, and place the transceiver into the P654 Alignment Jig, and connect the audio connector lead to SK301. Refer to Section 5, Annexe C, for P654 details.
  • Page 69 RPR 563GS/KGS RV302 SK301 RV301 RV303 L302 C349 C394 COPPER TAPE C350 C382 C379 C354 EXCITER SCREEN C412 C353 PA SCREEN C441 C399 PSG10512-1 Figure 15: Radio Board - Alignment Diagram Page 5 - 25 TM1187A Issue C...
  • Page 70 RPR 563GS/KGS f) Adjust L302 for maximum level. g) Set the oscilloscope to DC input. Adjust the vertical position so that the sine wave is in the centre of the display. h) Retune the RF signal generator to the receiver channel frequency. Adjust C394 for the same DC level on the oscilloscope as achieved in step g).
  • Page 71 RPR 563GS/KGS c) Remove the copper tape covering the screening can alignment holes. d) Adjust C349 to the transmitter channel carrier frequency ±0.5kHz. e) Adjust C350 to fine the transmitter frequency. f) Carry out steps d) and e) until there is no interaction between adjustments.
  • Page 72 RPR 563GS/KGS Sub-Audio Tone Frequency 22. The procedure for adjusting the sub-audio tone frequency (tone squelch) is as follows: a) Connect the test equipment to the P654 as shown in Figure 18. P654 ALIGNMENT JIG Tx TONE (13) COUNTER SK301...
  • Page 73 RPR 563GS/KGS Receiver Sensitivity Check 23. To determine receiver sensitivity, carry out the following procedure: a) Connect the test equipment to the P654 as shown in Figure 19. NOTES: The distance between the personal computer and the P654 must not be less than 2 metres.
  • Page 74 RPR 563GS/KGS PROGRAMMING THE TRANSCEIVER 24. The transceiver contains an EEPROM which holds unique data, including its receiver address. This data may be entered or changed by using the P648 Programming Unit and the P648T Programming Software. P648 operation is detailed in Section 5, Annexe B.
  • Page 75 RPR 563GS/KGS SECTION 6 SPARE PARTS LIST CONTENTS ASSEMBLIES CASE PARTS LABELS RADIO BOARD COMPONENTS Antenna Capacitors Filters and Crystals Inductors Resistors Semiconductors 10. Miscellaneous DECODER BOARD COMPONENTS 11. Capacitors 12. Resistors 13. Semiconductors 14. Miscellaneous TM1187A Issue C Page 6 - 1...
  • Page 76 RPR 563GS/KGS ITEM/CIRCUIT REFERENCE DESCRIPTION PART No. ASSEMBLIES LCD101 DISPLAY MODULE 5206-0017 BATTERY INTERFACE PCB ASSEMBLY 0261-1858 BATTERY, 110mAH P564 BATTERY, 1200mAH P565 BATTERY, 600mAH P566 CASE PARTS GRIPTITE CLIP 0201-0565 CASE FRONT 15-KEY 0361-2471 CASE FRONT 3-KEY 0361-2472 CASE BACK...
  • Page 77 RPR 563GS/KGS ITEM/CIRCUIT REFERENCE DESCRIPTION PART No. Capacitors C301,306,310,331,362,363-365, 369,372,374,375,385,391,392, C407,425,476,480,481,486, C503,504,505,506 CAP CHIP 100p ±5% 50V 3326-0027 C302 CAP CHIP 33p ±5% 50V TEMP COMP 3319-0014 C303,316 CAP CHIP 3.9p 0p25 50V 3326-0010 C304,309,312,313,322,342, 343,344,356-360,366-368, 370,371,387,402,403,419,420, 426,450,465,471,472,479 CAP CHIP 1n ±10% 50V...
  • Page 78 RPR 563GS/KGS ITEM/CIRCUIT REFERENCE DESCRIPTION PART No. Capacitors (Continued) C383,384 CAP CHIP 47p ±5% 50V 3326-0023 C388,389,410,422,423,438, CAP CHIP TANT 10µ ±10% 6.3V 3325-0001 C393 CAP CHIP 22p ±5% 50V 3326-0019 C404 CAP CHIP 22n +80%-20% 3329-0005 C408,432,433,434 CAP CHIP 1µ ±20% 16V...
  • Page 79 RPR 563GS/KGS ITEM/CIRCUIT REFERENCE DESCRIPTION PART No. Resistors R301,318,371,372,378,395,396, 400,412,424-427,429,436, 455,465,468,469,470, RES CHIP 100k ±5% 3115-0122 R302,323,360,435 RES CHIP 6.8k ±2% 3118-0094 R303,329,330,346,348,354,366,368, 369,373,377,379,383,385,399, 406,420,428,437,438, 439,451, 456,462 RES CHIP 10k ±5% 3115-0098 R304,334,337,341,345, 397,398 RES CHIP 100S ±5% 3115-0050 R305,359 RES CHIP 15k ±5%...
  • Page 80 RPR 563GS/KGS ITEM/CIRCUIT REFERENCE DESCRIPTION PART No. Resistors (Continued) R404,407,408 RES CHIP 820k ±5% 3115-0144 R414,432,443,446 RES CHIP 1M ±2% 3118-0146 R430,449,453 RES CHIP 470k ±5% 3115-0138 R444 RES CHIP 3.3k ±5% 3115-0086 R458 RES CHIP 330S ±5% 3115-0062 R466...
  • Page 81 RPR 563GS/KGS ITEM/CIRCUIT REFERENCE DESCRIPTION PART No. 10. Miscellaneous PL301 HEADER, DUAL ROW, POST, 14-WAY 4332-0001 SK301 HEADER, DUAL ROW, RECEPT, 14-WAY 4449-0002 PAD, ADHESIVE, XL301-303 1860-8081 PAD, SUPPORT, AE303 AND SCREEN PA 1860-9017 PAD, SUPPORT, ANTENNA END CONTACT 1860-7223...
  • Page 82 RPR 563GS/KGS ITEM/CIRCUIT REFERENCE DESCRIPTION PART No. 12. Resistors R101 RES CHIP 1.8k ±5% 3115-0080 R102,109,112,113,118,119, 120,122,125,127,128, 129,133,147,152,179, 184,185,187,512 RES CHIP 100k ±5% 3115-0122 R103 RES CHIP 68k ±2% 3118-0118 R104,124,132,150 RES CHIP 47k ±2% 3118-0114 R105,154,157,158,162,163, 165,193,194 RES CHIP 1M ±2%...
  • Page 83 RPR 563GS/KGS ITEM/CIRCUIT REFERENCE DESCRIPTION PART No. 13. Semiconductors D101 LED RED TLLR4401 3704-0020 D102,104,105,106,107, 108,109,121,123,124 DIODE, CHIP BAT 74 3710-0002 D103 LED GREEN 3mm DIA.(T-1) 3704-0024 D110-117 LED SMD YELLOW/GREEN 3704-0023 D118,120 DIODE GF1A 3703-0049 D119 DIODE ZENER CHIP BZX84C6V2...
  • Page 84 RPR 563GS/KGS INTENTIONALLY BLANK Page 6 - 10 TM1187A Issue C...
  • Page 85 SECTION 7 DIAGRAMS CONTENTS Source Drawing Page Radio Board Circuit Diagram (Sheet 1 of 5) 2961-1784 Iss. 1 7 - 3/4 Sheet 1 Radio Board Circuit Diagram (Sheet 2 of 5) 2961-1784 Iss. 1 7 - 5/6 Sheet 2 Radio Board Circuit Diagram (Sheet 3 of 5) 2961-1784 Iss.
  • Page 86 INTENTIONALLY BLANK Page 7 - 2...
  • Page 87 Figure 12: Battery Pack Circuit Diagram Page 7 - 25...
