Perle PINJ130 Installation Manual

Gigabit poe/poe+ injector

Advertisement

Quick Links

Perle PINJ130
Gigabit PoE/PoE+ Injector
Installation Guide
P/N 5500348-10 (Rev F)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PINJ130 and is the answer not in the manual?

Questions and answers

Summary of Contents for Perle PINJ130

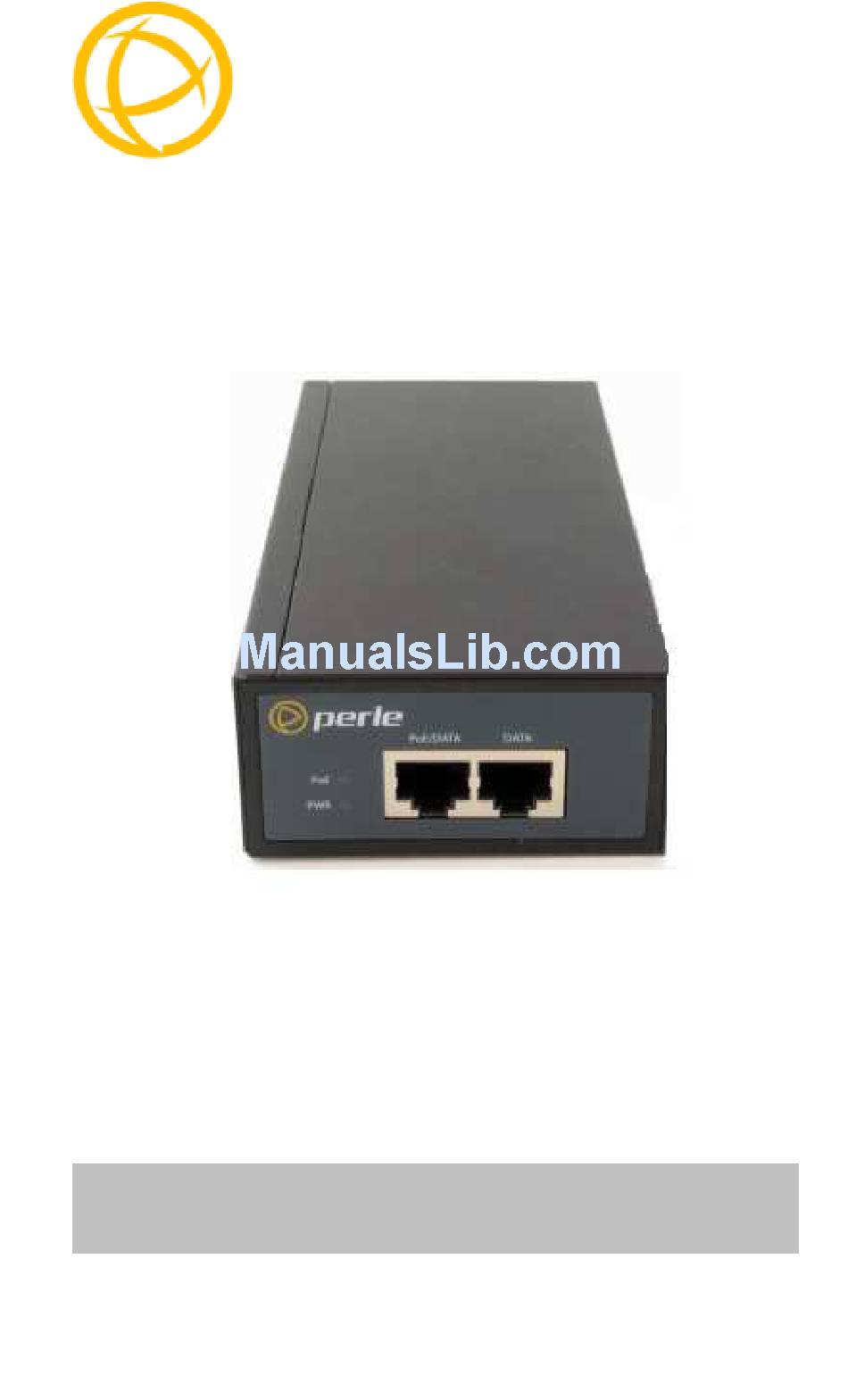

  • Page 1 Perle PINJ130 Gigabit PoE/PoE+ Injector Installation Guide P/N 5500348-10 (Rev F)
  • Page 2: Package Contents

    Introduction The Perle PoE/PoE+ Injector is used to provide DC voltage to the downstream device, such as a Wireless Access Point or IP Phone when connected to a non- PoE upstream switch port. The PoE/PoE+ Injector has two Ethernet ports. One port connects to the non-PoE upstream device, such as a router or switch.
  • Page 3 Ethernet cable to connect to the injector’s Data port to the LAN of an Ethernet device, such as an Ethernet switch. 3. Use the included power cord to connect the injector’s power socket to a power source. PINJ130 Gigabit PoE/PoE+ Installation Guide - 3 -...
  • Page 4 • 24-22 AWG • Straight through or Ethernet crossover cable Connect the copper cable from the Data port to an Ethernet switch. See below for pinouts. 8-pin RJ-45 Remaining pins not used. - 4 - PINJ130 Gigabit PoE/PoE+ Installation Guide...
  • Page 5 Cautions Ensure that the voltage and current ratings of the intended power source are appropriate for the Perle Injector as indicated on the product label. Ensure that the installation and electrical wiring of the equipment is performed by trained and qualified...
  • Page 6: Technical Specifications

    100 meters (328ft) Environmental Operating Temperature 0°C to 40°C (32°F to 104°F) Storage Temperature -40°C to 70°C (-40°F to158°F) Ambient Relative Humidity 10 – 95% (non-condensing) Regulatory Approvals Certifications CE, FCC Class A - 6 - PINJ130 Gigabit PoE/PoE+ Installation Guide...
  • Page 7 Mechanical Drawings PINJ130 Gigabit PoE/PoE+ Installation Guide - 7 -...
  • Page 8: Contacting Technical Support

    (PTAC) can be found at the link below. A Technical Support Query may be made via this web page. www.perle.com/support_services/support_request.shtml Warranty / Registration This product is covered by the Perle Ethernet Switches Warranty. Details can be found at: http://www.perle.com/support_services/warranty.shtml Copyright © 2016 Perle Systems Limited all rights reserved. No part of this document may be reproduced or used in any form without written permission from Perle Systems Limited.
