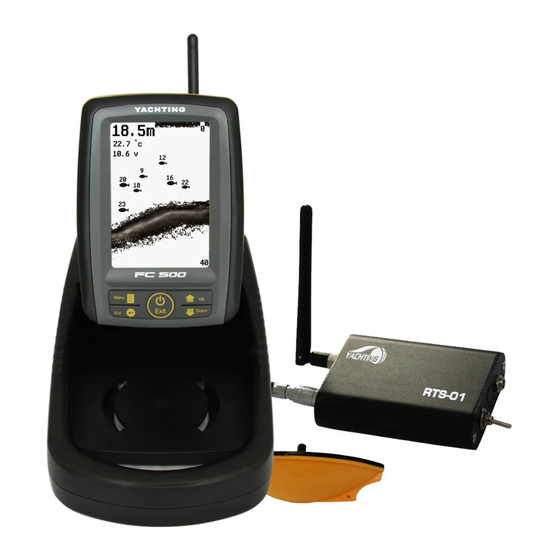

FC500 Fish Finder
User Instructions
Viper Bait Boats, Unit 2/3 Wakefield Commercial Park, Bridge Road, Horbury, Wakefield,
West Yorkshire, WF4 5NW. Tel: 01924 281182. Fax 01924 281400. email: viperbaitboats@hotmail.com.
www.viperfishing.co.uk

Advertisement

Table of Contents
loading

Summary of Contents for Viper FC500

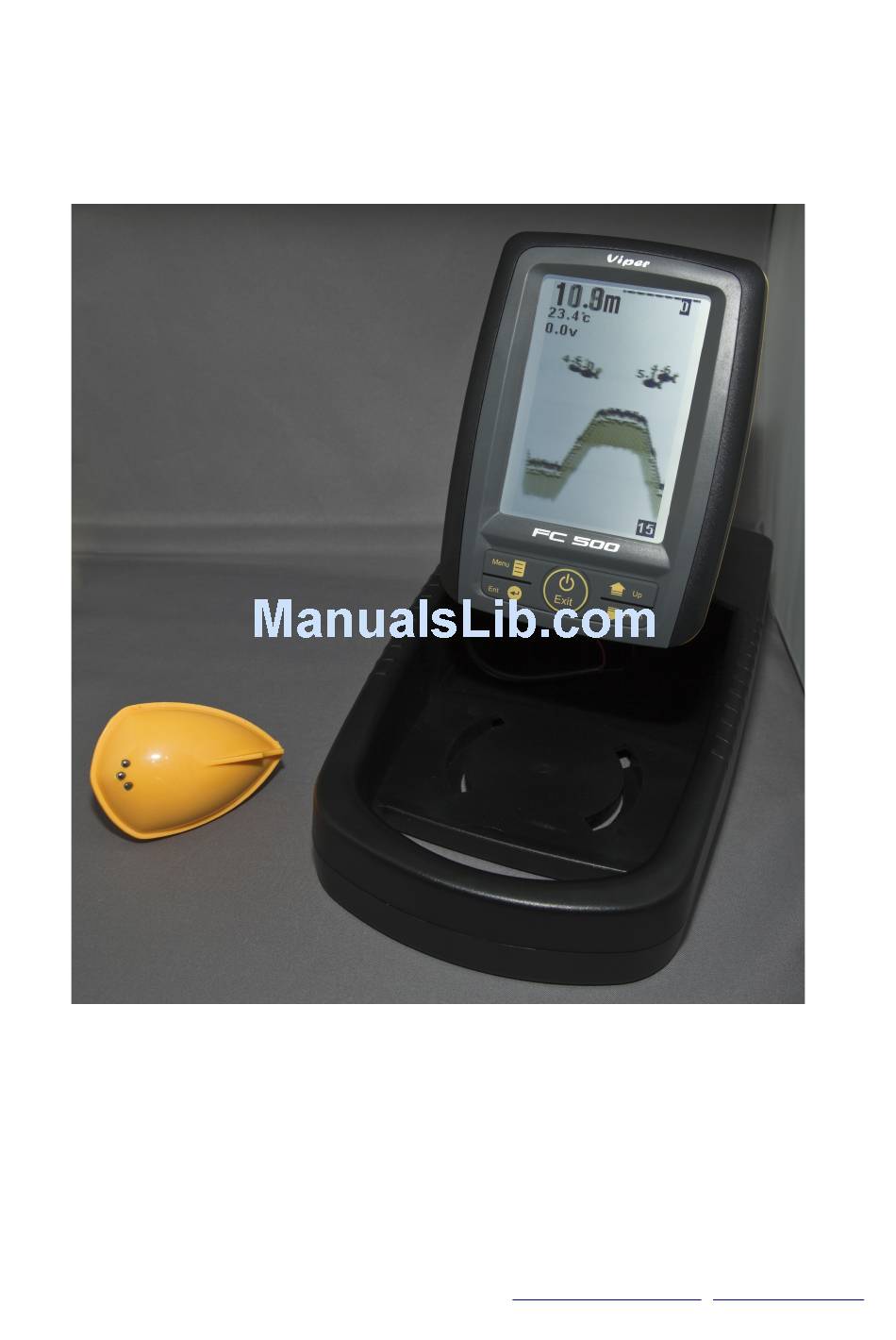

  • Page 1 FC500 Fish Finder User Instructions Viper Bait Boats, Unit 2/3 Wakefield Commercial Park, Bridge Road, Horbury, Wakefield, West Yorkshire, WF4 5NW. Tel: 01924 281182. Fax 01924 281400. email: viperbaitboats@hotmail.com. www.viperfishing.co.uk...

  • Page 2: Understanding The Screen

    The FC500 fish finder will make a noise when you press the key to indicate the unit has accepted a command. Power and Exit Key The Power and Exit key is used to turn the FC500 fish finder on or off. It is also used to exit a menu setting. Menu Key The Menu Key is used to enter into a menu setting and switch between the menus.
  • Page 3 Noise Filter is used to filter the noise from the air or water environment to get a clear sonar image on the screen. In many situations, your FC500 fish finder display will be effected by undesired signal which may be caused by your boat engine, turbulence, wiring, or other electrical and mechanical sources. Such an undesired signal will produce an unwanted mark on the screen, which may cause a misunderstanding of the underwater condition.
  • Page 4 'cloudy', then increasing the Noise Filter should be helpful. When the water is deep enough, the high value setting may greatly affect or even hinder your FC500 Fish finder's performance to find the bottom. So, in deep water, decreasing the Noise Filter value will be helpful.
  • Page 5 To set the Grayline: Press Menu to enter into menu setting. Repeatedly press Menu to switch to Sonar menu. Use the Up/Down Arrow to select Grayline option. Press Ent to enter into setting Use the Up/Down Arrow to select the option Press Ent to confirm the setting Press Exit to exit the setting.
  • Page 6 Your FC500 fish finder allows you to see any depth segment with any scale. For example, if the current depth range is 0 – 40m, by setting Zoom Range to 20-25m, you can see the sonar image of the 20-25m depth segment with an 8x scale.
  • Page 7 Press Ent to confirm the setting. Press Exit to exit the setting. Note: After Select “on” option: Press Ent to switch to the “Up” or “Low” Range. Press Up/Down Arrow to change the value. Press Ent to confirm the setting. Press Exit to exit the setting.
  • Page 8 Press Ent to enter into setting. Use the Up/Down Arrow to change the value. Press Ent to cxonfirm and exit the setting. Fish Alarm The FC500 Fish finder will sound an alarm tone when it detects what it determines to be a fish.

  • Page 9: Main Battery

    Use the Up/Down Arrow to change the value Presss Ent to confirm and exit the setting. Main Battery The FC500 Fish finder will sound an alarm tone when the battery strength of the sonar unit is lower than the setting. To set the Main Battery: Press Menu to enter into menu setting.
  • Page 10 To set Boat Battery Press Menu to enter into menu setting. Repeatedly press Menu to switch to Alarm menu Use the Up/Down Arrow to select Boat Battery option. Press ent to enter into setting, Use the Up/Down Arrow to change the value. Press Ent to confirm and exit the setting.
  • Page 11 To set the units: Press Menu to enter into menu setting. Repeatedly press Menu to swtich to Units menu Use the Up/Down Arrow to select Units option. Press Ent to enter into setting. Use the Up/Down Arrow to select the option. Press Ent to confirm the setting.
  • Page 12 Press Exit to exit the setting Simulator Simulator is used to let you practise using the FC500 fish finder as if you were on the water. Under the simulating mode, the simulated bottom signal with fish signals will display and move across the screen and under the simulating mode, you can still change settings to view different sonar images to have a complete understanding of your fish finder.

  • Page 13: Troubleshooting

    The FC500 fish finder has a depth capability from 0.3 to 30m, however due to the sonar character, the RTS sensor can only achieve the best performance in water ranging from 1.2 – 30m deep.

  • Page 14: Maintenance

    Nothing appears on the display even you can see fish under the sensor. Oil, dirt and fuel might cause a film to form on the sensor and reduce its effectiveness. Cleaning the surface of the transducer might help. Electrical noise nearby can interfere with the sonar, which will cause some weaker signals to be eliminated.

  • Page 15: Guarantee Conditions

    Adjustable back light and contrast. Visible under sunlight Language: English/German/French/Russian Sonar and Radio Depth Capability: FC500: 0.6 – 30m Wireless Operating Range: Max 300m Sonar frequency: 455KHZ Sonar Beam Angle: 80deg @ 10db Radio Frequency: 433.9MHz Sonar Alarms: Fish/Shallow/Low Battery Monitor and Display Real-time voltage of bait boat battery.
