VB0065
vänEE Canadian Model Numbers
1001 ERV
1001 HRV*
2001 ERV
2001 HRV*
* These products earned the ENERGY STAR® by meeting strict
energy efficiency guidelines set by Natural Resources Canada
and the US EPA. They meet ENERGY STAR requirements only
when used in Canada.
To register your Broan product on line visit: www.broan.com/register

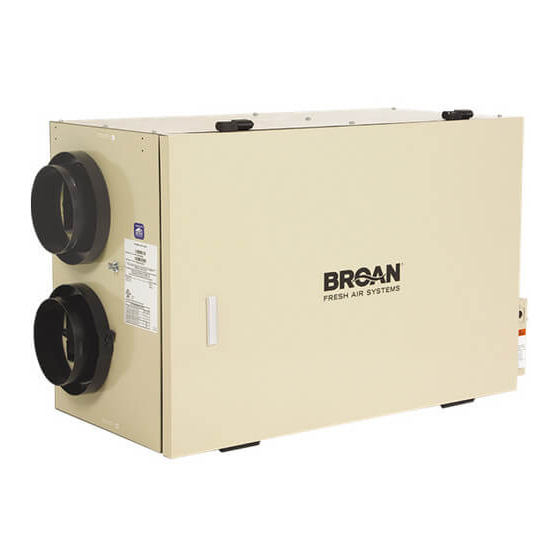

User Manual
VENTILATION SYSTEMS
Address of your installer
Broan U.S.A. Model Numbers
HRV100H
HRV200H
ERV100HC
ERV200HC
03118 rev. 08

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HRV100H and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Broan HRV100H

Summary of Contents for Broan HRV100H

  • Page 1 * These products earned the ENERGY STAR® by meeting strict energy efficiency guidelines set by Natural Resources Canada and the US EPA. They meet ENERGY STAR requirements only when used in Canada. Address of your installer To register your Broan product on line visit: www.broan.com/register 03118 rev. 08...
  • Page 2 ABOUT THIS MANUAL/PRODUCT The purpose of this manual is to help you with the use of your unit. Section 2 (How to Operate the Unit Using Controls) shows you how you can operate the unit in no time. Section 3 deals with maintenance and explains how to maintain the unit to ensure maximum operation and performance.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS ............4-6 OUR UNIT AND ITS PURPOSE 1.1 Unit Description..................4 1.2 Purpose of the Ventilation System ............4 1.3 Recovery ....................5 1.4 Defrosting....................6 1.5 Specifications ...................6 .......7-18 OW TO OPERATE THE UNIT USING CONTROLS 2.1 Instructions Regarding your Control Devices ........7-8 2.2 Using the Platinum Main Control ............9-11 2.3 Using the Deco-Touch Main Control..........12-14 2.4 Using the VT1W Main Control ...............15...

  • Page 4: Your Unit And Its Purpose

    1. YOUR UNIT AND ITS PURPOSE 1.1 U ESCRIPTION Power supply cord Filters Recovery core Condensation tray Blower assembly VL0017 1.2 P URPOSE OF THE ENTILATION YSTEM Your ventilation system is designed to provide fresh air, warmed outdoor air to your home while exhausting stale, humid air from your home.

  • Page 5: Recovery

    1.3 R ECOVERY • Units equipped with a heat recovery core (polypropylene core) are specifically designed to control excess humidity and reduce ventilation costs by recovering the heat energy from the exhausted air, and using that same heat energy to warm the fresh air being supplied.

  • Page 6: Defrosting

    Defrosting lasts 6 minutes. During the defrost cycle, the unit shifts to maximum speed and the dampers close. After defrosting, the unit returns to the operating mode selected by the user. 1.5 S PECIFICATIONS Model 1001 ERV, 1001 HRV, HRV100H, ERV100HC Width 30¼” (768 mm) Height 20” (508 mm) Depth 13¾”...

  • Page 7: How To Operate The Unit Using Controls

    2. HOW TO OPERATE THE UNIT USING CONTROLS 2.1 I NSTRUCTIONS EGARDING YOUR ONTROL EVICES Refer below and on the following page to identify which controls are installed in your house. Then, go to the pages indicated to learn how to CONTROL your unit. ONTROLS Platinum .

  • Page 8: Instructions Regarding Your Control Devices

    2.1 I ’ NSTRUCTIONS EGARDING YOUR ONTROL EVICES CONT ’ ONTROLS CONT HUMIDITY CONTROL Dehumidistat ......Page 17 DURING FALL, WINTER AND SPRING, SET THE DIAL ACCORDING TO...

  • Page 9: Using The Platinum Main Control

    2.2 U SING THE LATINUM ONTROL CREEN NDICATORS VC0099 SMART Mode. Entirely automatic mode Animated Arrows showing ventilation optimizing the ventilation. status (recirculation or air exchange). Temperature Indicators. Periods of the day (morning, day, evening and night). Program Mode. Allows to program the desired ventilation according to the period Week days.
  • Page 10 2.2 U ’ SING THE LATINUM ONTROL CONT The Platinum main control is pre-programmed and ready to go. All you have to do is to set day and time. Then check the settings below and change if needed. ETTING REFERENCES Press on MODE / PREF key (D) for 3 seconds.
  • Page 11 2.2 U ’ SING THE LATINUM ONTROL CONT Pressing on MODE / PREF key (D) successively allows to go from Ventilation mode to Recirculation mode and then to Program mode (VENT , RECIRC and PROG control screen). • In Ventilation Mode, use to change the ventilation speed (displayed in in all options except RECIRC).

  • Page 12: Using The Deco-Touch Main Control

    2.3 U SING THE OUCH ONTROL ACKLIGHT If the backlight is not illuminated, the first button pressed (no matter which button) shall turn on the backlight. The backlight remains illuminated for 10 seconds after the last button pressed. VC0117 PERATING ODES To change the operation mode of the ventilation unit, press the UP or DOWN arrow button.
  • Page 13 2.2 U ’ SING THE LATINUM ONTROL CONT (RH) OW TO SET THE RELATIVE HUMIDITY LEVEL AND CHOOSE BETWEEN RECIRCULATION IN STANDBY OR IN STAND Setting the relative humidity level allows to select the maximum desired indoor humidity level (in percentage). This value will be used to start the dehumidistat override (air exchange in high speed).
  • Page 14 2.2 U ’ SING THE LATINUM ONTROL CONT EHUMIDISTAT VERRIDE ELECTION In the operating modes MIN, MAX, 20 and RECIRC, the user can select a dehumidistat override so that if the relative humidity (RH) in the house exceeds the RH setting previously stored, the ventilation unit will exchange in high speed until the target indoor RH setting is reached.

  • Page 15: Using The Vt1W Main Control

    2.4 U VT1W M SING THE ONTROL Location: Located in the busiest area of the house. Purpose: To adjust air supply and reduce condensation on windows. AIR SUPPLY CONTROL DJUSTING THE Select speed “MIN.” or “MAX.” using switch A CONDENSATION CONTROL (as shown on diagram).

  • Page 16: Using The Vt2W Main Control

    2.5 U VT2W M SING THE ONTROL Location: Located in the busiest area of the house. Purpose: To adjust air supply and reduce condensation on windows. AIR SUPPLY CONTROL DJUSTING Press “PUSH” (A) until the “MIN.”, “MAX.” or “INTERMITTENT” light indicator appears. •...

  • Page 17: Using The Dehumidistat Main Control

    2.7 U SING THE OSITION WITCH Location: Located on the side of the unit, only on models HRV100H and HRV200H. Purpose: To adjust air supply. How to operate the unit on a daily basis: Select “LOW’’ or “HIGH’’ speed: • Select “LOW SPEED’’ for normal daily operation.

  • Page 18: Using The Optional Controls

    Located in the bathroom or in other locations where there is temporary excess humidity or pollutants. Purpose: To eliminate excess humidity produced by showers or other periodic activities producing pollutants. 20-MINUTE PUSH-BUTTON TIMER: HRV100H HRV200H M VAILABLE ONLY FOR ODELS Activate the push-button. Results expected: Motor speed: High for 20 minutes.

  • Page 19: Maintenance

    3. MAINTENANCE 3.1 E VERY HREE ONTHS WARNING Dangerous voltage may be present. During maintenance and repairs, the unit must always be turned off, then unplugged. We take great care to minimize sharp edges; however, please proceed with caution when handling all components.

  • Page 20: Annual Maintenance (Fall)

    3.1 E ’ VERY HREE ONTHS CONT Clean the condensation tray with a damp cloth. VD0101 Check the exterior air intake hood: CAUTION Even a partial blocking of this air vent could cause the unit to malfunction. • Make sure there are no leaves, twigs, ice or snow that could be drawn into the vent. •...
  • Page 21 3.2 A ’ NNUAL MAINTENANCE FALL CONT 2. Clean the centrifugal fan wheels Remove the wing nut. VD0103 Disconnect the blower motor wires. VE0050 Remove the blower assembly. VD0104 Check for any dust accumulation on the blades. CAUTION Do not oil the motor! It is already permanently lubricated.

  • Page 22: Troubleshooting

    4. TROUBLESHOOTING If the unit does not work properly, reset the unit by unplugging it for one minute and then replug it. If it still not working properly, refer to table below. TYPE OF PROBLEM TRY THIS... On Platinum wall control, •...
