TP-Link TL-WR720N Quick Installation Manual

Quick Installation Guide

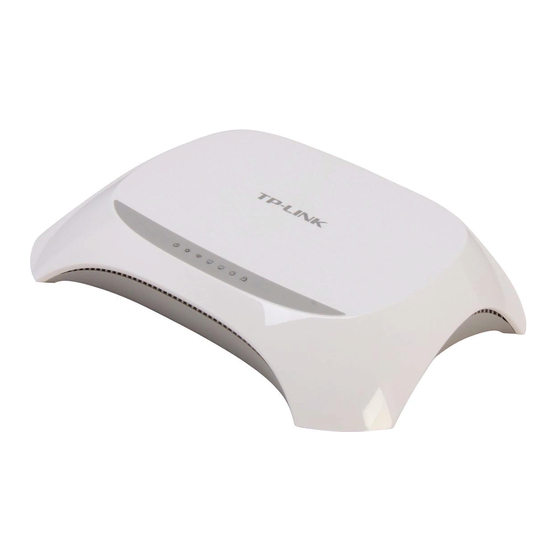

150Mbps Wireless N Router
TL-WR720N
MODEL NO.
2
Con guring the Router via Web Management Page
Open your browser and type http://tplinkwi .net
1
in the address eld, then use admin for both user
name and password to log in.
Click Quick Setup in the main menu and click Next.
2
3 Select the WAN connection type provided by your ISP.
Or you can select Auto-Detect and click Next to
continue.
©2016 TP-LINK 7106506171 REV2.0.1
Package Contents
TL-WR720N Power Adapter
Quick Installation Guide
150Mbps Wireless N Router
MODEL NO. TL-WR720N
Ethernet Cable QIG
1
Hardware Connection
Wall Socket
Wall Socket
Internet
Cable/DSL Modem
4
2
Power o your modem.
1
Connect the WAN port on your Router to the modem's LAN port with an Ethernet cable.
2
Connect your computer to one of the LAN ports labeled 1~2 on the Router with an Ethernet cable.
3
Power on the modem and wait for one minute .
4
5 Plug the provided Power Adapter into the POWER jack on the back of the Router and the other end to a standard electrical wall socket.
The Dynamic IP is the suitable connection type for
4
most cases. Here we take it as an example. On the
next page, you can rename your wireless network
and create your own password. The default wireless
name is TP-LINK_XXXX, and the default wireless
password, the same as the PIN code, is printed on
the bottom label. Click Next to continue.
Click Reboot or Finish to make your settings take e ect.
5
WPS/
RESET POWER WAN 1 2
Computer
5
3
