RC
LAZER BLADE

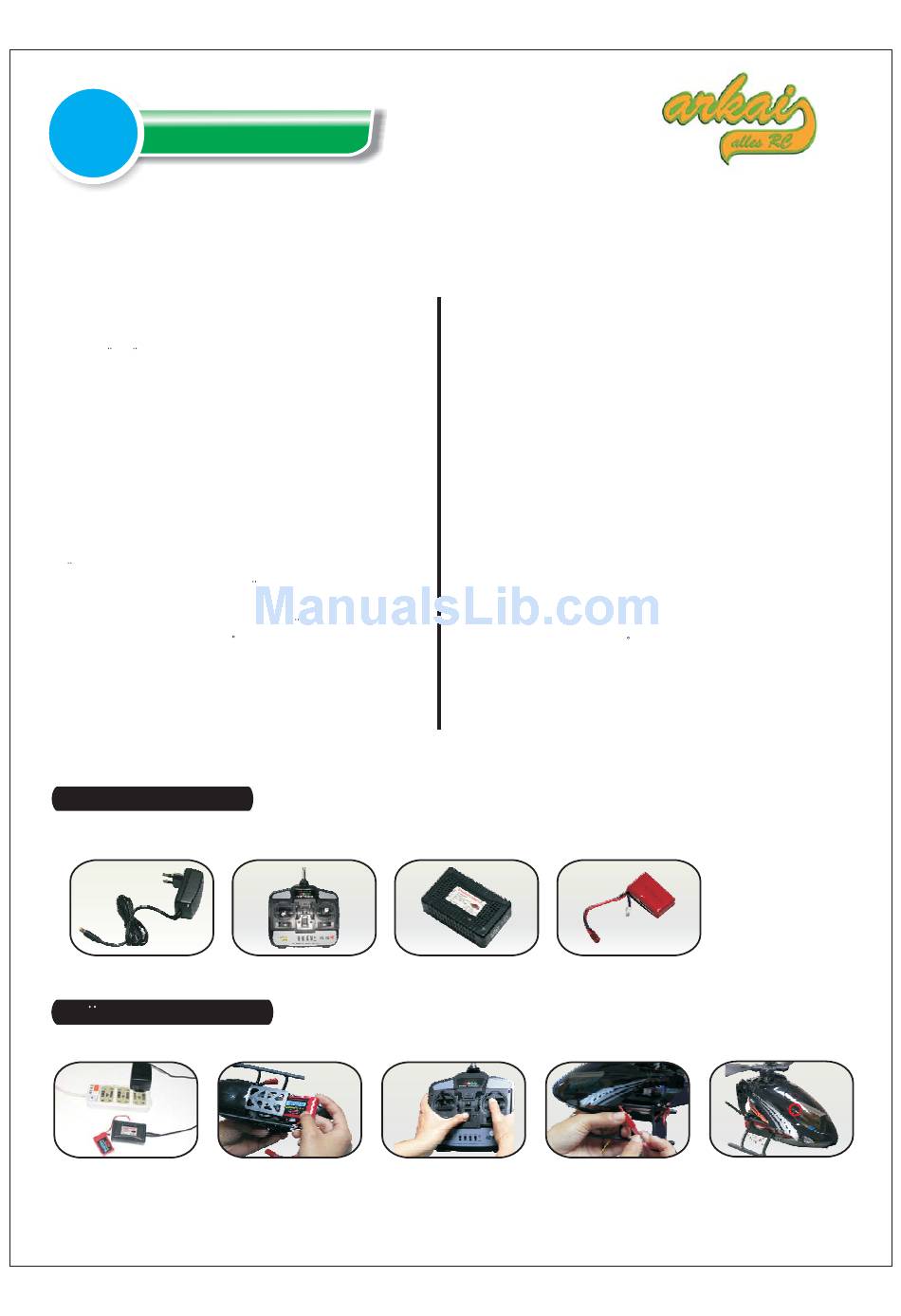

Kurzanleitung/Quick Start Guide
Produkt Information
>Der Lazer Blade mit dem Doppelrotorkopf ist besonders flugstabil und leise im Flug
>SPEZIELL fur Anfanger ist der Doppelrotor ideal fur den
EINFACHEN Einstieg in den realistischen helikopterflug:
mit diesem helikopter lernen sie schnell und sicher in kurzer zeit wie ein helikopter fliegt!
..
>Das Akkufach ist speziell fur den einfachen und schnellen batterietausch konzipiert
worden
>Durch die Energieversorgung mit lithium - Polymer -Akkus
erreicht der helikopter besonders lange flugzeiten

Technische Daten:

RTF-Helikopter
>Rotor Diameter : 345mm
>Gewicht: 240g
>Lange: 400mm
>Motor: 2x180er Motoren(vorenstort)
>Sender: 4 Kanal mit Reverse Funktion direkt am sender
>Controller: 4 in 1(Gyro,mixer,Esc&Empfanger)
>Servo: 8g,1.3kg/cm ,0.12s/60
>Akku: 7.4v ,800mAh li-polymer batterien
..
Hervorragend auch fur indoorfluge (z.B. In lhrem
wohnzimmer) geeignet!
Voreingestellte und vom werk
..
geprufte Einstellungen, um direkt zu fliegen
Sender und Batteriezubehor
Transmitter and charging equipments in the packing box
Netzadapter
Power supply
In funf Schritten zum Fliegen
The operation guide before flying
2. Batterie in Helicopter
1. Laden des lithium-polymer
einladen
Akku
2. Loading Battery
1. Charging lipo battery
..
..
Fernbedienung
Remote control
3 . Erst Sender einschalten
3. Switch the remote control
on first
Product Information
> Lazer Blade with its double-blade-sharing- one-axis structure and stable,
silent flight abilities is designed by our professional engineers.
>Especially for the beginner it is designed with simple but realistic flying
operation and therefore it is easy to learn how to fly. you will be familiar with the
helicopter and enjoy the flying in short term.
>The battery case is especially designed for an easy and quick battery exchange.
>With the power supply of lithium-polymer batteries the helicopter can fly
a lot longer
Specification
>Main rotor diameter :345mm
>Weight: 240g
>Length: 400mm
>Power system: 2x180 Motor
>Remote control: 4 Channel with reverse function
>Mix controller: 3 in 1 controller(W/gyro,mixer,ESC,receiver)
>Servo: 8g,1.3kg/cm ,0.12s/60
>Battery: 7.4v,800mAh lithium polymer battery
Excellent design for your indoor flight. Pre-position
servomounts for easy setup
Lipo Lazer
Lithium-Polymer -Akku
charger
Lithium Polymer
4. Verbinden des lipos mit
dem 3-1 Kontroller
4. Connecting battery with
the 3-1 controller
Ready for flight out of the box.
battery
..
5. Leuchtet die grune LED
konnen Sie mit dem lazer blade
bereits
abheben...so einfach!
5. The green LED indicates" ready to fly"
