Page 1: User Manual

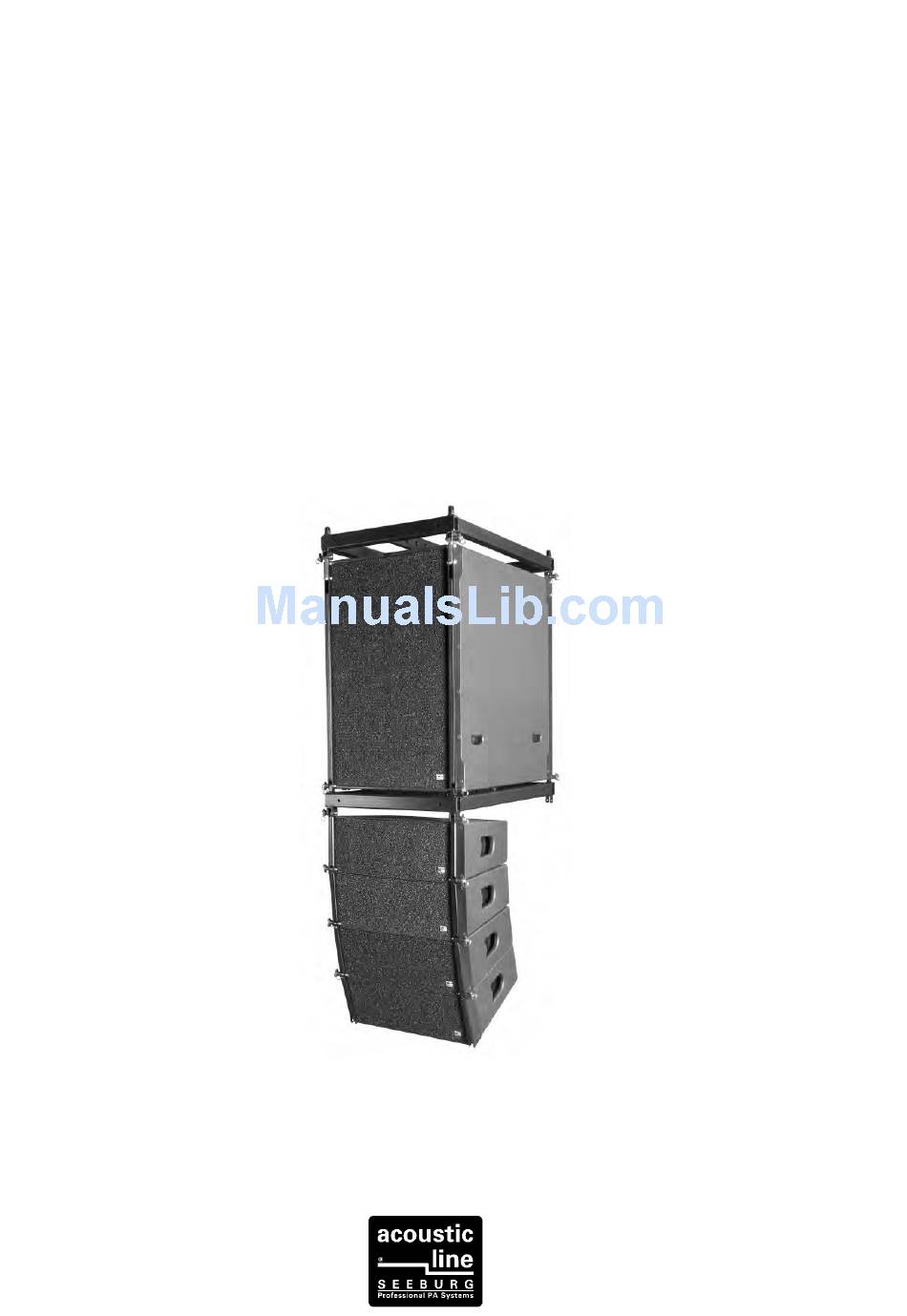

User Manual Galeo System Galeo Cylindric Wave Unit Galeo Sub Galeo Flying Frame Galeo Sub Flying Frame Last updated: 09/2008... -
Page 2: Table Of Contents
Transportation ..............10 EASE Focus................. 11 Assembly and disassembly, flown operation ......12 Assembly and disassembly, groundstack operation ....15 Part 3 – System Start-up System rack................16 Controller setups ..............17 Cabling................. 18 Sound optimisation ............... 19 SEEBURG acoustic line... -
Page 3: Foreword
Sub offers a high level of bass, lowest distortion and a long throw. Please read this user manual carefully and follow the instructions provided. It should be within reach at all time when setting up the Galeo system in order to be able to find a solution to any queries. -
Page 4: Part 1 - General Information
Part 1 – General Information Components The Galeo system comprises the Galeo Cylindric Wave Units and a compatible Galeo Sub bass extension of the same width and includes appropriate flying hardware. Die Galeo Cylindric Wave unit is to be understood as an individual element within a line array sound system. -
Page 5: Safety Instructions
Please note that all quoted regulations are predominantly applicable in Germany. Work in compliance with the regulations applicable in the country you are in. SEEBURG acoustic line... -
Page 6: Coverage
For further information refer to the Galeo Sub dp user manual. Likewise, the coverage angle of subwoofers can also be influenced by specific positioning and corresponding delays. SEEBURG acoustic line... -
Page 7: Possible Combinations, Groundstack Galeo
In addition, due to the comparably low crossover frequency of 80Hz, the subwoofers are normally not locatable. Thanks to the steep crossover of 24dB/oct, interference between the Galeo and the Galeo Sub is kept to a minimum. SEEBURG acoustic line... - Page 8 TSE infra bass extensions placed horizontally on the floor. For smaller sound applications a speaker pole can be screwed into the M20 thread of the Galeo Sub. The flying shackle Art. Nr. 01385 can be used for assembling up to two Galeo units. SEEBURG acoustic line...
-
Page 9: Combination With Galeo Xt
Remember that when setting up the Galeo and Galeo XT, the delay times for the mid and high ranges must have the same setting. A separate Galeo controller setting is necessary to ensure the ideal addition over the complete length of the array. SEEBURG acoustic line... -
Page 10: Part 2 - Assembly And Rigging
For transporting two Galeo flying frames a separate accessory flightcase Art. No. 16003 is available in which replacement ball lock pins can also be stored. The Galeo Sub flying frame can remain attached to the Galeo Sub during transportation. SEEBURG acoustic line... -
Page 11: Ease Focus
EASE Focus Make use of the Galeo system’s acoustic and mechanical simulation software EASE focus. It is available for download in the respective download area of our website www.seeburg.net. This software facilitates simple simulation of how the inclination and angle of the Galeo should be adjusted for obtaining the ideal sound for the audience area. -
Page 12: Assembly And Disassembly, Flown Operation
Assembly and disassembly – Flown operation Assembly and disassembly of the Galeo system must be carried out by qualified personnel only. Every technician or staff member working with the system must have access to this user manual and the structural analysis certificate and be familiar with the most essential contents. - Page 13 The flying hardware of the Galeo system must be in impeccable condition. Lifting and load-bearing accessories must not show any signs of damage that may affect their function. Do not climb up the Galeo line array in order to change the inclination angle and the like.
- Page 14 Disassembly is carried out in reverse order. Always loosen the rear connections first, then the ball lock pins on the front side. Then place the array on the ground and set all elements to 0° before replacing into the case. SEEBURG acoustic line...
-
Page 15: Assembly And Disassembly, Groundstack Operation
The structural analysis certificate contains the following cases for stacked operation at open-air events and up to wind force 8: up to 6 Galeo on 1 Galeo Sub • up to 6 Galeo on the groundstack frame with extenders • SEEBURG acoustic line... -
Page 16: System Rack
Use the system racks in accordance with the instructions provided by the manufacturer of the installed components. This comprises in particular protection against dampness and rain, the operating temperature range and the securing of an adequately dimensioned power supply. SEEBURG acoustic line... -
Page 17: Controller Setups
Adapting to taste and room application should always be effected on the master equaliser or the input equalizer of the system controller in order not to affect the phasing of the single paths in relation to each other at the crossover frequency. SEEBURG acoustic line... -
Page 18: Cabling
Avoid using long cables, but if long distances are unavoidable, use 4 x 4mm² cable instead of the normal 4 x 2.5mm² cable to keep voltage drop to a minimum. SEEBURG acoustic line... -
Page 19: Sound Optimisation
It may become necessary to lower frequencies within the 2….4kHz region, as the ear is relatively sensitive within this range. Potential optimisation target curve SEEBURG acoustic line... - Page 20 Appendix SEEBURG acoustic line...
