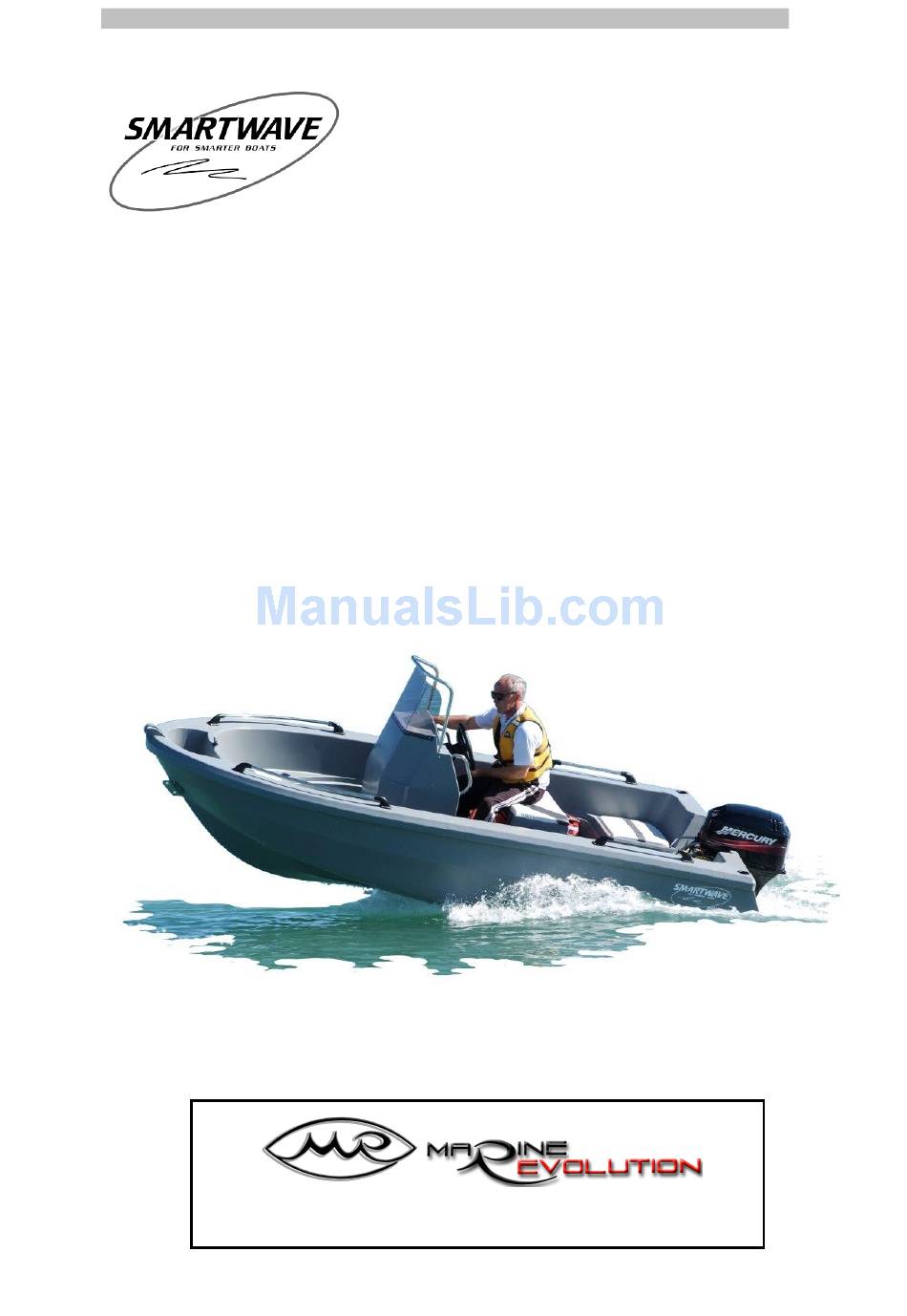

- Page 1 Marine Revolution Smartwave SW 4200 Owner’s Manual Owner’s Manual Smartwave 4200Series Marine R evolution L td www.marinerevolution.com Page...
-
Page 2: Table Of Contents
Marine Revolution Smartwave SW 4200 Owner’s Manual Table of Contents Table of Contents .......................... 2 General Introduction ........................3 Safe Boat Handling; ..................... 3 Drink and drugs ......................... 4 Environmental considerations ......................5 Boat Design ..........................5 Design Category ........................5 Essential equipment ........................ -
Page 3: General Introduction
Smartwave SW 4200 Owner’s Manual General Introduction Congratulations on your purchase of a Marine Revolution Smartwave boat. This manual has been compiled to help you operate your craft with safety and pleasure. It contains details of the craft; the equipment supplied or fitted systems and information on its operation and maintenance. Please read it carefully and familiarize yourself with the craft before using it. -
Page 4: Drink And Drugs
Marine Revolution Smartwave SW 4200 Owner’s Manual 4) speed; 5) rapid acceleration; 6) transition from displacement to planing mode; 7) sea conditions; 8) rain and spray; 9) darkness and fog; 10) interior lights; 11) position of tops and curtains; 12) persons or movable gear in the operator’s field of vision. -
Page 5: Environmental Considerations
4 and significant wave heights up to, and including, 0,3 m may be experienced, with occasional waves of 0,5 m maximum height, for example from passing vessels. Marine Revolution Smartwave SW4200 Series Type of craft ; Motor boat Type of hull;... - Page 6 Marine Revolution Smartwave SW 4200 Owner’s Manual The data here is defined in ISO/DIS 8666 - Small Craft - Principal Data. Category C: Dimensions Beam of hull according to ISO 8666 1.93 Crew limit according to 3.4.2 Length of hull according to ISO 8666 4.30...
-
Page 7: Essential Equipment
Marine Revolution Smartwave SW 4200 Owner’s Manual Length of hull according to ISO 8666 4.30 Length of waterline Draught of the canoe body 0.25 Weights Crew mass (75kg per person) Provisions and personal effects Basic equipment Stores and spares 25 litres petrol... -
Page 8: Anchoring & Towing
Marine Revolution Smartwave SW 4200 Owner’s Manual (BS EN ISO 11592) Maximum propulsion power rating for the craft is detailed above and on the CE plate • affixed to the vessel. Do not operate this craft with an engine of rated power larger than that posted on the •... -
Page 9: Bilge Pumping System
Marine Revolution Smartwave SW 4200 Owner’s Manual Smartwave Boat trailers are constructed using runners to support the boat and avoid point loading associated with rollers. Do not leave your boat on blocks or on the trailer unmoved for long periods of time. -
Page 10: Electrical System
Marine Revolution Smartwave SW 4200 Owner’s Manual Electrical System Never: - Work on an electrical installation which is connected - Modify an installation and the corresponding wiring diagrams unless this is carried out by a qualified marine electrician. - Disconnect the terminals or turn the battery switches off while the engine is running, as it could result in damage to the engine. -
Page 11: Fire Extinguishing System
Marine Revolution Smartwave SW 4200 Owner’s Manual Fire Extinguishing System (ISO 9094-1) Boats with outboard motor of more than 25 kW shall carry one or more portable fire extinguishers with a minimum combined capacity of 8A/68B General Requirements; Any portable fire extinguisher is readily accessible •... -
Page 12: Steering System
A second bung is located 25mm above the keel and is used to drain water from between the hull skins. This should not be removed. Please contact Marine Revolution for further details. Ensure both drain bungs have been secured before launching the boat Steering System Your Smartwave SW4200 may be fitted with a cable or Hydraulic steering system. -
Page 13: Seasickness
Small indentations can be repaired by applying heat to the area and gently returning the plastic to it’s original shape. In many instances minor dents will come out if left in a warm area or in the sun due to the plastics memory effect. Please contact Marine Revolution or your local dealer for further details. Page 13... -
Page 14: Storing Your Boat
If the fault is with the switched instruments, please remove and inspect the individual circuit fuses. If no evidence of a fuse fault can be found please consult Marine Revolution for further information. Your engine contains system fuses for the various components. Please refer to the owners’ manual for further information. -
Page 15: Identification Details
Marine Revolution Smartwave SW 4200 Owner’s Manual Identification Details Identification; Craft identification as per EN ISO 10087 HIN number (small craft – hull identification-coding system) ……………………………………………………………… Builder’s Plate as per ISO 14945 Serial Number (small craft- builder’s plate) ……………………………………………………………….. Notes...
